Frigidaire FAS296P2A1 Manuale utente

Product No. FAS294P2A1 FAS296P2A1

Series heavy duty heavy duty

Volts 230/208 230/208

BTU-Cooling 28500/28000 BTU 28500/28000 BTU

Wiring Diagram 81902546 81902546

Owner's Guide frig819042060en frig819042060en

Installation Instructions 819042102en 819042102en

Market North America North America

M40L0004.eps M40C0009.eps M40M0009.eps 81902546.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437885

05/05/26

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS294P2A /

FAS296P2A

Publication No: 5995437885 FAS294P2A / FAS296P2A

05/05 2

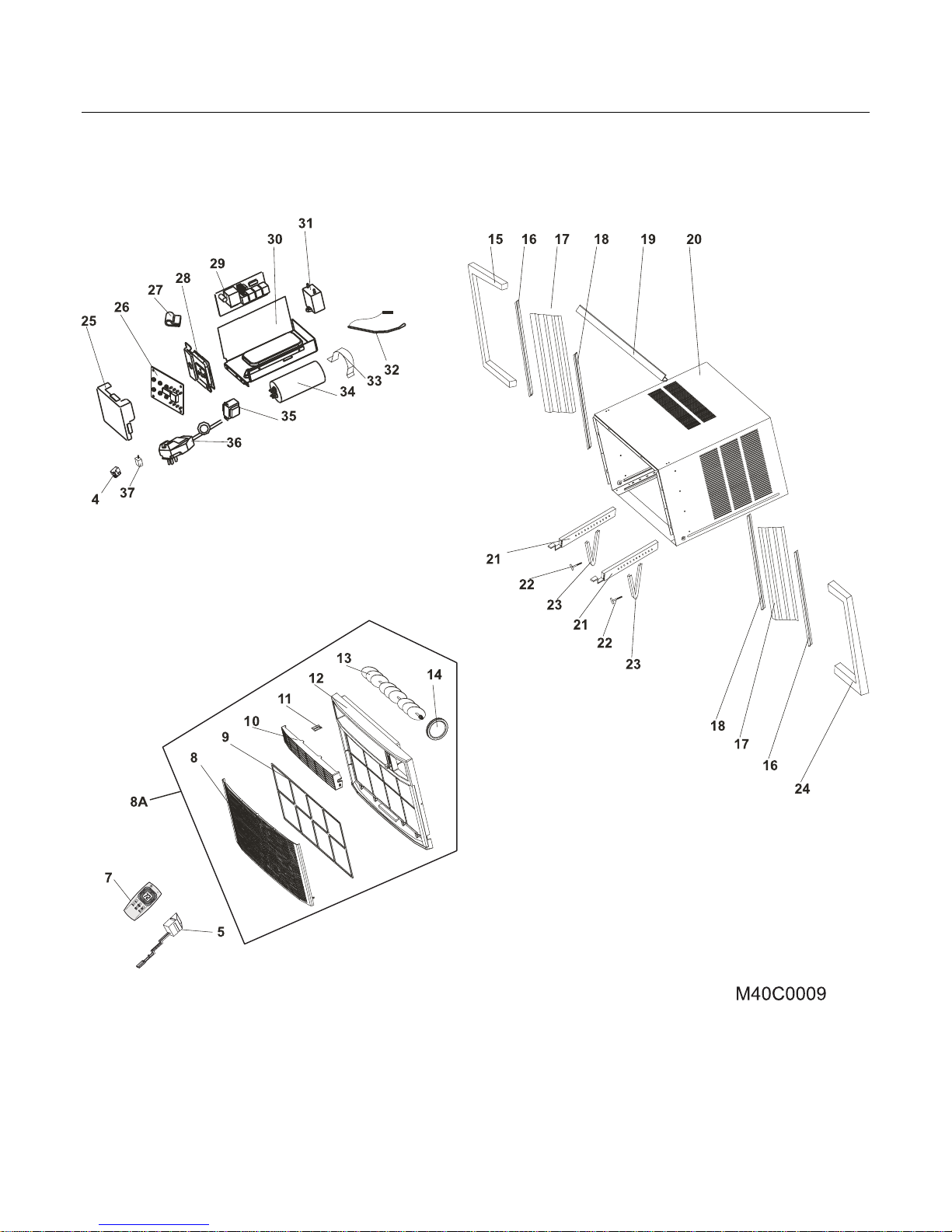

CABINET, FRONT, CONTROLS

FAS294P2A / FAS296P2A Publication No: 5995437885

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAS294P2A (FAS294P2A1)

BFAS296P2A (FAS296P2A1)

POS. NO PART NO. DESCRIPTION

4 5304447780 A B Cover, ionizer

5 5304447944 A B Vent, fresh air, with lever

7 # 5304447782 A - Remote Control, transmitter

7 # 5304447883 - B Remote Control, transmitter

8A 5304448484 A B Front Assembly, complete panel, includes 8, 9, 10, 11, 12, 13, 14

8 5304447783 A B •Panel, front grille

9 5304447784 A B •Filter, air, plastic frame

10 5304447785 A B •Louver, horizontal

11 5304447786 A B •Clip, air vent

12 5304447787 A B •Frame, front assembly

13 5304447788 A B •Louver, vertical

14 5304447789 A B •Dial, louver adjuster

15 5304447790 A B Frame, shutter panel, LH

16 5304447792 A B Retainer, shutter lock

17 5304447793 A B Shutter, accordion panel, RH/LH

18 5304447794 A B Retainer, shutter mount, cabinet sides

19 5304447795 A B Rail, shutter track, top

20 5304447796 A B Cabinet, wrapper/sleeve

21 5304447797 A B Bracket, cab mounting

22 5304447798 A B Screw, cab leveling

23 5304447799 A B Bracket, angle, cab support

24 5304447791 A B Frame, shutter panel, RH

25 5304447800 A B Console, control cover

26 # 5304447801 A B PC Board, display/input

27 5304447949 A B Clip, cable clamp

28 5304447803 A B Cover, front plate, control box

29 # 5304447861 A B PC Board, control/power

30 5304447805 A B Control Box

31 # 5304447973 A B Capacitor, fan motor

32 # 5304447807 A B Sensor, temperature, evap/indoor

33 5304447808 A B Strap, capacitor mtg.

34 # 5304447964 A B Capacitor, run

35 # 5304447937 A B Transformer

36 # 5304447951 A B Power Cord, LCDI, with test/reset

37 # 5304447940 A B Ionizer, clean air

Publication No: 5995437885 FAS294P2A / FAS296P2A

05/05 4

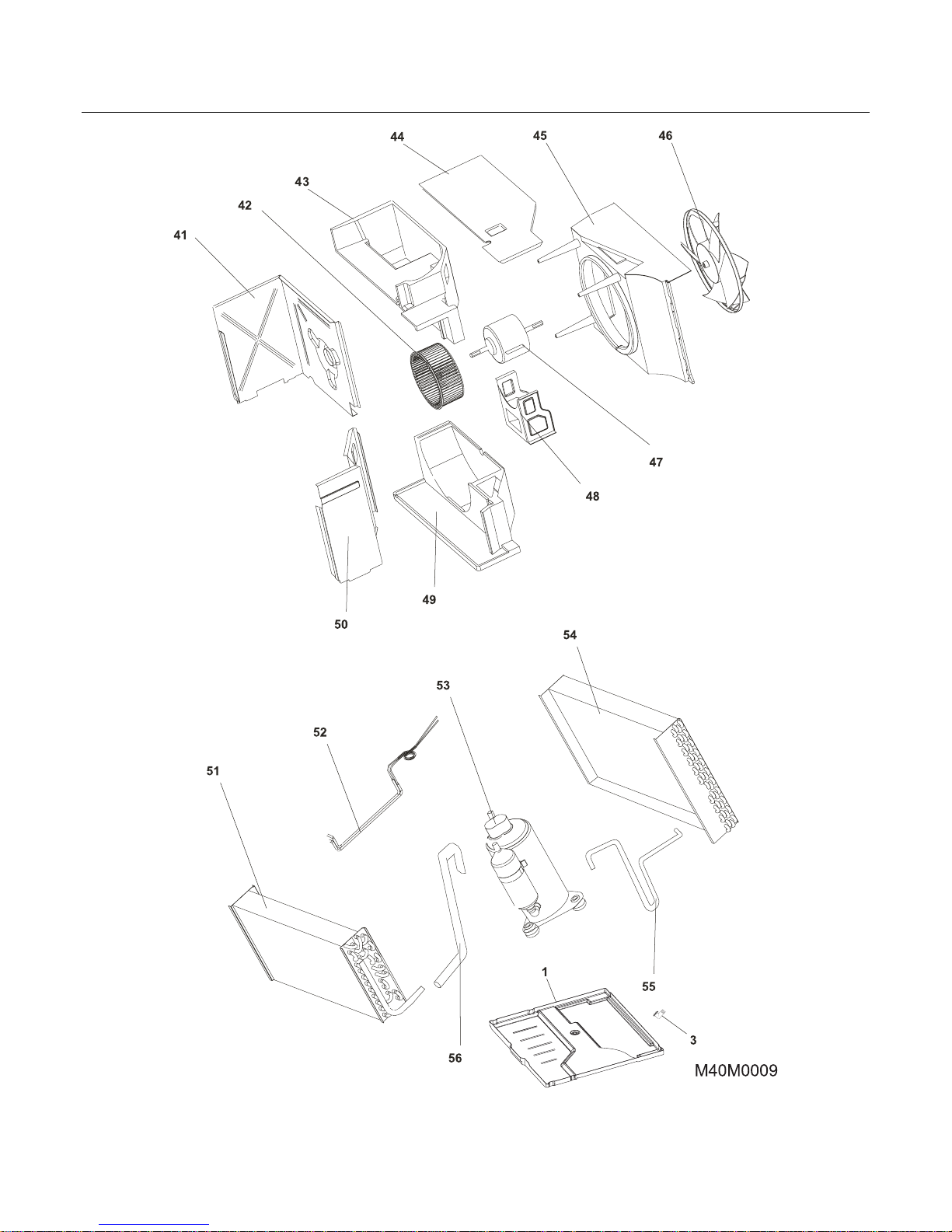

COOLING & AIR FLOW SYSTEMS

FAS294P2A / FAS296P2A Publication No: 5995437885

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAS294P2A (FAS294P2A1)

BFAS296P2A (FAS296P2A1)

POS. NO PART NO. DESCRIPTION

1 5304447972 A B Base, unit chassis

3 5304447963 A B Plug, drain

41 5304447813 A B Bulkhead, panel, left side

42 # 5304447974 A B Blower Wheel, centrifugal fan

43 5304447975 A B Scroll, blower housing, top

44 5304447816 A B Cover, blower scroll, top plate

45 # 5304447817 A B Shroud, fan housing

46 # 5304447976 A B Fan Blade, axial flow

47 # 5304447977 A B Motor, fan

48 5304447978 A B Bracket, fan motor mount

49 5304447979 A B Scroll, blower housing, bottom

50 5304447822 A B Bulkhead, panel, right side

51 # 5304447980 A B Evaporator

52 # 5304447981 A B Capillary Tube

53 # 5304447982 A B Compressor Assembly, w/electricals, drier, grommets

54 # 5304447983 A B Condenser

55 # 5304447984 A B Discharge Tube

56 # 5304447985 A B Suction Tube

Publication No: 5995437885 FAS294P2A / FAS296P2A

05/05 6

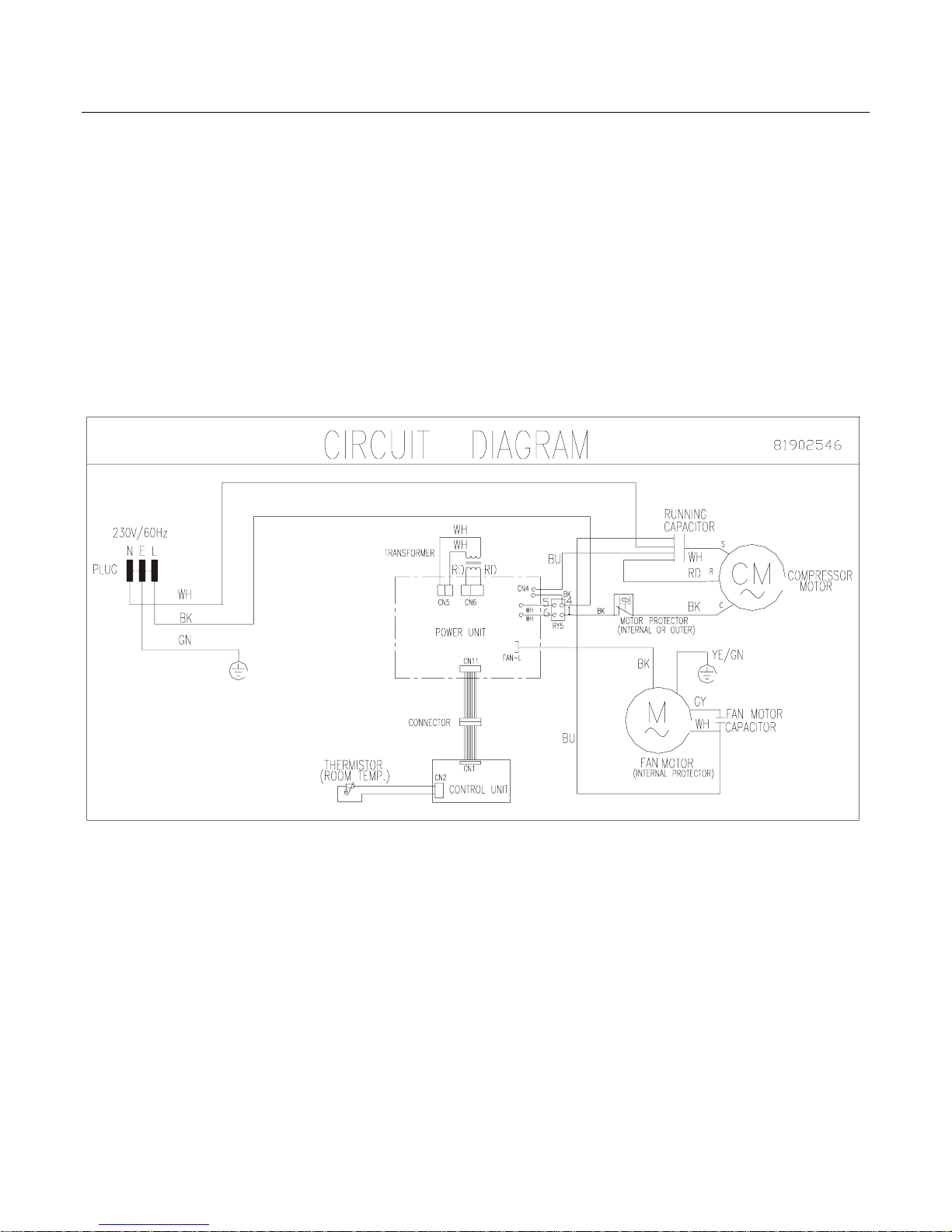

WIRING DIAGRAM

81902546
