Frigidaire FEC26C2A Manuale utente

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FEC26C2ACA FEC26C2A 38054111510C1 stainless North America

FEC26C2AQA FEC26C2A 3805411151041 bisque North America

FEC26C2ASA FEC26C2A 3805411151011 white North America

Publication No.

5995361457

011128

-EN/SERVICE /ECL

377

ELECTRIC

COOKTOP

Model No.

FEC26C2A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046901

OWNER’S GUIDE - # 318200612

INSTALLATION INSTRUCTIONS - # 318201410

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

11/01 2

Publication No. FEC26C2A

5995361457

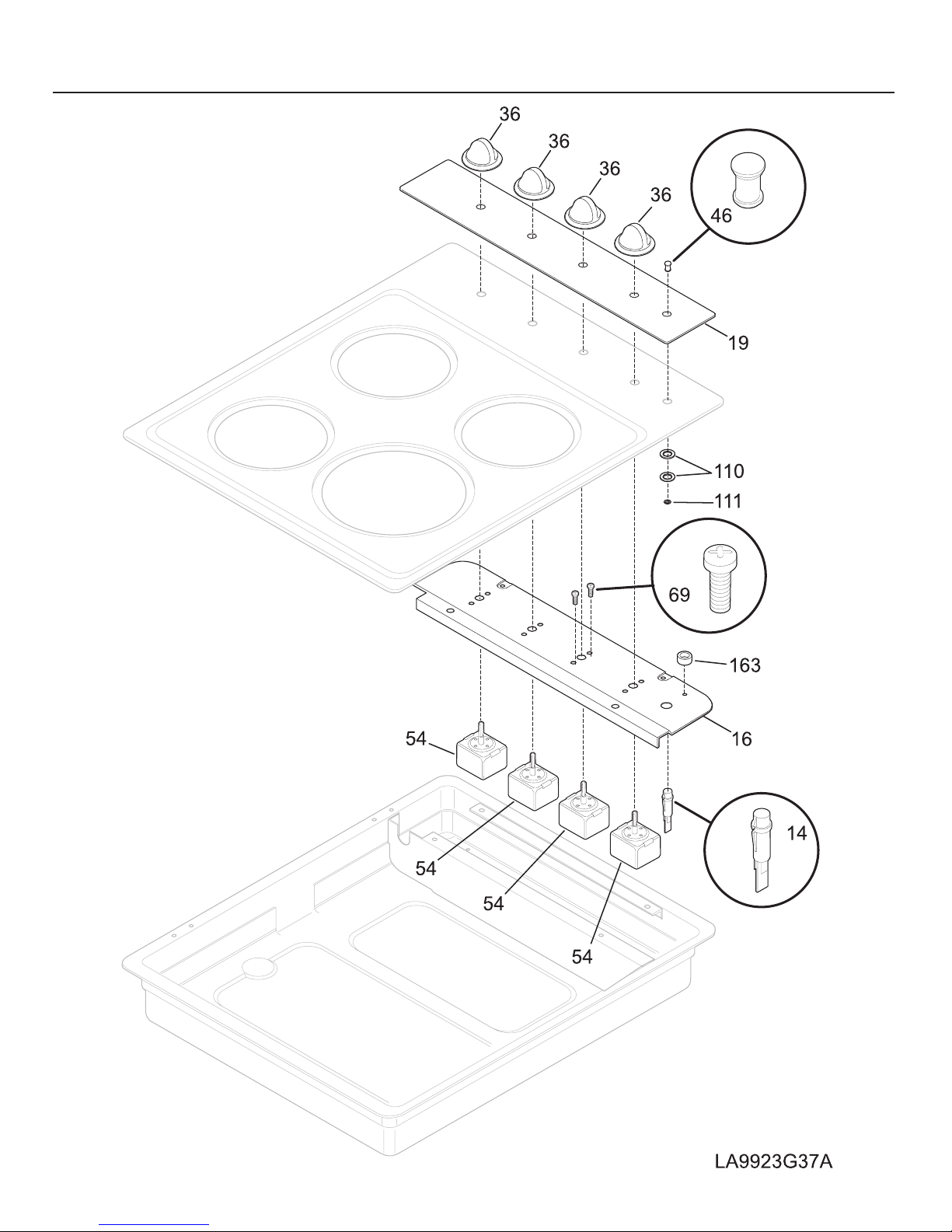

CONTROL PANEL

# = Functional Parts 3 11/01

* = Non-Illustrated Parts

FEC26C2A Publication No.

5995361457

CONTROL PANEL

A = FEC26C2A (FEC26C2ASA)

B = FEC26C2A (FEC26C2AQA)

C = FEC26C2A (FEC26C2ACA)

POS. NO PART NO DESCRIPTION

14 # 318044822 A B C Light,indicator ,clear

16 5303291992 A B C Plate,instrument mtg

19 318020805 A - - Panel,control ,white

19 318020806 - B - Panel,control ,bisque

19 318020807 - - C Panel,control ,black

36 318196603 A - - Knob,control ,white

36 318196605 - B - Knob,control ,bisque

36 318196604 - - C Knob,control ,black

46 5303297274 A B C Lens,indicator light

54 # 318120509 A B C Switch,surface unit

* 318146010 A B C Bushing,switch

69 5303323134 A B C Screw,switch mtg. ,8-32 x 0.188

110 3201899 A B C Washer,flat

111 5303272289 A B C Seal,indicator light

163 318014100 A B C Spacer

* 5304410665 A B C Screw,10-32 x 5/8

* 3051070 A B C Screw,hex washer head ,10-24 x 0.438 ,special

* 5303311306 A B C Screw,8-18 x 0.375

* 5303323140 A B C Screw,ground ,10-32 x 0.375

11/01 4

Publication No. FEC26C2A

5995361457

MAINTOP / SURFACE UNITS

# = Functional Parts 5 11/01

* = Non-Illustrated Parts

FEC26C2A Publication No.

5995361457

MAINTOP / SURFACE UNITS

A = FEC26C2A (FEC26C2ASA)

B = FEC26C2A (FEC26C2AQA)

C = FEC26C2A (FEC26C2ACA)

POS. NO PART NO DESCRIPTION

15 # 5303311320 A B C Element,surface ,large/8 inch

15A# 5303015716 A B C Element,surface ,small/6 inch

16 318159005 A - - Main Top,white

16 318159050 - B - Main Top,bisque

16 318159002 - - C Main Top,stainless

17 3016817 A B C Rod,maintop support

18 318074310 A B C Hinge,maintop ,(2)

19 # 318067056 A B C Pan,surface element ,large ,chrome

19A# 318067046 A B C Pan,surface element ,small ,chrome

27 # 5303323704 A B C Terminal Block,surface element

28 5303309002 A B C Medallion,surface element ,center trim

46 318077312 A B C Burner Box

63 5303291326 A B C Plate,grounding

93 5303304731 A B C Bracket,terminal block

183 5304410665 A B C Screw,10-32 x 5/8

* 5303311321 A B C Box & wires assy

* 08016432 A B C Screw,truss head ,8-18 x 0.375

* 08067961 A B C Fastener,clip cable

* 5303300195 A B C Screw,10-32 x 0.375 ,terminal block ,(2)

11/01 6

Publication No. FEC26C2A

5995361457

WIRING DIAGRAM
