Frigidaire FEC36S8H Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEC36S8HSA 3805642599011 WHITE U.S.A.

FEC36S8HBA 3805642599061 BLACK U.S.A.

ELECTRIC - COOKTOP

Model No.

FEC36S8H

Inc.

FACTORY PARTS CATALOG

ELECTRIC COOKTOP

WIRING DIAGRAM # - 318047021

OWNER’S GUIDE # - 318200608

INSTALLATION SHEET # - 318064705

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995323903

990527

-EN/SERVICE

377

Gallery

WARMING ZONE

Publication No. FEC36S8H

5995323903

05/99 2

CONTROL PANEL

36A 36A

36C

36 74

54A

54C 54

69A

LA9923G31

FEC36S8H Publication No.

5995323903

# = Functional Part 305/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEC36S8H (FEC36S8HSA)

B=FEC36S8H (FEC36S8HBA)

POS. NO PART NO DESCRIPTION

16 318096320 A B Plate instrument mtg

36 318016300 AKnob-surface white

36 318016308 BKnob-surface black

36A 318016301 AKnob-surface white

36A 318016309 BKnob-surface black

36C 318016330 AKnob-surface white

36C 318016331 BKnob-surface black

51# 5303297484 A B Light-indicator,hot surface

54 # 318120505 A B Switch-surface unit,small

54A# 318078200 A B Switch surface unit

54C# 318078801 A B Switch-6” Element

69 5303323134 A B Screw, switch mtg. ,8-32 x 3/16

69A 5303305528 A B Screw, 8-32 X 1/4

74 5303321205 A B Bushing, (4)

*5303300265 A B Screw, 8-18 X ½ chrome

*5303323131 A B Screw, 8-32 X 7/16

*5303323140 A B Screw ground

FEC36S8H Publication No.

5995323903

05/99 4

MAINTOP/SURFACE UNITS

163

170

163

159

162

164

15A

52A

52D

52C

52B

15B

15D

15C

LA9923V34

FEC36S8SH Publication No.

5995323903

# = Functional Part 505/99

* = Non-Illustrated Part

A=FEC36S8H (FEC36S8HSA)

B=FEC36S8H (FEC36S8HBA)

POS. NO PART NO DESCRIPTION

15# 318178102 A B Element-surface, 1700W

15A# 318050201 A B Element-surface,1000/1900W

15B# 318178000 A B Element-surface, 700/2100W

15C# 318178103 A B Element-warmer

15D# 318178100 A B Element-surface, 1200W

16 318079324 A-Glass Maintop & frame assy

16 318079323 -BGlass Maintop & frame assy

20 318121902 A B Bracket

23 5303297401 A B Panel-access

46 318077221 A B Box-burner

52 318122008 A B Spring-element mtg

52A 318122009 A B Spring-element mtg

52B 318122007 A B Spring-element mtg

52C 318122004 A B Spring-element mtg

52D 318122006 A B Spring-element mtg

159 318125121 A B Deflector

162 318125200 A B Deflector

163 08007817 A B Spacer

164 318125301 A B Plate-connection

170 318124900 A B Support-thermal

* # 318078514 A B Box & wires assy

*5303323129 A B Screw, 8 X ¾

*5303323140 A B Screw ground

*08016432 A B Screw, 8-18 X 3/8

*5303300265 A B Screw, 8-18 X ½ chrome

MAINTOP/SURFACE UNITS

FEC36S8H Publication No.

5995323903

05/99 6

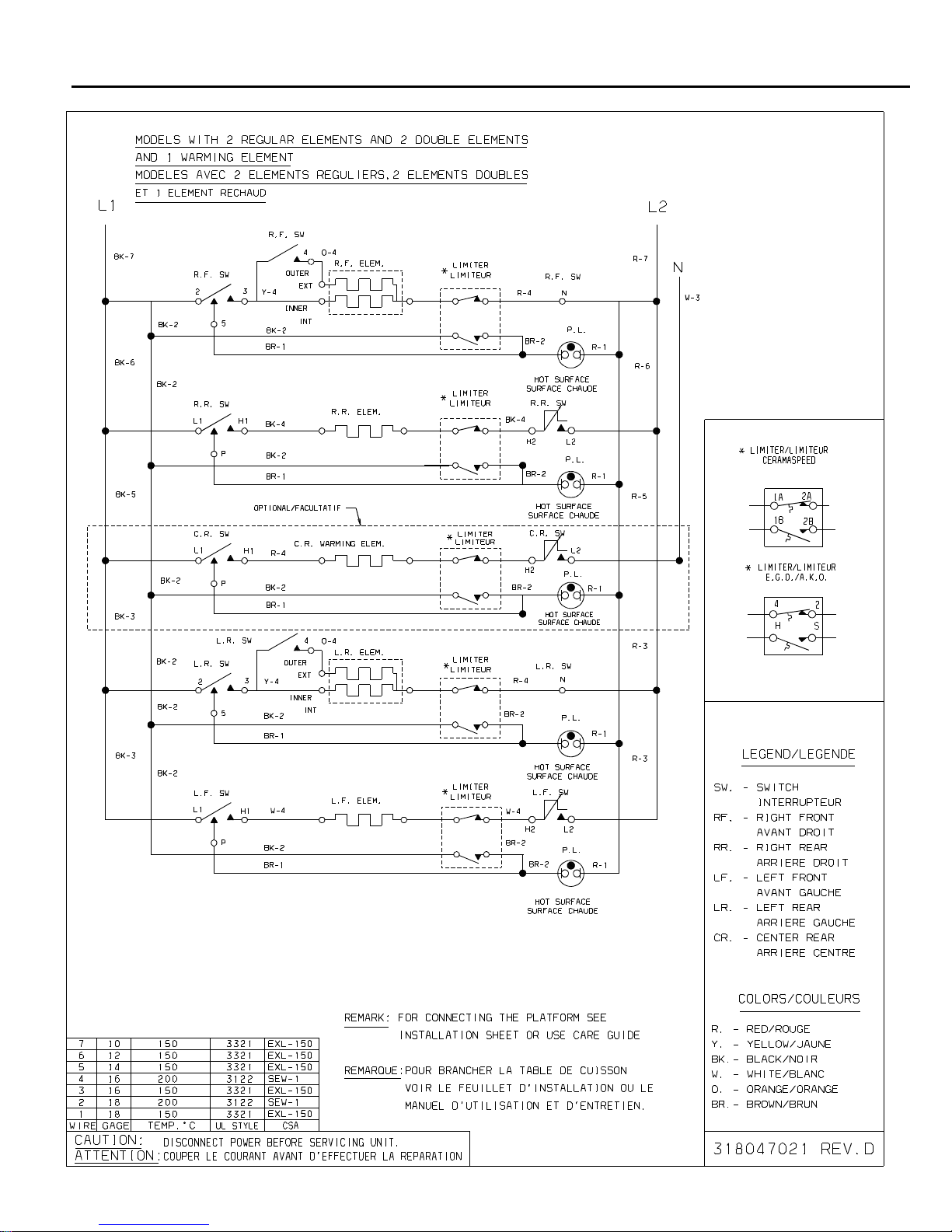

WIRING DIAGRAM
