Frigidaire FGC30S4H Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC30S4HSA 3775421269011 WHITE U.S.A.

FGC30S4HWA 3775421249011 WHITE U.S.A.

FGC30S4HDA 3775421249031 ALMOND U.S.A.

GAS COOKTOP

Model No.

FGC30S4H

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047102

OWNER’S GUIDE # - 318068130

INSTALLATION INSTR. # - 318063916

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995327482

990902

-EN/SERVICE

377

RIGHT FRONT

LEFT FRONT

LEFT REAR

RIGHT REAR

Publication No. FGC30S4H

5995327482

09/99 2

COOKTOP

132

136

137

LA9922T15

22 22

22A

22B 43

19B

19A

FGC30S4H Publication No.

5995327482

# = Functional Part 309/99

* = Non-Illustrated Part

COOKTOP

A=FGC30S4H (FGC30S4HSA)

B=FGC30S4H (FGC30S4HWA)

C=FGC30S4H (FGC30S4HDA)

POS. NO PART NO DESCRIPTION

16 318159142 A B Main top white

16 318159143 C Main top almond

19 318167906 APan-burner medium white

19 318167903 B C Pan-burner medium black

19A 318167907 APan-burner large white

19A 318167904 B C Pan-burner large black

19B 318167908 APan-burner white

19B 318167905 B C Pan-burner black

20 316085304 AGrate grey

20 316085305 B C Grate black

22 318076411 ACap-burner medium grey

22 318076410 B C Cap-burner medium black

22A 318076421 ACap-burner large grey

22A 318076420 B C Cap-burner large black

22B 318076401 ACap-burner small grey

22B 318076400 B C Cap-burner small black

23 318021610 AInsert (white)

23 318021600 B C Insert (black)

43 318016500 AKnob-control white

43 318016501 B C Knob-control black

46 318156000 AB C Burner Box

47 5303303991 AB C Cord-electric power

64 5303304033 AB C Retainer/ bracket

65 5303304032 AB C Seal, rubber

132 3201437 AB C Bushing-snap

136 5303935029 AB C Fixation support

137 5303323138 AB C Screw, 10-24 X 2 ½/

*5303323140 AB C Screw ground/

*5303300265 AB C Screw, 8-18 x ½/

*318052107 AB C Wire harness

Publication No. FGC30S4H

5995327482

09/99 4

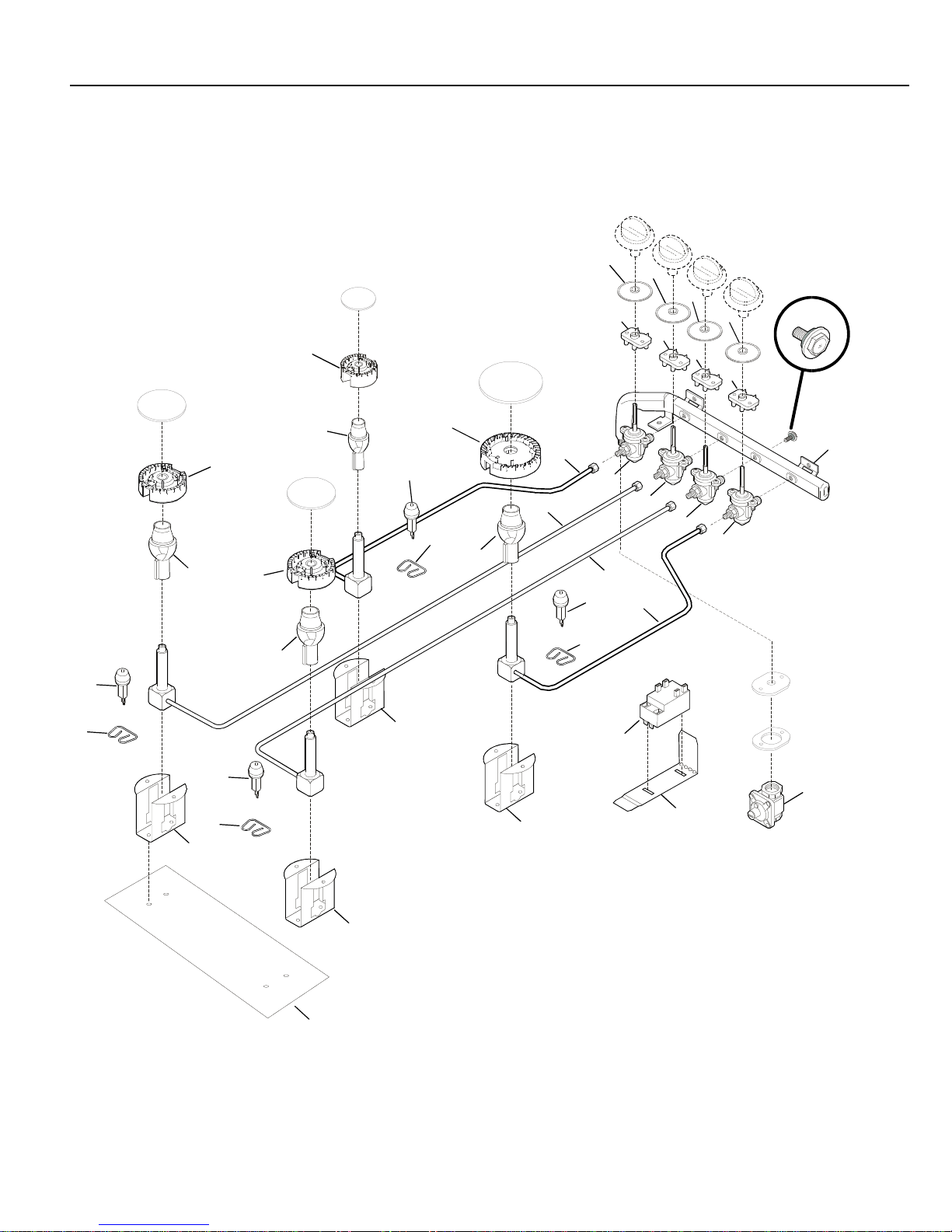

BURNER

10B

10A

2A 222

75 76

76A

77A

333

LA9922B02

FGC30S4H Publication No.

5995327482

# = Functional Part 509/99

* = Non-Illustrated Part

BURNER

A=FGC30S4H (FGC30S4HSA)

B=FGC30S4H (FGC30S4HWA)

C=FGC30S4H (FGC30S4HDA)

POS. NO PART NO DESCRIPTION

1 318177003 AB C Manifold Pipe

2 # 5303935042 AB C Valve-top burner

2A 318087001 AB C Valve-top burner

3 # 316032002 AB C Switch-ignitor

4 # 318167714 AB C Tube-burner

5 # 318167700 AB C Tube-burner

6318167702 AB C Tube-burner

7318167701 AB C Tube-burner

8 # 5303280394 AB C Spark Module

10 318148001 AB C Medium burner

10A 318148002 AB C Large burner

10B 318148000 AB C Small burner

14 # 5308007974 AB C Regulator-pressure

35 318146300 AB C Bushing-insulation

72 5303323141 AB C Screw valve 1/4-20 X 5/16/

73 318024200 AB C Bracket spark module

74 318148700 AB C Ignitor gourmet assy

75 318148800 AB C Clip

76 318167801 AB C Mixing tube

76A 318167800 AB C Mixing tube

77 318112010 AB C Bracket burner

77A 318112000 AB C Bracket-burner

78 318106900 AB C Deflector

*5303307980 AB C Screw, 8-32 X 7/16

*08011955 AB C Screw, 10-24 X 3/8

*5304403558 AB C Screw, 10-16 X ¼

*318127407 AB C LP kit

Publication No. FGC30S4H

5995327482

09/99 6

WIRING DIAGRAM
