Frigidaire FGC36S6A Manuale utente

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FGC36S6ABB FGC36S6A 3775442361062 black North America

FGC36S6ASB FGC36S6A 3775442361012 white North America

Publication No.

5995366027

020214

-EN/SERVICE /ECL

377

GAS

COOKTOP

Model No.

FGC36S6A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318047105

OWNER’S GUIDE - # 318200658

INSTALLATION INSTRUCTIONS - # 318201450

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

02/02 2

Publication No. FGC36S6A

5995366027

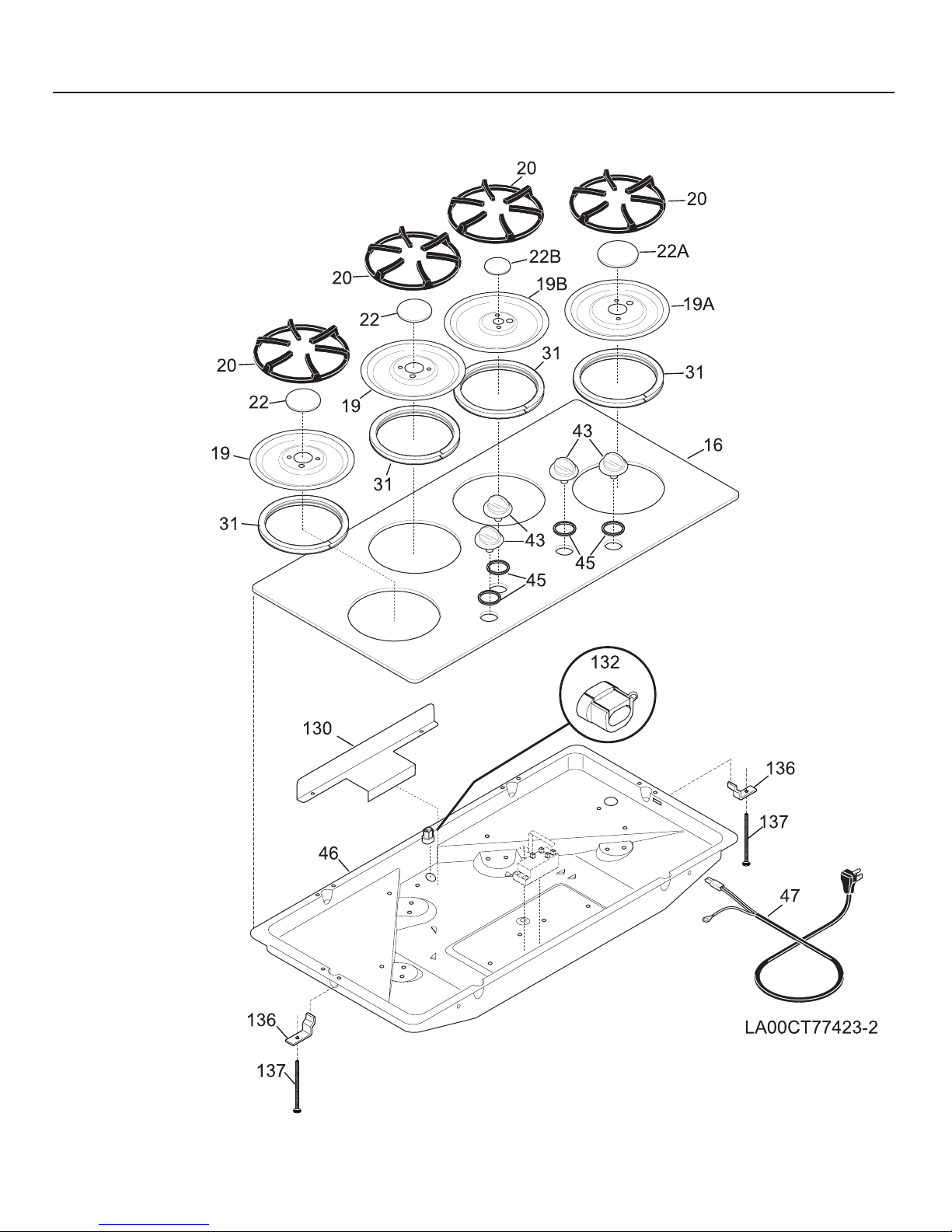

COOK TOP

# = Functional Parts 3 02/02

* = Non-Illustrated Parts

FGC36S6A Publication No.

5995366027

COOK TOP

A = FGC36S6A (FGC36S6ASB)

B = FGC36S6A (FGC36S6ABB)

POS. NO PART NO DESCRIPTION

16 318019412 A - Glass top,white

16 318019413 - B Glass top,black

19 318168016 A - Pan,burner ,medium ,white

19 318168014 - B Pan,burner ,medium ,black

19A 318168026 A - Pan,burner ,large ,white

19A 318168024 - B Pan,burner ,large ,black

19B 318168006 A - Pan,burner ,small ,white

19B 318168004 - B Pan,burner ,small ,black

20 318120006 A - Grate,grey

20 318120005 - B Grate,black

22 318076411 A - Cap,burner ,grey ,medium LF & LR

22 318076410 - B Cap,burner ,black ,medium LF & LR

22A 318076421 A - Cap,burner ,grey ,large RF

22A 318076420 - B Cap,burner ,black ,large RF

22B 318076401 A - Cap,burner ,grey ,small RR

22B 318076400 - B Cap,burner ,black ,small RR

31 318052910 A B Gasket,burner pan ,(4)

43 318196148 A - Knob,control ,white

43 318196149 - B Knob,control ,black

45 318146200 A B Bushing

46 318077130 A B Burner Box

47 # 5303303991 A B Cord,electric power

130 318125001 A B Shield,burner box

132 3201437 A B Strain relief

136 5303935029 A B Support

137 5303323138 A B Screw,10-24x1/2

* 5303311306 A B Screw,8-18 x 0.375

* 5304403558 A B Screw,10-16 x 0.250

02/02 4

Publication No. FGC36S6A

5995366027

BURNER

# = Functional Parts 5 02/02

* = Non-Illustrated Parts

FGC36S6A Publication No.

5995366027

BURNER

A = FGC36S6A (FGC36S6ASB)

B = FGC36S6A (FGC36S6ABB)

POS. NO PART NO DESCRIPTION

1 318177100 A B Manifold Pipe

2 # 5303935042 A B Valve,top burner ,2-position ,9100 BTU

2A # 318087001 A B Valve,top burner ,5000 BTU

2B # 318087040 A B Valve,top burner ,13000 BTU

3 # 316032002 A B Switch,ignitor

4 # 318167711 A B Tube,burner ,FR

5 # 318167708 A B Tube,burner ,FL

6 # 318167709 A B Tube,burner ,BR

7 # 318167710 A B Tube,burner ,BL

8 # 316135701 A B Module,spark

10 # 318148001 A B Burner,top ,9100 BTU ,medium LF & LR

10A# 318148002 A B Burner,top ,13000 BTU ,large RF

10B# 318148000 A B Burner,top ,5000 BTU ,small RR

13 318054508 A B Manifold tube connector,connection ,manifold

14 # 5308007974 A B Regulator,pressure

24 318054000 A B Elbow,fitting

35 318146300 A B Bushing

51 318024201 A B Bracket,spark module

72 5303323141 A B Screw,valve mtg ,1/4-20 x 5/16

74 # 318148700 A B Ignitor,top burner

75 318148800 A B Clip,electrode

76 # 318167801 A B Tube,mixing ,medium & large

76A# 318167800 A B Tube,mixing ,small

77 318112010 A B Bracket,burner mtg ,medium & large

77A 318112000 A B Bracket,burner mtg ,small

77B 318180900 A B Bracket,burner tube

* # 318127410 A B LP Conversion Kit

* 08011955 A B Screw,10-24 x 0.375 ,square drive

* 5303211311 A B Screw,8 x 0.500

* 5303311306 A B Screw,8-18 x 0.375

* 5303311532 A B Screw,6-32 x 1/4" ,back

02/02 6

Publication No. FGC36S6A

5995366027

WIRING DIAGRAM
