Frigidaire FDL45P Manuale utente

Product No. FDK45P11 FDK45P12 FDL45P11 FDL45P12 FDL60P11 FDL60P12

Series Dehumidifier Dehumidifier Dehumidifier Dehumidifier Dehumidifier Dehumidifier

Color white white white white white white

Volts 115 115 115 115 115 115

Owner's Guide 220261d000 220261d000 220261d000 220261d000 220261d000 220261d000

Market North America North America North America North America North America North America

FDL25P cover.eps FDL25P.eps 2202619052.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995436747

05/05/20

(EN/SERVICE/WC)

099

ROOM DEHUMIDIFIER

Model No.

FDK45P / FDL45P /

FDL60P

Publication No: 5995436747 FDK45P / FDL45P / FDL60P

05/05 2

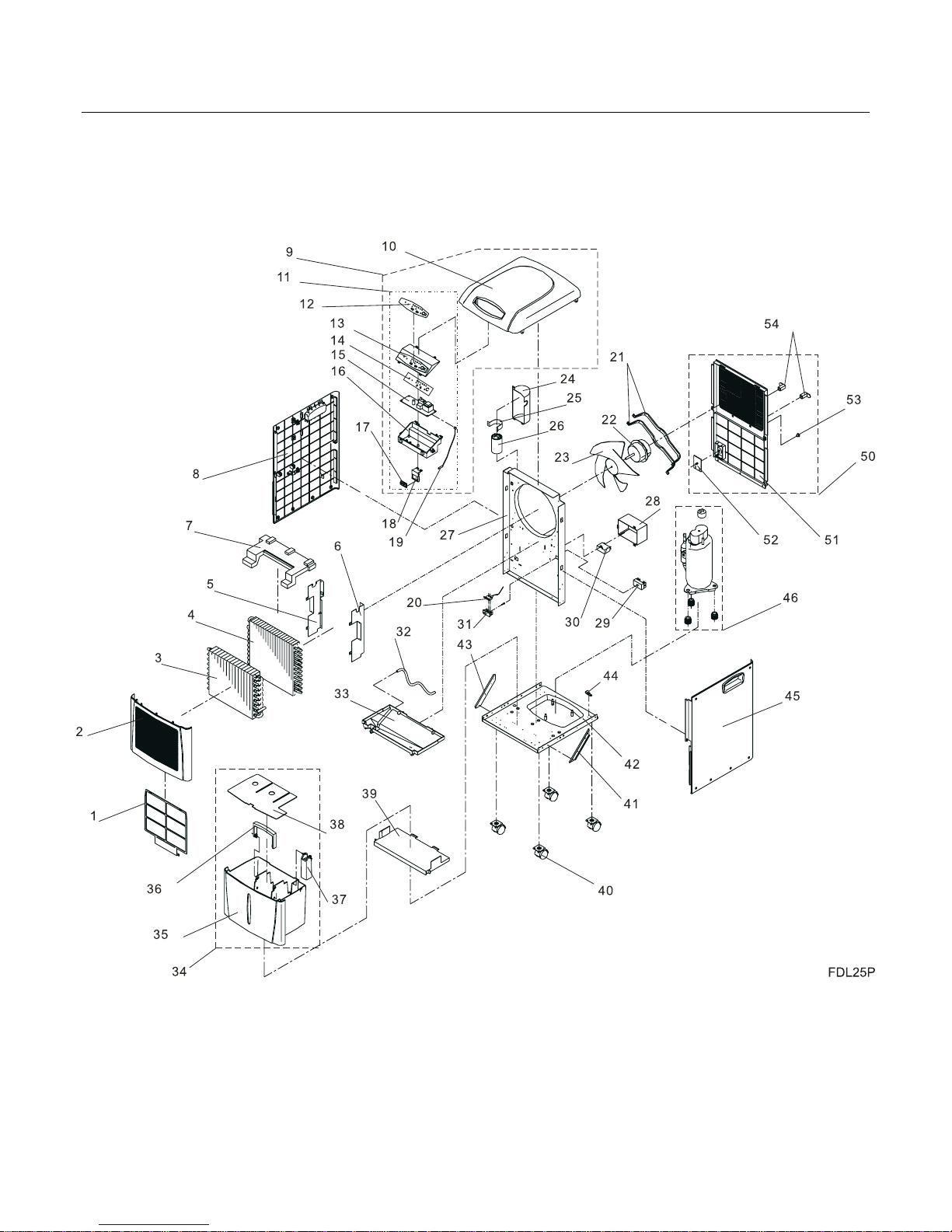

RECOMMENDED SPARE PARTS

FDK45P / FDL45P / FDL60P Publication No: 5995436747

# Functional Parts 3 05/05

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFDK45P (FDK45P11)

BFDK45P (FDK45P12)

CFDL45P (FDL45P11)

DFDL45P (FDL45P12)

EFDL60P (FDL60P11)

FFDL60P (FDL60P12)

POS. NO PART NO. DESCRIPTION

1 5304447105 A B C D E F Filter, air

2 5304447106 A B C D E F FRONT PANEL ASSEMBLY

3 5304447279 A B C D - - Evaporator

3 5304447347 - - - - E F Evaporator

4 5304447280 A B C D - - CONDENSER-AIR COOL, REC.

4 5304447348 - - - - E F CONDENSER-AIR COOL, REC.

5 5304447109 A B C D E F LEFT CONNECTION BOARD

6 5304447110 A B C D E F RIGHT CONNECTION BOARD

7 5304447111 A B C D E F SEAL, COND/EVAP COIL, FOAM

8 5304447237 A B C D E F Panel-left side

9 5304447238 A B C D E F COVER/TOP CAP ASSEMBLY

10 5304447239 A B C D E F COVER/TOP CAP

11 5304447240 A B C D E F MAIN CONTROL ASSEMBLY

12 5304447241 A B C D E F Overlay-control

13 5304447242 A B C D E F COVER-CONTROL BOX, E-PART BOX

14 5304447243 A B C D E F Display Board

15 5304447244 A B C D E F MAIN CONTROL BOARD

16 5304447245 A B C D E F CONTROL BOX, E-PART BOX COVER

17 5304447246 A B C D E F HUMIDITY SENSOR

18 5304447247 A B C D E F BRACKET, HUMIDITY SENSOR

19 5304447248 A B C D E F EVAPORATOR PIPE TEMP SENSOR

20 5304447249 A B C D E F WATER DEPTH SWITCH, OVERFLOW

21 5304447250 A B C D E F Bracket-fan motor

22 5304447251 A - C - E - FAN MOTOR

22 5304447278 - B - D - F FAN MOTOR

23 5304447252 A B C D - - Blade-fan

23 5304447349 - - - - E F Blade-fan

24 5304447281 A B C D E F COVER, COMPRESSOR CAPACITOR BOX

25 5304447282 A B C D E F STRAP, COMPR CAPACITOR CLAMP

26 5304447283 A B C D - - COMPRESSORCAPACITOR

26 5304447350 - - - - E F COMPRESSOR CAPACITOR

27 5304447253 A B C D E F Shroud-condenser

28 5304447254 A B C D E F FAN MOTOR CAPACITOR BOX

29 5304447255 A B C D E F TERMINAL-ELECTRIC

30 5304447284 A B C D E F FAN MOTOR CAPACITOR

31 5304447257 A B C D E F WATER DEPTH SWITCH BRACKET

32 5304447258 A B C D E F DRAIN TUBE

33 5304447259 A B C D E F TRAY-DRIP, WATER COLLECTOR

34 5304447260 A B C D E F WATER TANK ASSEMBLY

35 5304447261 A B C D E F Water Tank

36 5304447262 A B C D E F TANK HANDLE

37 5304447263 A B C D E F FLOAT, WATER DEPTH SWITCH PIN

38 5304447264 A B C D E F WATER TANK COVER

39 5304447265 A B C D E F WATER TANK BASE

40 5304447266 A B C D E F Caster

Publication No: 5995436747 FDK45P / FDL45P / FDL60P

05/05 4

RECOMMENDED SPARE PARTS

FDK45P / FDL45P / FDL60P Publication No: 5995436747

# Functional Parts 5 05/05

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFDK45P (FDK45P11)

BFDK45P (FDK45P12)

CFDL45P (FDL45P11)

DFDL45P (FDL45P12)

EFDL60P (FDL60P11)

FFDL60P (FDL60P12)

POS. NO PART NO. DESCRIPTION

41 5304447267 A B C D E F SUPPORTING BAR 1

42 5304447285 A B C D E F Base

43 5304447269 A B C D E F SUPPORTING BAR II

44 5304447270 A B C D E F POWER CORD CLAMP

45 5304447271 A B C D E F Panel-side

47 5304447286 A B C D - - Compressor

47 5304447351 - - - - E F Compressor Assembly

50 5304447273 A B C D E F REAR PANEL ASSEMBLY

51 5304447274 A B C D E F REAR PANEL

52 5304447275 A B C D E F WATER DRAIN BRACKET

53 5304447276 A B C D E F DRAIN PLUG

54 5304447277 A B C D E F HOLDER, POWER CORD BOBBIN

54* 5304448416 A B C D E F Power Cord

Publication No: 5995436747 FDK45P / FDL45P / FDL60P

05/05 6

WIRING DIAGRAM
