Frigidaire FDB126RB Manuale utente
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FDB126RBB0 FDB126RB 24" Built-in black
FDB126RBQ0 FDB126RB 24" Built-in bisque
FDB126RBS0 FDB126RB 24" Built-in white
MARKET
North America
Publication No.
5995375200
020701
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
FDB126RB
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154414801
OWNER’S GUIDE # - 154428101
INSTALLATION INSTRUCTIONS # - 154427301
ENERGY GUIDE LABEL # - 154399001
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
07/02 2
Publication No. FDB126RB
5995375200
CONTROL PANEL
# = Fast Moving Part 3 07/02
* = Non-Illustrated Part
FDB126RB Publication No.
5995375200
CONTROL PANEL
A = FDB126RB (FDB126RBS0)
B = FDB126RB (FDB126RBB0)
C = FDB126RB (FDB126RBQ0)
POS. NO PART NO DESCRIPTION
1 154368301 A - - Panel,control ,white
1 154368303 - B - Panel,control ,black
1 154368304 - - C Panel,control ,bisque
2 154432801 A - - Insert,control panel ,white
2 154432803 - B - Insert,control panel ,black
2 154432804 - - C Insert,control panel ,bisque
3 # 154393902 A B C Timer
3* 5303318719 A B C Screw,mtg.
8 # 154240401 A - - Switch,rocker/selector ,white
8 # 154240403 - B - Switch,rocker/selector ,black
8 # 154240404 - - C Switch,rocker/selector ,bisque
13 154239504 A - - Knob,timer ,white
13 154239509 - B - Knob,timer ,black
13 154239508 - - C Knob,timer ,bisque
20 154345102 A B C Vapor Chamber Assy,w/vent gasket
25 154229201 A B C Seal,chamber
* # 154420701 A B C Wiring Harness
* 154283901 A B C Screw,#8-10 ,3/8 phillips
* 154399001 A B C Label,energy guide
07/02 4
Publication No. FDB126RB
5995375200
DOOR
# = Fast Moving Part 5 07/02
* = Non-Illustrated Part
FDB126RB Publication No.
5995375200
A = FDB126RB (FDB126RBS0)
B = FDB126RB (FDB126RBB0)
C = FDB126RB (FDB126RBQ0)
POS. NO PART NO DESCRIPTION
1 154413301 A B C Spring,door ,(2)
1A 154325201 A B C Linkage,door spring ,(2)
2 154093301 A B C Screw,arm assy ,(4)
3 154325304 A B C Arm Assy,LH
3A 154325303 A B C Arm Assy,RH
* 154400601 A B C Pin,arm assy
5 154079601 A B C Nut,arm assy ,(4)
7 154299002 A B C Door,inner assy
7A 154332701 A B C Grate,liner
9 154230101 A B C Dispenser,det/rinse aid ,includes #22
9* 154294701 A B C Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B C Screw,latch mtg ,(2)
12 # 154361201 A - - Latch assy,white
12 # 154361203 - B - Latch assy,black
12 # 154361204 - - C Latch assy,bisque
20 154359105 A - - Door,white
20 154359107 - B - Door,black
20 154359110 - - C Door,bisque
20* 5304428306 A B C Screw,door mtg. ,(2)
22 154388801 A B C Cap,Rinse aid
49 154297603 A B C Gasket,door ,bottom
50 154211401 A B C Support,door hinge
51 154320301 A B C Clamp,drip loop ,wire
* 154200601 A B C Screw,#10-16 x 3/8
DOOR
07/02 6
Publication No. FDB126RB
5995375200

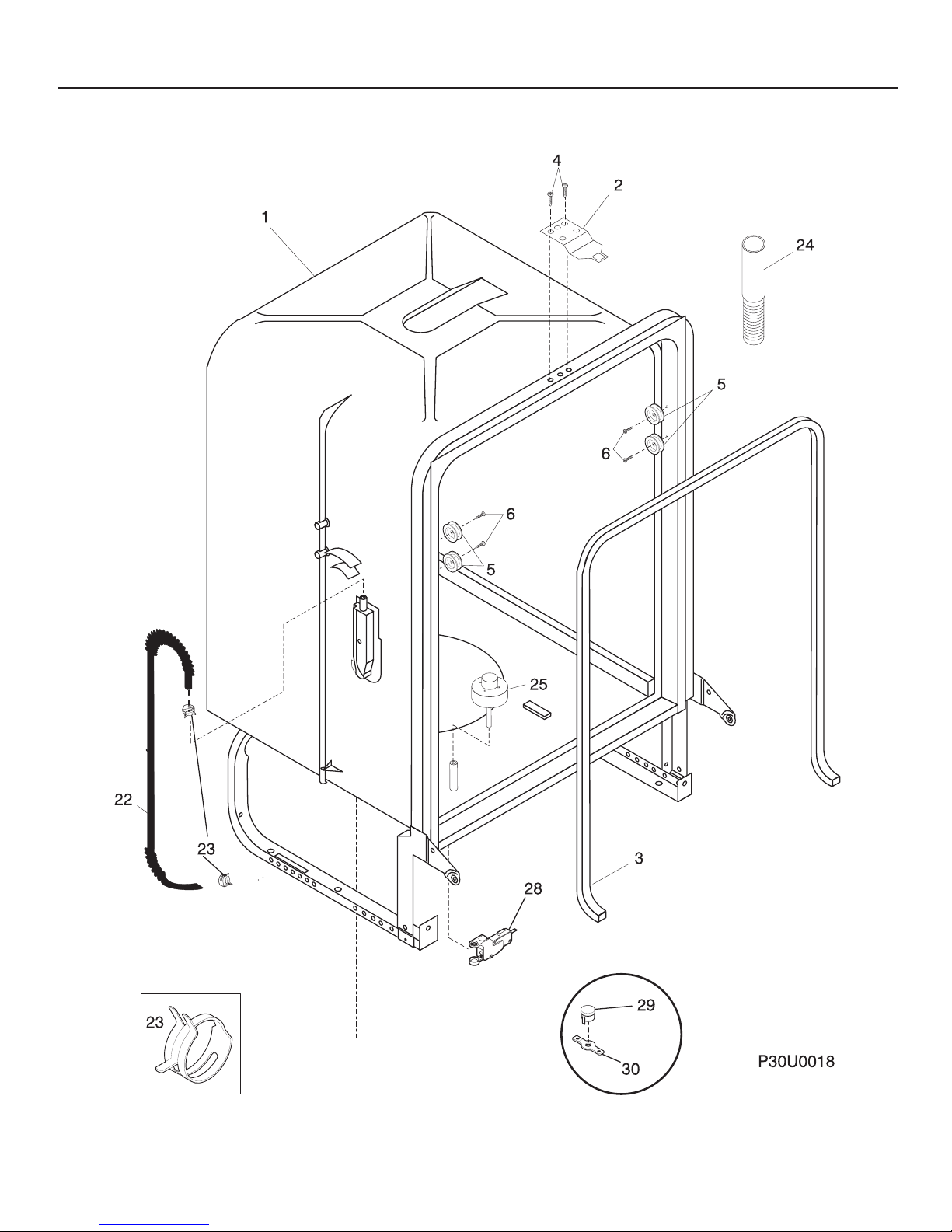

TUB
# = Fast Moving Part 7 07/02
* = Non-Illustrated Part
FDB126RB Publication No.
5995375200
A = FDB126RB (FDB126RBS0)
B = FDB126RB (FDB126RBB0)
C = FDB126RB (FDB126RBQ0)
POS. NO PART NO DESCRIPTION
1 # 154209204 A B C Tub,plastic
2 154429101 A B C Strike,door
3 # 154211801 A B C Gasket,tub
4 154200602 A B C Screw,10-16 x 3/8 ,hex
5 154333902 A B C Roller,tub
6 5303943103 A B C Screw,w/washer ,(8)
22 154239801 A B C Tubing,water inlet
23 5303318539 A B C Clamp,tubing ,(2)
24 # 154411002 A B C Hose,drain
25 # 154209701 A B C Float
28 154408701 A B C Switch assy,float
29 # 154290204 A B C Thermostat,re-settable
30 154241101 A B C Retainer,thermostat
30* 154297701 A B C Screw,retainer-thermo
* 154238304 A B C Insulation,tub
* 154041001 A B C Screw,plask #1 ,10-10 x 9/16
* 5300807270 A B C Screw,(2) ,countertop mtg.
TUB
07/02 8
Publication No. FDB126RB
5995375200
MOTOR & PUMP
# = Fast Moving Part 9 07/02
* = Non-Illustrated Part
FDB126RB Publication No.
5995375200
A = FDB126RB (FDB126RBS0)
B = FDB126RB (FDB126RBB0)
C = FDB126RB (FDB126RBQ0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B C Heater
1* 154106201 A B C Nut,heater ,(2)
1* 154289801 A B C Shield,heater terminal
2 154359701 A B C Bracket,heater ,(2)
10 154335301 A B C Cover,volute
13 154246801 A B C Gasket,sump
14 154365903 A B C Housing,sump
16 154246502 A B C Retainer,sump
24 154414201 A B C Spray arm,lower ,w/heat shield
24A 154335201 A B C Nut,spray arm
40 154348401 A B C Clamp,red ,pump
40 154348501 A B C Clamp,silver ,pump
40* 154380601 A B C Clamp,hose ,(1)
54 154234401 A B C Hose,connector
55 154362301 A B C Bracket,motor ,askoll
55* 5303316032 A B C Screw,truss ss ,8 .625
59 154246901 A B C O-ring,rear
59A 154247001 A B C O-ring,front
60 154407401 A B C Drain Pump Assy
60* 154234501 A B C Bracket,motor ,drain
63 154252201 A B C Base,soil director
64 154332602 A B C Filter,soil director
65 154252401 A B C Filter,polypro
70 # 154395402 A B C Motor assembly,circulation ,w/o o’rings
* 154200601 A B C Screw,#10-16 x 3/8
MOTOR & PUMP
07/02 10
Publication No. FDB126RB
5995375200
FRAME
