Frigidaire FDB130RG Manuale utente

P30L0080.eps P30C0159.eps P30B0045.eps P30U0024.eps P30M0030.eps P30F0022.eps

P30R0045.eps

Product No. FDB130RGB3 FDB130RGQ3 FDB130RGS3

Series Built-in 24" Built-in 24" Built-in 24"

Color black bisque white

Owner's Guide English 154648801 154648801 154648801

Owner's Guide Spanish 154648803 154648803 154648803

Owner's Guide French 154648802 154648802 154648802

Service Data Sheet 154441201 154441201 154441201

Energy Guide 154678501 154678501 154678501

Installation Instructions 154427301 154427301 154427301

Market North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995518940

08/07/16

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB130RG

Publication No: 5995518940 FDB130RG

07/08 2

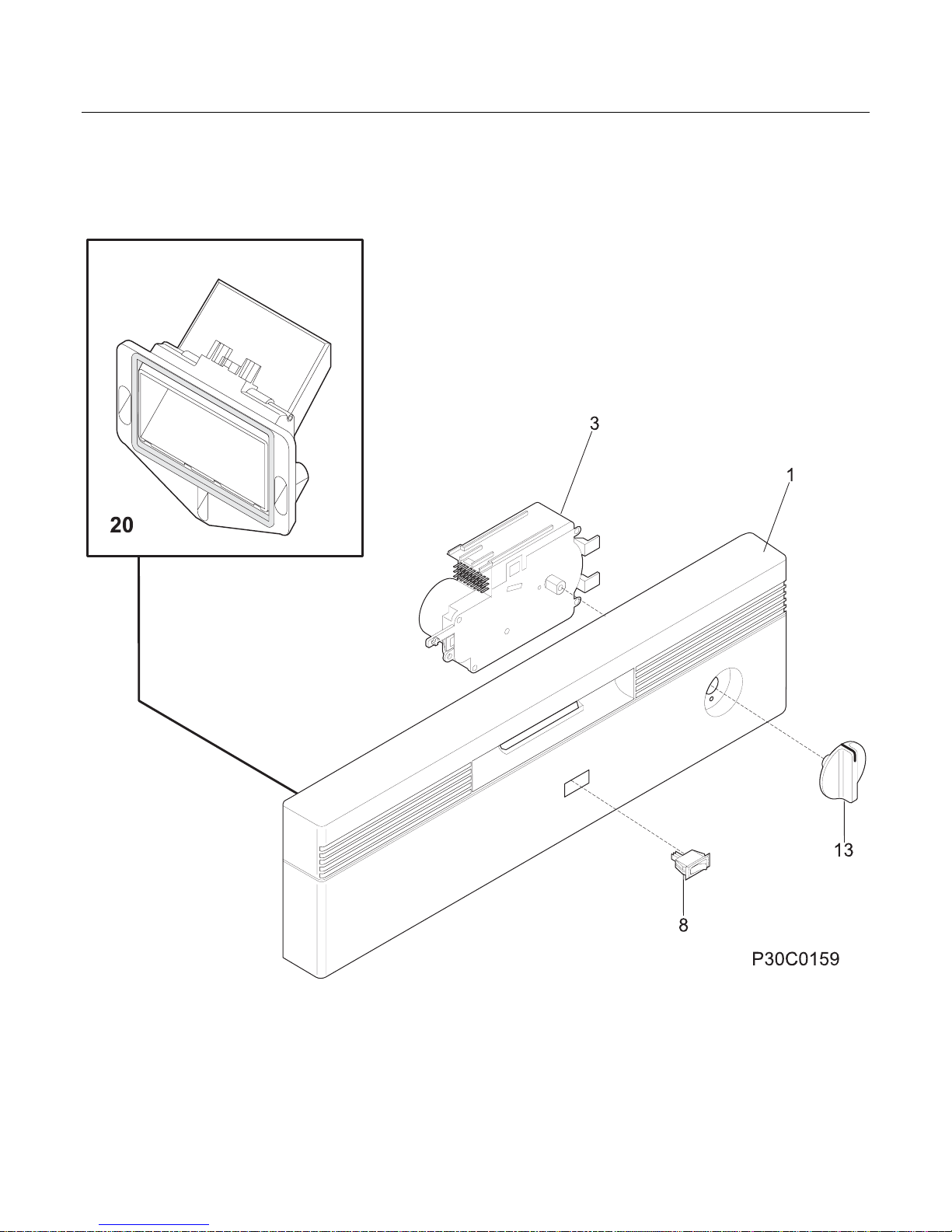

CONTROL PANEL

FDB130RG Publication No: 5995518940

# Functional Parts 3 07/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB130RG (FDB130RGB3)

BFDB130RG (FDB130RGQ3)

CFDB130RG (FDB130RGS3)

POS. NO PART NO. DESCRIPTION

1 154667403 A - - Panel, control, black, w/graphics

1 154667404 - B - Panel, control, brown, w/graphics

1 154667401 - - C Panel, control, white, w/graphics

3 # 154437801 A B C Timer

3* 154131204 A B C Shield, timer

3* 154095701 A B C Screw, thread rolling, (2), timer

8 # 154240403 A - - Switch, rocker/selector, black

8 # 154240404 - B - Switch, rocker/selector, bisque

8 # 154240401 - - C Switch, rocker/selector, white

8* 5303318719 A B C Screw, mtg.

13 154338303 A - - Knob, timer, black

13 154338304 - B - Knob, timer, bisque

13 154338301 - - C Knob, timer, white

20 154433001 A B C Vent assy, static dry

20* 154436201 A B C Screw, dry duct, (3)

* # 154645901 A B C Harness, wiring, main

* 154678501 A B C Energy guide label

Publication No: 5995518940 FDB130RG

07/08 4

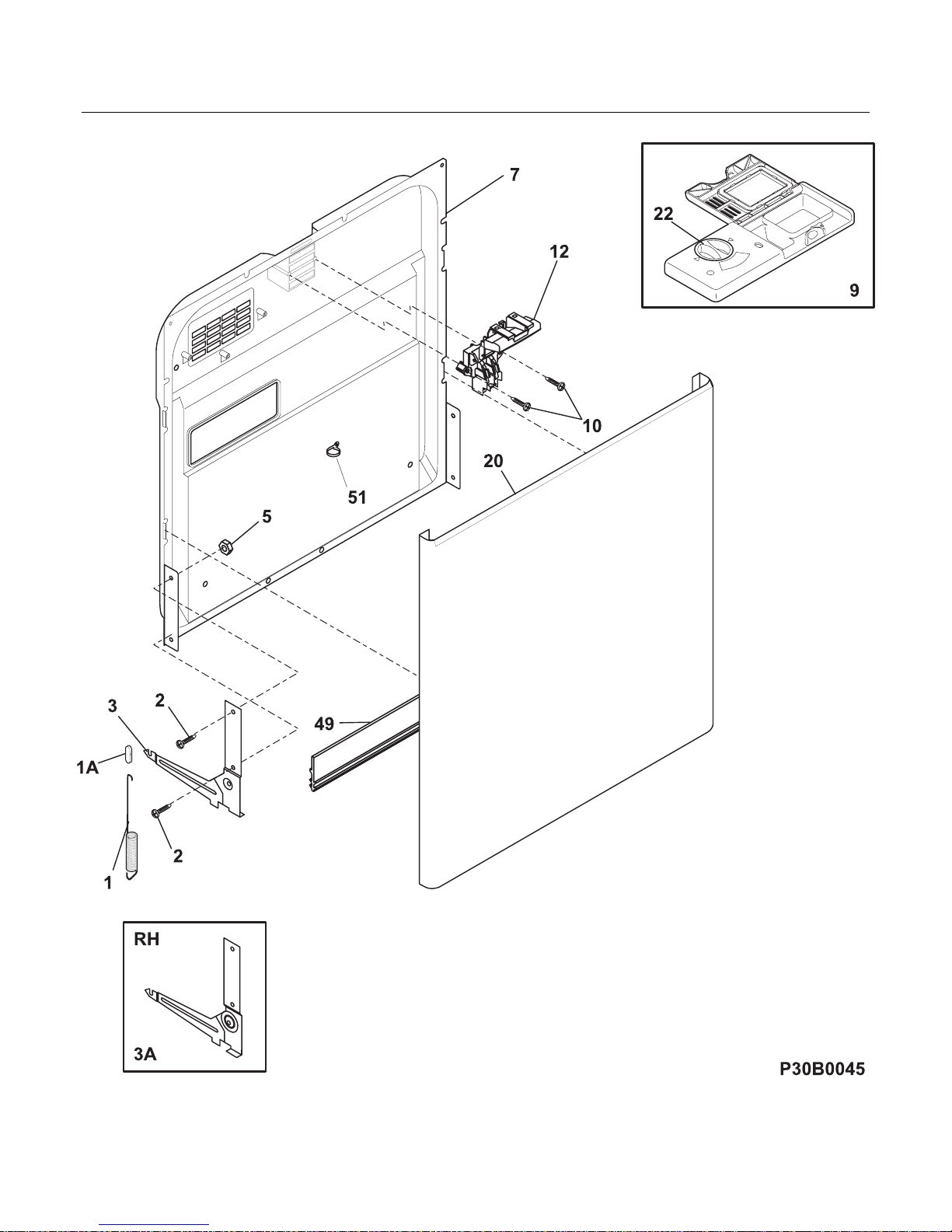

DOOR

FDB130RG Publication No: 5995518940

# Functional Parts 5 07/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB130RG (FDB130RGB3)

BFDB130RG (FDB130RGQ3)

CFDB130RG (FDB130RGS3)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154691201 A B C Arm Assy,LH

3A 154691101 A B C Arm Assy, RH

* 154647101 A B C Hinge Pin, arm assy

* 154686401 A B C Bearing, hinge pin

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154494601 A B C Liner, door assy.

9 154574401 A B C Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154537303 A - - Latch assy,black

12 # 154537304 - B - Latch assy, bisque

12 # 154537301 - - C Latch assy, white

20 154359107 A - - Door, black

20 154359110 - B - Door, bisque

20 154359105 - - C Door, white

20* 5304428306 A B C Screw, door mtg., (2)

22 154388801 A B C Cap, Rinse aid

49 154588201 A B C Gasket, door wiper

51 154320301 A B C Clamp, drip loop, wire

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG

07/08 6

TUB

FDB130RG Publication No: 5995518940

# Functional Parts 7 07/08

* Non-Illustrated Parts

TUB

Model Index: AFDB130RG (FDB130RGB3)

BFDB130RG (FDB130RGQ3)

CFDB130RG (FDB130RGS3)

POS. NO PART NO. DESCRIPTION

1 # 154730001 A B C Tub assy, w/frame parts, white, tower

2 154662601 A B C Strike, door

3 # 154561001 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

22 154577401 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154606701 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C Switch Assy, float

29 # 154290204 A B C Thermostat, re-settable

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154685101 A B C Gasket, tub, corner, (2)

* 5300807270 A B C Screw, (2), countertop mtg.

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG

07/08 8

MOTOR & PUMP

FDB130RG Publication No: 5995518940

# Functional Parts 9 07/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB130RG (FDB130RGB3)

BFDB130RG (FDB130RGQ3)

CFDB130RG (FDB130RGS3)

POS. NO PART NO. DESCRIPTION

1 154247601 A B C Heater

1* 154106202 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154479601 A B C Bracket, heater, (2)

10 154335301 A B C Cover, volute

13 154246801 A B C Gasket, sump

14 154365903 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154567701 A B C Spray arm, lower, w/heat shield

24A 154335201 A B C Nut, spray arm

40 154348401 A B C Clamp, hose, red, push spring, (3)

40 154348502 A B C Clamp, red, hose

40* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)

54 154234401 A B C Hose, connector

55 154595901 A B C Bracket, motor

55* 5303316032 A B C Screw, truss ss, 8 .625, (7)

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 # 154640201 A B C Drain Pump Assy

60* 154426201 A B C Bracket, motor, drain

60* 154581501 A B C Screw, drain motor, (3)

63 154252201 A B C Base, soil director

64 154332602 A B C Filter, soil director

65 154252401 A B C Filter, polypro

70 # 154683201 A B C Motor & Pump Assy

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG

07/08 10

FRAME
