Frigidaire FDB1502RG Manuale di istruzioni

P30L0076.eps P30C0158.eps P30B0037.eps P30U0021.eps P30M0039.eps P30F0022.eps

P30R0107.eps

Product No. FDB1502RGB0 FDB1502RGC0 FDB1502RGQ0 FDB1502RGS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154595201 154595201 154595201 154595201

Owner's Guide Spanish 154595203 154595203 154595203 154595203

Owner's Guide French 154595202 154595202 154595202 154595202

Service Data Sheet 154595301 154595301 154595301 154595301

Energy Guide 154540045 154540045 154540045 154540045

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995487674

07/04/02

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1502RG

Publication No: 5995487674 FDB1502RG

04/07 2

CONTROL PANEL

FDB1502RG Publication No: 5995487674

# Functional Parts 3 04/07

* Non-Illustrated Parts

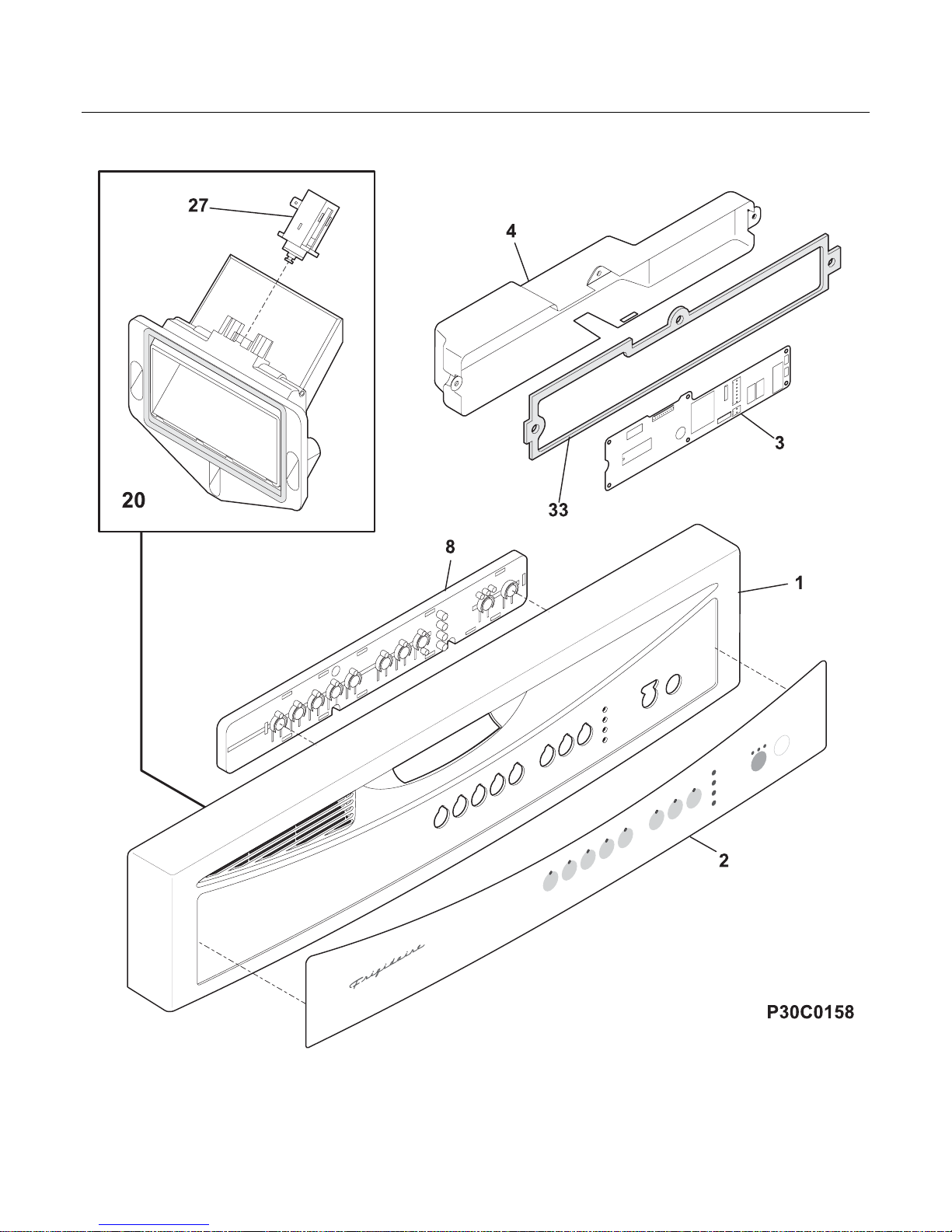

CONTROL PANEL

Model Index: AFDB1502RG (FDB1502RGB0)

BFDB1502RG (FDB1502RGC0)

CFDB1502RG (FDB1502RGQ0)

DFDB1502RG (FDB1502RGS0)

POS. NO PART NO. DESCRIPTION

1 154576703 A B - - Panel, control, black

1 154576704 - - C - Panel, control, bisque

1 154576701 - - - D Panel, control, white

2 154591803 A B - - Insert, control panel, black, 10 pad

2 154591804 - - C - Insert, control panel, bisque, 10 pad

2 154591801 - - - D Insert, control panel, white, 10 pad

3 # 154635501 A B C D Board, electronic, K4

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154552101 A B C D Cover, control

8 154552201 A B C D Switch Assembly, tactile

8* 5303318719 A B C D Screw, mtg.

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

33 154553501 A B C D Gasket, cover

* # 154555601 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154540045 A B C D Energy guide label

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995487674 FDB1502RG

04/07 4

DOOR

FDB1502RG Publication No: 5995487674

# Functional Parts 5 04/07

* Non-Illustrated Parts

DOOR

Model Index: AFDB1502RG (FDB1502RGB0)

BFDB1502RG (FDB1502RGC0)

CFDB1502RG (FDB1502RGQ0)

DFDB1502RG (FDB1502RGS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154597503 A B C D Arm Assy, LH

3A 154596103 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154299006 A B C D Door, inner assy

9 154542103 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154556703 A B - - Latchassy, black

12 # 154556704 - - C - Latch assy, bisque

12 # 154556701 - - - D Latch assy, white

20 154597903 A - - - Door Assy, black, outer, w/dampeners

20 154597905 - B - - Door Assy, stainless, outer, w/dampeners

20 154597904 - - C - Door Assy, bisque, outer, w/dampeners

20 154597901 - - - D Door Assy, white, outer, w/dampeners

20* 5304428306 A B C D Screw, door mtg., (2)

49 154576501 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995487674 FDB1502RG

04/07 6

TUB

FDB1502RG Publication No: 5995487674

# Functional Parts 7 04/07

* Non-Illustrated Parts

TUB

Model Index: AFDB1502RG (FDB1502RGB0)

BFDB1502RG (FDB1502RGC0)

CFDB1502RG (FDB1502RGQ0)

DFDB1502RG (FDB1502RGS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154525301 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995487674 FDB1502RG

04/07 8

MOTOR & PUMP

FDB1502RG Publication No: 5995487674

# Functional Parts 9 04/07

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1502RG (FDB1502RGB0)

BFDB1502RG (FDB1502RGC0)

CFDB1502RG (FDB1502RGQ0)

DFDB1502RG (FDB1502RGS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154289801 A B C D Shield, heater terminal

1* 154106202 A B C D Nut, heater, (2)

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154568002 A B C D Spray arm, grey, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154106801 A B C D Clamp, hose, worm/drain

40* 154380601 A B C D Clamp, hose, worm/gear

54 154234401 A B C D Hose, connector

55 154595901 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 154581501 A B C D Screw, drain motor, (3)

61 154463402 A B C D Grommet, delivery tube

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154594201 A B C D Motor & Pump Assy

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995487674 FDB1502RG

04/07 10

FRAME
