PRODUCT NO. BASE MODEL NO. COLOR

FDB657RJC1 FDB657RJ stain/gun metal

MARKET

North America

24" Built-In

DISHWASHER

Model No.

FDB657RJC1

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154396201

OWNER’S GUIDE # - 154393301

INSTALLATION INSTRUCTIONS # - 154373601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995358982

010917

-EN/SERVICE /ECL

821

10/01 2

Publication No. FDB657RJC1

5995358982

CONTROL PANEL

# = Fast Moving Part 3 10/01

* = Non-Illustrated Part

FDB657RJC1 Publication No.

5995358982

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154368209 Panel,control ,gun metal

2 154372405 Insert,control panel ,gun metal

3 # 154367901 Timer

3* 154095701 Screw,thread rolling ,(2) ,timer

3* 154131203 Shield,timer

8 # 154368601 Switch,selector ,6 button

8* 154248601 Shield,switch

8* 5303318719 Screw,mtg.

13 154239506 Knob,timer ,black

20 154345101 Vapor Chamber Assy,w/ vent gasket

25 154229201 Seal,chamber

27 154226701 Actuator,wax

28 154226901 Valve,vent

29 154226403 Gasket,valve

* # 154391901 Harness-wiring

* 154283901 Screw,#8-10 ,3/8 phillips

10/01 4

Publication No. FDB657RJC1

5995358982

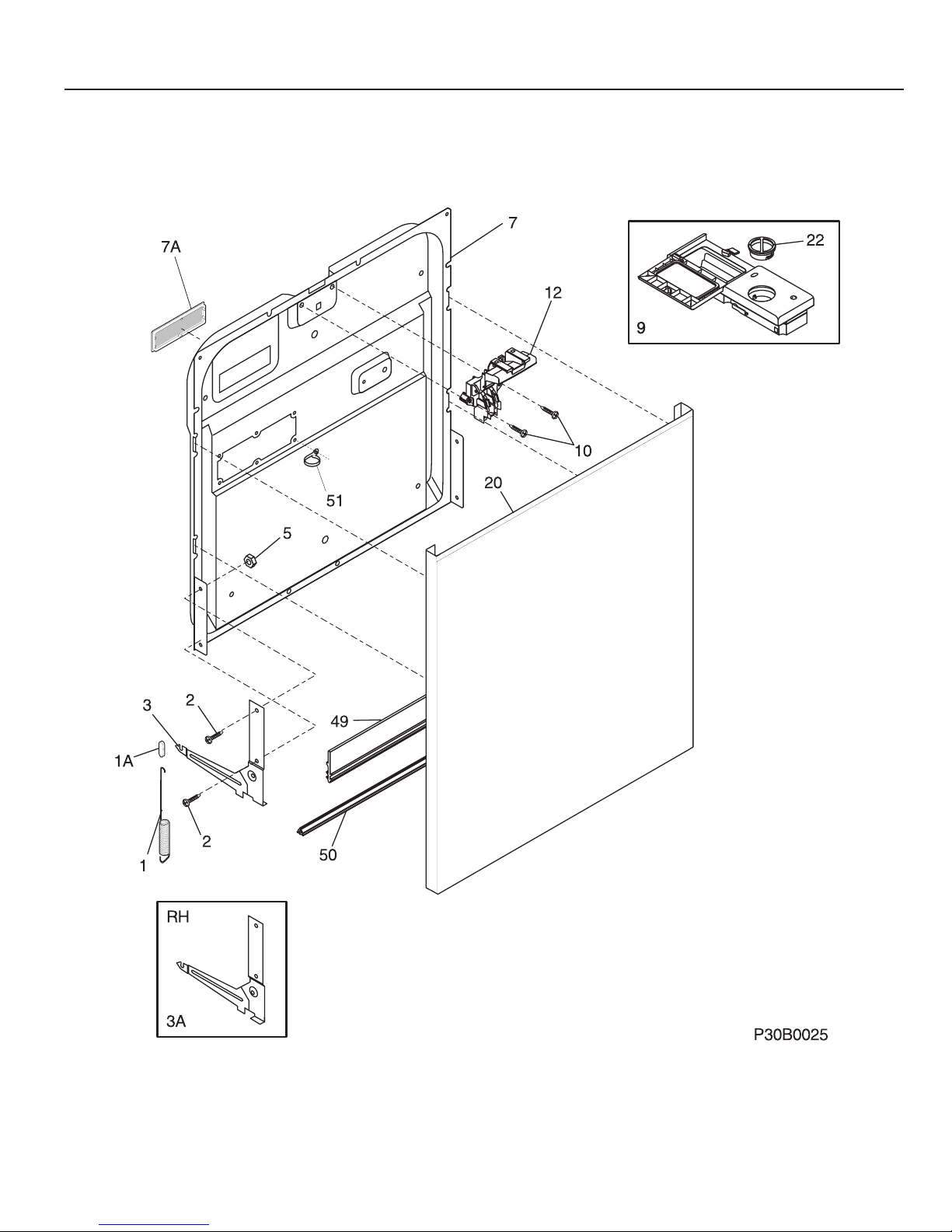

DOOR

# = Fast Moving Part 5 10/01

* = Non-Illustrated Part

FDB657RJC1 Publication No.

5995358982

POS. NO PART NO DESCRIPTION

1 154365701 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154211501 Pin,arm

5 154079601 Nut,arm assy ,(4)

7 154299002 Door,inner assy

7A 154226601 Grate,liner

9 154230101 Dispenser,det/rinse aid ,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 # 154361203 Latch assy,black

20 154359108 Door,stainless

20* 154253201 Insulation,door

22 154388801 Cap,Rinse aid

49 154297602 Gasket,door ,bottom

50 154211401 Support,door hinge

51 154320301 Clamp,drip loop ,wire

* 154213801 Cleaner,stainless steel

* 154227807 Thermostat,temp hotrinse

* # 154227808 Thermostat,temp boost

* 154200601 Screw,#10-16 x 3/8

DOOR

10/01 6

Publication No. FDB657RJC1

5995358982

TUB

# = Fast Moving Part 7 10/01

* = Non-Illustrated Part

FDB657RJC1 Publication No.

5995358982

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike,door

3 # 154211801 Gasket,tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333901 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154225602 Hose,drain

25 # 154209701 Float

28 # 154225501 Switch,float

28A 154386601 Bracket,float switch

28A* 154333301 Screw,bracket mtg ,ph truss head

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 154238304 Insulation,tub

* 154360201 Insulation,blanket ,back

* 5300807270 Screw,(2) ,countertop mtg.

TUB

10/01 8

Publication No. FDB657RJC1

5995358982

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

FDB657RJC1 Publication No.

5995358982

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154245501 Cover,volute

13 154246801 Gasket,sump

14 154365902 Housing,sump

16 154246502 Retainer,sump

24 154250801 Spray arm,lower

24A 154313601 Spray arm,center

24A* 154252001 Nut,spray arm ,center

32 154251701 Tube,delivery

32A 154358901 Gasket,delivery tube

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp,hose ,(2)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket,motor ,drain

61 154359601 Nozzle,3rd level ,spray arm

62 154294101 Support,spray arm ,lower

63 154252201 Base,soil director

64 154252301 Filter,soil director

65 154252401 Filter-polypro

66 154252701 Trap,glass

70 # 154395402 Motor assembly,circulation ,w/o o’rings

* 154338601 Clamp-P,nylon

* 154200601 Screw,#10-16 x 3/8

MOTOR & PUMP

10/01 10

Publication No. FDB657RJC1

5995358982

FRAME
