Frigidaire FDBC24BA Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDBC24BAS1 FDBC24BA white

MARKET

North America

Publication No.

5995374518

020618

-EN/SERVICE /ECL

821

24" Built In

DISHWASHER

Model No.

FDBC24BA

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154414801

OWNER’S GUIDE # - 154395101

INSTALLATION INSTRUCTIONS # - 154415901

ENERGY GUIDE LABEL # - 154399001

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

06/02 2

Publication No. FDBC24BAS1

5995374518

CONTROL PANEL

# = Fast Moving Part 3 06/02

* = Non-Illustrated Part

FDBC24BAS1 Publication No.

5995374518

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154368101 Panel,control ,white

2 154409601 Insert,control panel ,white

3 # 154393902 Timer

8 # 154215301 Switch,selector ,2 button

8* 154242201 Shield,switch

8* 5303318719 Screw,mtg.

12 154236502 Pushbutton,white

13 154239504 Knob,timer ,white

20 154345102 Vapor Chamber Assy,w/vent gasket

25 154229201 Seal,chamber

* 154391201 Wiring Harness

* 154399001 Label,energy guide

* 154283901 Screw,#8-10 ,3/8 phillips

06/02 4

Publication No. FDBC24BAS1

5995374518

DOOR

# = Fast Moving Part 5 06/02

* = Non-Illustrated Part

FDBC24BAS1 Publication No.

5995374518

POS. NO PART NO DESCRIPTION

1 154345902 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154400601 Pin,arm assy

5 154079601 Nut,arm assy ,(4)

7 154299002 Door,inner assy

7A 154332701 Grate,liner

9 154230101 Dispenser,det/rinse aid ,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 # 154361201 Latch assy,white

20 154359105 Door,white

20* 5304428306 Screw,door mtg. ,(2)

22 154388801 Cap,Rinse aid

49 154297602 Gasket,door ,bottom

50 154211401 Support,door hinge

51 154320301 Clamp,drip loop ,wire

* 154200601 Screw,#10-16 x 3/8

DOOR

06/02 6

Publication No. FDBC24BAS1

5995374518

TUB

# = Fast Moving Part 7 06/02

* = Non-Illustrated Part

FDBC24BAS1 Publication No.

5995374518

POS. NO PART NO DESCRIPTION

1 # 154209204 Tub,plastic

2 154429101 Strike,door

3 # 154211801 Gasket,tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333901 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154411002 Hose,drain

25 # 154209701 Float

28 154408701 Switch assy,float

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154238304 Insulation,tub

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 5300807270 Screw,(2) ,countertop mtg.

TUB

06/02 8

Publication No. FDBC24BAS1

5995374518

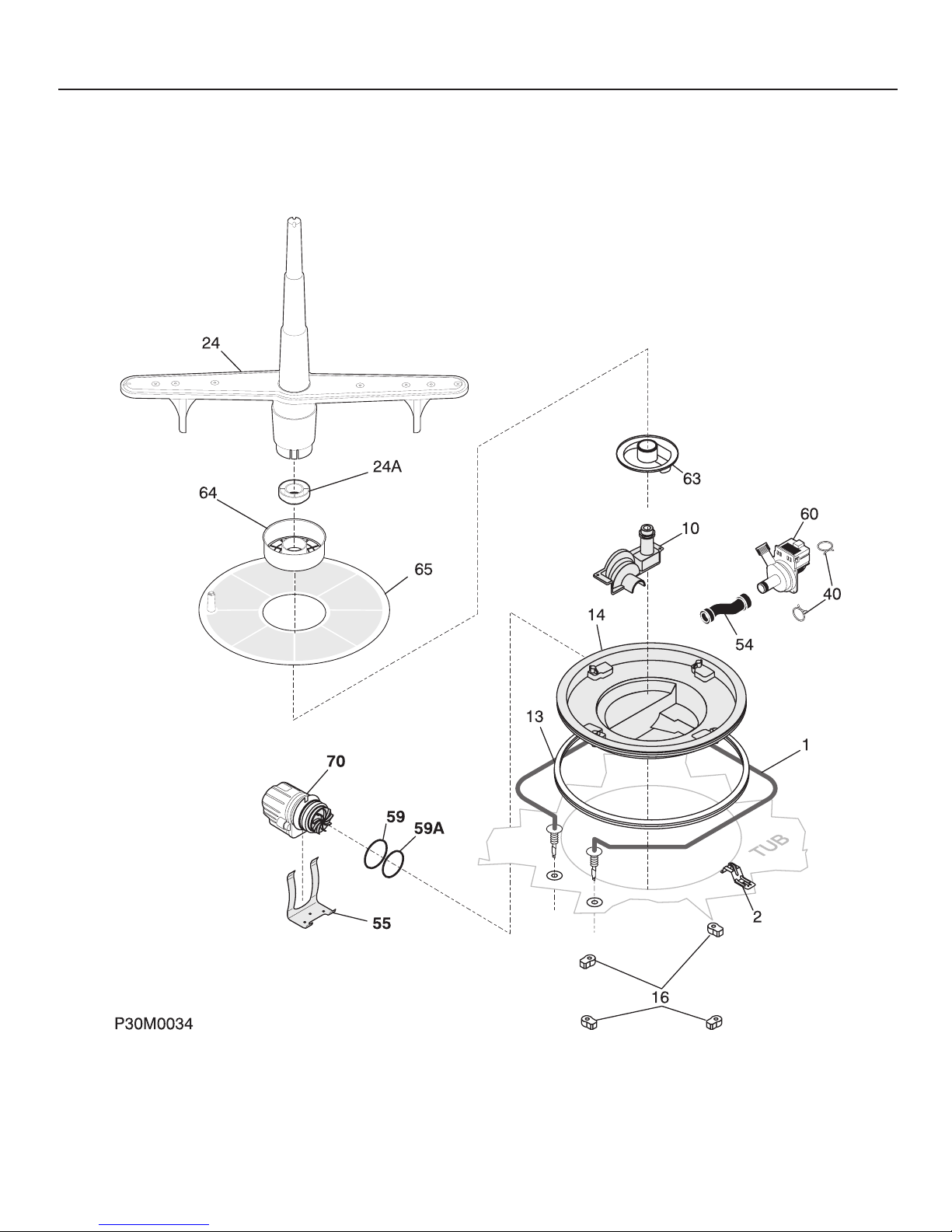

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

FDBC24BAS1 Publication No.

5995374518

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154335301 Cover,volute

13 154246801 Gasket,sump

14 154365903 Housing,sump

16 154246502 Retainer,sump

24 154414201 Spray arm,lower ,w/heat shield

24A 154335201 Nut,spray arm

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154380601 Clamp,hose ,(1)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154407401 Drain Pump Assy

60* 154234501 Bracket,motor ,drain

63 154252201 Base,soil director

64 154332602 Filter,soil director

65 154252401 Filter,polypro

70 # 154395402 Motor assembly,circulation ,w/o o’rings

MOTOR & PUMP

06/02 10

Publication No. FDBC24BAS1

5995374518

FRAME
