Frigidaire FDB856RJ Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB856RJB0 FDB856RJ 24" Built-in black

FDB856RJS0 FDB856RJ 24" Built-in white

FDB856RJT0 FDB856RJ 24" Built-in almond

MARKET

North America

Publication No.

5995341913

000728

-EN/SERVICE /ECL

821

24" BUILT IN

DISHWASHER

Model No.

FDB856RJ

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154371501

OWNER’S GUIDE # - 154375301

WIRING DIAGRAM # - 154371501

101 Masters Blvd.

Anderson, SC 29624

07/00 2

Publication No. FDB856RJ

5995341913

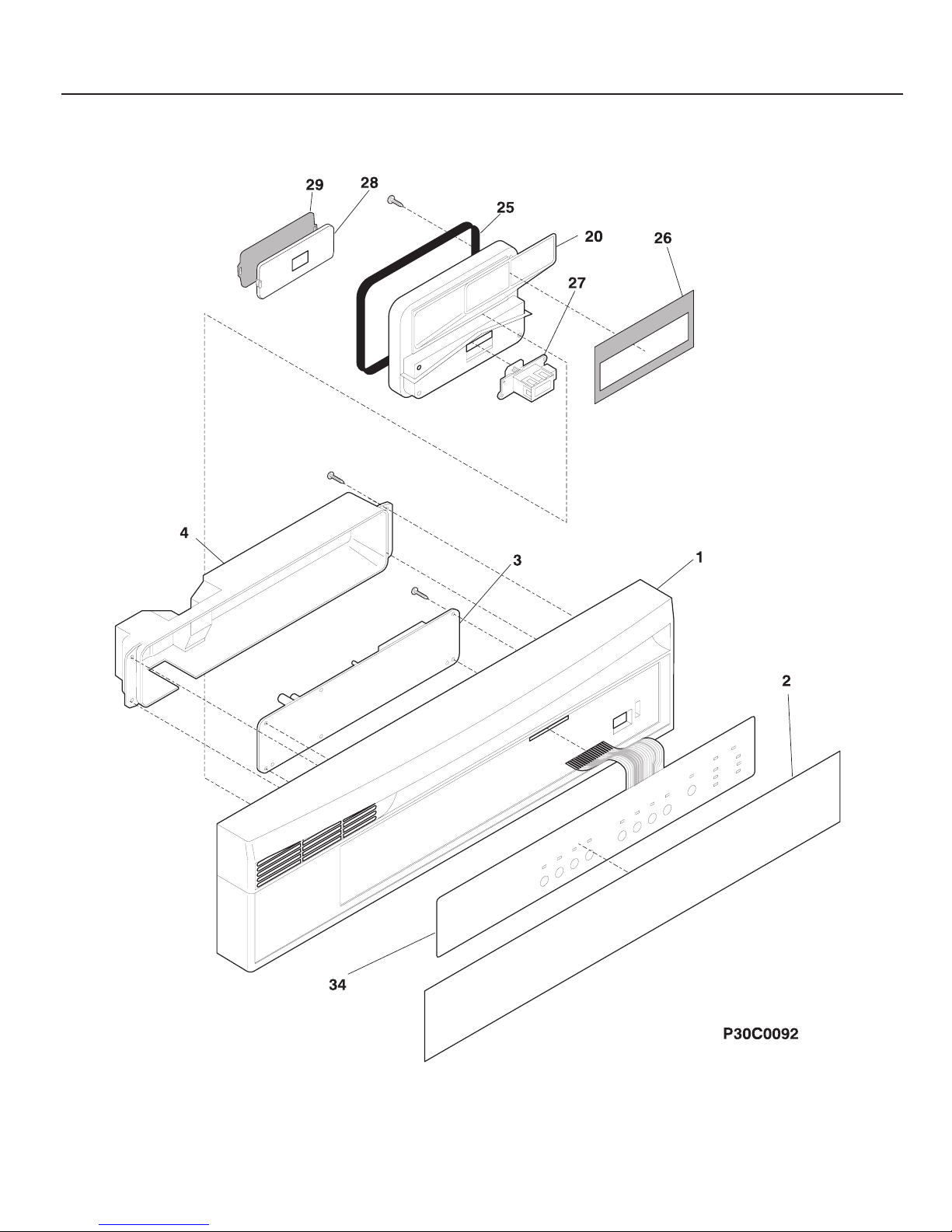

CONTROL PANEL

# = Fast Moving Part 3 07/00

* = Non-Illustrated Part

FDB856RJ Publication No.

5995341913

CONTROL PANEL

A = FDB856RJ (FDB856RJS0)

B = FDB856RJ (FDB856RJT0)

C = FDB856RJ (FDB856RJB0)

POS. NO PART NO DESCRIPTION

1 154378401 A - - Panel-control,white

1 154378402 - B - Panel-control,almond

1 154378403 - - C Panel-control,black

2 154378501 A - - Insert-control pnl,white

2 154378502 - B - Insert-control pnl,almond

2 154378503 - - C Insert-control pnl,black

3 # 154362807 A B C Control

3* 154200401 A B C Screw,6-10 x 3/8 ,pan plask

4 154287802 A B C Cover-control

20 154283701 A B C Vapor Weldment Assy

25 154229201 A B C Seal-chamber

26 154303901 A B C Gasket-vent

27 154226701 A B C Actuator-wax

28 154226901 A B C Valve-vent

29 154226403 A B C Gasket-valve

34 # 154378601 A B C Keypad,9pad

* 154227501 A B C Thermister

* 154283901 A B C Screw,#8-10 ,3/8 phillips

* # 154371001 A B C Wiring Harness

07/00 4

Publication No. FDB856RJ

5995341913

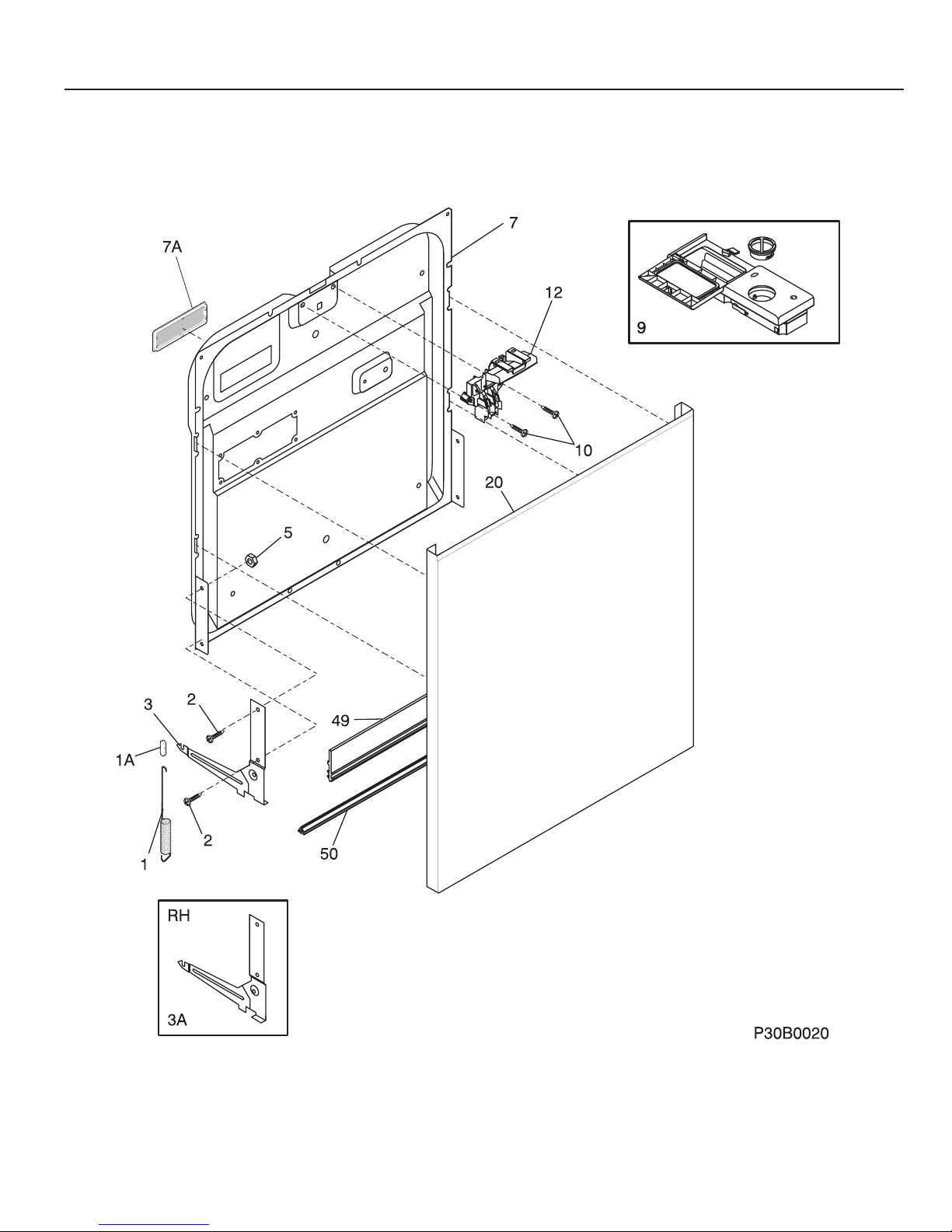

DOOR

# = Fast Moving Part 5 07/00

* = Non-Illustrated Part

FDB856RJ Publication No.

5995341913

A = FDB856RJ (FDB856RJS0)

B = FDB856RJ (FDB856RJT0)

C = FDB856RJ (FDB856RJB0)

POS. NO PART NO DESCRIPTION

1 154365701 A B C Spring-door,(2)

1A 154325201 A B C Spring linkage,(2)

2 154093301 A B C Screw-arm assy,(4)

3 154325304 A B C Arm Assy,LH

3A 154325303 A B C Arm Assy,RH

* 154211501 A B C Pin-arm

5 154079601 A B C Nut-arm assy,(4)

7 154299002 A B C Door-inner assy

7A 154226601 A B C Liner grate

9 154230101 A B C Dispenser-det/rinse aid

9* 154294701 A B C Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B C Screw-latch mtg,(2)

12 # 154361201 A - - Latch assy,white

12 # 154361202 - B - Latch assy,almond

12 # 154361203 - - C Latch assy,black

20 154359101 A - - Door,white

20 154359102 - B - Door,almond

20 154359103 - - C Door,black

49 154297602 A B C Gasket-door,bottom

50 154211401 A B C Support-door hinge

* 154253201 A B C Insulation,door

* 154320301 A B C Clamp-wire,drip loop

DOOR

07/00 6

Publication No. FDB856RJ

5995341913

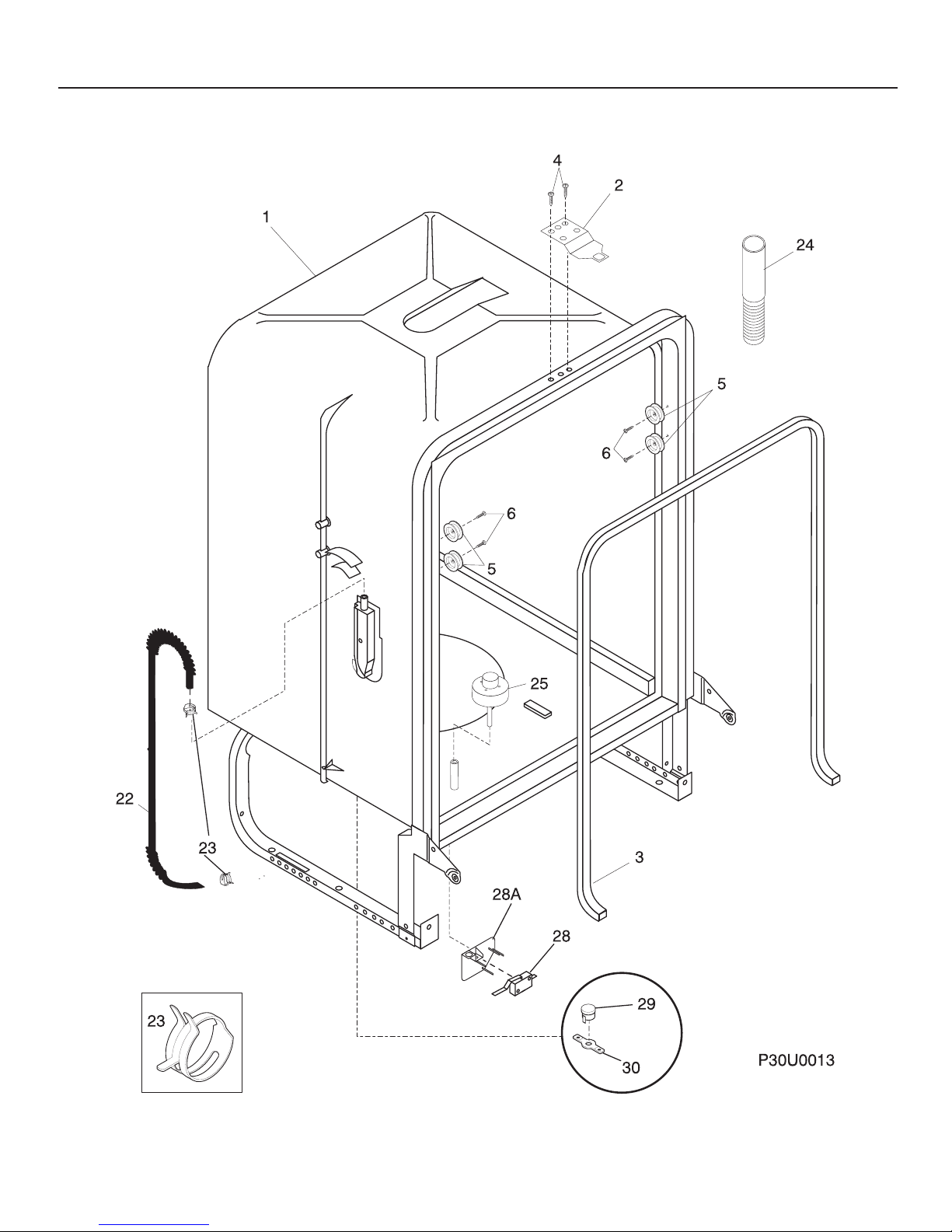

TUB

# = Fast Moving Part 7 07/00

* = Non-Illustrated Part

FDB856RJ Publication No.

5995341913

A = FDB856RJ (FDB856RJS0)

B = FDB856RJ (FDB856RJT0)

C = FDB856RJ (FDB856RJB0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C Tub assy,w/frame parts

2 154211601 A B C Strike-door

3 # 154211801 A B C Gasket-tub

4 154200602 A B C Screw,10-16 x 3/8 ,hex

5 154333901 A B C Roller-tub

6 5303943103 A B C Screw w/washer,(8)

22 154239801 A B C Tubing-water inlet

23 5303318539 A B C Clamp-tubing,(2)

24 # 154225602 A B C Hose-drain

25 # 154209701 A B C Float

28 # 154225501 A B C Switch-float

28A 154209801 A B C Bracket-float switch

28A* 154333301 A B C Screw,bracket mtg ,ph truss head

29 # 154290204 A B C Thermostat,re-settable

30 154241101 A B C Retainer-thermostat

30* 154297701 A B C Screw,retainer-thermo

* 154041001 A B C Screw,plask #1 ,10-10 x 9/16

* 154238304 A B C Insulation,tub

* 154360201 A B C Insulation,blanket ,back

* 5300807270 A B C Screw,(2) ,countertop mtg.

TUB

07/00 8

Publication No. FDB856RJ

5995341913

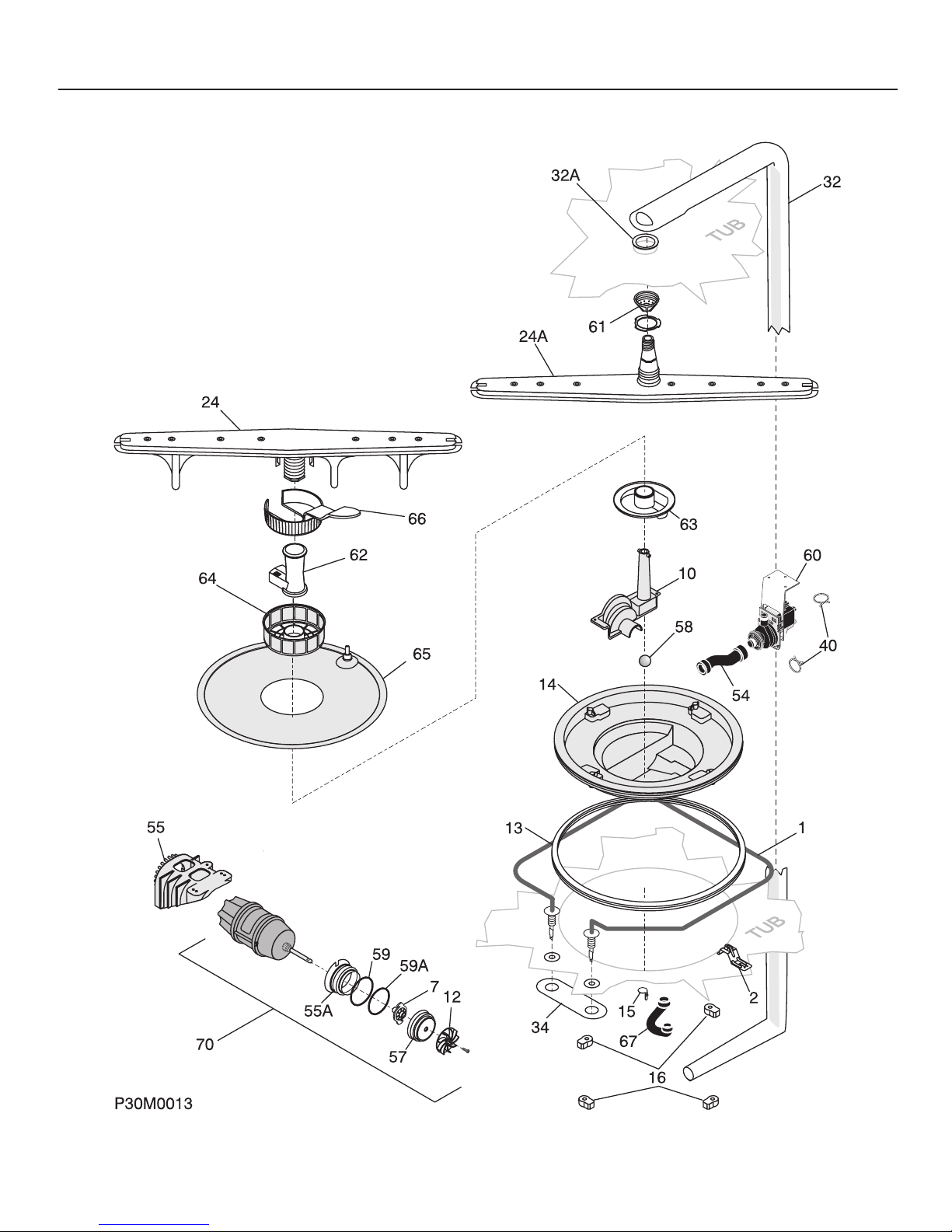

MOTOR & PUMP

# = Fast Moving Part 9 07/00

* = Non-Illustrated Part

FDB856RJ Publication No.

5995341913

A = FDB856RJ (FDB856RJS0)

B = FDB856RJ (FDB856RJT0)

C = FDB856RJ (FDB856RJB0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut-heater,(2)

1* 154289801 A B C Shield-heater terminal

2 154359701 A B C Bracket-heater,(2)

7 154245901 A B C Macerator

10 154245501 A B C Cover-volute

12 154245801 A B C Impeller

12* 154282701 A B C Screw,ss impeller

13 154246801 A B C Gasket-sump

14 154365902 A B C Housing-sump

15 154246701 A B C Check valve

16 154246502 A B C Retainer,sump

24 154250801 A B C Spray arm-lower

24A 154313601 A B C Spray arm-center

24A* 154252001 A B C Nut-spray arm

32 154251701 A B C Tube-delivery

32A 154358901 A B C Gasket-delivery tube

34 154064901 A B C Washer-insulating

40 154348401 A B C Clamp,red ,pump

40 154348501 A B C Clamp,silver ,pump

40* 154106801 A B C Clamp-hose,(2)

54 154234401 A B C Hose-connector

55 154325701 A B C Bracket-motor

55* 5303316032 A B C Screw,truss ss ,8 .625

55A 154246201 A B C Bracket-motor,front

57 154246001 A B C Barrel,front

57* 154246101 A B C Barrel,rear

58 154246402 A B C Check ball

59 154246901 A B C O-ring,rear

59A 154247001 A B C O-ring,front

60 154247502 A B C Drain Pump Assy

60* 154234501 A B C Bracket-motor,drain

61 154359601 A B C Nozzle,3rd level ,spray arm

62 154294101 A B C Support-spray arm

63 154252201 A B C Base-soil director

64 154252301 A B C Filter-soil director

65 154252401 A B C Filter-polypro

66 154252701 A B C Trap-glass

67 154246601 A B C Hose-drain,shunt

70 # 154291504 A B C Motor & Pump Assy,includes#7,#12 ,

#55A,#57,#59,,#59A

70* 154287201 A B C Screw,motor mounting

* 154329001 A B C Cover-fan

* 154338601 A B C Clamp-P,nylon

* 154200601 A B C Screw-#10-16 x 3/8

MOTOR & PUMP

07/00 10

Publication No. FDB856RJ

5995341913

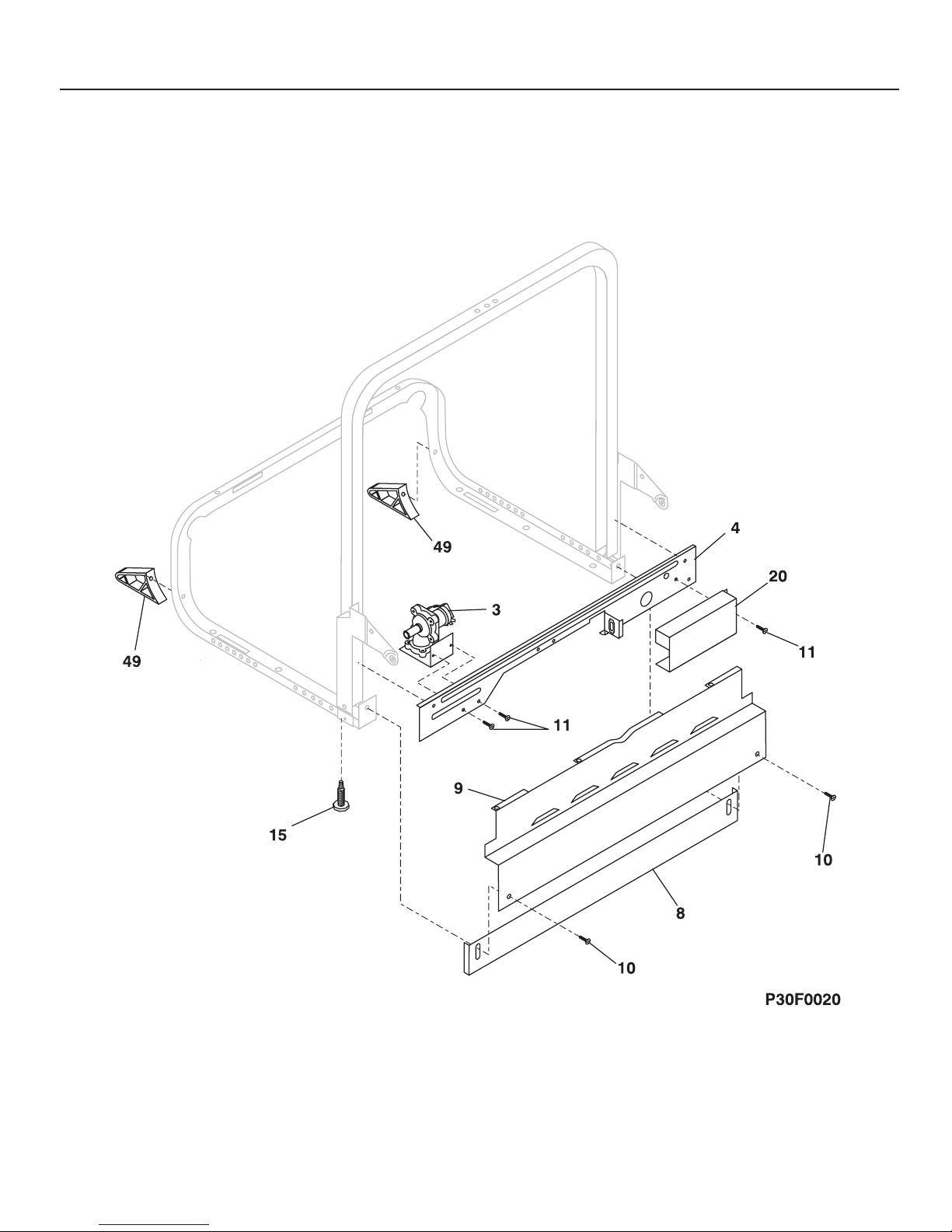

FRAME
