Frigidaire FDB989RC Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB989RCB0 FDB989RC Built-in 24" black

FDB989RCC0 FDB989RC Built-in 24" stainless

FDB989RCQ0 FDB898RC Built-in 24" bisque

FDB989RCS0 FDB989RC Built-in 24" white

MARKET

North America

Publication No.

5995388914

030414

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

FDB989RC

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154444501

OWNER’S GUIDE # - 154448401

INSTALLATION INSTRUCTIONS # - 154427301

ENERGY GUIDE LABEL # - 154399007

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

04/03 2

Publication No. FDB989RC

5995388914

CONTROL PANEL

# = Fast Moving Part 3 04/03

* = Non-Illustrated Part

FDB989RC Publication No.

5995388914

CONTROL PANEL

A = FDB989RC (FDB989RCS0)

B = FDB989RC (FDB989RCB0)

C = FDB989RC (FDB989RCC0)

D = FDB989RC (FDB989RCQ0)

POS. NO PART NO DESCRIPTION

1 154370301 A - - - Panel,control ,white

1 154370303 A B C D Panel,control ,black

1 154370304 ---D Panel,control ,bisque

2 154449401 A - - - Insert,control panel ,white ,10 pad

2 154449403 A B C D Insert,control panel ,black ,10 pad

2 154449404 ---D Insert,control panel ,bisque ,10 pad

3 # 154445802 A B C D Control,electronic

3* 154200401 A B C D Screw,6-10 x 3/8 ,pan plask

4 154287901 A B C D Cover,control

18 154473601 A - - - Nameplate,white ,Frigidaire

18 154473603 - B C - Nameplate,black ,Frigidaire

18 154473604 ---D Nameplate,bisque ,Frigidaire

20 154423601 A B C D Vent assy,active dry ,w/actuator

20* 154436201 A B C D Screw,dry duct ,(3)

27 154433501 A B C D Actuator,active dry vent

34 # 154449501 A B C D Keypad,10pad

35 154393501 A B C D Board,display

* # 154444901 A B C D Wiring Harness

* 154227501 A B C D Thermistor

* 154399007 A B C D Label,energy guide

* 154283901 A B C D Screw,#8-10 ,3/8 phillips

04/03 4

Publication No. FDB989RC

5995388914

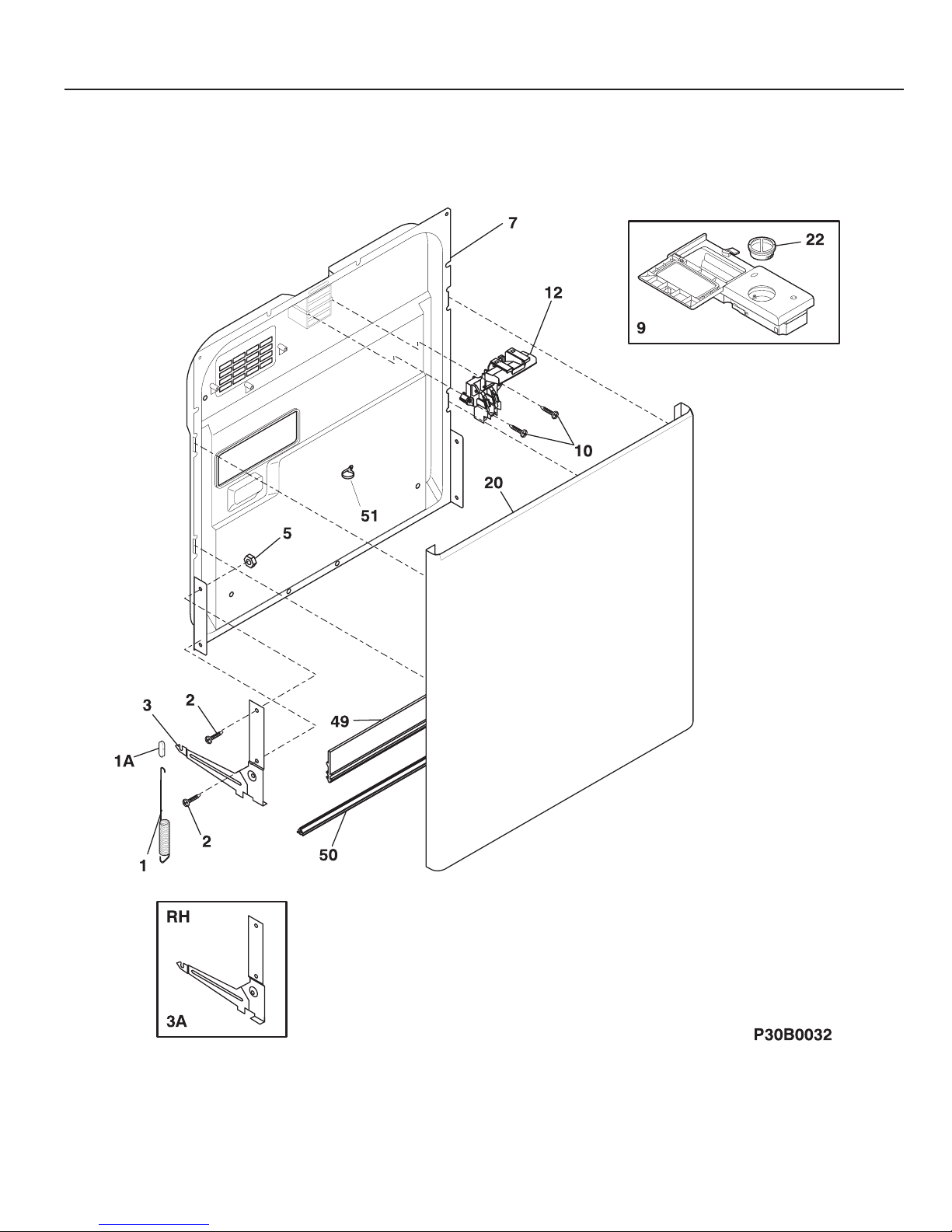

DOOR

# = Fast Moving Part 5 04/03

* = Non-Illustrated Part

FDB989RC Publication No.

5995388914

A = FDB989RC (FDB989RCS0)

B = FDB989RC (FDB989RCB0)

C = FDB989RC (FDB989RCC0)

D = FDB989RC (FDB989RCQ0)

POS. NO PART NO DESCRIPTION

1 154430601 A B C D Spring,door ,(2)

1A 154325201 A B C D Linkage,door spring ,(2)

2 154093301 A B C D Screw,arm assy ,(4)

3 154325304 A B C D Arm Assy,LH

3A 154325303 A B C D Arm Assy,RH

* 154400601 A B C D Pin,arm assy

5 154079601 A B C D Nut,arm assy ,and handle mtg.

7 154299004 A B C D Door,inner assy

9 154230103 A B C D Dispenser,det/rinse aid ,includes #22

9* 154294701 A B C D Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B C D Screw,latch mtg ,(2)

12 154434101 A - - - Latch assy,white

12 154434103 - B C - Latch assy,black

12 # 154434104 ---D Latch assy,bisque

20 154436801 A - - - Door assy,white ,outer

20 154436803 - B - - Door assy,black ,outer

20 154436805 - - C - Door assy,stainless ,outer

20 154436804 ---D Door assy,bisque ,outer

20* 154253201 A B C D Insulation,door

20* 5304428306 A B C D Screw,door mtg. ,(2)

22 154388801 A B C D Cap,Rinse aid

49 154297603 A B C D Gasket,door ,bottom

50 154211401 A B C D Support,door hinge

51 154320301 A B C D Clamp,drip loop ,wire

* 154200601 A B C D Screw,#10-16 x 3/8

DOOR

04/03 6

Publication No. FDB989RC

5995388914

TUB

# = Fast Moving Part 7 04/03

* = Non-Illustrated Part

FDB989RC Publication No.

5995388914

A = FDB989RC (FDB989RCS0)

B = FDB989RC (FDB989RCB0)

C = FDB989RC (FDB989RCC0)

D = FDB989RC (FDB989RCQ0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C D Tub assy,w/frame parts

2 154429101 A B C D Strike,door

3 # 154211801 A B C D Gasket,tub

4 154200602 A B C D Screw,10-16 x 3/8 ,hex

5 154333902 A B C D Roller,tub

6 5303943103 A B C D Screw,w/washer ,(8)

22 154239801 A B C D Tubing,water inlet

23 5303318539 A B C D Clamp,tubing ,(2)

24 # 154411003 A B C D Hose,drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch assy,float

29 # 154290204 A B C D Thermostat,re-settable

30 154241101 A B C D Retainer,thermostat

30* 154297701 A B C D Screw,retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154447301 A B C D Insulation,tub back

* 154041001 A B C D Screw,plask #1 ,10-10 x 9/16

* 5300807270 A B C D Screw,(2) ,countertop mtg.

TUB

04/03 8

Publication No. FDB989RC

5995388914

MOTOR & PUMP

# = Fast Moving Part 9 04/03

* = Non-Illustrated Part

FDB989RC Publication No.

5995388914

A = FDB989RC (FDB989RCS0)

B = FDB989RC (FDB989RCB0)

C = FDB989RC (FDB989RCC0)

D = FDB989RC (FDB989RCQ0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C D Heater

1* 154106201 A B C D Nut,heater ,(2)

1* 154289801 A B C D Shield,heater terminal

2 154359701 A B C D Bracket,heater ,(2)

10 154245501 A B C D Cover,volute

13 154246801 A B C D Gasket,sump

14 154365901 A B C D Housing,sump

16 154246502 A B C D Retainer,sump

24 154414101 A B C D Spray arm,lower ,w/heat shield

24A 154313601 A B C D Spray arm,center

24A* 154252001 A B C D Nut,spray arm ,center

32 154406601 A B C D Tube,delivery

32A 154406401 A B C D Gasket,delivery tube

40 154348401 A B C D Clamp,red ,pump

40 154348501 A B C D Clamp,silver ,pump

40* 154106801 A B C D Clamp,hose ,(2)

40* 154380601 A B C D Clamp,hose ,(1)

54 154234401 A B C D Hose,connector

55 154362301 A B C D Bracket,motor ,askoll

55* 5303316032 A B C D Screw,truss ss ,8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring,rear

59A 154247001 A B C D O-ring,front

60 154407401 A B C D Drain Pump Assy

60* 154426201 A B C D Bracket,motor ,drain

61 154406501 A B C D Nozzle,3rd level ,spray arm

62 154294101 A B C D Support,spray arm ,lower

63 154252201 A B C D Base,soil director

64 154252301 A B C D Filter,soil director

65 154252401 A B C D Filter,polypro

66 154252701 A B C D Trap,glass

70 # 154418302 A B C D Motor assembly,circulation ,w/o o’rings

71 154366101 A B C D Sensor,turbidity

71* 154376001 A B C D O-ring,turbidity

* 154200601 A B C D Screw,#10-16 x 3/8

MOTOR & PUMP

04/03 10

Publication No. FDB989RC

5995388914

FRAME
