Frigidaire FDB1500LF Manuale utente

P30L0076.eps P30C0158.eps P30B0037.eps P30U0021.eps P30M0039.eps P30F0022.eps

P30R0094.eps

Product No. FDB1500LFB0 FDB1500LFC0 FDB1500LFQ0 FDB1500LFS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154595201 154595201 154595201 154595201

Owner's Guide French 154595202 154595202 154595202 154595202

Service Data Sheet 154595301 154595301 154595301 154595301

Energy Guide 154540036 154540036 154540036 154540036

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474441

06/09/18

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1500LF

Publication No: 5995474441 FDB1500LF

09/06 2

CONTROL PANEL

FDB1500LF Publication No: 5995474441

# Functional Parts 3 09/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB1500LF (FDB1500LFB0)

BFDB1500LF (FDB1500LFC0)

CFDB1500LF (FDB1500LFQ0)

DFDB1500LF (FDB1500LFS0)

POS. NO PART NO. DESCRIPTION

1 154576703 A B - - Panel, control, black

1 154576704 - - C - Panel, control, bisque

1 154576701 - - - D Panel, control, white

2 154591803 A B - - Insert, control panel, black, 10 pad

2 154591804 - - C - Insert, control panel, bisque, 10 pad

2 154591801 - - - D Insert, control panel, white, 10 pad

3 # 154552001 A B C D Control, electronic, 10 pad

3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask

4 154552101 A B C D Cover, control

8 154552201 A B C D Switch Assembly, tactile

8* 5303318719 A B C D Screw, mtg.

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

33 154553501 A B C D Gasket, cover

* # 154555601 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154409401 A B C D Screw, #8-18 x .375

* 154540036 A B C D Energy guide label

Publication No: 5995474441 FDB1500LF

09/06 4

DOOR

FDB1500LF Publication No: 5995474441

# Functional Parts 5 09/06

* Non-Illustrated Parts

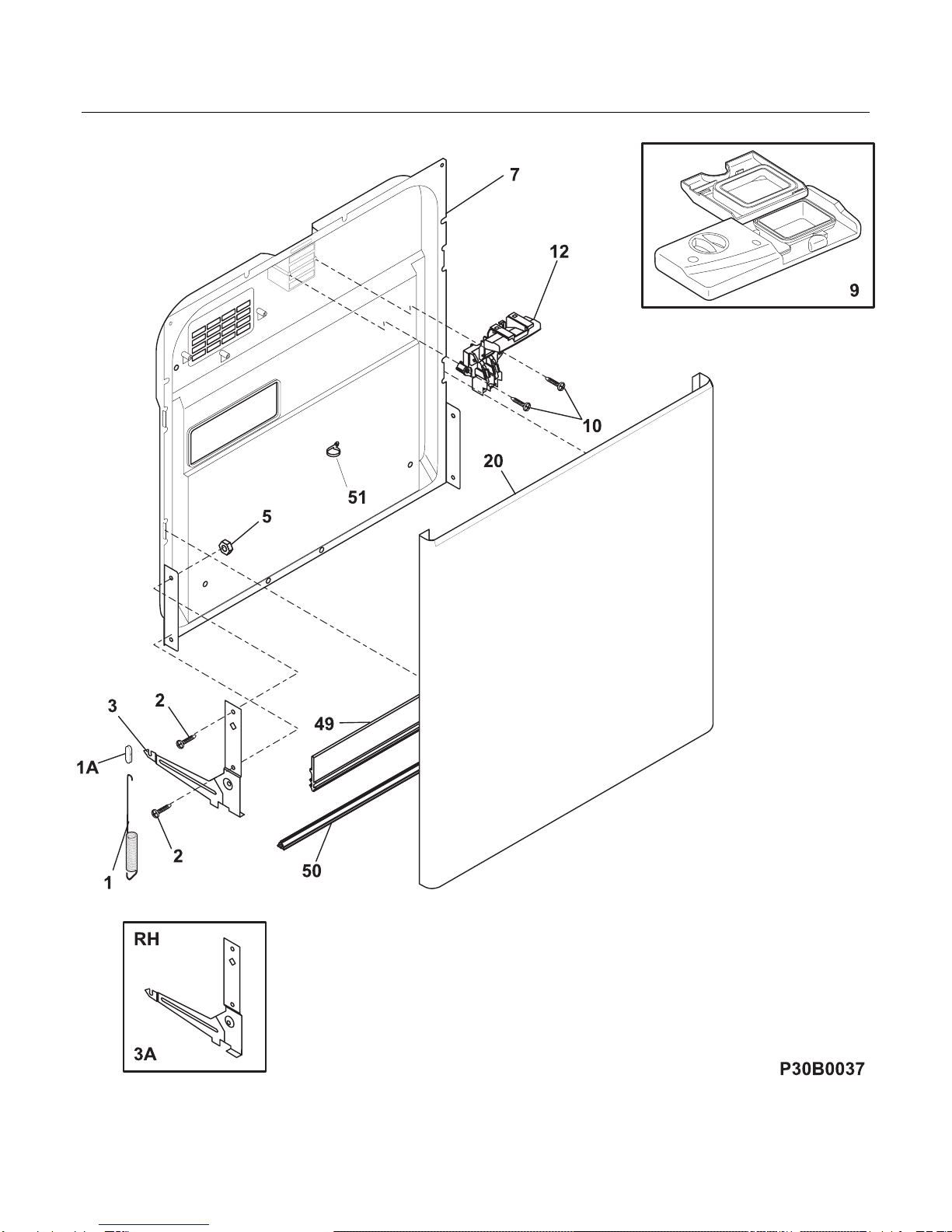

DOOR

Model Index: AFDB1500LF (FDB1500LFB0)

BFDB1500LF (FDB1500LFC0)

CFDB1500LF (FDB1500LFQ0)

DFDB1500LF (FDB1500LFS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154558103 A B C D Arm Assy, LH

3A 154558503 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154299006 A B C D Door, inner assy

9 154542103 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154556703 A B - - Latch assy, black

12 # 154556704 - - C - Latch assy, bisque

12 # 154556701 - - - D Latchassy, white

20 154538308 A - - - Door, black

20 154538309 - B - - Door, stainless

20 154538311 - - C - Door, bisque

20 154538310 - - - D Door, white

20* 154253201 A B C D Insulation, door

20* 5304428306 A B C D Screw, door mtg., (2)

49 154576501 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995474441 FDB1500LF

09/06 6

TUB

FDB1500LF Publication No: 5995474441

# Functional Parts 7 09/06

* Non-Illustrated Parts

TUB

Model Index: AFDB1500LF (FDB1500LFB0)

BFDB1500LF (FDB1500LFC0)

CFDB1500LF (FDB1500LFQ0)

DFDB1500LF (FDB1500LFS0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154525301 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995474441 FDB1500LF

09/06 8

MOTOR & PUMP

FDB1500LF Publication No: 5995474441

# Functional Parts 9 09/06

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1500LF (FDB1500LFB0)

BFDB1500LF (FDB1500LFC0)

CFDB1500LF (FDB1500LFQ0)

DFDB1500LF (FDB1500LFS0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154568002 A B C D Spray arm, grey, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154106801 A B C D Clamp, hose, worm/drain

40* 154380601 A B C D Clamp, hose, worm/gear

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154491301 A B C D Pump, drain

60* 154581501 A B C D Screw, drain motor, (3)

61 154463402 A B C D Grommet, delivery tube

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154574701 A B C D Motor & Pump Assy

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995474441 FDB1500LF

09/06 10

FRAME
