Frigidaire PLDS999C Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR

PLDS999CC0 PLDS999C Pro Design stainless

MARKET

North America

Publication No.

5995385456

030205

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

PLDS999C

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154444501

OWNER’S GUIDE # - 154448401

INSTALLATION INSTRUCTIONS # - 154427301

ENERGY GUIDE LABEL # - 154399007

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

02/03 2

Publication No. PLDS999CC0

5995385456

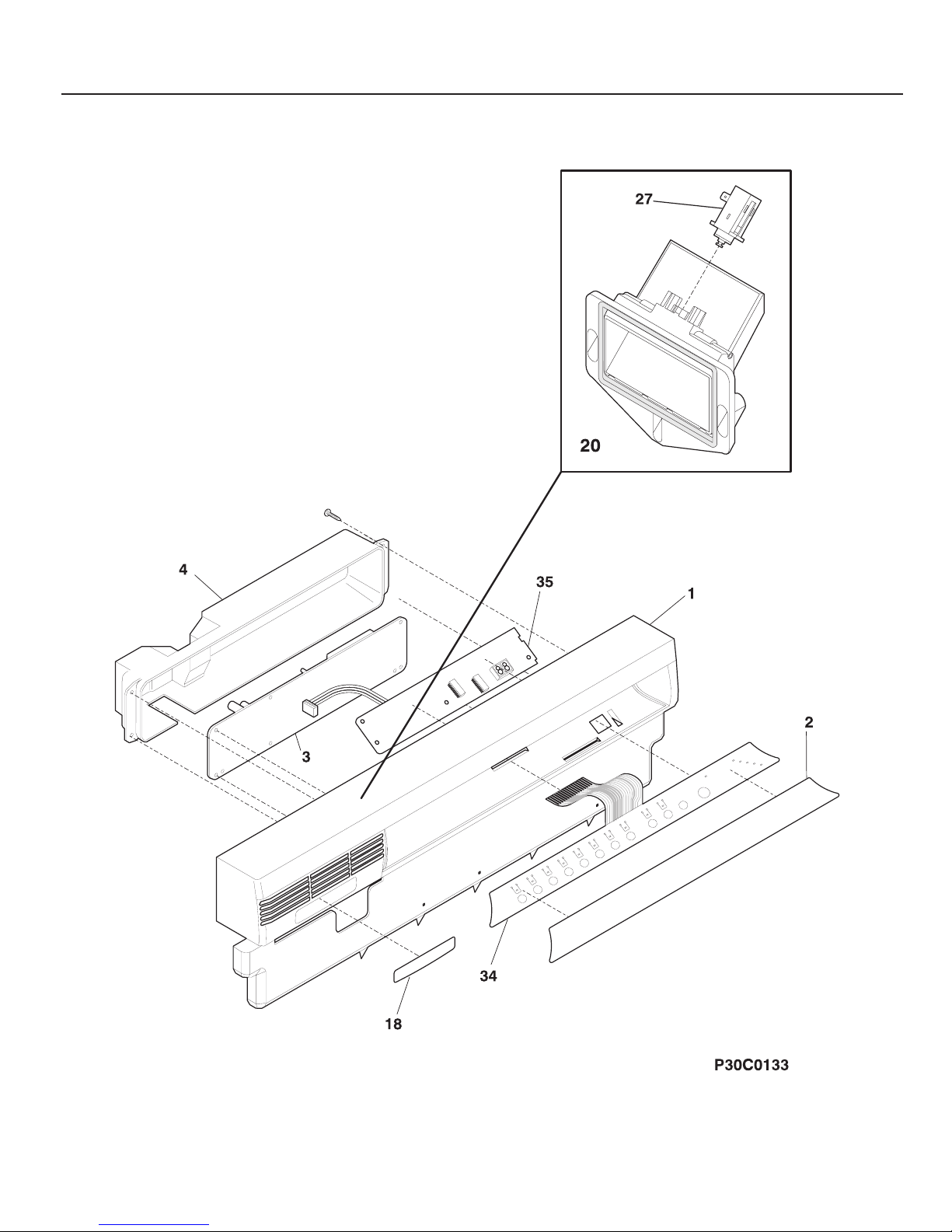

CONTROL PANEL

# = Fast Moving Part 3 02/03

* = Non-Illustrated Part

PLDS999CC0 Publication No.

5995385456

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154412205 Panel,control ,stainless

2 154445405 Insert,control panel ,stainless

3 # 154445803 Control,electronic

3* 154200401 Screw,6-10 x 3/8 ,pan plask

4 154287901 Cover,control

18 154446105 Nameplate,Pro Series

20 154423601 Vent assy,active dry ,w/actuator

20* 154436201 Screw,dry duct ,(3)

27 154433501 Actuator,active dry vent

34 # 154442301 Keypad,12pad

35 154393501 Board,display

* # 154437001 Wiring Harness

* 154227501 Thermistor

* 154399007 Label,energy guide

02/03 4

Publication No. PLDS999CC0

5995385456

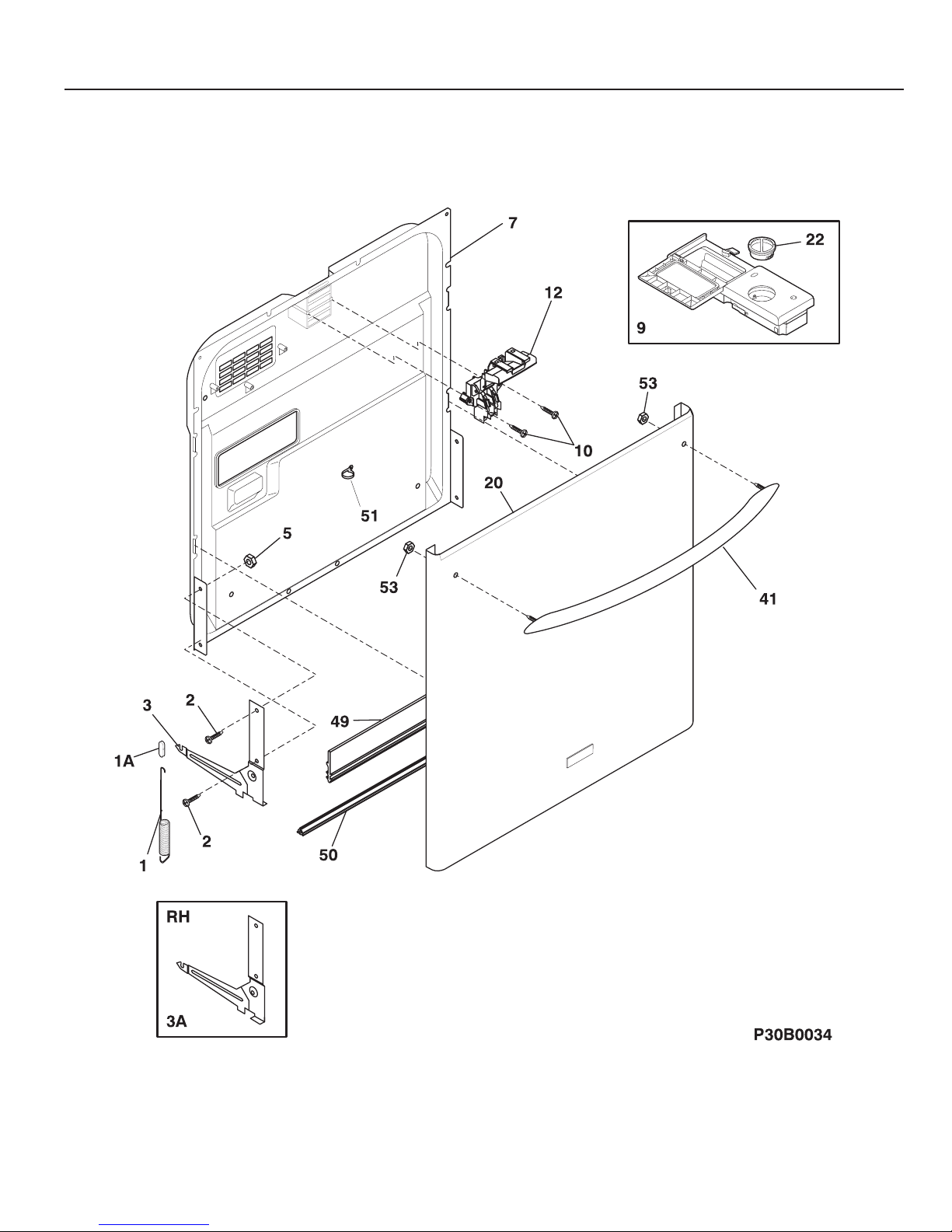

DOOR

# = Fast Moving Part 5 02/03

* = Non-Illustrated Part

PLDS999CC0 Publication No.

5995385456

POS. NO PART NO DESCRIPTION

1 154430601 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154400601 Pin,arm assy

5 154079601 Nut,arm assy ,and handle mtg.

7 154299004 Door,inner assy

9 154230104 Dispenser,det/rinse aid ,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 154434105 Latch assy,stainless

20 154436807 Door assy,stainless ,outer ,w/nameplate

20* 154253201 Insulation,door

20* 5304428306 Screw,door mtg. ,(2)

22 154388801 Cap,Rinse aid

41 154448905 Handle,towel bar ,stainless ,w/threaded stud

49 154297603 Gasket,door ,bottom

50 154211401 Support,door hinge

51 154320301 Clamp,drip loop ,wire

53 154425001 Nut,Keps ,(2) ,handle mtg.

* 218490900 Cleaner,stainless steel

* 154200601 Screw,#10-16 x 3/8

DOOR

02/03 6

Publication No. PLDS999CC0

5995385456

TUB

# = Fast Moving Part 7 02/03

* = Non-Illustrated Part

PLDS999CC0 Publication No.

5995385456

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154429101 Strike,door

3 # 154211801 Gasket,tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333902 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154411003 Hose,drain

25 # 154209701 Float

28 154408701 Switch assy,float

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154447102 Insulation,blanket

* 154447301 Insulation,tub back

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 5300807270 Screw,(2) ,countertop mtg.

TUB

02/03 8

Publication No. PLDS999CC0

5995385456

MOTOR & PUMP

# = Fast Moving Part 9 02/03

* = Non-Illustrated Part

PLDS999CC0 Publication No.

5995385456

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154245501 Cover,volute

13 154246801 Gasket,sump

14 154365901 Housing,sump

16 154246502 Retainer,sump

24 154414101 Spray arm,lower ,w/heat shield

24A 154313601 Spray arm,center

24A* 154252001 Nut,spray arm ,center

32 154406601 Tube,delivery

32A 154406401 Gasket,delivery tube

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp,hose ,(2)

40* 154380601 Clamp,hose ,(1)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154407401 Drain Pump Assy

60* 154426201 Bracket,motor ,drain

61 154406501 Nozzle,3rd level ,spray arm

62 154294101 Support,spray arm ,lower

63 154252201 Base,soil director

64 154252301 Filter,soil director

65 154283004 Filter Assy

66 154252701 Trap,glass

70 # 154395403 Motor assembly,circulation ,w/o o’rings

71 154366101 Sensor,turbidity

71* 154376001 O-ring,turbidity

* 154200601 Screw,#10-16 x 3/8

MOTOR & PUMP

02/03 10

Publication No. PLDS999CC0

5995385456

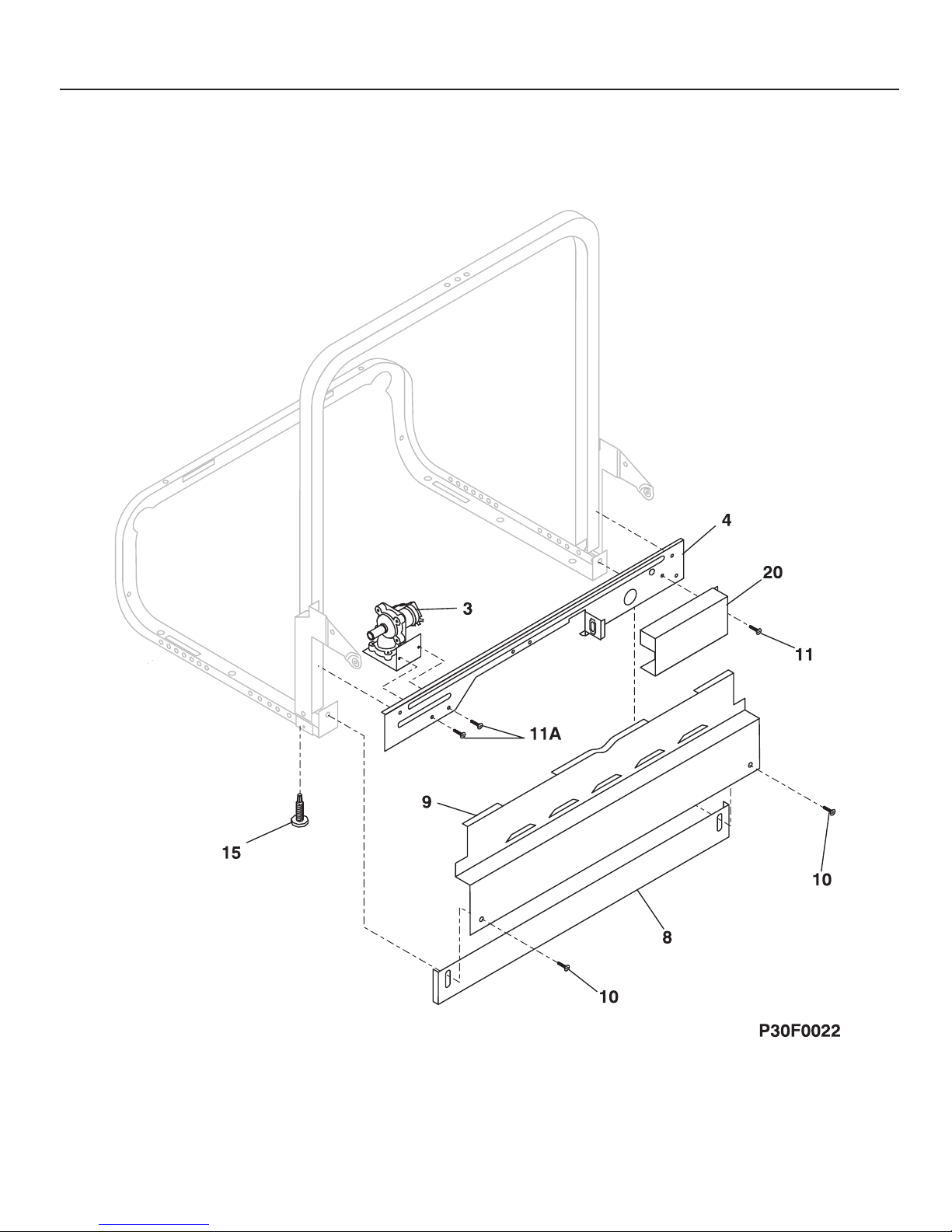

FRAME
