Frigidaire GLD2451RD Manuale utente
P30L0058.eps P30C0143.eps P30B0037.eps P30U0021.eps P30M0036.eps P30F0022.eps
P30R0075.eps
Product No. GLD2451RDB0 GLD2451RDQ0 GLD2451RDS0
Series Built-in 24" Built-in 24" Built-in 24"
Color black bisque white
Owner's Guide 154493801 154493801 154493801
Service Data Sheet 154493101 154493101 154493101
Energy Guide 154494101 154494101 154494101
Installation Instructions 154427301 154427301 154427301
Market North America North America North America
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995417655
04/10/01
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
GLD2451RD
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995417655 GLD2451RD
10/04 2

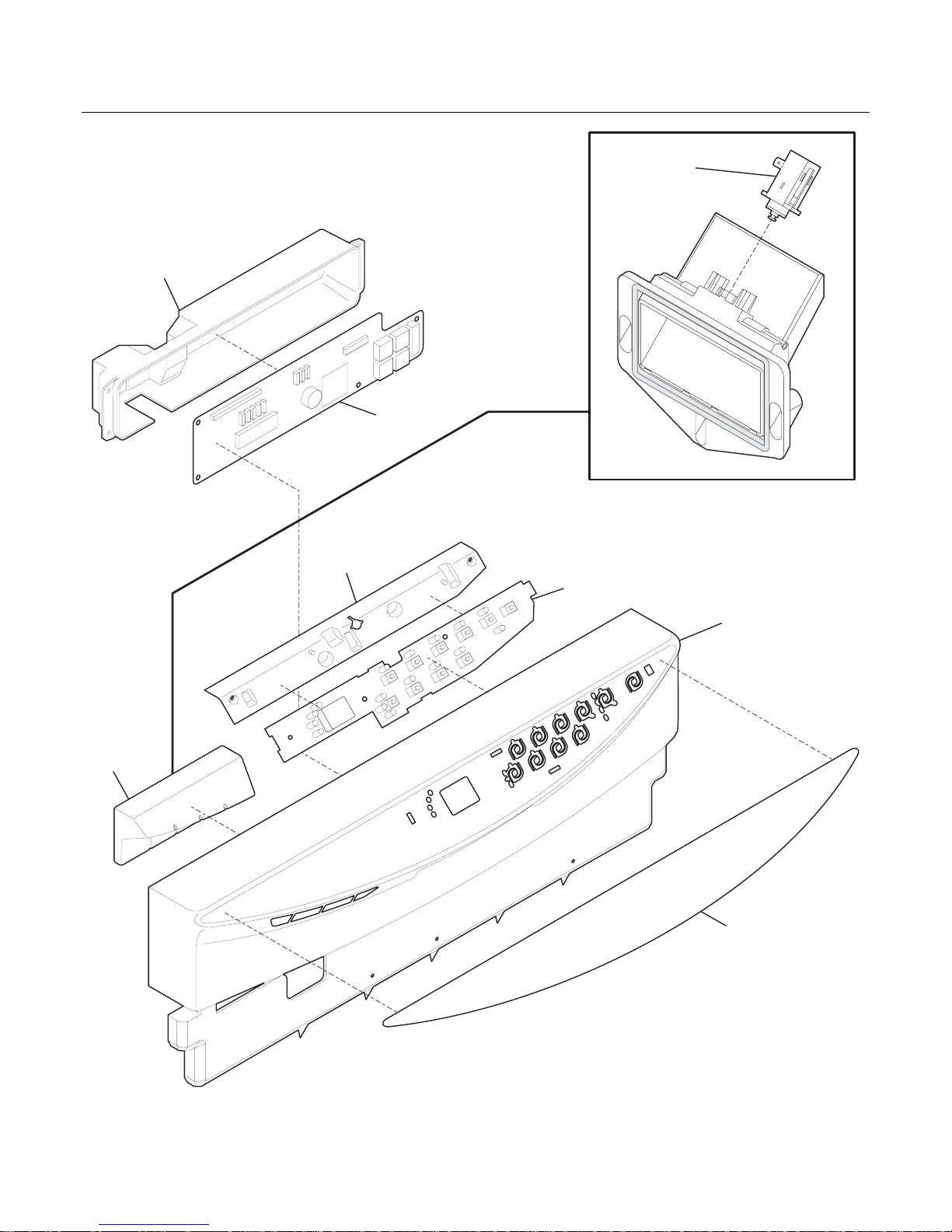

CONTROL PANEL
20
27
4
3
8A
8
28
1
2
P30C0143
GLD2451RD Publication No: 5995417655
# Functional Parts 3 10/04
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AGLD2451RD (GLD2451RDS0)
BGLD2451RD (GLD2451RDB0)
CGLD2451RD (GLD2451RDQ0)
POS. NO PART NO. DESCRIPTION
1 154486001 A - - Panel, control, white
1 154486003 - B - Panel, control, black
1 154486004 - - C Panel, control, bisque
2 154483801 A - - Insert, control panel, white, 10 pad
2 154483803 - B - Insert, control panel, black, 10 pad
2 154483804 - - C Insert, control panel, bisque, 10 pad
3 154522804 A B C Board, control
3* 154200401 A B C Screw, 6-10 x 3/8, pan plask
4 154460601 A B C Cover, control
4* 154478901 A B C Gasket, cover
8 # 154474601 A B C Switch, selector, 10 pad
8A 154486201 A B C Shield, tactile switch
20 154423601 A B C Vent assy, active dry, w/actuator
20* 154436201 A B C Screw, dry duct, (3)
27 154433501 A B C Actuator, active dry vent
28 154474401 A B C Adapter, vent
* # 154468901 A B C Harness, wiring
* 154494101 A B C Energy guide label
Publication No: 5995417655 GLD2451RD
10/04 4

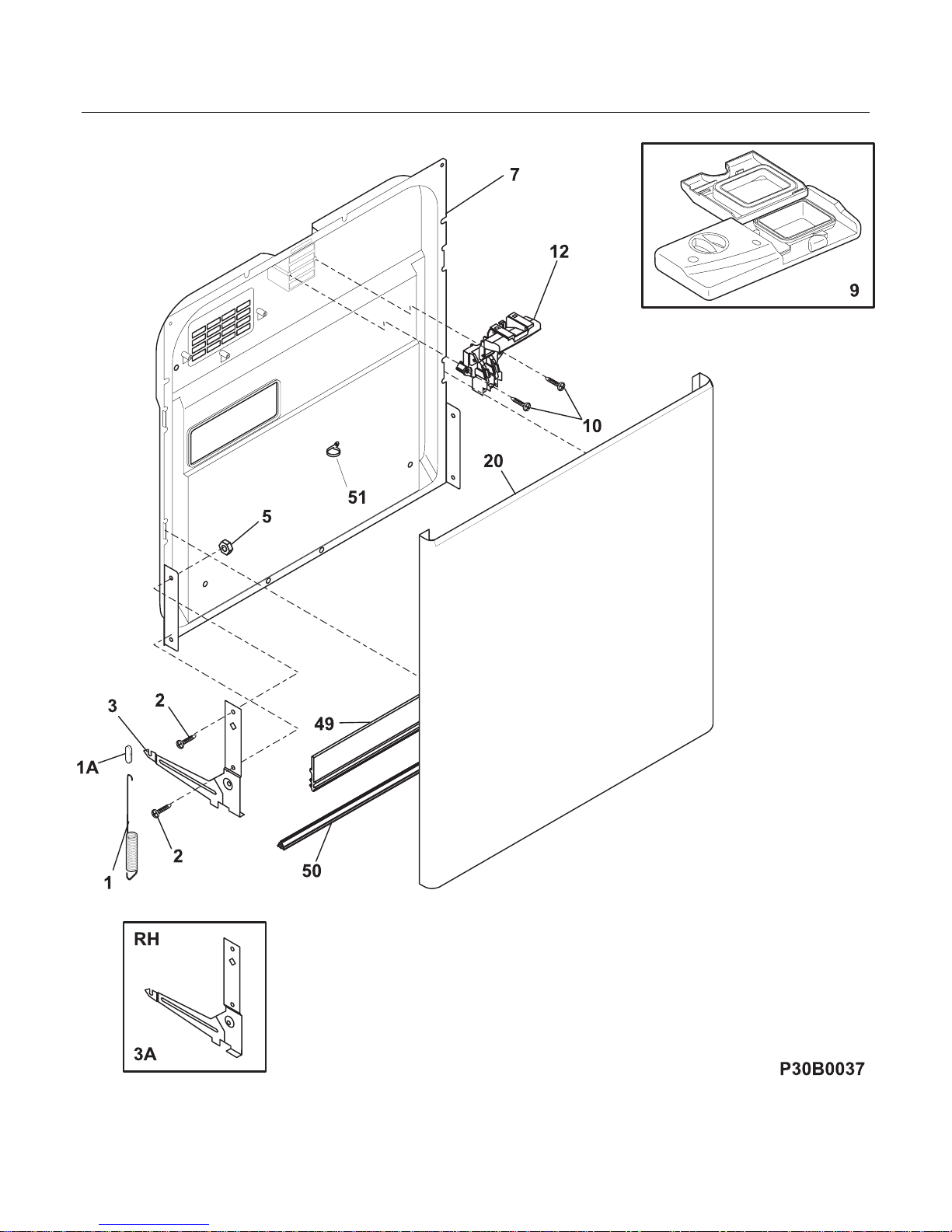

DOOR
GLD2451RD Publication No: 5995417655
# Functional Parts 5 10/04
* Non-Illustrated Parts
DOOR
Model Index: AGLD2451RD (GLD2451RDS0)
BGLD2451RD (GLD2451RDB0)
CGLD2451RD (GLD2451RDQ0)
POS. NO PART NO. DESCRIPTION
1 154430501 A B C Spring, door, (2)
1A 154325201 A B C Linkage, door spring, (2)
2 154093301 A B C Screw, arm assy, (4)
3 154325302 A B C Arm Assy, LH
3A 154325301 A B C Arm Assy, RH
* 154400601 A B C Pin, arm assy
5 154079601 A B C Nut, arm assy, and handle mtg.
7 154494601 A B C Liner, door assy.
9 154452704 A B C Dispenser, det/rinse aid, w/reed
9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B C Screw, latch mtg, (2)
12 # 154529401 A - - Latch assy, white
12 # 154529403 - B - Latch assy, black
12 # 154529404 - - C Latch assy, bisque
20 154436801 A - - Door Assy, white, outer
20 154436803 - B - Door Assy, black, outer
20 154436804 - - C Door Assy, bisque, outer
20* 154253201 A B C Insulation, door
20* 5304428306 A B C Screw, door mtg., (2)
49 154297603 A B C Gasket, door, bottom
50 154211401 A B C Support, door hinge
51 154320301 A B C Clamp, drip loop, wire
Publication No: 5995417655 GLD2451RD
10/04 6

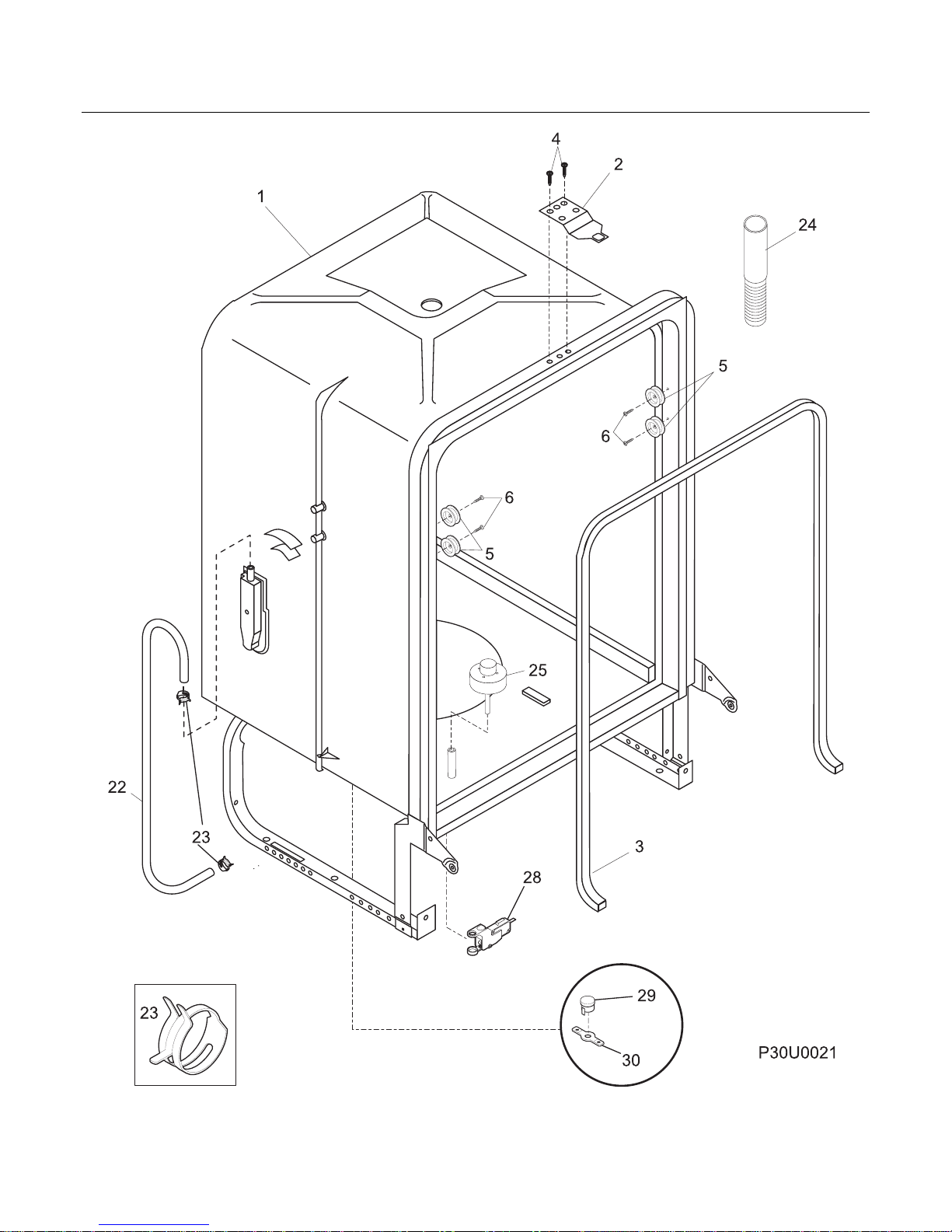

TUB
GLD2451RD Publication No: 5995417655
# Functional Parts 7 10/04
* Non-Illustrated Parts
TUB
Model Index: AGLD2451RD (GLD2451RDS0)
BGLD2451RD (GLD2451RDB0)
CGLD2451RD (GLD2451RDQ0)
POS. NO PART NO. DESCRIPTION
1 # 154534701 A B C Tub assy, w/frame parts
2 154429101 A B C Strike, door
3 # 154211801 A B C Gasket, tub
4 154200602 A B C Screw, 10-16 x 3/8, hex
5 154333902 A B C Roller, tub
6 5303943103 A B C Screw, w/washer, (8)
22 154446002 A B C Tubing, water inlet
23 5303318539 A B C Clamp, tubing, (2)
24 # 154411003 A B C Hose, drain
25 # 154209701 A B C Float
28 154408701 A B C Switch Assy, float
29 # 154290204 A B C Thermostat, re-settable
30 154241101 A B C Retainer, thermostat
30* 154297701 A B C Screw, retainer-thermo
* 154447102 A B C Insulation,blanket
* 154447301 A B C Insulation, tub back
* 154041001 A B C Screw, plask #1, 10-10 x 9/16
* 5300807270 A B C Screw, (2), countertop mtg.
Publication No: 5995417655 GLD2451RD
10/04 8
MOTOR & PUMP
GLD2451RD Publication No: 5995417655
# Functional Parts 9 10/04
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AGLD2451RD (GLD2451RDS0)
BGLD2451RD (GLD2451RDB0)
CGLD2451RD (GLD2451RDQ0)
POS. NO PART NO. DESCRIPTION
1 # 154482901 A B C Heater, round
1* 154106201 A B C Nut, heater, (2)
1* 154289801 A B C Shield, heater terminal
2 154465101 A B C Bracket, heater, (2)
10 154245501 A B C Cover, volute
13 154246801 A B C Gasket, sump
14 154461902 A B C Housing, sump
16 154246502 A B C Retainer, sump
16* 5304404947 A B C Screw, retainer
24 154467702 A B C Spray arm, grey, lower
24A 154468502 A B C Spray arm, grey, center
24B 154478201 A B C Spray arm, 3rd level
32 154464101 A B C Tube, delivery
32* 154491101 A B C Screw, delivery tube
32A 154406401 A B C Gasket, delivery tube
40 154348401 A B C Clamp, red, pump
40 154348502 A B C Clamp, red, pump
40* 154106801 A B C Clamp, hose, (2)
40* 154380601 A B C Clamp, hose, (1)
54 154234401 A B C Hose, connector
55 154362301 A B C Bracket, motor, askoll
55* 5303316032 A B C Screw, truss ss, 8 .625
58 154246402 A B C Check ball
59 154246901 A B C O-ring, rear
59A 154247001 A B C O-ring, front
60 154491301 A B C Pump, drain
60* 5303318719 A B C Screw, mtg.
61 154463402 A B C Grommet, delivery tube
62 154294102 A B C Support, spray arm, grey, lower
63 154252201 A B C Base, soil director
64 154252302 A B C Filter, soil director, grey
65 154283005 A B C Filter Assy, grey
66 154252702 A B C Trap, glass, grey
70 154523501 A B C Motor & Pump Assy
71 # 154473901 A B C Sensor, turbidity
* 154200601 A B C Screw, #10-16 x 3/8
Publication No: 5995417655 GLD2451RD
10/04 10
FRAME
