Frigidaire FGBD2438PB0A Manuale utente

FGBD2438PF.jpg CFGBD2435NB0A.wmf BFGBD2431NB0A.wmf

UFGBD2445NB0A.wmf MFGBD2438PB0A.wmf P30F0022.eps

RFGBD2435NB0A.wmf 807027901.eps

Product No. FGBD2438PB0A

FGBD2438PF0A

FGBD2438PW0A

Series Built-in 24" Built-in 24" Built-in 24"

Color black stainless white

Owner's Guide English 154889401 154889401 154889401

Owner's Guide Spanish

154889403 154889403 154889403

Owner's Guide French 154889402 154889402 154889402

Service Data Sheet 807027901 807027901 807027901

Energy Guide 154849244 154849244 154849244

Installation Instructions

154427301 154427301 154427301

Market North America North America North America

Frigidaire

P.O. BOX 8020

CHARLOTTE, NC 28262

Publication No.

5995628467

13/02/28

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FGBD2438P

Publication No: 5995628467 FGBD2438P

02/13 2

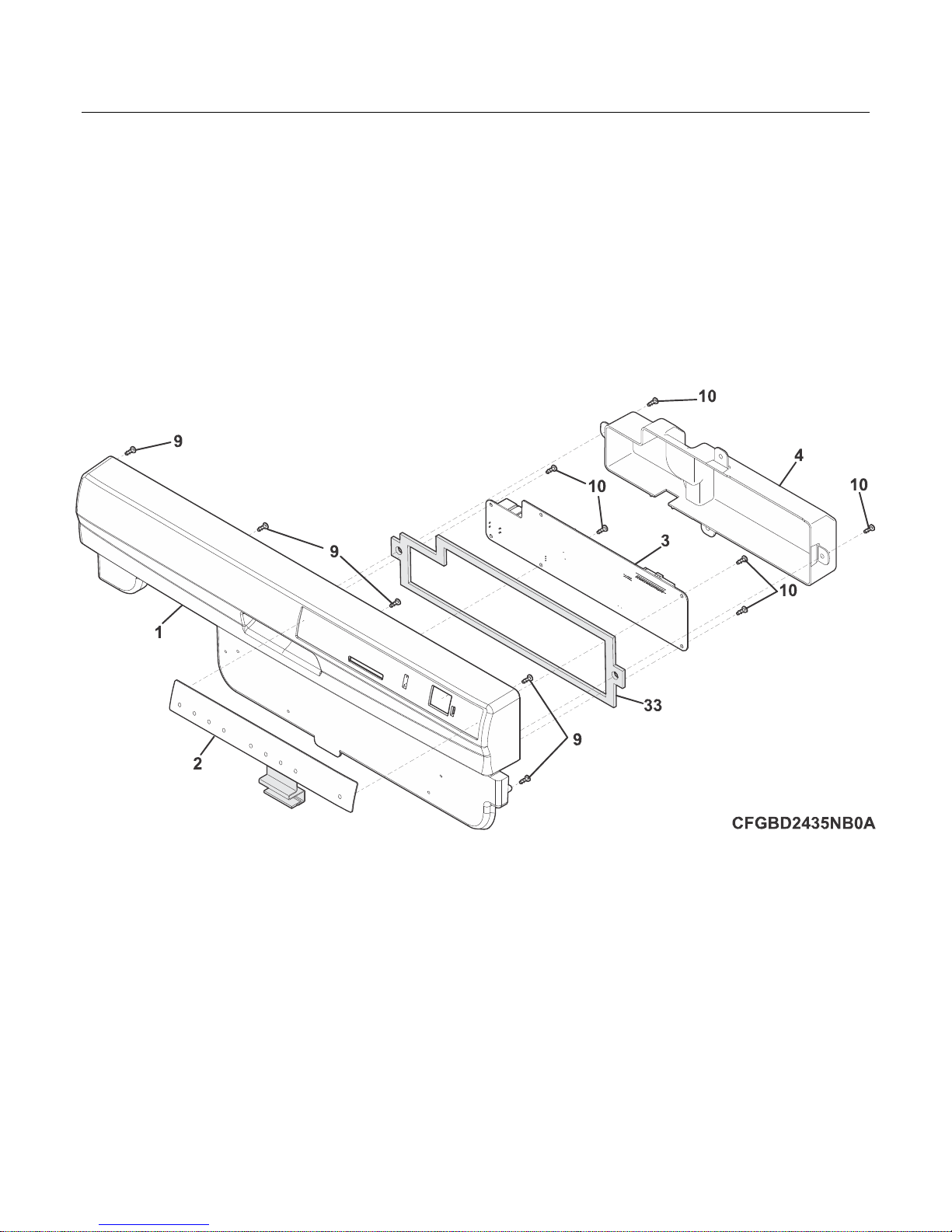

CONTROL PANEL

FGBD2438P Publication No: 5995628467

# Functional Parts 3 02/13

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFGBD2438P (FGBD2438PB0A)

BFGBD2438P (FGBD2438PF0A)

CFGBD2438P (FGBD2438PW0A)

POS. NO PART NO. DESCRIPTION

1 154872205 A B - Console, control, black

1 154872204 - - C Console, control, white

2 # 154778403 A B - Insert, control panel, black

2 # 154778401 - - C Insert, control panel, white

3 # 5304491211 A B C Board, control

4 154718801 A B C Cover, control

9 154783101 A B C Screw, PLT, 8-10

10 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

33 154478901 A B C Gasket, cover

* # 154870201 A B C Harness, wiring, main

* 154849244 A B C Energy Guide

Publication No: 5995628467 FGBD2438P

02/13 4

DOOR

FGBD2438P Publication No: 5995628467

# Functional Parts 5 02/13

* Non-Illustrated Parts

DOOR

Model Index: AFGBD2438P (FGBD2438PB0A)

BFGBD2438P (FGBD2438PF0A)

CFGBD2438P (FGBD2438PW0A)

POS. NO PART NO. DESCRIPTION

1 154579101 A B C Spring, friction pulley, (2)

1A 154578801 A B C Cable, friction pulley, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154691201 A B C Arm Assy, LH

3A 154691101 A B C Arm Assy, RH

* 154647101 A B C Hinge Pin, arm assy

* 154686401 A B C Bearing, hinge pin

4 154825401 A B C Screw, hex hd, 8-18 x .4, w/washer

5 154079601 A B C Nut, arm assy, and handle mtg.

6 154783101 A B C Screw, PLT, 8-10

7 154743503 A B C Liner, door assembly, grey, complete

8 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

9 # 154860101 A B C Dispenser, det/rinse aid, w/level ind.

9* 154719301 A B C Shield, dispenser assy

10 154103702 A B C Screw, latch mtg, (2)

11 154579201 A B C Pulley, friction, LH

11A 154579202 A B C Pulley, friction, RH

12 # 154722401 A B C Latch Assembly, door

13 154755801 A B C Duct Assembly, vent, w/tape

14 154784401 A B C Vent assy, dry, w/gaskets

14* 154793401 A B C Screw, dry duct, (3)

20 154874703 A - - Door Assembly, w/insullation, black

20 154874705 - B - Door Assembly, w/insullation, stainless

20 154874701 - - C Door Assembly, w/insullation, white

20* 154253201 A B C Insulation, door

21 154754701 A B C Screw, truss hd, 8-18 type AB

49 154759101 A B C Gasket, door, bottom

51 154320301 A B C Clamp, drip loop, wire

Publication No: 5995628467 FGBD2438P

02/13 6

TUB

FGBD2438P Publication No: 5995628467

# Functional Parts 7 02/13

* Non-Illustrated Parts

TUB

Model Index: AFGBD2438P (FGBD2438PB0A)

BFGBD2438P (FGBD2438PF0A)

CFGBD2438P (FGBD2438PW0A)

POS. NO PART NO. DESCRIPTION

1 154729402 A B C Tub assy, w/frame parts, grey, DF

2 154544601 A B C Strike, door

3 154845301 A B C Gasket, tub

3* 154685101 A B C Shield, tub splash, corner, (2)

4 154825401 A B C Screw, hex hd, 8-18 x .4, w/washer

5 154767502 A B C Roller Assembly, tub, (8), w/screw-washer

6 5303943103 A B C Screw, w/washer, (8)

22 154446002 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154753201 A B C Hose, drain

* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)

25 # 154767802 A B C Float, grey

28 # 154773201 A B C Switch Assy, float

29 # 154642901 A B C Thermostat, hi limit

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154858701 A B C Insulation,blanket

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C Screw, (2), countertop mtg.

Publication No: 5995628467 FGBD2438P

02/13 8

MOTOR & PUMP

FGBD2438P Publication No: 5995628467

# Functional Parts 9 02/13

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFGBD2438P (FGBD2438PB0A)

BFGBD2438P (FGBD2438PF0A)

CFGBD2438P (FGBD2438PW0A)

POS. NO PART NO. DESCRIPTION

1 # 154825001 A B C Heater, round

1* 154106202 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154465101 A B C Bracket, heater, (2)

10 154724001 A B C Cover, volute

* 154783101 A B C Screw, PLT, 8-10

13 154246801 A B C Gasket, sump

14 154723801 A B C Sump Assembly

16 154246502 A B C Retainer, sump

16* 154754901 A B C Screw, sump mtg, 8-16, (4)

24 154830302 A B C Spray arm, assembly, lower, Orbit Bar

24A 154468502 A B C Spray arm, grey, center

24B 154754502 A B C Spray arm, assembly, upper

32 154824201 A B C Tube, delivery

32* 154106801 A B C Clamp, hose, 1.29" open, worm gear, (2)

32* 154491101 A B C Screw, delivery tube

32A 154406401 A B C Gasket, delivery tube

55 154595901 A B C Bracket, motor

55* 154779601 A B C Screw, PH, 8-10, (2)

58 154246402 A B C Check ball

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 # 154736201 A B C Pump Assembly, drain, w/seal-impeller

60* 154617301 A B C Flapper, valve, drain pump

60* 154741501 A B C Screw, drain motor mtg, (3)

61 154463402 A B C Grommet, delivery tube

62 154294102 A B C Support, spray arm, grey, lower

63 154775402 A B C Base, soil director, w/filter

65 154283005 A B C Filter Assy, grey

66 154252702 A B C Trap, glass, grey

70 # 154844301 A B C Motor & Pump Assy, w/o-rings

Publication No: 5995628467 FGBD2438P

02/13 10

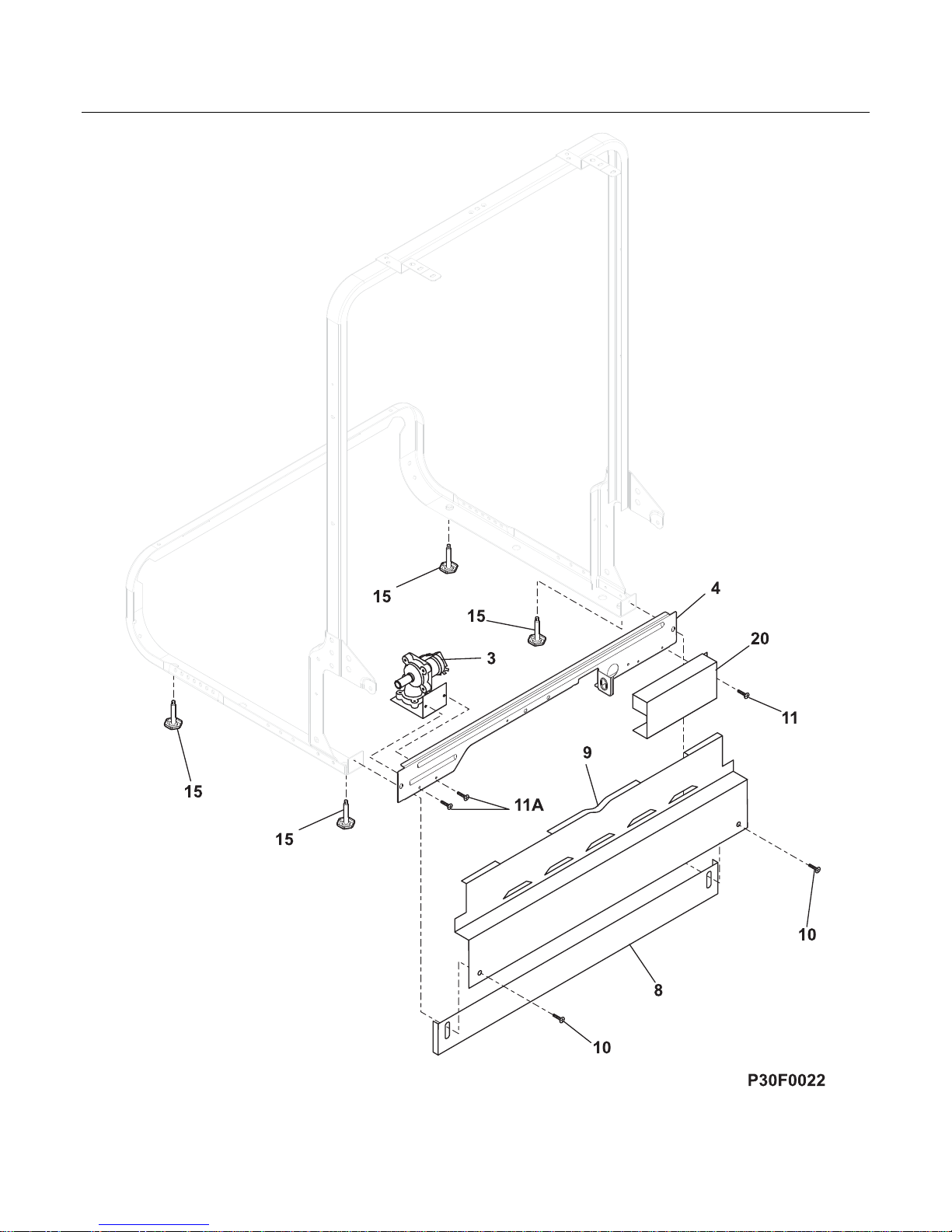

FRAME
