Frigidaire GLDB953C Manuale utente
PRODUCT NO. BASE MODEL NO. SERIES COLOR
GLDB953CB0 GLDB953C 24" Built-in black
GLDB953CS0 GLDB953C 24" Built-in white
MARKET
North America
Publication No.
5995392247
030630
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
GLDB953C
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154444501
OWNER’S GUIDE # - 154446701
INSTALLATION INSTRUCTIONS # - 154427301
ENERGY GUIDE LABEL # - 154399013
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
07/03 2
Publication No. GLDB953C
5995392247
CONTROL PANEL
# = Fast Moving Part 3 07/03
* = Non-Illustrated Part
GLDB953C Publication No.
5995392247
CONTROL PANEL
A = GLDB953C (GLDB953CS0)
B = GLDB953C (GLDB953CB0)
POS. NO PART NO DESCRIPTION
1 154370301 A - Panel,control ,white
1 154370303 - B Panel,control ,black
2 154445001 A - Insert,control panel ,white
2 154445003 - B Insert,control panel ,black
3 # 154445801 A B Control,electronic
3* 154200401 A B Screw,6-10 x 3/8 ,pan plask
4 154287901 A B Cover,control
18 154399801 A - Nameplate Assy,white
18 154399803 - B Nameplate Assy,black
20 154423601 A B Vent assy,active dry ,w/actuator
20* 154436201 A B Screw,dry duct ,(3)
27 154433501 A B Actuator,active dry vent
34 # 154442101 A B Keypad,9pad
* # 154444801 A B Wiring Harness
* 154227501 A B Thermistor
* 154399013 A B Label,energy guide
07/03 4
Publication No. GLDB953C
5995392247

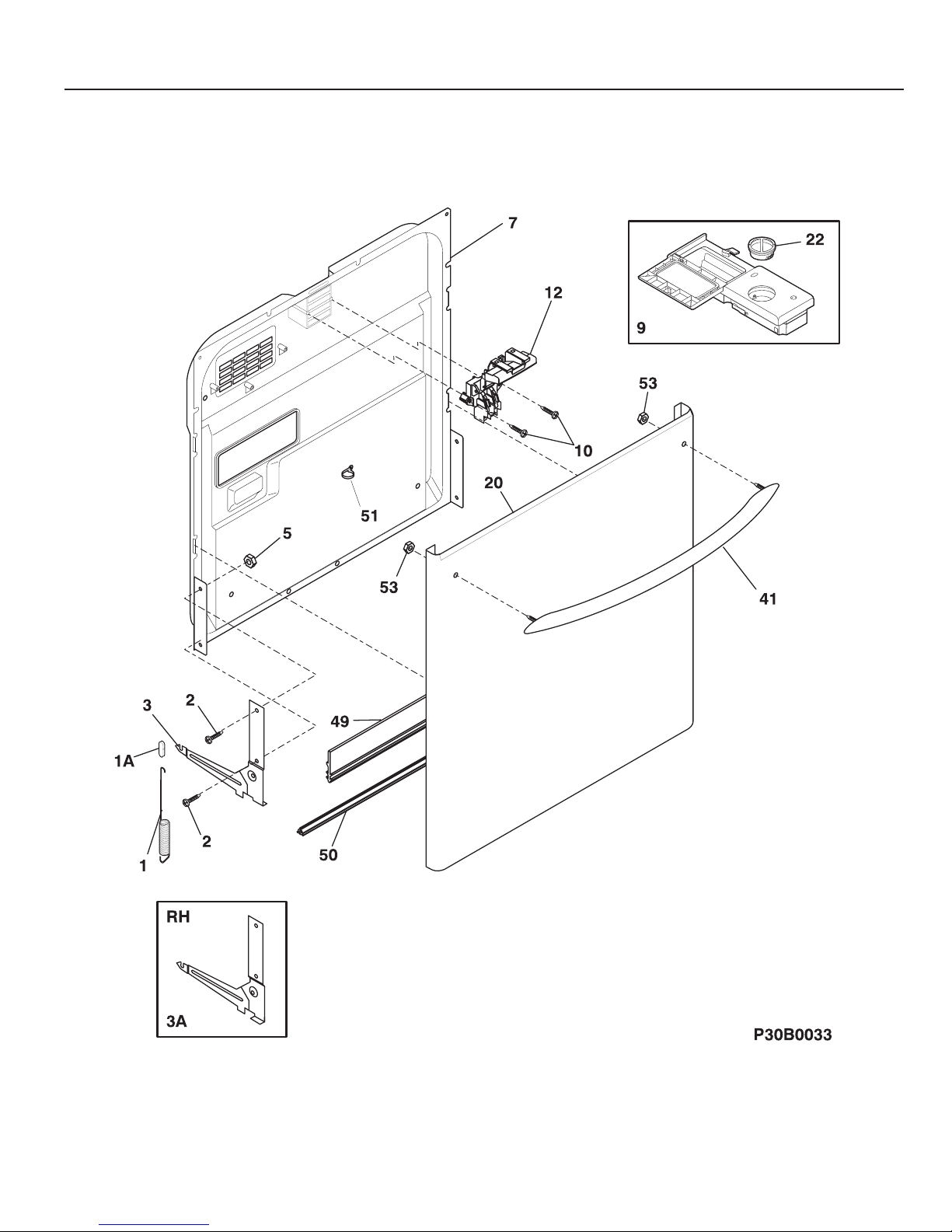

DOOR
# = Fast Moving Part 5 07/03
* = Non-Illustrated Part
GLDB953C Publication No.
5995392247
A = GLDB953C (GLDB953CS0)
B = GLDB953C (GLDB953CB0)
POS. NO PART NO DESCRIPTION
1 154430601 A B Spring,door ,(2)
1A 154325201 A B Linkage,door spring ,(2)
2 154093301 A B Screw,arm assy ,(4)
3 154325304 A B Arm Assy,LH
3A 154325303 A B Arm Assy,RH
* 154400601 A B Pin,arm assy
5 154079601 A B Nut,arm assy ,and handle mtg.
7 154299004 A B Door,inner assy
9 154230103 A B Dispenser,det/rinse aid ,includes #22
9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B Screw,latch mtg ,(2)
12 154434101 A - Latch assy,white
12 154434103 - B Latch assy,black
20 154359006 A - Door,white
20 154359007 - B Door,black
20* 5304428306 A B Screw,door mtg. ,(2)
22 154388801 A B Cap,Rinse aid
41 154448901 A - Handle,towel bar ,white ,w/threaded stud
41 154448903 - B Handle,towel bar ,black ,w/threaded stud
49 154297603 A B Gasket,door ,bottom
50 154211401 A B Support,door hinge
51 154320301 A B Clamp,drip loop ,wire
53 154425001 A B Nut,Keps ,(2) ,handle mtg.
* 154200601 A B Screw,#10-16 x 3/8
DOOR
07/03 6
Publication No. GLDB953C
5995392247
TUB
# = Fast Moving Part 7 07/03
* = Non-Illustrated Part
GLDB953C Publication No.
5995392247
A = GLDB953C (GLDB953CS0)
B = GLDB953C (GLDB953CB0)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B Tub assy,w/frame parts
2 154429101 A B Strike,door
4 154200602 A B Screw,10-16 x 3/8 ,hex
3 # 154211801 A B Gasket,tub
5 154333902 A B Roller,tub
6 5303943103 A B Screw,w/washer ,(8)
22 154239801 A B Tubing,water inlet
23 5303318539 A B Clamp,tubing ,(2)
24 # 154411003 A B Hose,drain
25 # 154209701 A B Float
28 154408701 A B Switch assy,float
29 # 154290204 A B Thermostat,re-settable
30 154241101 A B Retainer,thermostat
30* 154297701 A B Screw,retainer-thermo
* 154447102 A B Insulation,blanket
* 154041001 A B Screw,plask #1 ,10-10 x 9/16
* 5300807270 A B Screw,(2) ,countertop mtg.
TUB
07/03 8
Publication No. GLDB953C
5995392247
MOTOR & PUMP
# = Fast Moving Part 9 07/03
* = Non-Illustrated Part
GLDB953C Publication No.
5995392247
A = GLDB953C (GLDB953CS0)
B = GLDB953C (GLDB953CB0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B Heater
1* 154106201 A B Nut,heater ,(2)
1* 154289801 A B Shield,heater terminal
2 154359701 A B Bracket,heater ,(2)
10 154245501 A B Cover,volute
13 154246801 A B Gasket,sump
14 154365902 A B Housing,sump
16 154246502 A B Retainer,sump
24 154414101 A B Spray arm,lower ,w/heat shield
24A 154313601 A B Spray arm,center
24A* 154252001 A B Nut,spray arm ,center
32 154406601 A B Tube,delivery
32A 154406401 A B Gasket,delivery tube
40 154348401 A B Clamp,red ,pump
40 154348501 A B Clamp,silver ,pump
40* 154106801 A B Clamp,hose ,(2)
40* 154380601 A B Clamp,hose ,(1)
54 154234401 A B Hose,connector
55 154362301 A B Bracket,motor ,askoll
55* 5303316032 A B Screw,truss ss ,8 .625
58 154246402 A B Check ball
59 154246901 A B O-ring,rear
59A 154247001 A B O-ring,front
60 154407401 A B Drain Pump Assy
60* 154426201 A B Bracket,motor ,drain
61 154406501 A B Nozzle,3rd level ,spray arm
62 154294101 A B Support,spray arm ,lower
63 154252201 A B Base,soil director
64 154252301 A B Filter,soil director
65 154252401 A B Filter,polypro
66 154252701 A B Trap,glass
70 # 154395403 A B Motor assembly,circulation ,w/o o’rings
* 154200601 A B Screw,#10-16 x 3/8
MOTOR & PUMP
07/03 10
Publication No. GLDB953C
5995392247
FRAME
