Frigidaire GLER341CDC0 Manuale utente
Product No. GLER341CDC0
Series Frigidaire
Market North America
Color white
Volts 220
Wiring Diagram 134260700
Owner's Guide 131679000
Installation Instructions 134296400
Operating Instructions 134102100
Energy Guide 134395000
P16L0031-Z.eps P16V0067.eps P16D0025.eps P16C0205.eps P16M0024.eps
134260700.eps 134260700fr.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995409744
04/05/11
(EN/SERVICE/WC)
361
ELECTRIC DRYER
Model No.
GLER341CDC0
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995409744 GLER341CDC0
05/04 2

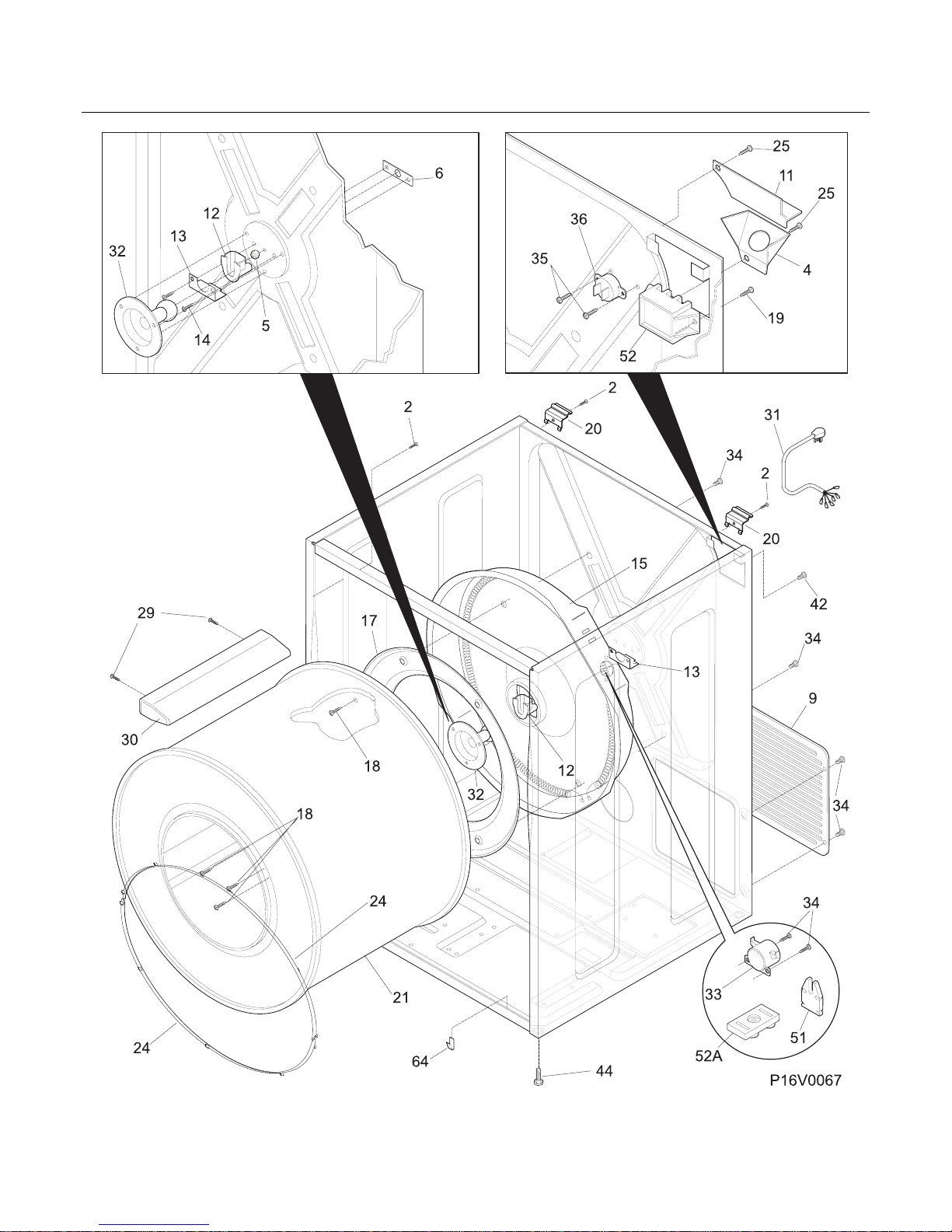

CABINET/DRUM
GLER341CDC0 Publication No: 5995409744
# Functional Parts 3 05/04
* Non-Illustrated Parts
CABINET/DRUM
POS. NO PART NO. DESCRIPTION
2 131168200 Screw, pan head, 8-18B x 0.31
4 131785200 Bracket, elec power cord, knock out
5 5303281019 Ball
6 5303281020 Clip, ball, steel, flat nut
9 131793201 Panel, access, rear
11 5303211428 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131553900 Heater Assy, w/housing/felt
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
19 131205300 Screw, 10-16 x 0.750
20 131469100 Bracket, hinge, rear, top panel mtg.
21 134122532 Drum, dryer, galvanized stl., service kit
24 131963900 Glide, drum
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
31 # 5303270977 Power Cord, electric svce, 4-wire Canada
* 5303297892 Clamp, strain relief, power cord
32 131777700 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 3204267 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134158000 Leveling Leg, screw
51 131472100 Insulator, heater housing
52 # 134101400 Terminal Block, main
* # 134109900 Wiring Harness
52A# 3202786 Terminal Block, heater housing
64 131704600 Clip
* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32
Publication No: 5995409744 GLER341CDC0
05/04 4

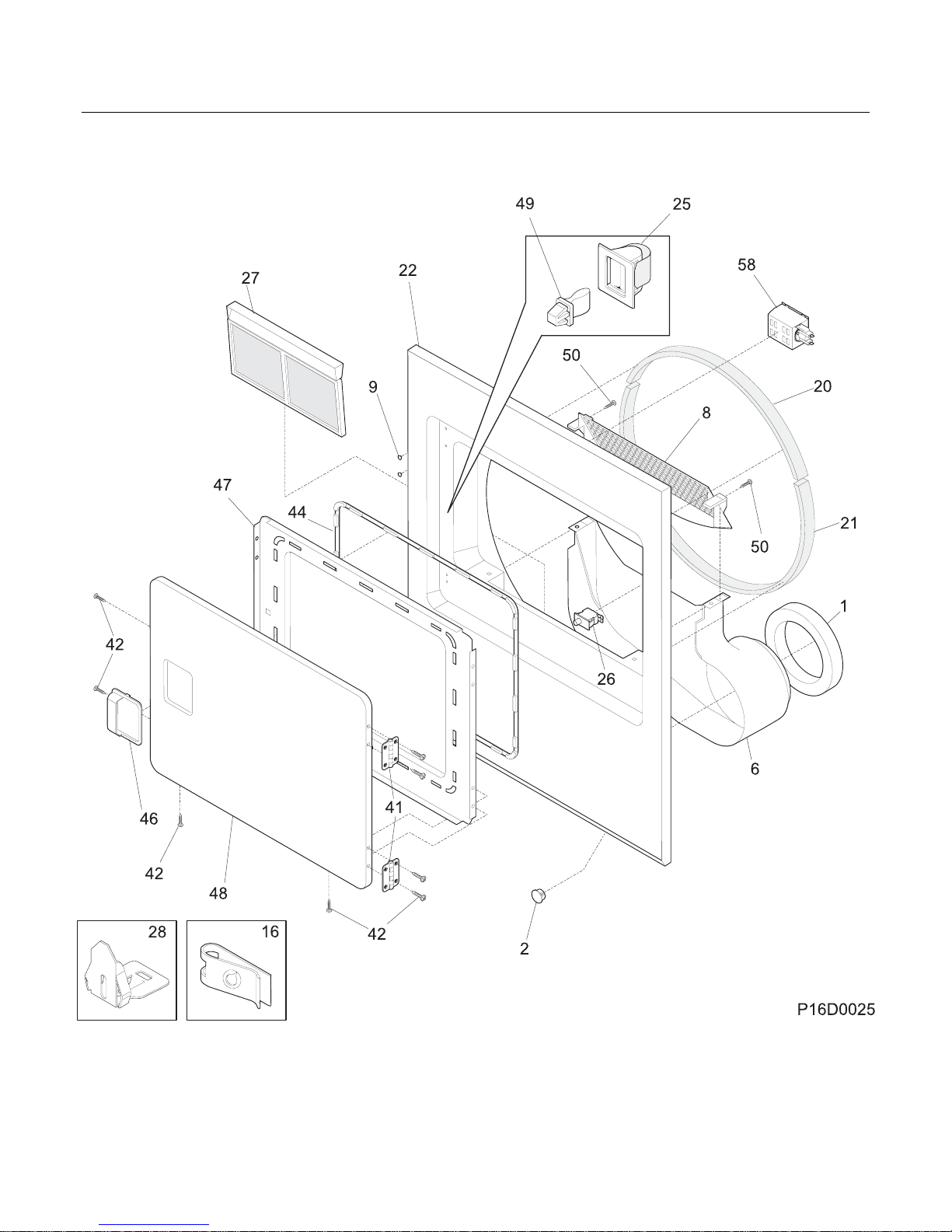

FRONT PANEL/LINT FILTER
GLER341CDC0 Publication No: 5995409744
# Functional Parts 5 05/04
* Non-Illustrated Parts
FRONT PANEL/LINT FILTER
POS. NO PART NO. DESCRIPTION
1 134063300 Seal, air duct
2 131397000 Plug, dome, white
6 131621900 Duct, air
8 131622202 Cover, lint housing
9 131633200 Plug, white
16 131063700 Clip, wiring
20 134036400 Seal, felt, upper
20* 5308027429 Adhesive, high temp
21 134134700 Seal, felt, lower
22 131845912 Panel, front, white, w/light hole
22* 131474700 Insulation
25 131658800 Door Catch
26 # 131843101 Switch, door, with drum light
27 131450300 Trap, lint blade assy
28 5303281074 Clip, guide, (3)
41 134222900 Hinge, dryer door
42 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive
44 131129900 Gasket, door seal
46 131644700 Handle, door, white
47 131844104 Panel, inner door, white
48 131789303 Panel, outer door, white
49 5303211430 Door Strike
50 131303300 Screw, pan head, 10-16AB x 0.500, locking
58 # 131843500 Lamp Assy, drum light, w/mtg bracket
58*# 131862800 •Lamp
Publication No: 5995409744 GLER341CDC0
05/04 6

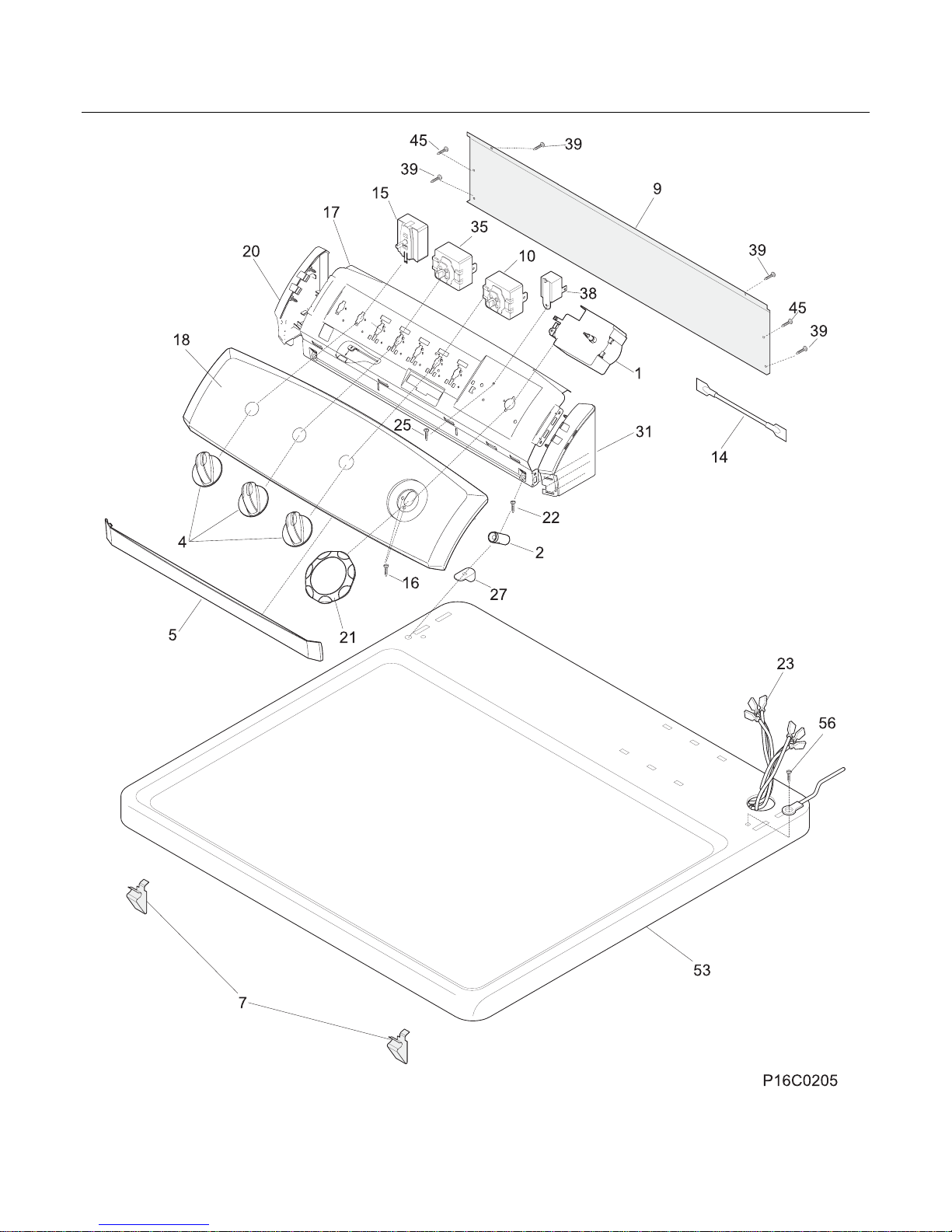

CONTROLS/TOP PANEL
GLER341CDC0 Publication No: 5995409744
# Functional Parts 7 05/04
* Non-Illustrated Parts
CONTROLS/TOP PANEL
POS. NO PART NO. DESCRIPTION
1 131719100 Timer, dryer
2 134096100 Spacer, console mtg
4 134034902 Knob, rotary, graphite/silver
5 134019920 Closure, console trim, silver, front
7 3205821 Clip, top-to-front
9 131992900 Panel, backsheet, console
10 # 131447800 Switch, start, turn type
14 3205243 Resistor, power, 4.4 kilohm, with terminal
15 # 131048100 Switch, temperature
16 134034300 Screw, pan hd phillips, 8-18B x 0.250
18 134293400 Panel, trimplate, console front
20 134019621 End Cap, silver, LH
21 134035502 Knob, timer, graphite/silver
22 131266330 Screw, 8-18 x 1.250
23 # 134109900 Wiring Harness
* # 134101400 •Terminal Block, main
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
27 131197000 Clip, console mtg
31 134019620 End Cap, silver, RH
35 # 131243200 Switch, 2 position
38 # 131629400 Buzzer, mini
38*# 131629600 Wiring Harness, mini buzzer
39 131168200 Screw, pan head, 8-18B x 0.31
45 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
53 134086802 Panel, dryer top, white, console mtg
56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point
64 131993040 Bracket, control mtg.
* 134395000 Energuide
Publication No: 5995409744 GLER341CDC0
05/04 8
MOTOR
GLER341CDC0 Publication No: 5995409744
# Functional Parts 9 05/04
* Non-Illustrated Parts
MOTOR
POS. NO PART NO. DESCRIPTION
4 131435200 Lock, blower housing
7 131451600 Tube, exhaust, rear, w/mtg bracket
7* 131456800 Tube, exhaust, side/bottom, Optional Kit
10 # 131775600 Housing, blower assy, cover & wheel
11 131749800 Spacer, idler
15 # 131298300 Thermostat, temp control
20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting
22 131601000 Spring, idler arm
23 # 131863000 Idler Arm
25 # 134163400 Belt, dryer
27 134242400 Clamp, motor mtg.
28 # 131560100 Motor, main drive, w/pulley
34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
46 134203400 Bracket, motor mtg
47 131633300 Seal, exhaust tube
48 131168200 Screw, pan head, 8-18B x 0.31
52 131303100 Screw, hex washer head, 10-16AB x 0.625
Publication No: 5995409744 GLER341CDC0
05/04 10

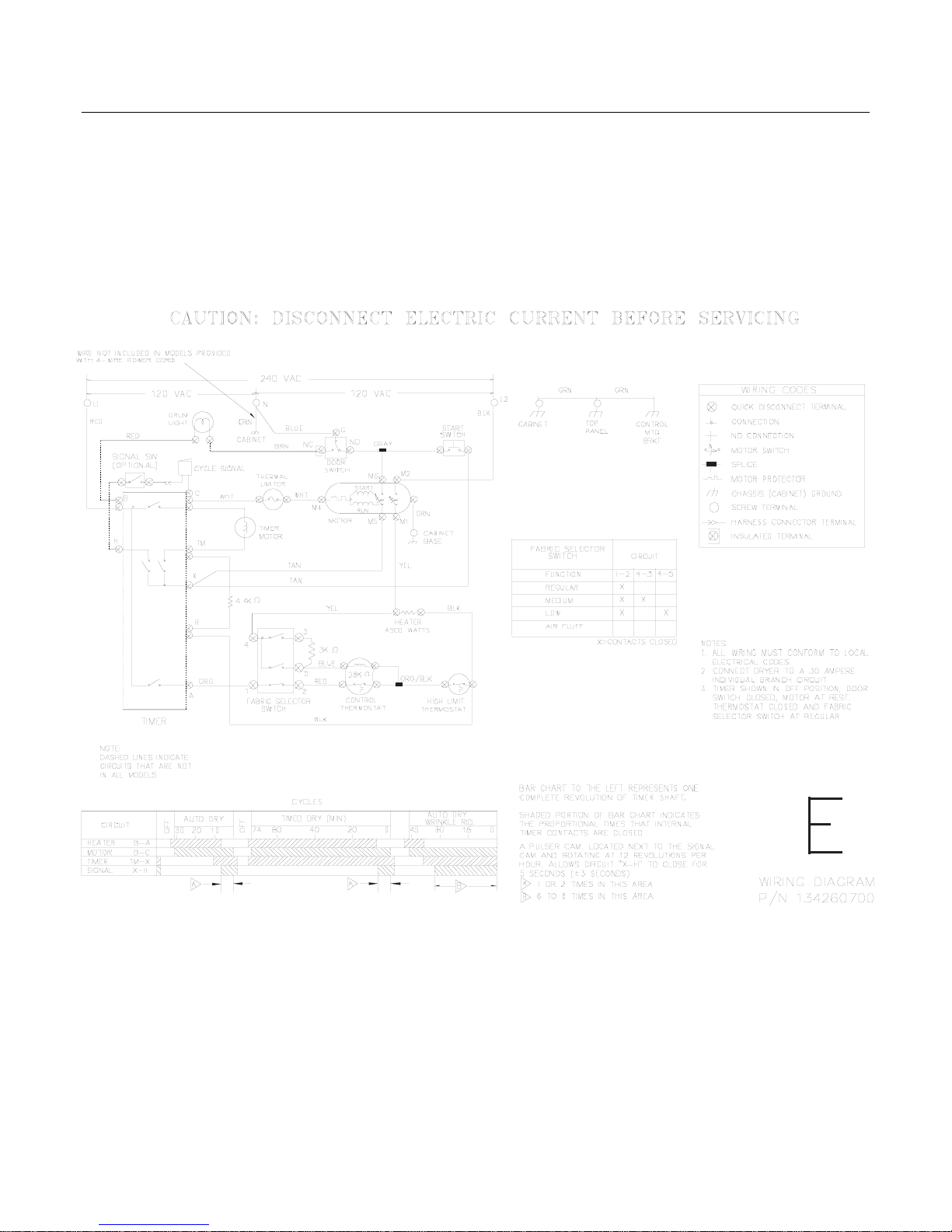

WIRING DIAGRAM
