Frigidaire FFC0522D W Istruzioni utente

frigidaire.com

Signature Features

Adjustable Temp Control

Select the correct temperature for your

needs.

Store-More™

Removable Baskets

Convenient lift-out storage for easy

access to most small frozen items or

items that are most frequently used.

Power-On Indicator Light

Know at a glance that your freezer

is working.

Defrost Water Drain

Use the drain to conveniently remove

water during defrosting.

Product Dimensions

Height (Including Lid) 34-1/4"

Width 27"

Depth 23-1/4"

More Easy-To-Use Features

Lid Handle

Available in:

Manual Defrost

5 Cu. Ft. Chest

Freezer

FFC0522D W

White

(W)

1An electrical supply with grounded three-prong receptacle is required.

The power supply circuit must be installed in accordance with current

edition of National Electrical Code (NFPA 70) and local codes &

ordinances.

Specifications

subject to change.

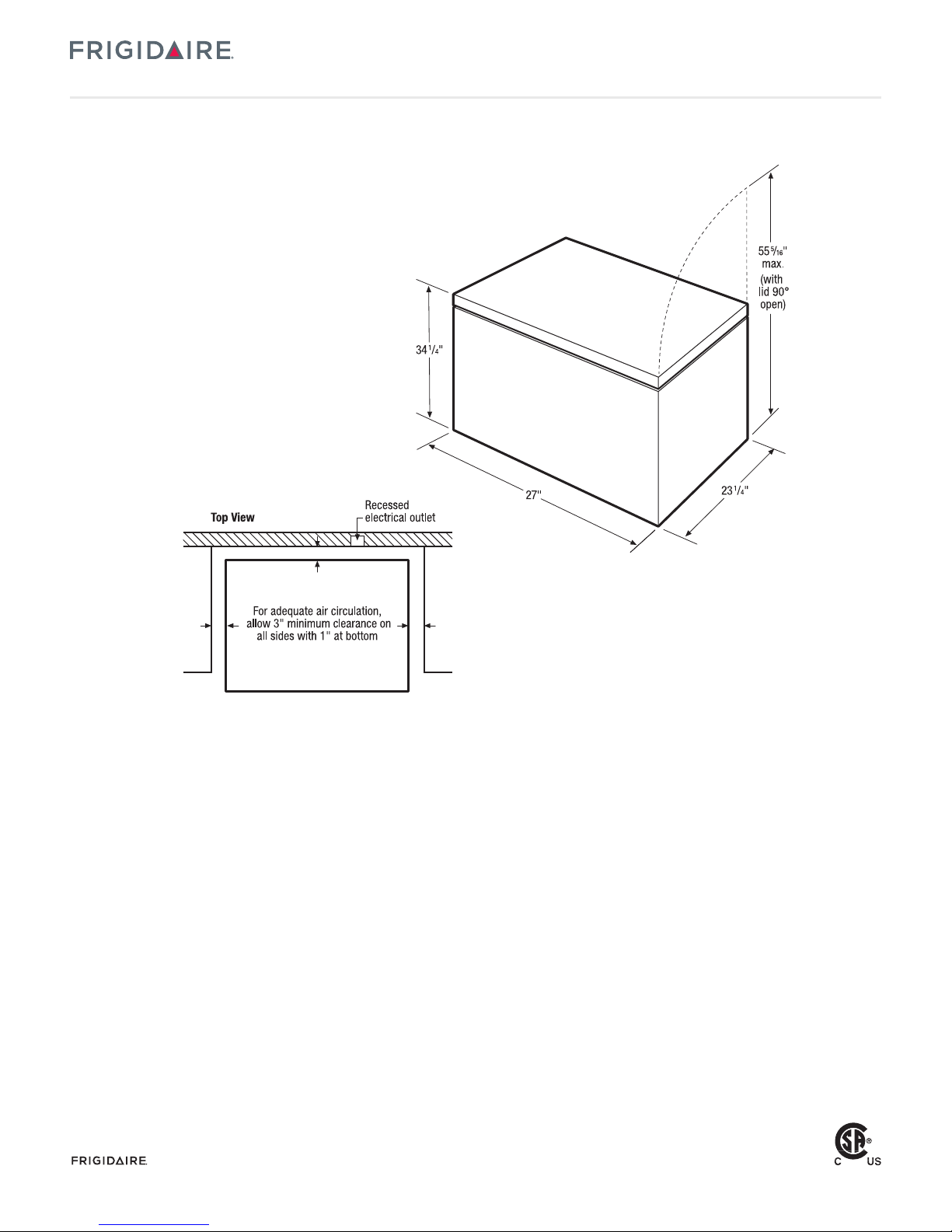

Product Dimensions

A - Height (Including Lid)

B - Width

C - Depth

Height with Lid Open 90˚

NOTE: For planning purposes only. Always consult local and

national electric codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

Accessories information available

on the web at frigidaire.com

Chest Freezers

Frigidaire Baseline

Features

Defrost

Adjustable Temperature Control

Interior Lighting

Store-More™ Removable Baskets

Food Organization System

Defrost Water Drain

Lid Handle

Lock with Pop-Out Key

Power-On Light

Certiﬁcations

ENERGY STAR®

CSA Rating

Speciﬁcations

Total Capacity (Cu. Ft.)

Annual Energy (kWH)

Annual Energy Cost (.1065 / kWH)

Power Supply Connection Location

Voltage Rating

Connected Load (kW rating) @ 120 Volts1

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

34-1/4"

27"

23-1/4"

55-5/16"

Manual

Yes

Household

5.0

242

$27

Left Bottom Rear

120V / 60Hz / 5A

99 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freezer

FFC0522D W 5 Cu. Ft. Chest

Specifications

subject to change.

5 Cu. Ft. Chest Freezers_D Models

Frigidaire

Chest Freezer Specifications

•Product Shipping Weight (approx.) – 99 Lbs.

•An electrical supply with grounded three-prong receptacle is

required. The power supply circuit must be installed in accordance

with current edition of National Electrical Code (NFPA 70) and

local codes & ordinances.

•Voltage Rating – 120V / 60 Hz / 5 Amps

•Connected Load (kW Rating) @ 120 Volts = 0.6 kW

•Amps @ 120 Volts = 5 Amps

•Always consult local and national electric codes.

•For adequate air circulation, allow 3" minimum clearance on all

sides with 1" at bottom.

•Locate where surrounding air temperature will not exceed 110° F,

to ensure optimum performance. (Temperatures 32° F and below

will NOT affect operation.)

•All bottom corners of unit MUST rest firmly on solid level surface

of hard material, same height as flooring. Surface must be strong

and stable enough to support unit when fully loaded.

•Equipped with adjustable leveling legs to ensure unit is level,

which is required in order to function properly.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freezer

FFC0522D W 5 Cu. Ft. Chest
