Frigidaire FFC13C6CW Manuale utente

Product No. FFC13C6CW1

Series 134A

Color white

Volts 115

Wiring Diagram 216908200

Owner's Guide 216960000

Market North America

Energy Guide 216794106

P08F0085.eps P08D0405.eps P08C0646.eps P08S0354.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995423257

04/12/02

(EN/SERVICE/)

365

FREEZER CHEST

Model No.

FFC13C6CW

Publication No: 5995423257 FFC13C6CW1

12/04 2

DOOR

P08D0405

FFC13C6CW1 Publication No: 5995423257

# Functional Parts 3 12/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216481101 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216828904 Panel-lid

10 216923001 Plug button, 1/4", white

11 216129827 Lid, white

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216897600 Handle, white

23 216212700 Light-signal, amber

27 5303212828 Clip, panel mtg

34 5303296969 Shield, lid lamp

40 216922700 Fastener, .330 dia stud, handle, (2)

47 # 216908000 Harness-lid

57 216899502 Overlay, white

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995423257 FFC13C6CW1

12/04 4

CABINET

FFC13C6CW1 Publication No: 5995423257

# Functional Parts 5 12/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 216909800 Catch-lock, white

1A 216818900 Support, lock catch clip

3 216502600 Plug, drain, interior

4 216073905 Plug, drain,exterior

6 216955503 Breaker, Plain, white, hinge side

7 216955502 Breaker, lock side

11 216955500 Breaker, chest end, (2)

18 216707200 Knob, temp control

21 # 216714601 Control temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216039600 Hinge

30 216110700 Breaker, corners

59 216916200 Basket, upper, (2)

59A 216867400 Basket, lower, (2)

62A 5303302714 Screw, 8-18x3/4, (2)

75 216034301 Panel, access, white

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

100 216081500 Track, basket

* 216794106 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995423257 FFC13C6CW1

12/04 6

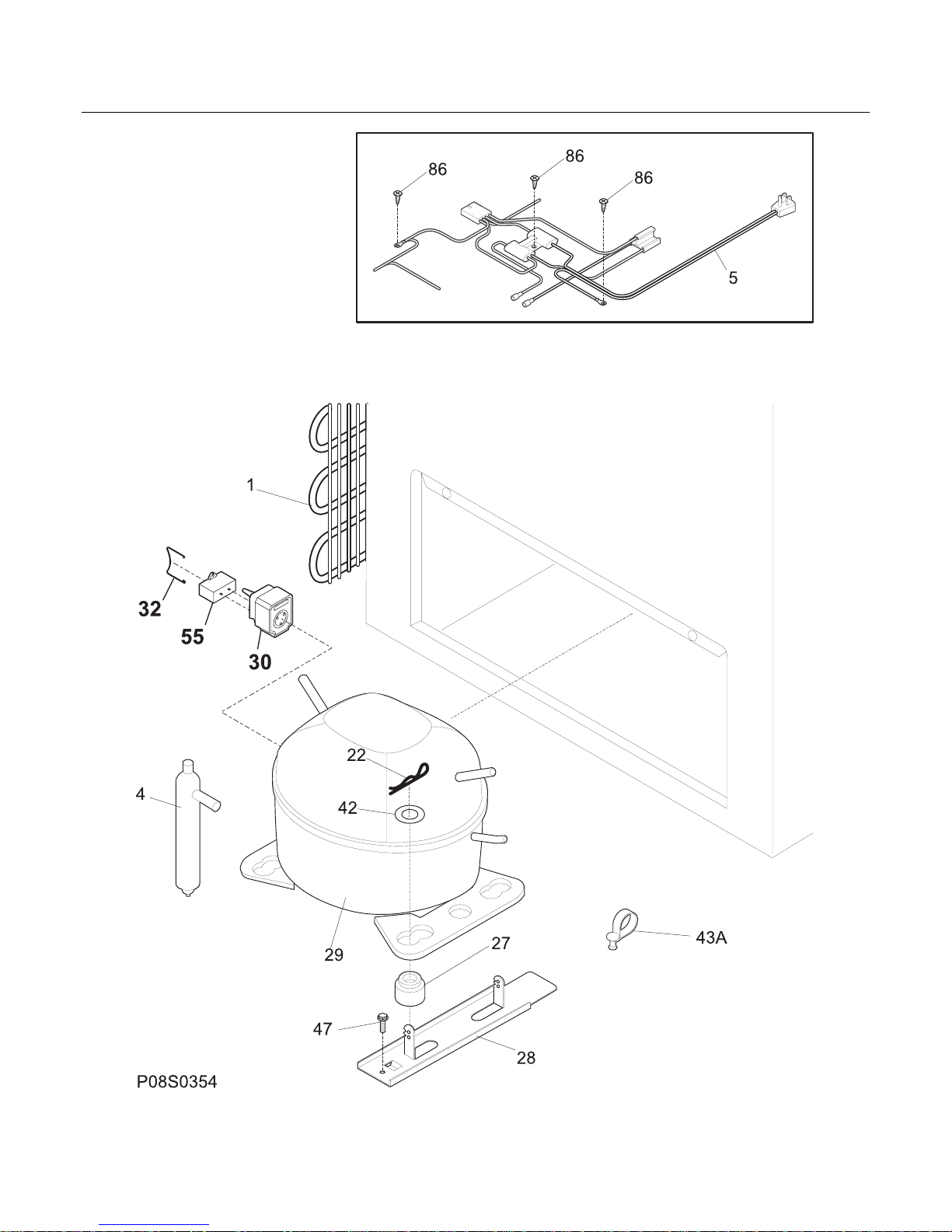

SYSTEM

FFC13C6CW1 Publication No: 5995423257

# Functional Parts 7 12/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

* 5303161215 Screw, ph truss head, 8-18AB x 0.500

1 # 5303925238 Condenser

4 # 216938600 Drier-filter

5 # 216987300 Harness-main

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216977300 Compressor, w/o electricals

30 216954201 Controller, compressor

32 216954300 Clip, controller

42 216232700 Washer, flat, 1"OD x 0.531"ID

43 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming
