Frigidaire GLFH21F8HW Manuale utente
P08F0138.eps P08D0578.eps P08C1123.wmf P08S0485.eps
Product No. GLFH21F8HWB
Series Precision
Color white
Volts 115
Wiring Diagram 297246001
Owner's Guide 297245700
Market North America
Energy Guide 297089301
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995525010
08/09/29
(EN/SERVICE/MLR)
365
UPRIGHT FREEZER
Model No.
GLFH21F8HW
Copyright ©2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995525010 GLFH21F8HWB
09/08 2

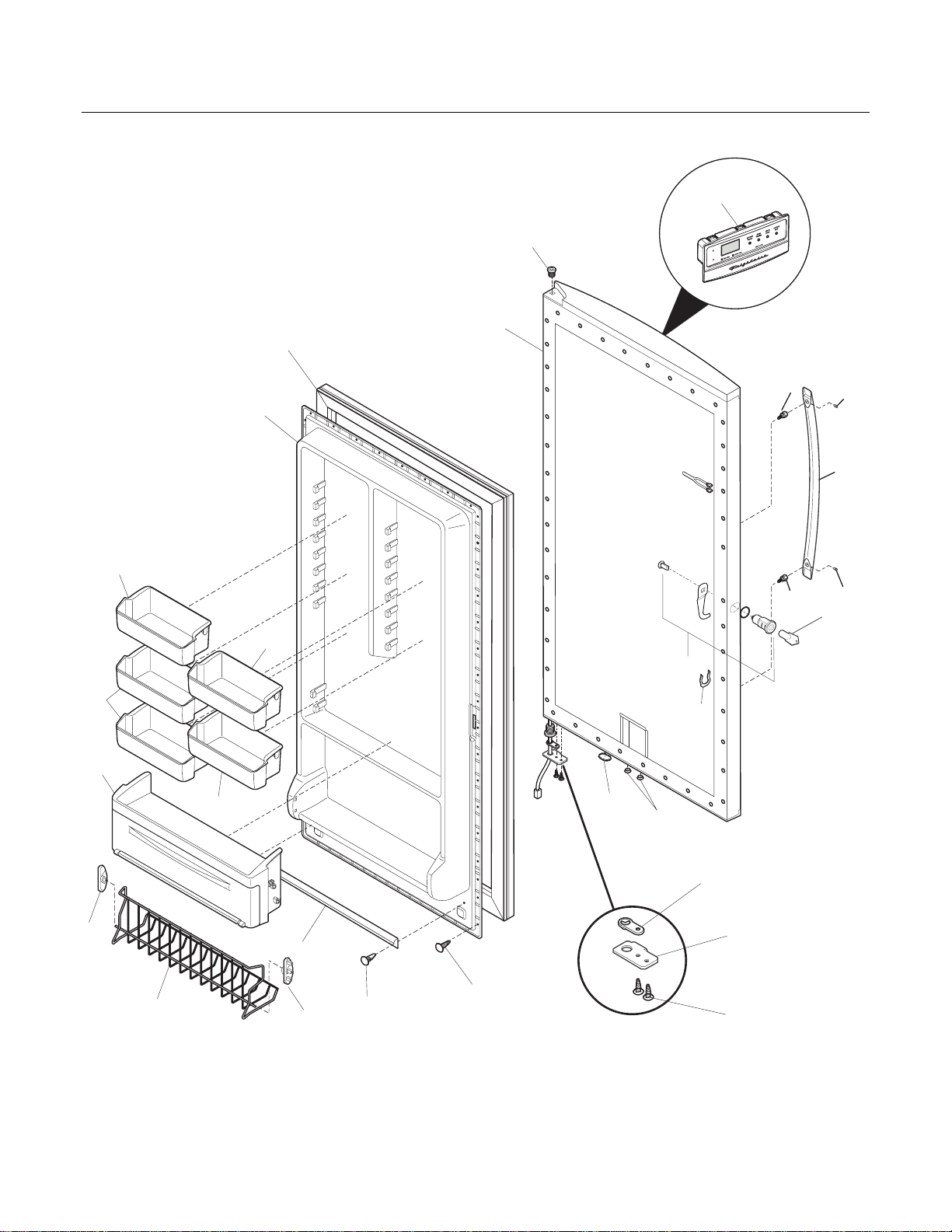

DOOR
18
79
79
80
80
59
13
21A
1
9
93
26
27
73
72
48C
49
49
49
49
74
32
64
P08D0578
22
11
2
5
2A
151
GLFH21F8HWB Publication No: 5995525010
# Functional Parts 3 09/08
* Non-Illustrated Parts
DOOR
POS. NO PART NO. DESCRIPTION
1 216522312 Gasket-door, white
2 # 297090000 Lock Assy
2A 297090900 Clip, spring
5 297147700 Key, lock
9 297185900 Panel-inner door, frzr
11 297203901 Panel-outer door, white
13 297154800 Door Stop, RH
18 241930102 Handle-door, white
* 240537301 Nut-anchor, door hdl screw
21A 216850900 Screw, hex washer hd, 1/4 x 7/8, door stop/hng
22 216970800 Bearing, hinge w/o'ring, top
26 216524200 Gasket, secondary
27 5303212828 Clip, panel mtg
27* 5304406520 Clip, panel mtg kit, (40)
32 5309950074 Valve, breather
48C 297186400 Bin-door, w/lid
49 297187201 Bin-door, 2-liter
59 216974500 Bearing, door closer
64 216403700 Plug-button, hole filler, door base
72 297186700 Shelf, tilt out, wire
73 216513900 End Cap, shelf, LH, tilt-out
74 216514000 End Cap, shelf, RH, tilt-out
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
93 5304460605 Screw, ph truss head, 8-18AB x 0.500
151# 297241906 Control-electronic, assy, white/chrome, 115V
Publication No: 5995525010 GLFH21F8HWB
09/08 4

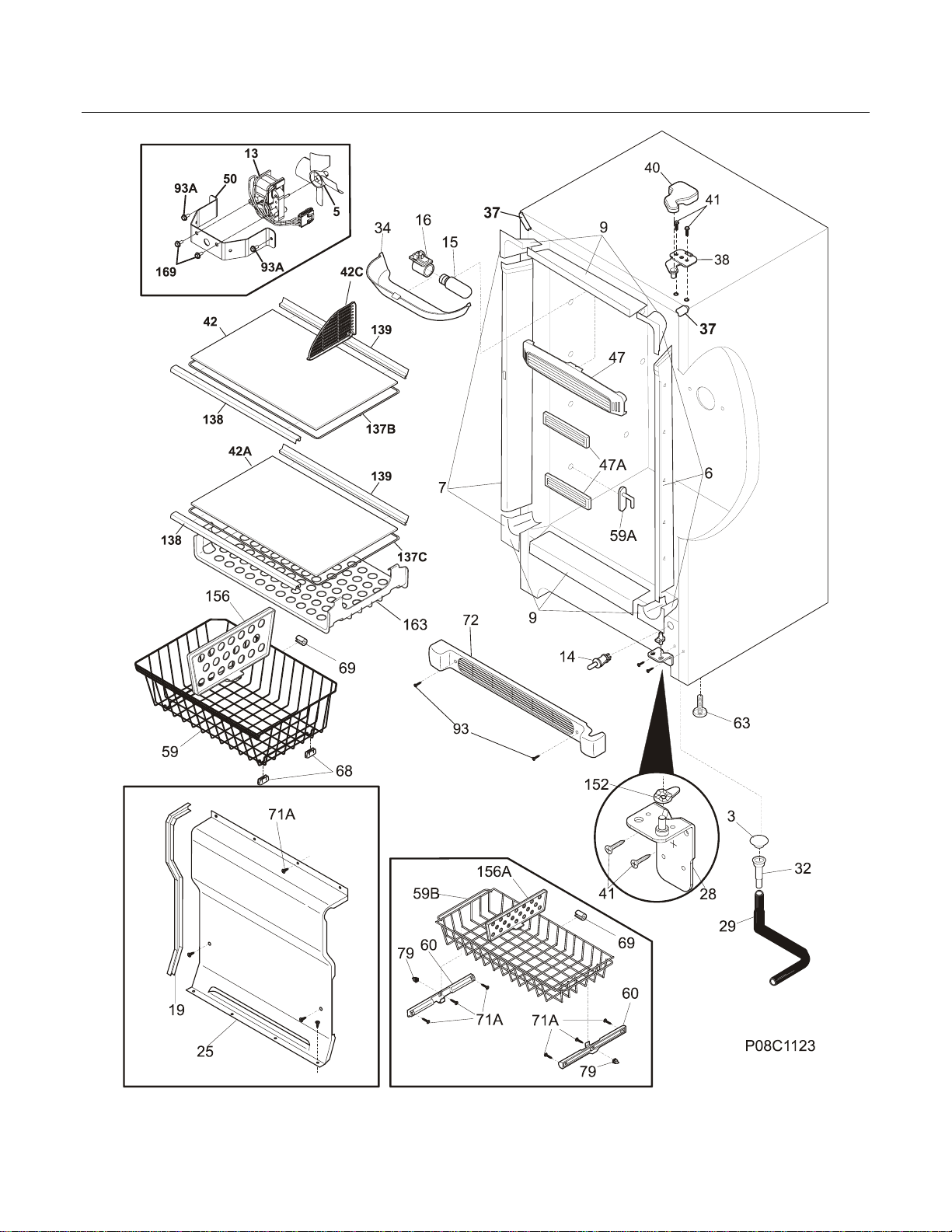

CABINET
GLFH21F8HWB Publication No: 5995525010
# Functional Parts 5 09/08
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
3 216503100 Screen-drain
5 # 216325600 Fan Blade
6 297200900 Breaker Kit w/corners
7 297201100 Breaker Kit w/corners, lock catch
9 297200100 Breaker Kit w/corners, 32", top and bottom
13 # 297250000 Motor, fan, 115 V
14 297243800 Switch, light/lamp, plunger
15 297114000 Light Bulb, short, blue tint, 40W
16 216817601 Socket, light/lamp, 25 W
19 216204902 Gasket-evap cover
25 297099251 Cover-evaporator
28 297179300 Hinge, bottom/RH
29 216313501 Hose-drain
32 5308005500 Drain
34 297184400 Shield-light
37 241611301 Trim-cabinet corner, white, (2)
38 297154600 Hinge-upper
40 297154701 Cover-upper hinge, white
41 297236200 Screw, tamper proof, 1/4-20 x 5/8
42 297166802 Glass-shelf, (2)
42A 297166800 Glass-shelf
* 216502400 Grommet-shelf mtg
42C 297183802 Divider, blue, glass shelf
47 297192902 Baffle, air, blue
47A 297205802 Diffuser, air, blue, (2)
50 216394050 Bracket, fan motor mount
59 297210900 Basket
59A 216486500 Stop-basket, (2)
59B 297209600 Basket
60 297013500 Slide, basket
63 216396900 Screw, leveling foot, plastic, adjustable
63* 297164600 Bracket, LH leg levelor
63* 297164601 Bracket, RH leg levelor
68 08009560 Glide-basket
69 5305878546 Bumper-basket
71A 297146800 Screw, 8-18AB x 0.470
72 297198900 Grille/Kickplate, 32", white
79 3017666 Nut-insert
93 5304460605 Screw, ph truss head, 8-18AB x 0.500
93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping
137B 297166902 Frame, (2)
137C 297166900 Frame
138 297203602 Trim-shelf, front
139 297218202 Trim-shelf, rear
152 216974600 Bearing, hinge closer
156 297202402 Divider, basket, btm
156A 297183602 Divider, basket, (2)
163 297185302 Shelf, pizza
169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)
* 297001704 Insulation, 24", drain tube
* 5303305324 Paint, touch-up, white
* 297089301 Energy Guide
* 297249900 Instructions, elect guide, Precision
* 297257400 Label, start guide
Publication No: 5995525010 GLFH21F8HWB
09/08 6

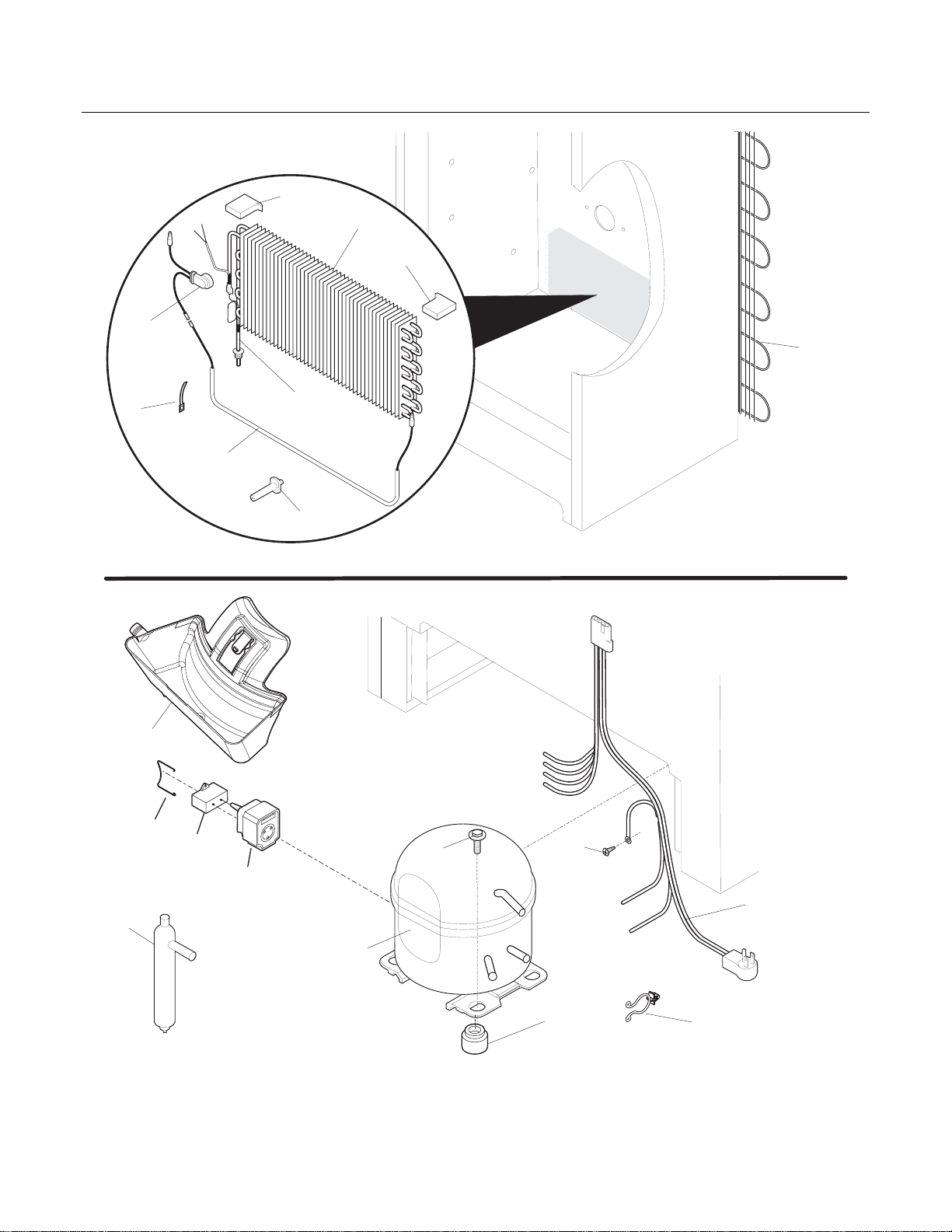

SYSTEM
32
30
FRONT
BACK
19
20
2
14
130
18
15
15A
1
35
29
5
4
86
P08S0485
27
31A
43B
55
GLFH21F8HWB Publication No: 5995525010
# Functional Parts 7 09/08
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 5300083897 Condenser
2 5308000110 Strap-evap/heater, aluminum, (2)
4 216987500 Drier-filter
5 # 297237602 Harness-main
14 297216100 Heater-defrost
15 # 216997300 Evaporator
15A 297217900 Heat Exchanger, suct/cap tube
18 297078700 Insulator-evap, styrofoam
19 297078800 Insulator-evap, styrofoam
20 216872200 Thermostat, defrost
27 5308002681 Grommet, compressor
29 # 297223500 Compressor, w/o electricals
30 216954218 Controller
31A 297217000 Pan-drain
32 216954300 Clip, controller
35 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
43B 297048400 Clip
55 216985001 Capacitor-run, 15 MF
86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA
130 297244700 Support, evaporator mtg
* 216502500 Sleeve, suction line
* 240555002 Screw-#8-32 X 3/8
* 297014500 Plug-suction line
* 297018400 Thermistor
* 297102800 Spacer-tube
* # 297169900 Cord-power, flat
