Frigidaire FFU11FK0FW Manuale utente

P08F0099.eps P08D0458.eps P08C0899.eps P08S0400.eps

Product No. FFU11FK0FW0

Series 134A

Color white

Volts 115

Wiring Diagram 297010000

Owner's Guide 297079200

Market North America

Energy Guide 216795203

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995464400

06/03/29

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU11FK0FW

Publication No: 5995464400 FFU11FK0FW0

03/06 2

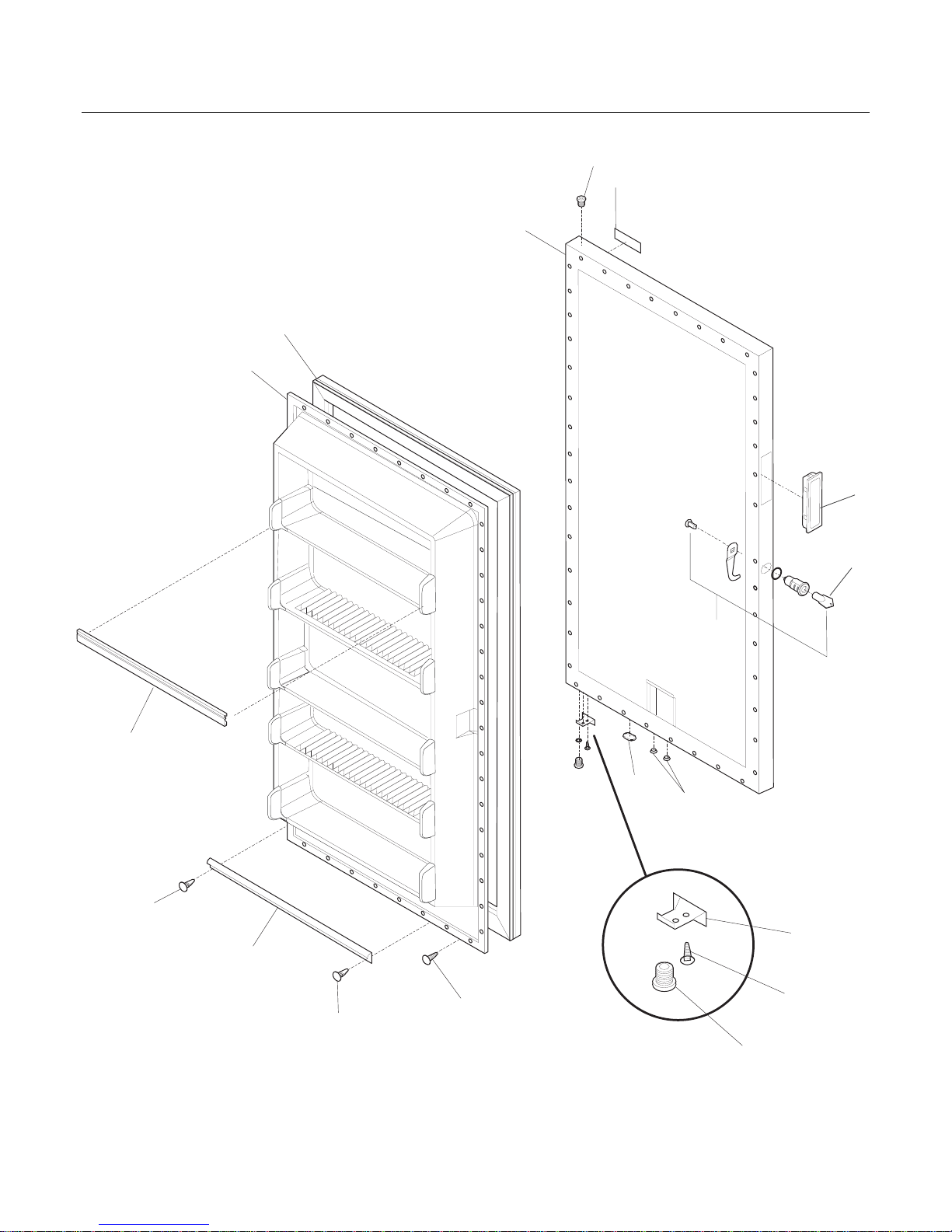

DOOR

P08D0458

21A

22A

FFU11FK0FW0 Publication No: 5995464400

# Functional Parts 3 03/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522303 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216527411 Panel-inner door, frzr

11 216565406 Panel-outer door, white

12 216892802 Nameplate

13 08016354 Door Stop

18 297034200 Handle, recessed, white, incl/gasket

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524300 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951601 Rack-door, (4)

32 5309950074 Valve, breather

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995464400 FFU11FK0FW0

03/06 4

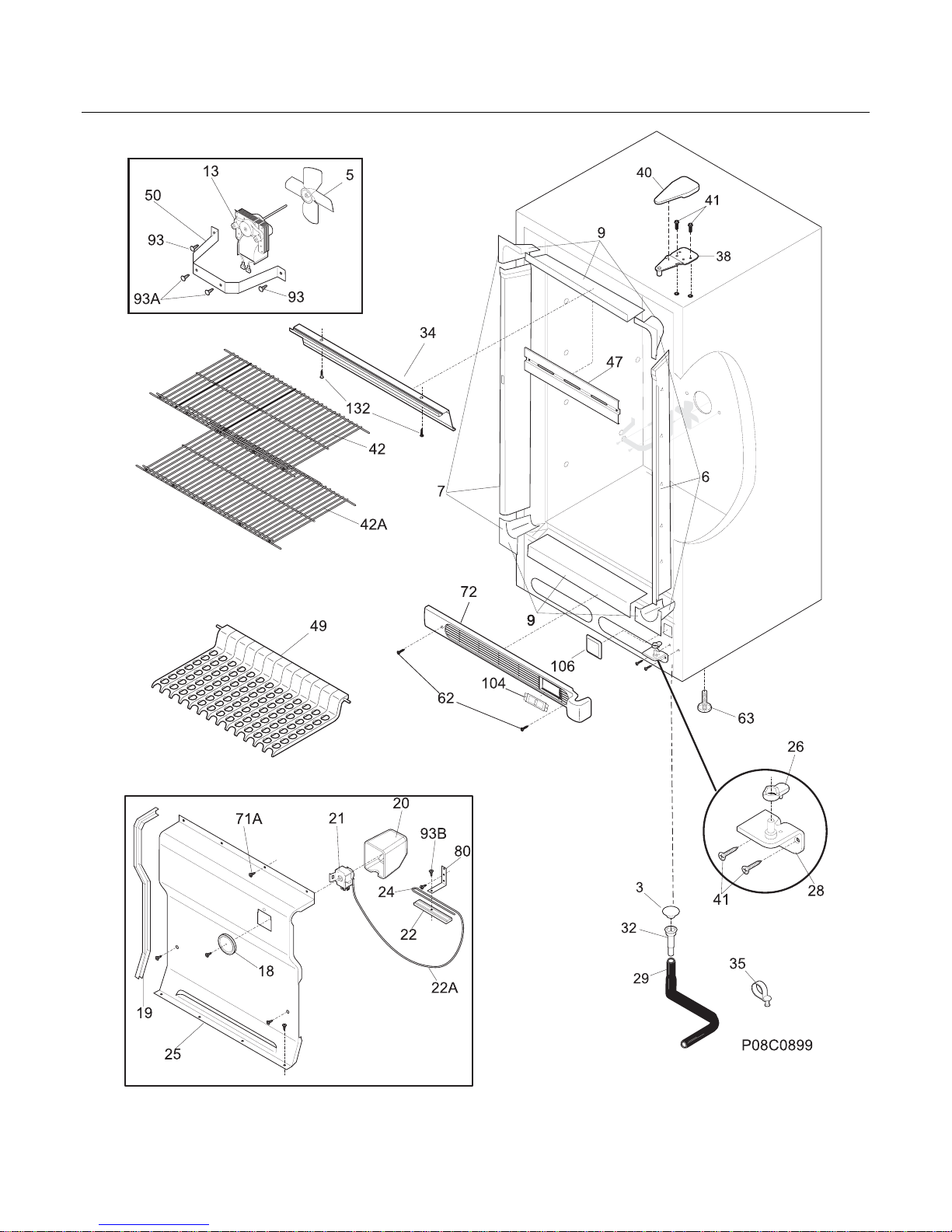

CABINET

FFU11FK0FW0 Publication No: 5995464400

# Functional Parts 5 03/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604400 Breaker Kit w/corners

7 216603900 Breaker Kit w/corners, lock catch

9 216603400 Breaker Kit w/corners, 22.13" long, top or bottom

13 # 216934100 Motor, fan, 115 V

18 216707200 Knob, temp control

19 216204900 Gasket, evap cover

20 216967200 Cover, temp control

21 # 216788000 Control, temperature

22 216823500 Clamp, cap tube, cold control

22A 5303916855 Tube, sensor sleeve, plastic, clear

24 5300052943 Screw-clamp, truss hd cr, control

25 216820100 Cover, evaporator

26 216503300 Ramp, door closer

28 216247400 Hinge, bottom

29 216313501 Hose-drain

32 5308005500 Drain

34 216816220 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH

42 216546200 Shelf, 14.50 X 23.88 WH, 14.50x23.88, white

42A 216641000 Shelf, wire

* 216502400 Grommet-shelf mtg

47 216661600 Plate, baffle, snap fit

49 216937600 Trivet

50 216394000 Bracket, fan motor mount

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 297036802 Grille/Kickplate, 28", white

80 06594601 Bracket, control

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

93B 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

104 216948401 Light, signal, assy w/bracket

104* 216926700 Shield

106 216926301 Plug, square

132 5303283898 Screw, 6-20AB x 3/8

* 216795203 Energy Guide

* 297001704 Insulation, 24", drain tube

* 5303305324 Paint, touch-up, white

Publication No: 5995464400 FFU11FK0FW0

03/06 6

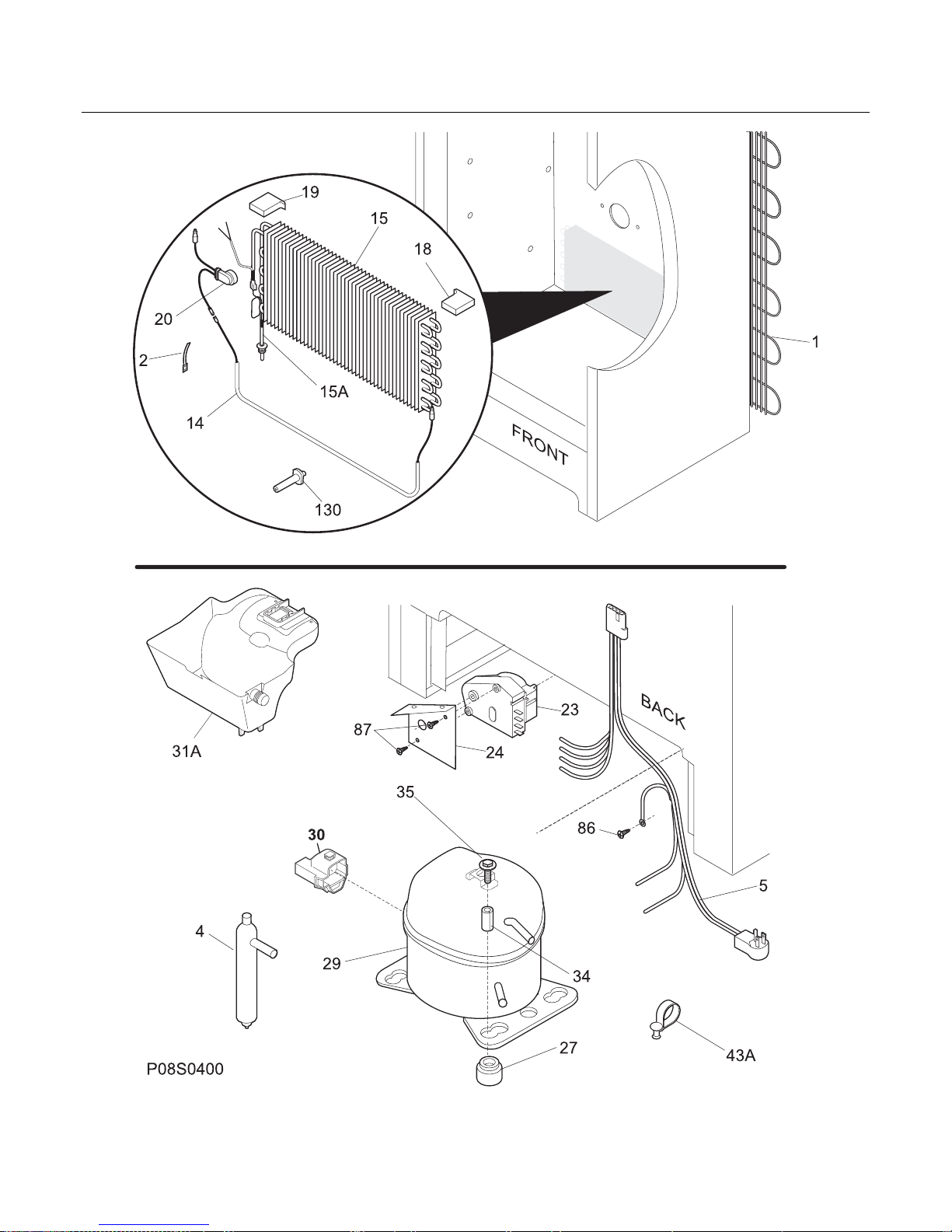

SYSTEM

FFU11FK0FW0 Publication No: 5995464400

# Functional Parts 7 03/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297022400 Harness-main

14 216740000 Heater-defrost

15 216737400 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216872200 Thermostat, defrost

23# 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet, compressor

29 # 297054400 Compressor, assy, w/electricals

30 # 297054500 Relay Combo

31A 216948700 Pan-drain

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

87 297094300 Screw, HD HI-LO, #8-18X.500 1/4", timer bracket

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line
