Frigidaire FFC18K1CW Manuale utente

Product No. FFC18K1CW1

Series 134A

Color white

Volts 115

Wiring Diagram 216801000

Owner's Guide 216933800

Market North America

Energy Guide 216794305

P08F0051.eps P08D0346.eps P08C0613.eps P08S0310.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995408522

04/04/27

(EN/SERVICE/MLR)

365

FREEZER CHEST

Model No.

FFC18K1CW

Publication No: 5995408522 FFC18K1CW1

04/04 2

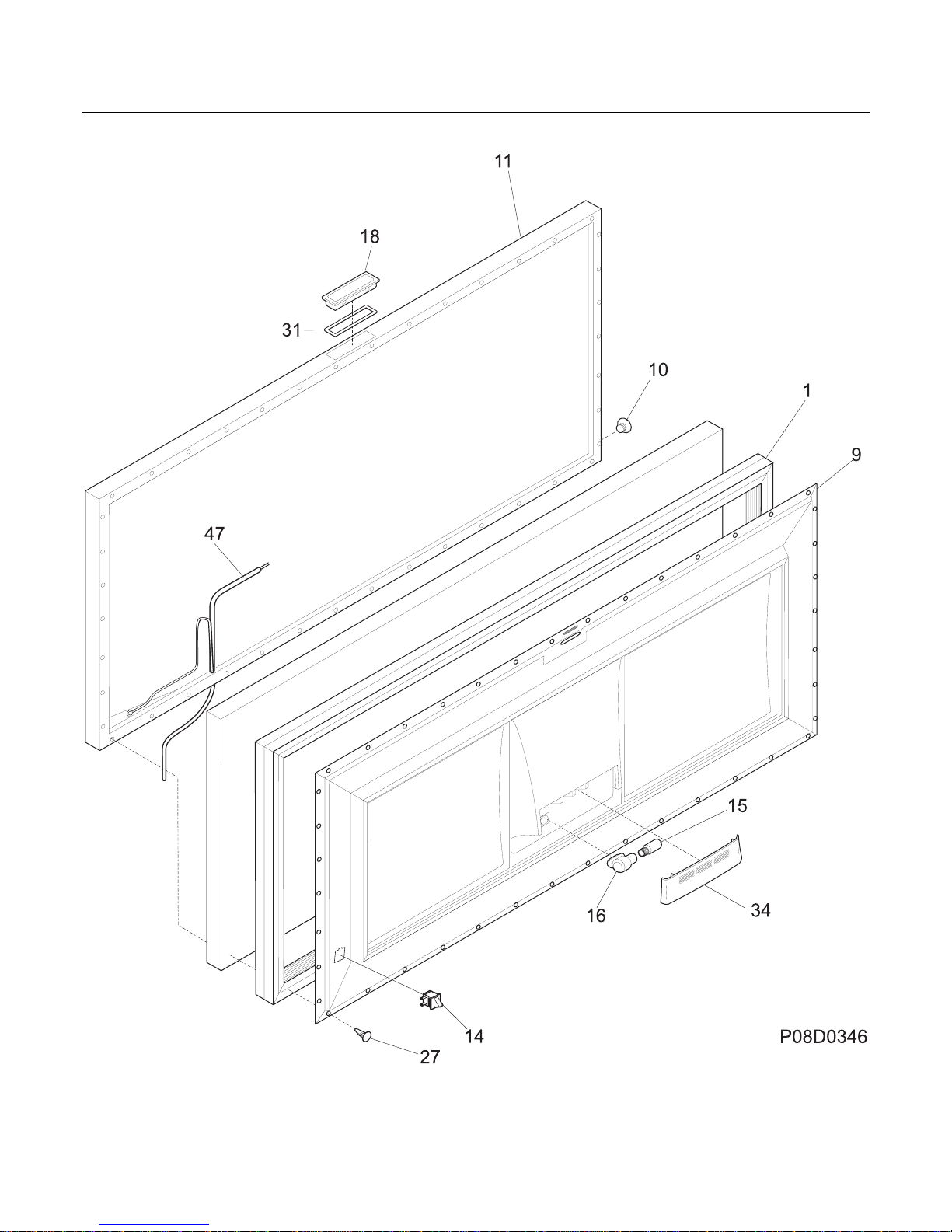

DOOR

FFC18K1CW1 Publication No: 5995408522

# Functional Parts 3 04/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216481301 Gasket-door, white

9 216893203 Panel-inner door, frzr

10 216923001 Plug button, 1/4", white

11 216130019 Panel-lid, white

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216140200 Handle, recessed, white

27 5303212828 Clip, panel mtg

31 08009392 Gasket, white

34 5303296969 Shield, lid lamp

47 # 216898800 Harness-lid

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995408522 FFC18K1CW1

04/04 4

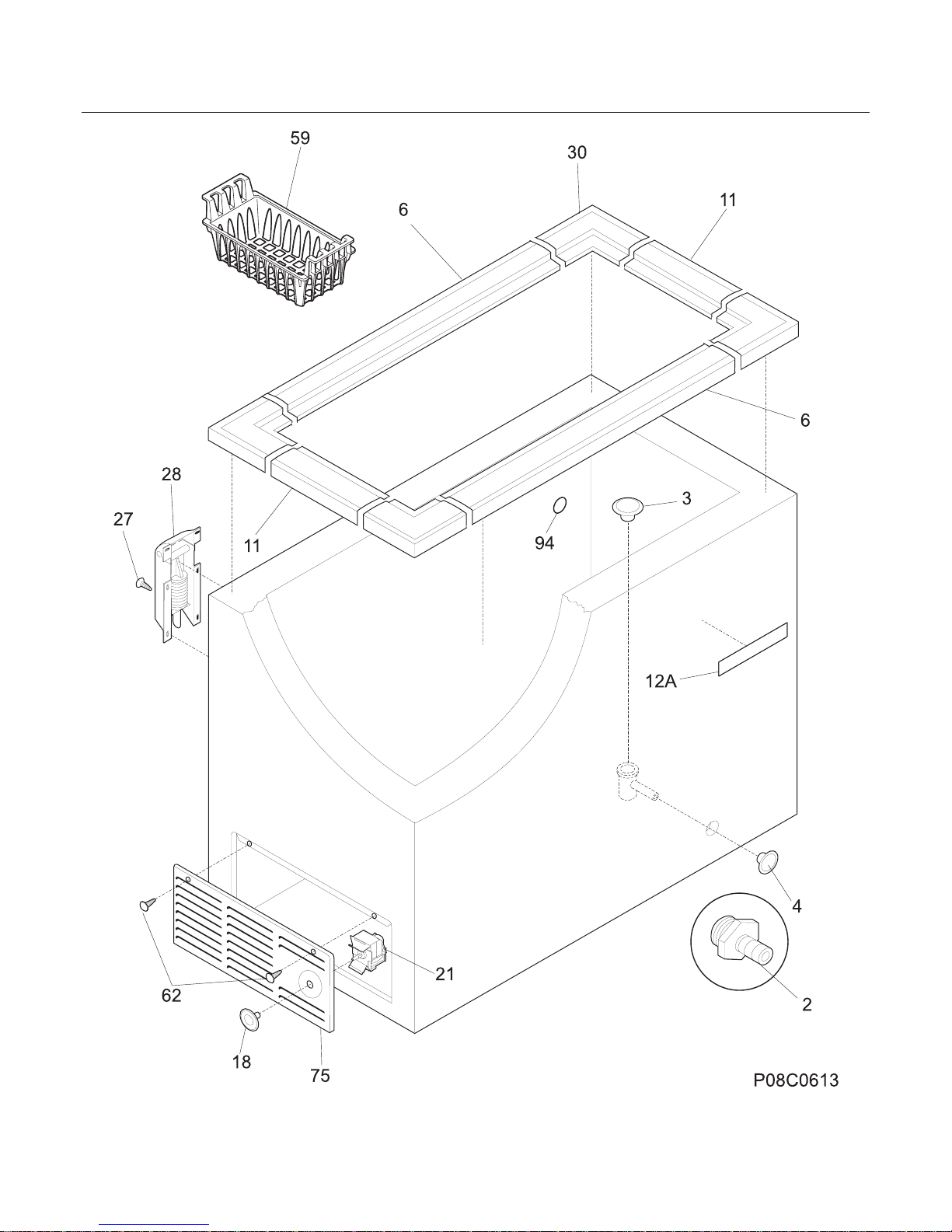

CABINET

FFC18K1CW1 Publication No: 5995408522

# Functional Parts 5 04/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

2 216269500 Adapter, drain hose

3 216502600 Plug, drain, interior

4 216073900 Plug, drain, exterior

6 216111100 Breaker

11 216110800 Breaker, chest end, (2)

12A 216892800 Nameplate

18 216707200 Knob, temp control

21 # 216714600 Control-temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216035300 Hinge

30 216110700 Breaker, corners

59 216916200 Basket, upper, (2)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

75 216034301 Panel, access, white

94 216140400 Lens, frost indicator, blue

* 216794305 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995408522 FFC18K1CW1

04/04 6

SYSTEM

FFC18K1CW1 Publication No: 5995408522

# Functional Parts 7 04/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5303280307 Condenser

4 216634500 Drier-filter

5 216806900 Harness-main

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216784700 Compressor, w/o electricals

30 216649300 Controller-regulator LP

32 216649100 Clamp, elec cont mtg, compressor

42 216232700 Washer, flat, 1"OD x 0.531"ID

43A 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 5303298960 Spacer-tube, 0.237" ID
