Frigidaire FFU17FG4AW Manuale utente

FREEZER

Model number

FFU17FG4AW

FFU20FG4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - 216857700 OWNER’S GUIDE - 216802800

SERVICE DATA SHEET - 216857700

ENERGY GUIDE - 17’ - 216795401, 20’ - 216795504

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17FG4AW2 FFU17FG4AW 134A white 115

FFU20FG4AW2 FFU20FG4AW 134A white 115

MARKET

North America

Publication No.

5995373072

020529

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

05/02 2

Publication No FFU17FG4AW, FFU20FG4AW

5995373072

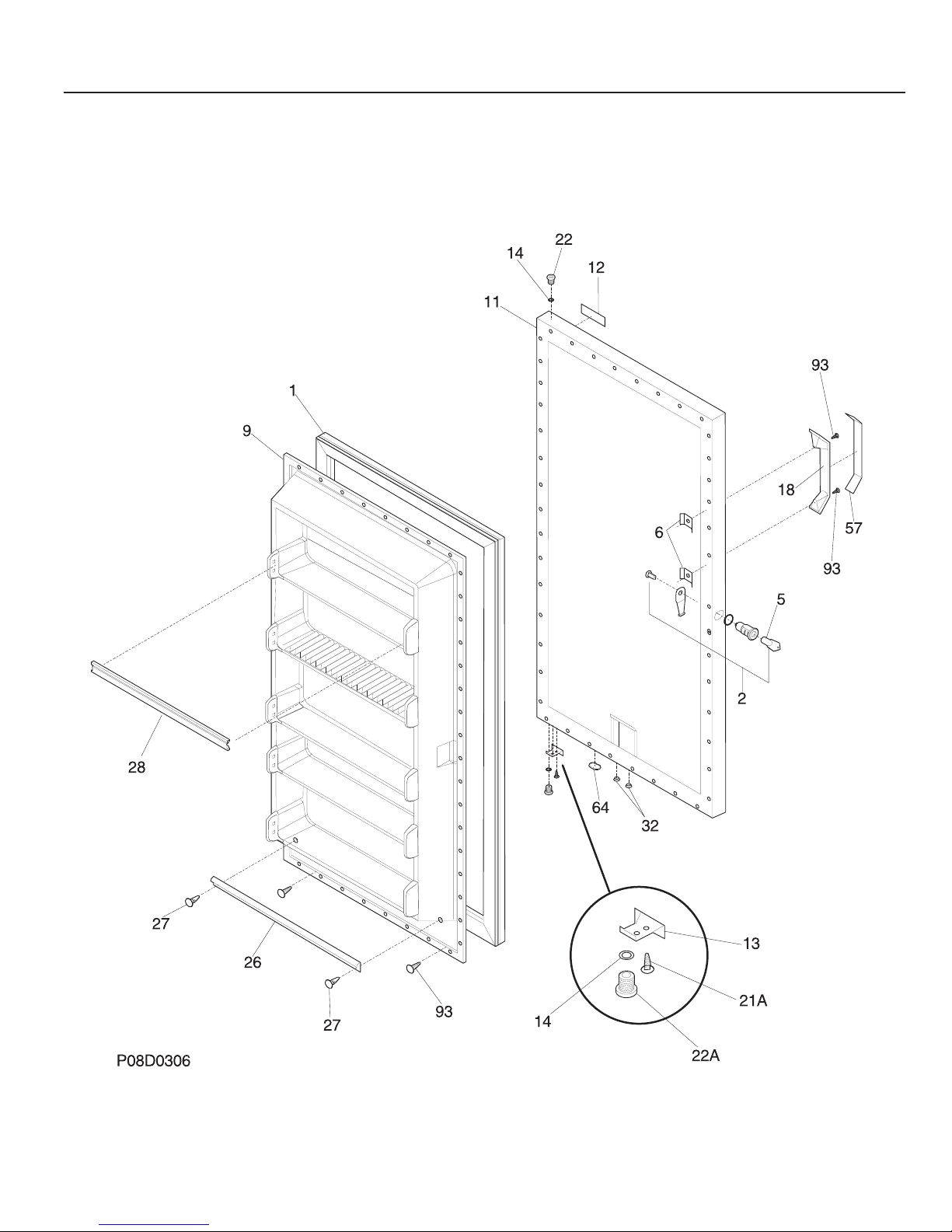

DOOR

# = Fast-moving Parts 3 05/02

* = Non-Illustrated Parts

FFU17FG4AW, FFU20FG4AW Publication No.

5995373072

DOOR

A = FFU17FG4A (FFU17FG4AW2)

B = FFU20G4A (FFU20FG4AW2)

POS. NO PART NO DESCRIPTION

1 216522309 A - Gasket-door,white

1 216522312 - B Gasket-door,white

2 5303925107 A B Lock Assy

5 # 216702900 A B Key,lock

6 5300158222 A B Screw-anchor,8-18

9 216527803 A - Panel-inner door,white ,frzr

9 216528103 - B Panel-inner door,white

11 5303925474 A - Panel-outer door,white

11 5303925476 - B Panel-outer door,white

12 240449701 A B Nameplate,white

13 08016354 A B Door Stop

14 5303313518 A B Washer,sealing

18 216446900 A B Handle,white

21A 08005520 A B Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 5303925197 A B Bearing

22A 216503200 A B Bearing-hinge,btm

26 216524200 A B Gasket,secondary

27 5303212828 A B Clip,panel

28 216807700 A B Rack-door,wide

32 5309950074 A B Valve-breather

57 3017682 A B Insert-handle

64 216403700 A B Plug-button,door base

93 5303161215 A B Screw

* 5303925098 A - Insulation

05/02 4

Publication No FFU17FG4AW, FFU20FG4AW

5995373072

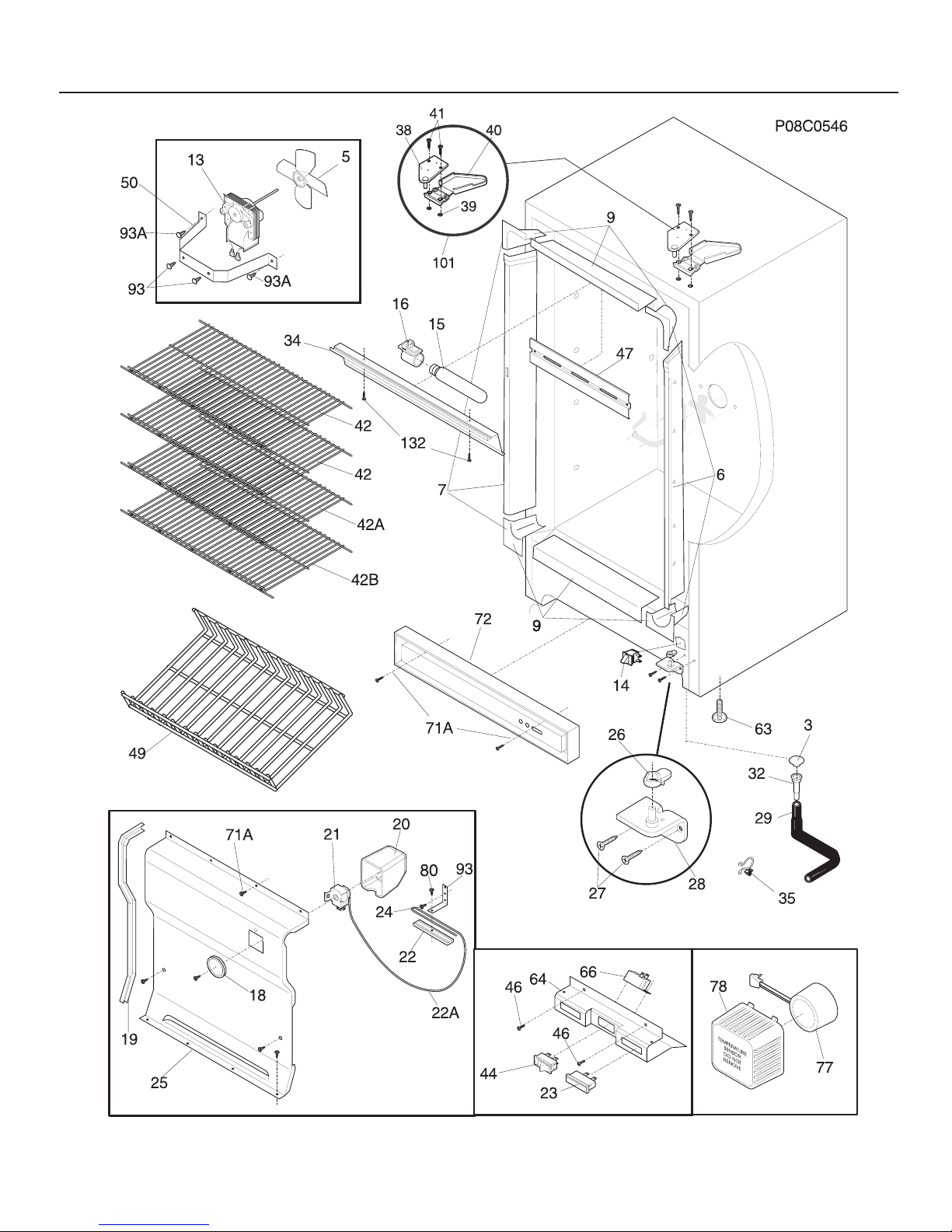

CABINET

# = Fast-moving Parts 5 05/02

* = Non-Illustrated Parts

FFU17FG4AW, FFU20FG4AW Publication No.

5995373072

A = FFU17FG4A (FFU17FG4AW2)

B = FFU20G4A (FFU20FG4AW2)

POS. NO PART NO DESCRIPTION

3 216503100 A B Screen-drain

5 # 216325600 A B Fan Blade

6 216604200 A - Breaker Kit w/corners

6 216604100 - B Breaker Kit w/corners

7 216603700 A - Breaker Kit w/corners,lock catch

7 216603600 - B Breaker Kit w/corners,lock catch

9 216603300 A B Breaker Kit w/corners,32" ,top or bottom

13 216822500 A B Motor-fan

14 216822900 A B Light/Lamp,ramp

15 216846400 A B Light Bulb/Lamp

16 216817600 A B Light/Lamp,indicator

18 216707200 A B Knob-control cold

19 216204900 A - Gasket,evap cover

19 216204901 - B Gasket-cover evap

20 216230300 A B Cover,temp control

21 216715200 A B Control-temperature

22 216823500 A B Clamp,cap tube ,cold control

22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear

23 5308002706 A B Light-signal,amber

24 5300052943 A B Screw-clamp,truss hd cr ,control

25 216737100 A - Cover-evaporator

25 216737200 - B Cover-evaporator

26 216503300 A B Ramp,closer ,door

27 5303205738 A B Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 A B Hinge-bottom

29 216313500 A B Hose-drain

32 5308005500 A B Drain

34 216816200 A B Shield-light

35 216273000 A B Clip,drain hose

38 216808900 A B Hinge-upper

39 5303294372 A B Nut-insert,hinge

40 216809000 A B Cover-hinge

41 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42 216458500 - B Shelf,wire ,16.69x26.88 ,white ,(3)

42A 216458400 A B Shelf,14.50x27.88 ,WH

42B 216458200 A - Shelf,12.50x27.88 ,white

42B 216546000 - B Shelf-fixed w/frame,white

44 216823300 A B Switch-rocker

46 08037851 A B Screw,PH type AB ,8-32x1/2 ,wiring harness

47 216661600 A B Baffle-plate

49 216278900 A - Trivet

49 216279000 - B Trivet

50 216394000 A B Bracket-motor mtg fan

63 216396900 A B Foot-adjustable

64 08016369 A B Bracket

66 # 216713700 A B Buzzer,alarm

71A 216347500 A B Screw,quadrex

72 216591120 A B Grille/Kickplate

77 # 5303313631 A B Sensor Assy

78 3205349 A B Housing-sensor

80 06594601 A B Bracket,control

93 5303161215 A B Screw

93A 5303302760 A B Screw

101 216835200 A B Kit-top hinge

132 5303283898 A B Screw,6-20AB x 3/8

* 216802800 A B Owners guide

* 09948773 A B Insulation,drain tube

* 216502400 A B Grommet-shelf mtg

* 5303305324 A B Paint,touch-up ,white

CABINET

05/02 6

Publication No FFU17FG4AW, FFU20FG4AW

5995373072

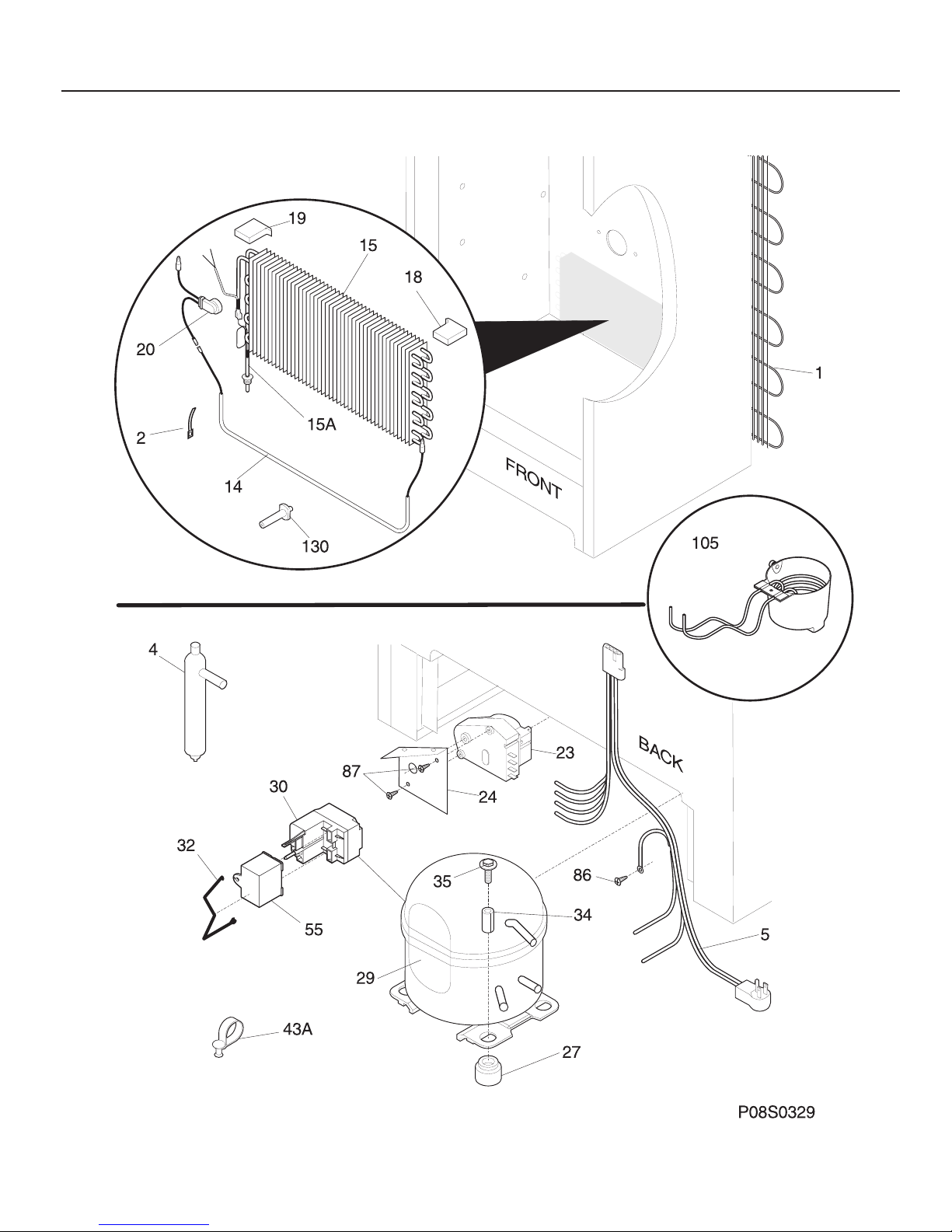

SYSTEM

FFU17FG4AW, FFU20FG4AW Publication No.

5995373072

# = Fast-moving Parts 7 05/02

* = Non-Illustrated Parts

SYSTEM

A = FFU17FG4A (FFU17FG4AW2)

B = FFU20G4A (FFU20FG4AW2)

POS. NO PART NO DESCRIPTION

1 # 5300083897 A B Condenser

2 5308000110 A B Strap-evap/heater,aluminum ,(2)

4 216634500 A B Drier-filter

5 # 216790500 A B Harness,electrical

14 # 216730700 A B Heater-defrost

15 # 216737300 A B Evaporator

15A 216783200 A B Heat Exchanger

18 216727600 A B Insulator-evap,styrofoam

19 216727700 A B Insulator-evap,styrofoam

20 216731000 A B Thermostat-defrost

23 # 216744400 A B Timer-defrost

24 08016580 A B Bracket

27 5308002681 A B Grommet,compressor

29 216851700 A - Compressor,w/o electricals

29 216851800 - B Compressor,w/o electricals

30 216649318 A B Controller

32 216649100 A B Clamp,elec cont mtg ,compressor

34 5306594529 A B Sleeve-compressor

35 5303272328 A B Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 A B Clip-harness

55 # 216787800 A B Capacitor-run

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 A B Screw

105 216854001 A - Cup-drain

105 216854000 - B Cup-drain

130 216486800 A B Support-evaporator

* 5303298960 A B Spacer-tube,.75"
