Frigidaire FFU11FK2AW3 Manuale utente

FREEZER

Model number

FFU11FK2AW3

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - 216857600 OWNER’S GUIDE - 216643104

SERVICE DATA SHEET - 216857600

ENERGY GUIDE - 216795201

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU11FK2AW3 FFU11FK2AW 134A white 115

MARKET

North America

Publication No.

5995370375

020418

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

04/02 2

Publication No FFU11FK2AW3

5995370375

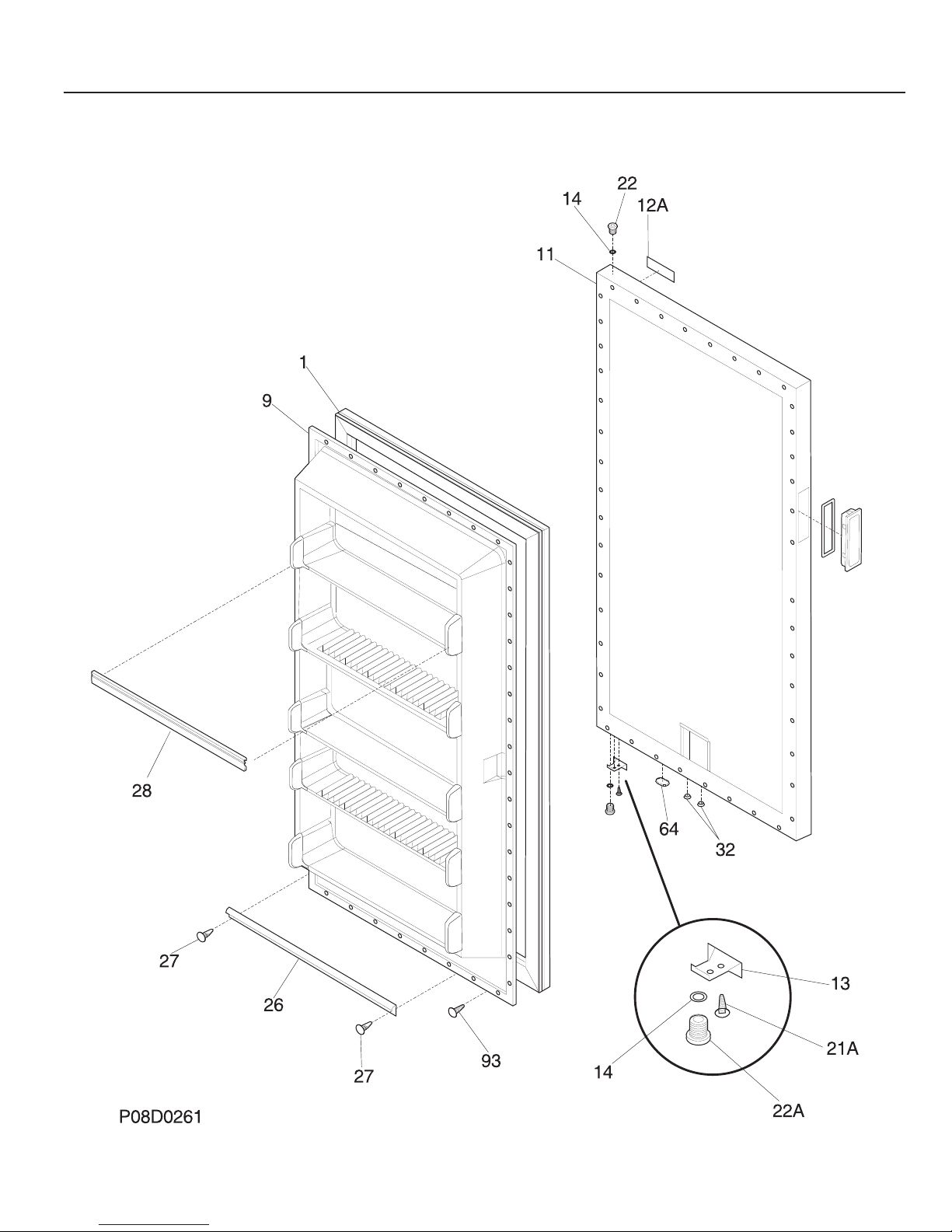

DOOR

# = Fast-moving Parts 3 04/02

* = Non-Illustrated Parts

FFU11FK2AW3 Publication No.

5995370375

DOOR

POS. NO PART NO DESCRIPTION

1 216522303 Gasket-door,white

9 216527412 Panel-inner door,frzr

11 216565401 Panel-outer door,white

12A 240415201 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 5303925197 Bearing

22A 216503200 Bearing-hinge,btm

26 216524300 Gasket,secondary

27 5303212828 Clip,panel

28 216806001 Rack-door,narrow ,4

32 5309950074 Valve-breather

64 216403700 Plug-button,door base

93 5303161215 Screw

04/02 4

Publication No FFU11FK2AW3

5995370375

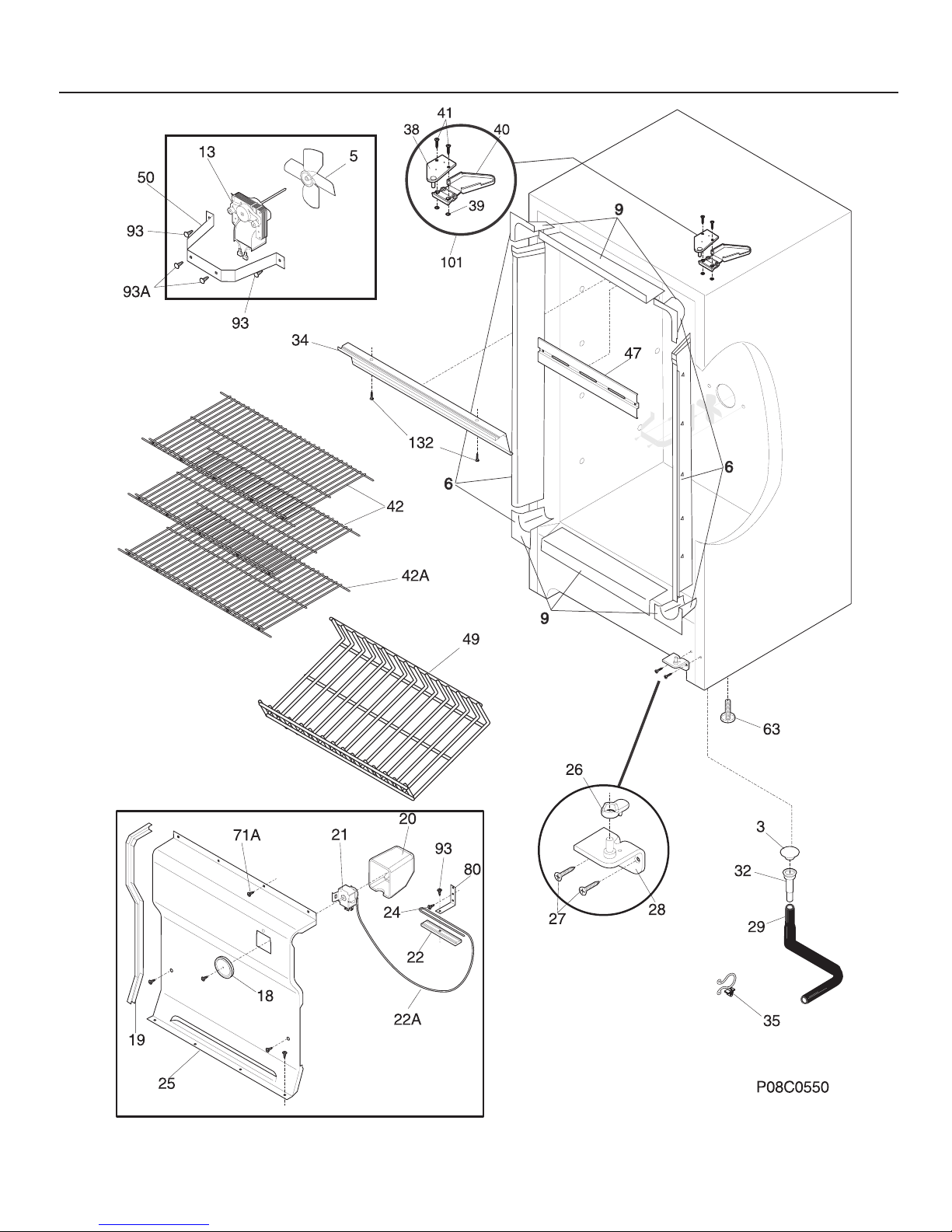

CABINET

# = Fast-moving Parts 5 04/02

* = Non-Illustrated Parts

FFU11FK2AW3 Publication No.

5995370375

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604400 Breaker Kit w/corners

9 216603400 Breaker Kit w/corners,28" ,top or bottom

13 216822500 Motor-fan

18 216707200 Knob-control cold

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216788000 Control-temperature

22 216823500 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737000 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816204 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge-upper

39 5303294372 Nut-insert,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42 216546200 Shelf,14.50 X 23.88 WH,14.50x23.88 ,white

42A 216641000 Shelf,wire

47 216661600 Baffle-plate

49 216641100 Trivet

50 216394000 Bracket-motor mtg fan

63 216396900 Foot-adjustable

71A 216347500 Screw,quadrex

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

101 216835200 Kit-top hinge

132 5303283898 Screw,6-20AB x 3/8

* 216802800 Owners guide

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

CABINET

04/02 6

Publication No FFU11FK2AW3

5995370375

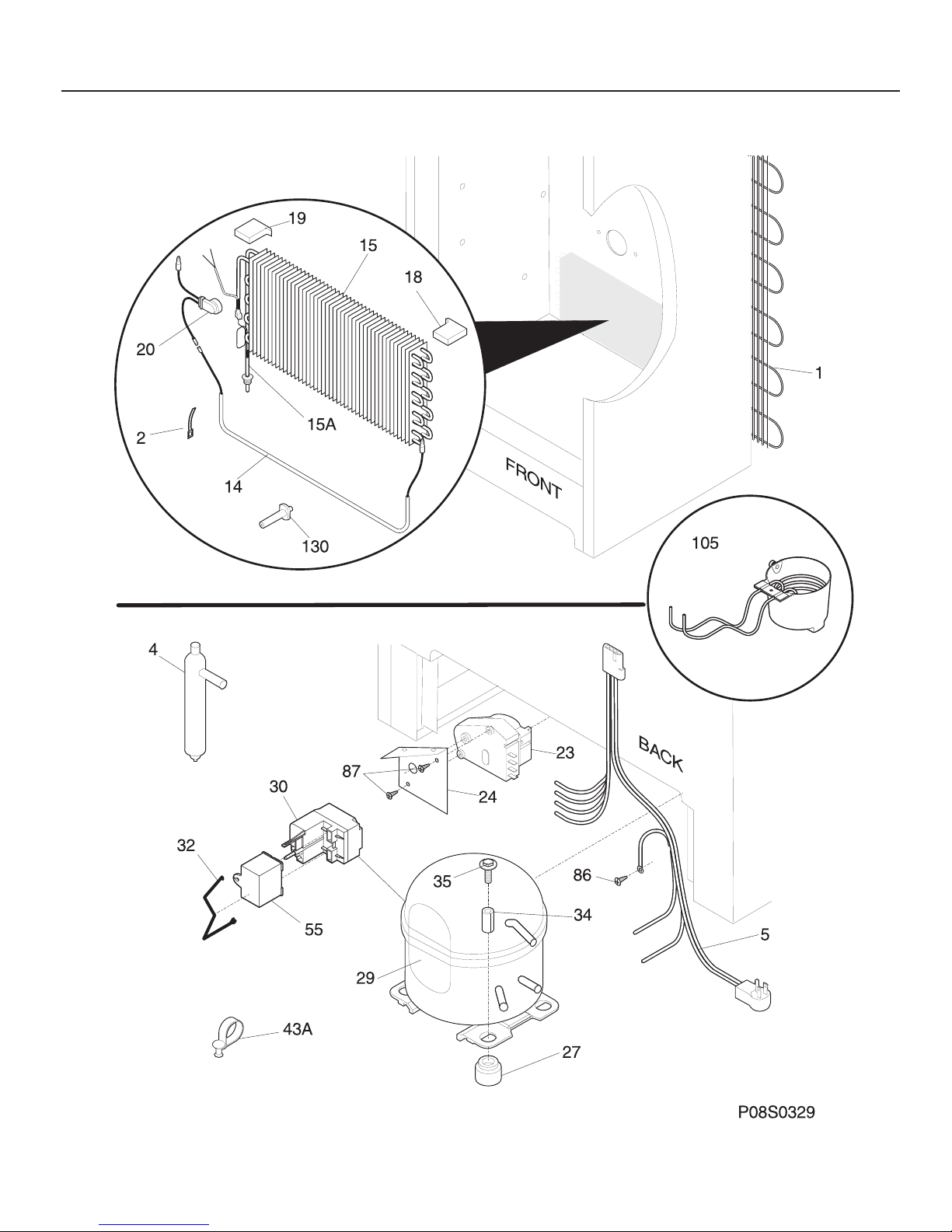

SYSTEM

FFU11FK2AW3 Publication No.

5995370375

# = Fast-moving Parts 7 04/02

* = Non-Illustrated Parts

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216821700 Harness-main

14 216740000 Heater-defrost

15 216737400 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 # 216744400 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 216511100 Compressor,w/o electricals

30 # 216649301 Controller

32 216649200 Clip,controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

105 216854002 Cup-drain

130 216486800 Support-evaporator
