Frigidaire FFC20C4CW0 Manuale utente

CHEST FREEZER

Model number:

FFC20C4CW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216804000

OWNER’S GUIDE - # 216802800 / ENERGY GUIDE - # 216794404

SERVICE DATA SHEET - # 216804000

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC20C4CW0 FFC20C4CW 134A white 115

MARKET

North America

Publication No.

5995392585

030708

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

07/03 2

Publication No FFC20C4CW0

5995392585

P08D0365

DOOR

# = Fast-moving Parts 3 07/03

* = Non-Illustrated Parts

FFC20C4CW0 Publication No.

5995392585

DOOR

POS. NO PART NO DESCRIPTION

1 216481401 Gasket,lid seal ,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216829504 Panel-inner door,frzr

10 216141101 Plug button,white

11 216130122 Panel-outer lid,white

14 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket,light/lamp ,25 W

18 216897600 Handle,white

27 5303212828 Clip,panel mtg

34 5303296969 Shield,lid lamp

40 5309948647 Fastener,handle

47 # 216898800 Harness-lid

57 216899503 Overlay,white

* 5303917276 Insulation-door,fiberglass ,(bulk)

07/03 4

Publication No FFC20C4CW0

5995392585

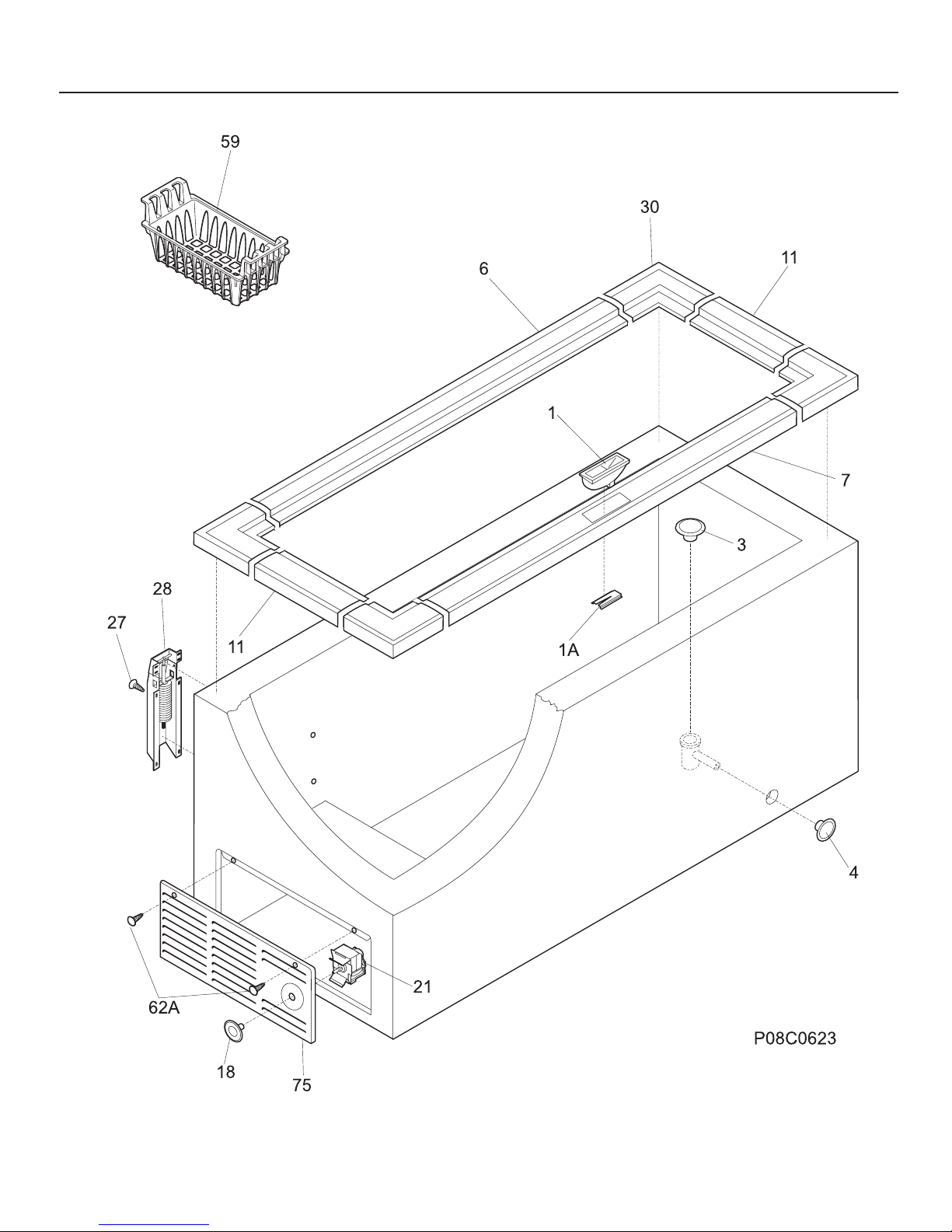

CABINET

# = Fast-moving Parts 5 07/03

* = Non-Illustrated Parts

FFC20C4CW0 Publication No.

5995392585

POS. NO PART NO DESCRIPTION

1 216909800 Catch-lock,white

1A 216818900 Support,lock catch clip

3 216502600 Plug,drain ,interior

4 216073905 Plug-drain,exterior

6 216111200 Breaker,hinge side

7 216111800 Breaker,lock side

11 216110800 Breaker,chest end ,(2)

18 216707200 Knob,temp control

21 # 216714600 Control-temperature

27 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

28 216035300 Hinge

30 216110700 Breaker,corners

59 216916200 Basket,upper ,(2)

62A 131420300 Screw,cr truss head ,8-18AB x 0.750

75 216034301 Panel,access ,white

* 216794404 Energy Guide

* 5303305324 Paint,touch-up ,white

CABINET

07/03 6

Publication No FFC20C4CW0

5995392585

SYSTEM

# = Fast-moving Parts 7 07/03

* = Non-Illustrated Parts

FFC20C4CW0 Publication No.

5995392585

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303280307 Condenser

4 216634500 Drier-filter

5 216806900 Harness-main

22 216056400 Clip,compressor mtg ,SPRING

27 5308002681 Grommet,compressor

28 5303212615 Support,compressor

29 # 216784600 Compressor,w/o electricals

30 216649315 Controller

32 216649100 Clamp,elec cont mtg ,compressor

42 216232700 Washer,flat ,1"OD x 0.531"ID

43A 5303212614 Clip,harness mount

47 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

55 218909913 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

* 5303298960 Spacer-tube,0.237" ID
