Frigidaire FFC13K0DW Manuale utente

Product No. FFC13K0DW0

Series 134A

Color white

Volts 115

Wiring Diagram 216908200

Owner's Guide 216960000

Market North America

Energy Guide 216794107

P08F0051.eps P08D0349.eps P08C0717.eps X08S0302.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995409686

04/05/10

(EN/SERVICE/MLR)

365

FREEZER CHEST

Model No.

FFC13K0DW

Publication No: 5995409686 FFC13K0DW0

05/04 2

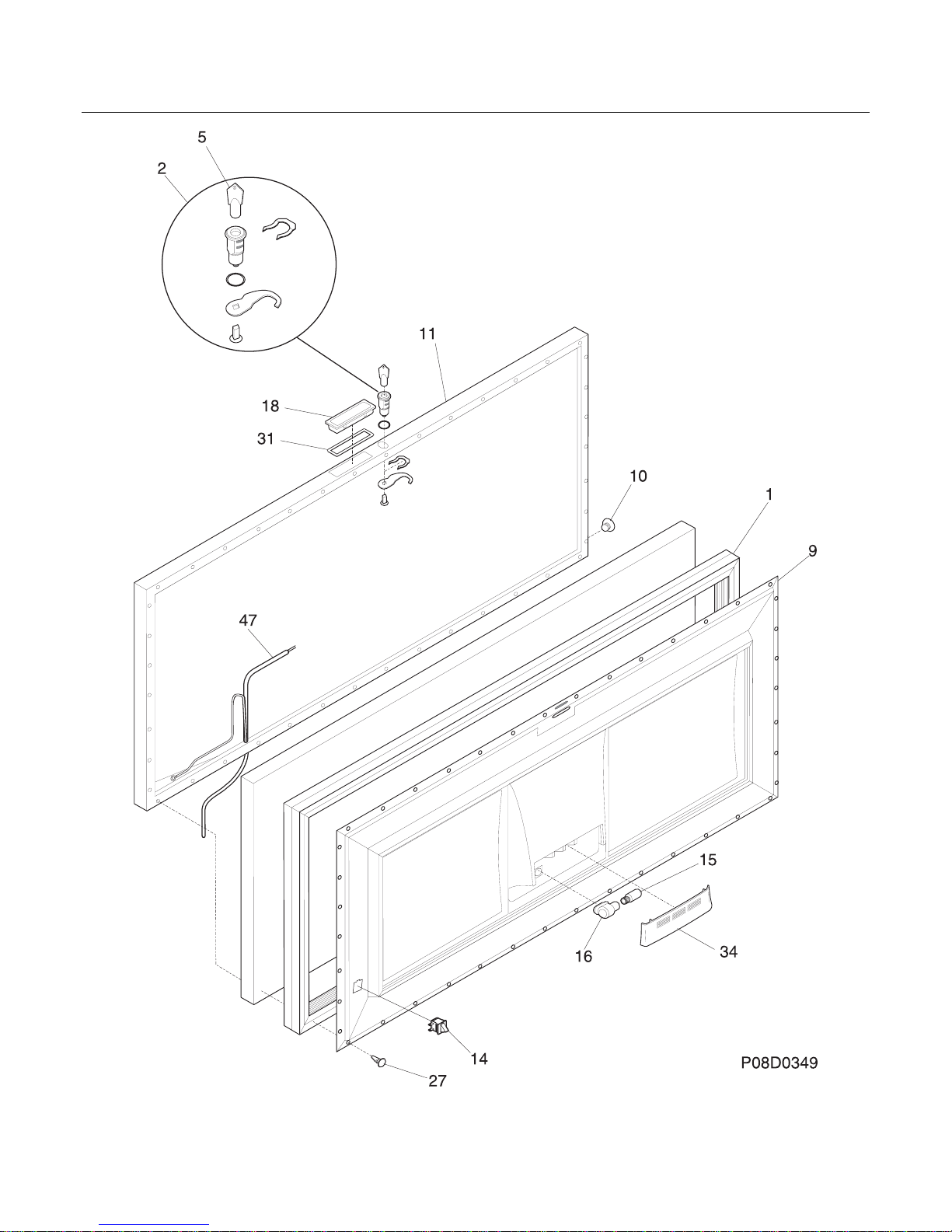

DOOR

FFC13K0DW0 Publication No: 5995409686

# Functional Parts 3 05/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216481101 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216828904 Panel-lid

10 216923001 Plug button, 1/4", white

11 216129828 Panel-outer door, white

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216140200 Handle, recessed, white

27 5303212828 Clip, panel mtg

31 08009392 Gasket, white

34 5303296969 Shield, lid lamp

47 # 216898800 Harness-lid

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995409686 FFC13K0DW0

05/04 4

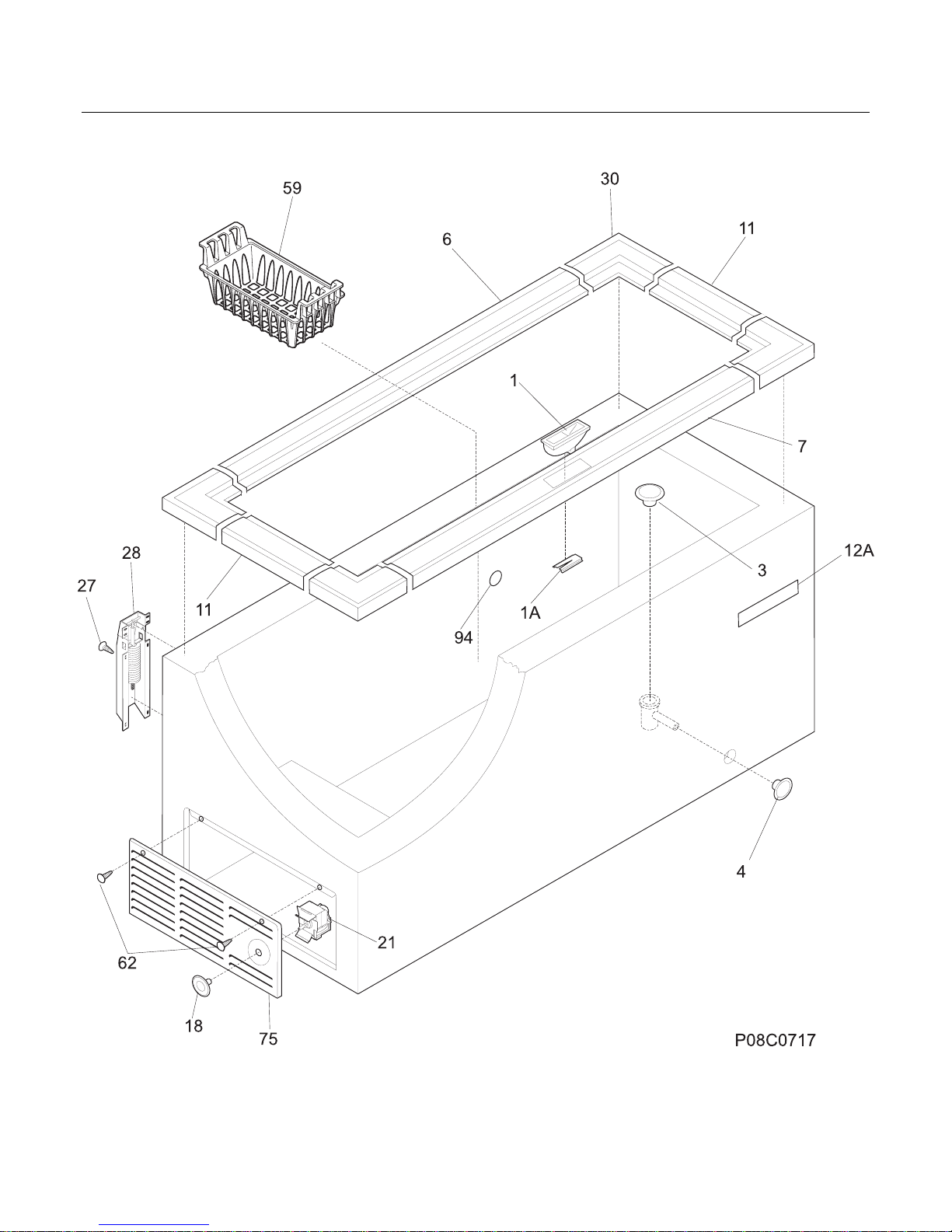

CABINET

FFC13K0DW0 Publication No: 5995409686

# Functional Parts 5 05/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 216909800 Catch-lock, white

1A 216818900 Support, lock catch clip

3 216502600 Plug, drain, interior

4 216073900 Plug, drain, exterior

6 216110900 Breaker

7 216111500 Breaker, lock side

11 216110800 Breaker, chest end, (2)

12A 216892800 Nameplate

18 216707200 Knob, temp control

21 # 216714601 Control temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216039600 Hinge

30 216110700 Breaker, corners

59 216916200 Basket, upper, (2)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

75 216034301 Panel, access, white

94 216140400 Lens, frost indicator, blue

* 216794107 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995409686 FFC13K0DW0

05/04 6

SYSTEM

FFC13K0DW0 Publication No: 5995409686

# Functional Parts 7 05/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5303925238 Condenser

4 216634500 Drier-filter

5 # 216906200 Harness-main

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216888100 Compressor, w/o electricals

30 216596800 Starter, relay

31 # 216100106 Overload Protector

42 216232700 Washer, flat, 1"OD x 0.531"ID

43 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

53 216347800 Cover terminal, cover-comp term

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming
