Frigidaire FFU17FC4AW Manuale utente

FREEZER

Model number

FFU17FC4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - 216857700

OWNER’S GUIDE - 216802800

SERVICE DATA SHEET - 216857700

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17FC4AW3 FFU17FC4AW 134A white 115

MARKET

North America

Publication No.

5995387510

030318

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

03/03 2

Publication No FFU17FC4AW3

5995387510

DOOR

# = Fast-moving Parts 3 03/03

* = Non-Illustrated Parts

FFU17FC4AW3 Publication No.

5995387510

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527803 Panel-inner door,white ,frzr

11 216526505 Panel-outer door,white

12 216816901 Nameplate

12A* 216817100 Nameplate,insert

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric

22 216443600 Bearing,hinge ,top

22A 216503200 Bearing,hinge ,bottom

26 216524200 Gasket,secondary

27 5303212828 Clip,panel mtg

28 216807700 Rack-door,wide

32 5309950074 Valve,breather ,door base

57 3017682 Insert-handle

64 216403700 Plug-button,hole filler ,door base

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

* 5303925098 Insulation

03/03 4

Publication No FFU17FC4AW3

5995387510

CABINET

# = Fast-moving Parts 5 03/03

* = Non-Illustrated Parts

FFU17FC4AW3 Publication No.

5995387510

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

13 216822500 Motor,evaporator fan ,115 V

18 216707200 Knob,temp control

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 216715200 Control-temperature

22 216823500 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 06594648 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

25 216820200 Cover-evaporator

26 216503300 Ramp,door closer

27 5303205738 Screw,hinge mtg ,10 (A) x 0.875 ,btm

28 216247400 Hinge,bottom

29 216313500 Hose-drain

32 5308005500 Drain

33 216831100 Bracket,signal light

34 216816203 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42A 216458400 Shelf,14.50x27.88 ,WH

42B 216458200 Shelf,12.50x27.88 ,white

47 216661600 Plate,baffle ,snap fit

49 216278900 Trivet

50 216394000 Bracket,fan motor mount

63 216396900 Screw,leveling foot ,plastic ,adjustable

71A 216347500 Screw,quadrex ,8-32 x 0.300

72 216591110 Grille/Kickplate

80 06594601 Bracket,control

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

93A 5303302760 Screw,round head sems ,10-32 x 0.375

101 216835200 Top Hinge Kit

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

CABINET

03/03 6

Publication No FFU17FC4AW3

5995387510

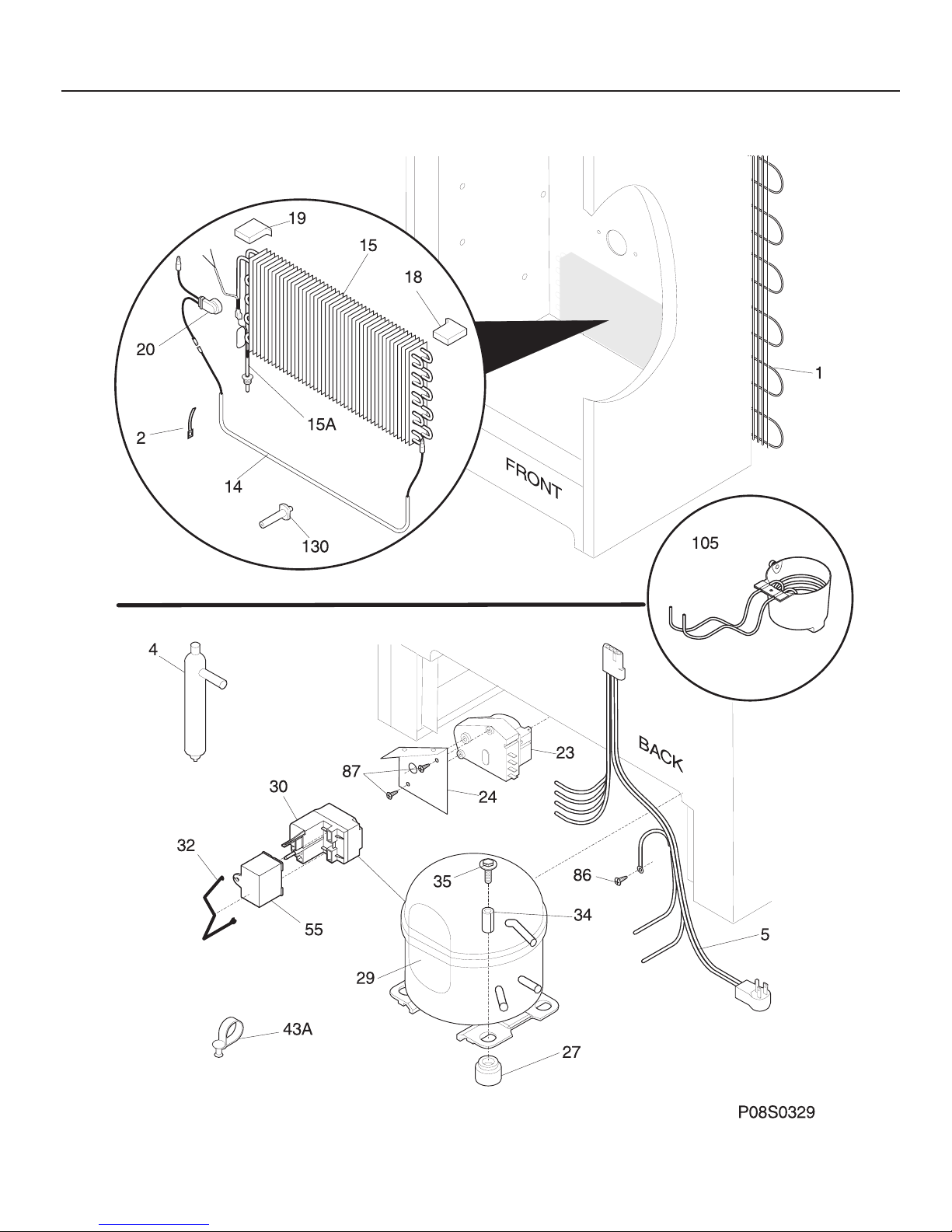

SYSTEM

FFU17FC4AW3 Publication No.

5995387510

# = Fast-moving Parts 7 05/02

* = Non-Illustrated Parts

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216823900 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216783200 Heat Exchanger,suct/cap tube

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat,defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 # 216784500 Compressor,w/o electricals

30 216649300 Controller-regulator LP

32 216649100 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

87 08037849 Screw,ph truss head ,6-32(T) x 0.500 ,thread cutting

105 216854001 Cup-drain

130 216486800 Support,evaporator mtg

* 5303298960 Spacer-tube,0.237" ID

* 216502500 Sleeve,suction line
