Frigidaire FFU14K1CW Manuale utente

UPRIGHT FREEZER

Model number:

FFU14K1CW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216903500

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216794901

SERVICE DATA SHEET - # 216903500

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14K1CW0 FFU14K1CW 134A white 115

MARKET

North America

Publication No.

5995386959

030305

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

03/03 2

Publication No FFU14K1CW0

5995386959

DOOR

# = Fast-moving Parts 3 02/03

* = Non-Illustrated Parts

FFU14K1CW0 Publication No.

5995386959

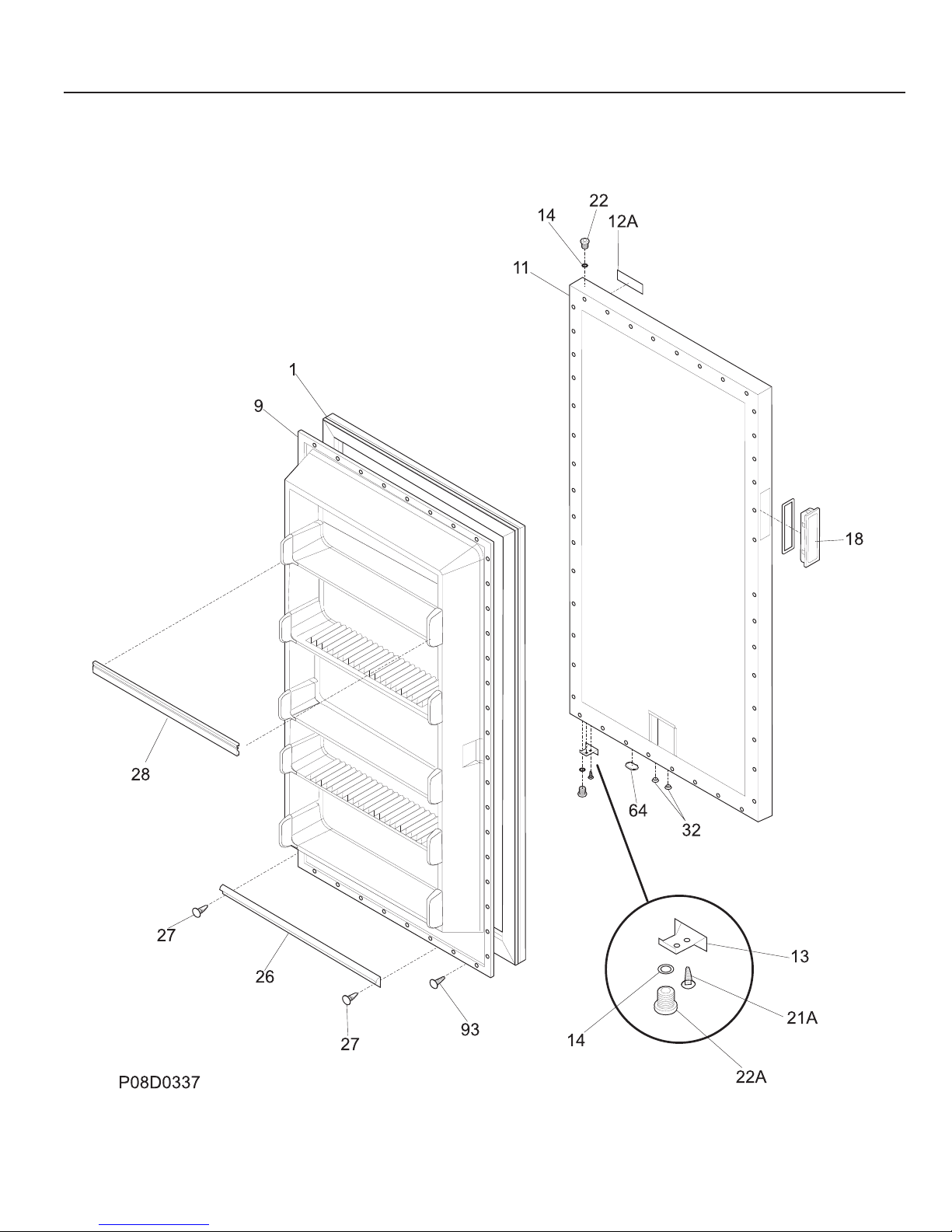

DOOR

POS. NO PART NO DESCRIPTION

1 216522306 Gasket,door seal ,white

9 216527617 Panel-inner door,frzr

11 216557801 Panel-outer door,white

12A 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216140200 Handle,recessed ,white

21A 08005520 Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric

22 216443600 Bearing,hinge ,top

22A 216503200 Bearing,hinge ,bottom

26 216524300 Gasket,secondary

27 5303212828 Clip,panel mtg

28 216806001 Rack-door,narrow ,4

32 5309950074 Valve,breather ,door base

64 216403700 Plug-button,hole filler ,door base

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

03/03 4

Publication No FFU14K1CW0

5995386959

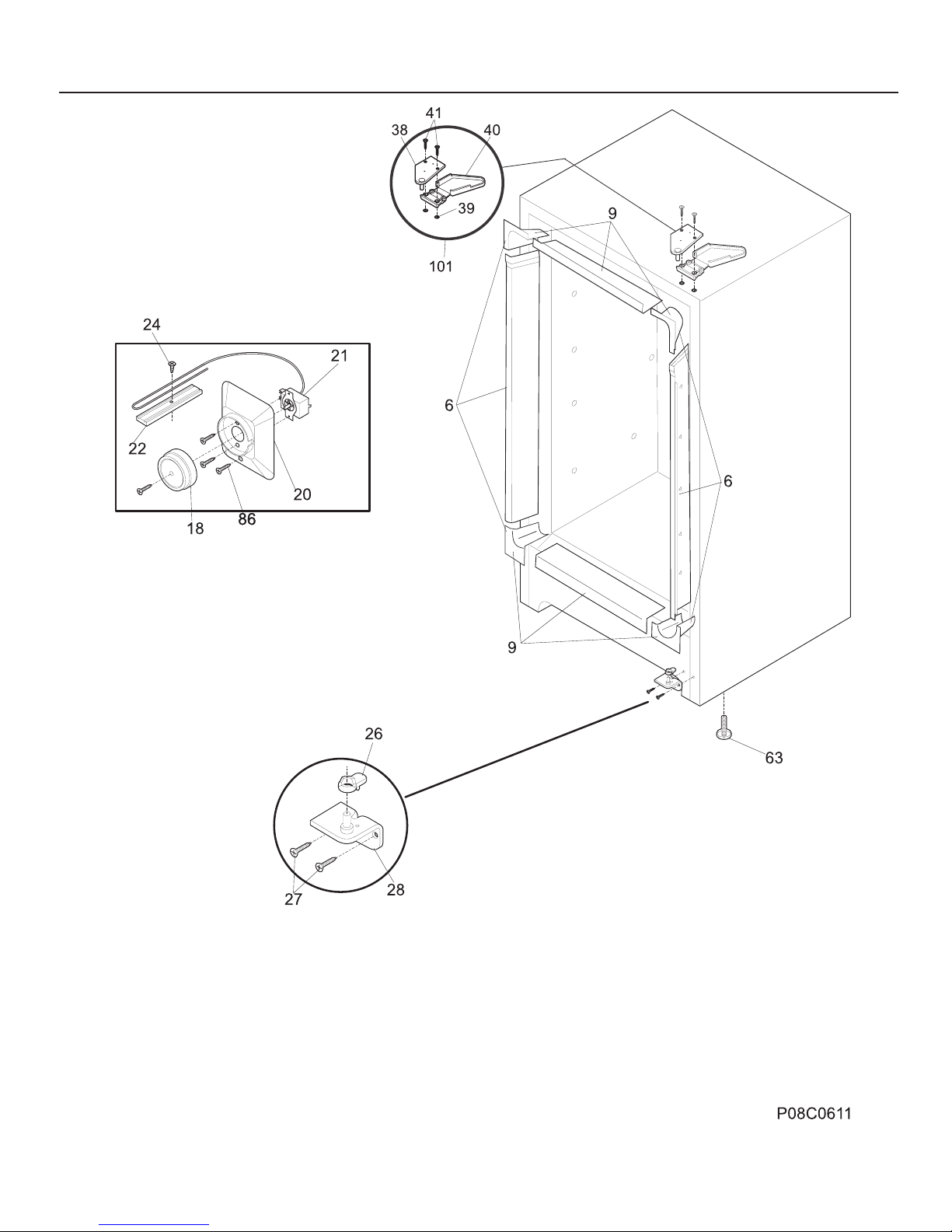

CABINET

# = Fast-moving Parts 5 03/03

* = Non-Illustrated Parts

FFU14K1CW0 Publication No.

5995386959

POS. NO PART NO DESCRIPTION

6 216604300 Breaker Kit w/corners,45.13" long ,no lock slot

9 216603400 Breaker Kit w/corners,22.13" long ,top or bottom

18 216707200 Knob,temp control

20 216707300 Cover-control housing

21 216788100 Control-temperature

22 216823500 Clamp,cap tube ,cold control

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,door closer

27 5303205738 Screw,hinge mtg ,10 (A) x 0.875 ,btm

28 216247400 Hinge,bottom

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

63 216396900 Screw,leveling foot ,plastic ,adjustable

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

101 216835200 Top Hinge Kit

* 09948773 Insulation,drain tube

CABINET

03/03 6

Publication No FFU14K1CW0

5995386959

SYSTEM

# = Fast-moving Parts 7 03/03

* = Non-Illustrated Parts

FFU14K1CW0 Publication No.

5995386959

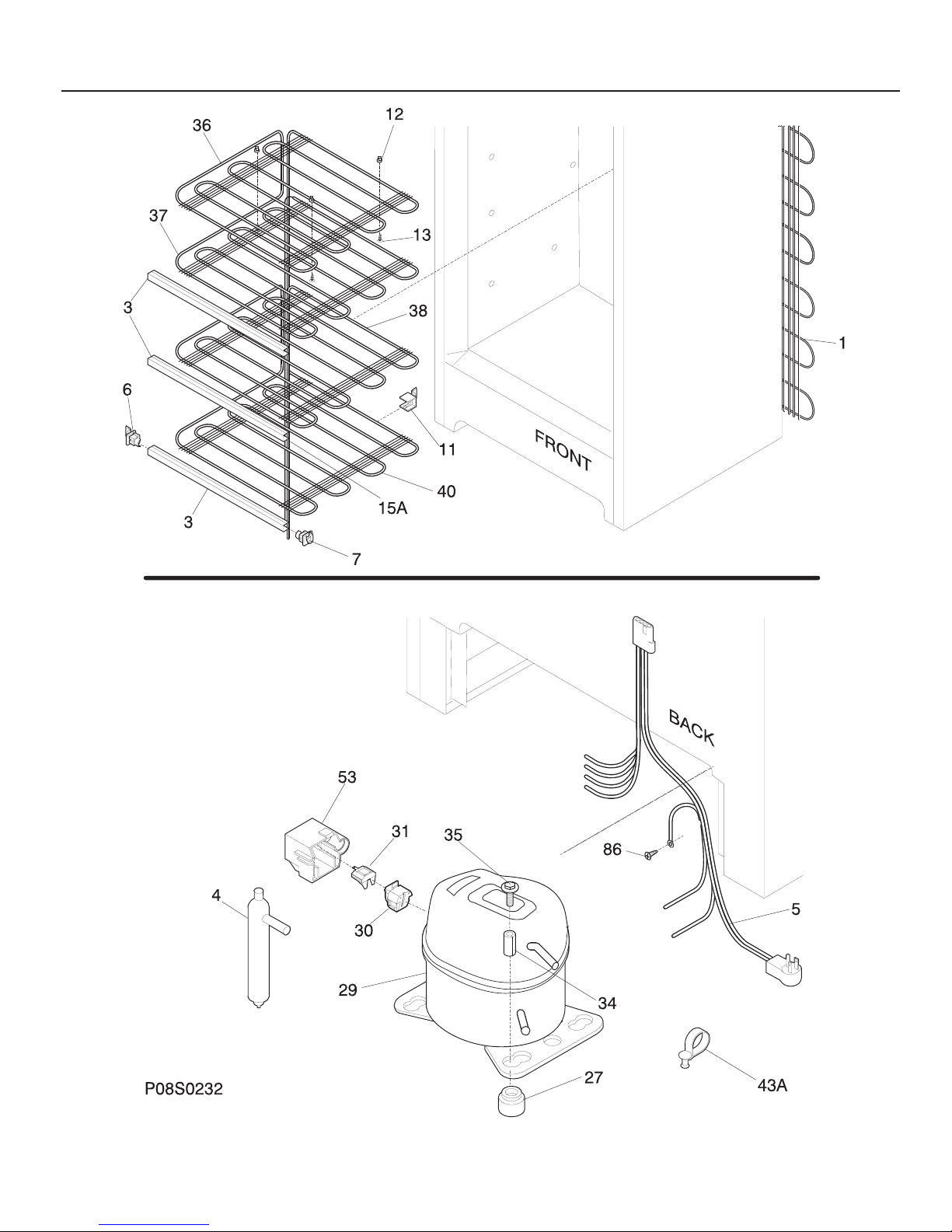

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

3 216847803 Trim-shelf,evaporator

4 216634500 Drier-filter

5 # 216891500 Harness,electrical

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

27 5308002681 Grommet,compressor

29 # 216888100 Compressor,w/o electricals

30 216596800 Starter,relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070100 Grid-top evaporator

37 # 216070200 Shelf-top evaporator

38 # 216070300 Shelf-middle evaporator

40 # 216070400 Shelf-bottom evaporator

43A 216629700 Clip-harness

53 216347800 Cover terminal,cover-comp term

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

* 216502500 Sleeve,suction line
