Frigidaire FFU20FC4CW0 Manuale utente

UPRIGHT FREEZER

Model number:

FFU20FC4CW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216857700

OWNER’S GUIDE - # 216802800 / ENERGY GUIDE - # 216795504

SERVICE DATA SHEET - # 2168857700

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU20FC4CW0 FFU20FC4CW 134A white 115

MARKET

North America

Publication No.

5995390134

030506

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

05/03 2

Publication No FFU20FC4CW0

5995390134

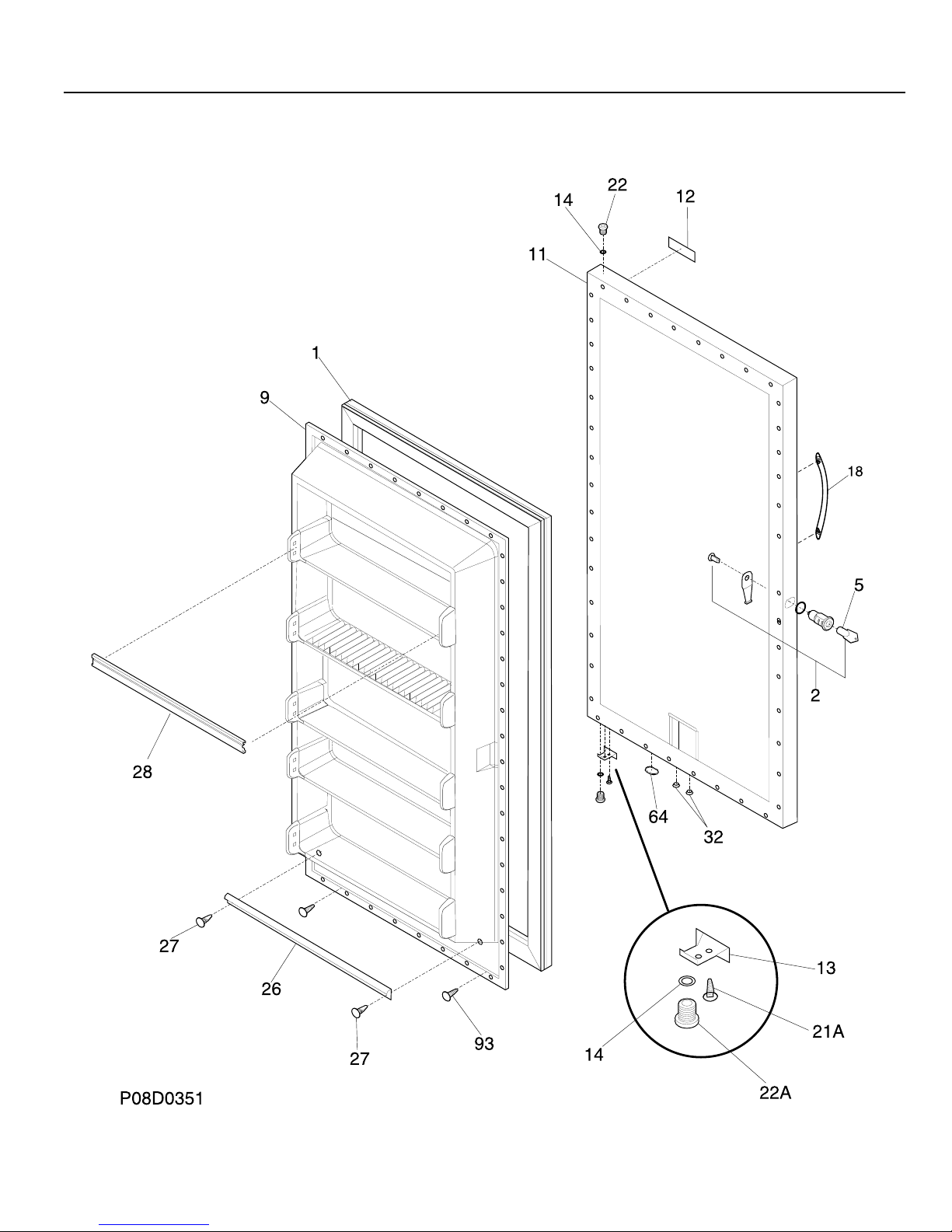

DOOR

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

FFU20FC4CW0 Publication No.

5995390134

DOOR

POS. NO PART NO DESCRIPTION

1 216522312 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216528113 Panel-inner door,frzr

11 216531229 Panel-outer door,white

12 240449705 Nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216893400 Handle

* 5303269745 Nut-anchor,door hdl screw

* 218755503 Screw-shoulder,#10 AB ,handle mounting

21A 08005520 Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric

22 5303925197 Bearing,hinge ,top

22A 216503200 Bearing,hinge ,bottom

26 216524200 Gasket,secondary

27 5303212828 Clip,panel mtg

28 216807700 Rack-door,wide

32 5309950074 Valve,breather ,door base

64 216403700 Plug-button,hole filler ,door base

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

05/03 4

Publication No FFU20FC4CW0

5995390134

CABINET

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

FFU20FC4CW0 Publication No.

5995390134

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

13 216822500 Motor,evaporator fan ,115 V

14 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket,light/lamp ,25 W

18 216707200 Knob,temp control

19 216204901 Gasket-cover evap

20 216230300 Cover,temp control

21 216715200 Control-temperature

22 216823500 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216820300 Cover-evaporator

26 216503300 Ramp,door closer

27 5303205738 Screw,hinge mtg ,10 (A) x 0.875 ,btm

28 216247400 Hinge,bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816212 Shield-light

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 216850900 Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

42 216458500 Shelf,wire ,16.69x26.88 ,white ,(3)

42A 216458400 Shelf,14.50x27.88 ,(2)

* 216502400 Grommet-shelf mtg

47 216661600 Plate,baffle ,snap fit

49 216279000 Trivet

50 216394000 Bracket,fan motor mount

63 216396900 Screw,leveling foot ,plastic ,adjustable

71A 5304416289 Screw,ph truss head ,8-18AB x 0.47 ,EVAP PANEL

80 06594601 Bracket,control

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

93A 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

93B 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

101 216835200 Top Hinge Kit

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 5303305324 Paint,touch-up ,white

CABINET

05/03 6

Publication No FFU20FC4CW0

5995390134

SYSTEM

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

FFU20FC4CW0 Publication No.

5995390134

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216895800 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216783200 Heat Exchanger,suct/cap tube

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat,defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 216851800 Compressor,w/o electricals

30 216649318 Controller

32 216649100 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

55 # 216787800 Capacitor,run ,50/60 Hz ,220 VAC ,12 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

87 08037849 Screw,ph truss head ,6-32(T) x 0.500 ,thread cutting

105 216854000 Cup-drain

130 216486800 Support,evaporator mtg

* 216502500 Sleeve,suction line

* 5303298960 Spacer-tube,0.237" ID
