PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU11F0HW4 FFU11F0HW 134A white 115

MARKET

North America

Publication No.

5995348637

010118

-EN/SERVICE /GS

365

FREEZER

Model number

FFU11F0HW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216751900

OWNER’S GUIDE - # 216768600

SERVICE DATA SHEET - # 216751900

ELECTROLUX HOME PRODUCTS N. AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

01/01 2

Publication No. FFU11F0HW

5995348637

DOOR

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FFU11F0HW Publication No.

5995348637

DOOR

POS. NO PART NO DESCRIPTION

1 216522303 Gasket-door,white

9 216527501 Panel-inner door,frzr

11 216565401 Panel-outer door,white

12 316095402 Label-nameplate,Frigidaire ,white

12A 216373000 Frame-nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-dr stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524300 Gasket,secondary

27 5303212828 Clip,panel

32 5309950074 Valve-breather

64 216403700 Plug-button,base door

93 5303161215 Screw

01/01 4

Publication No. FFU11F0HW

5995348637

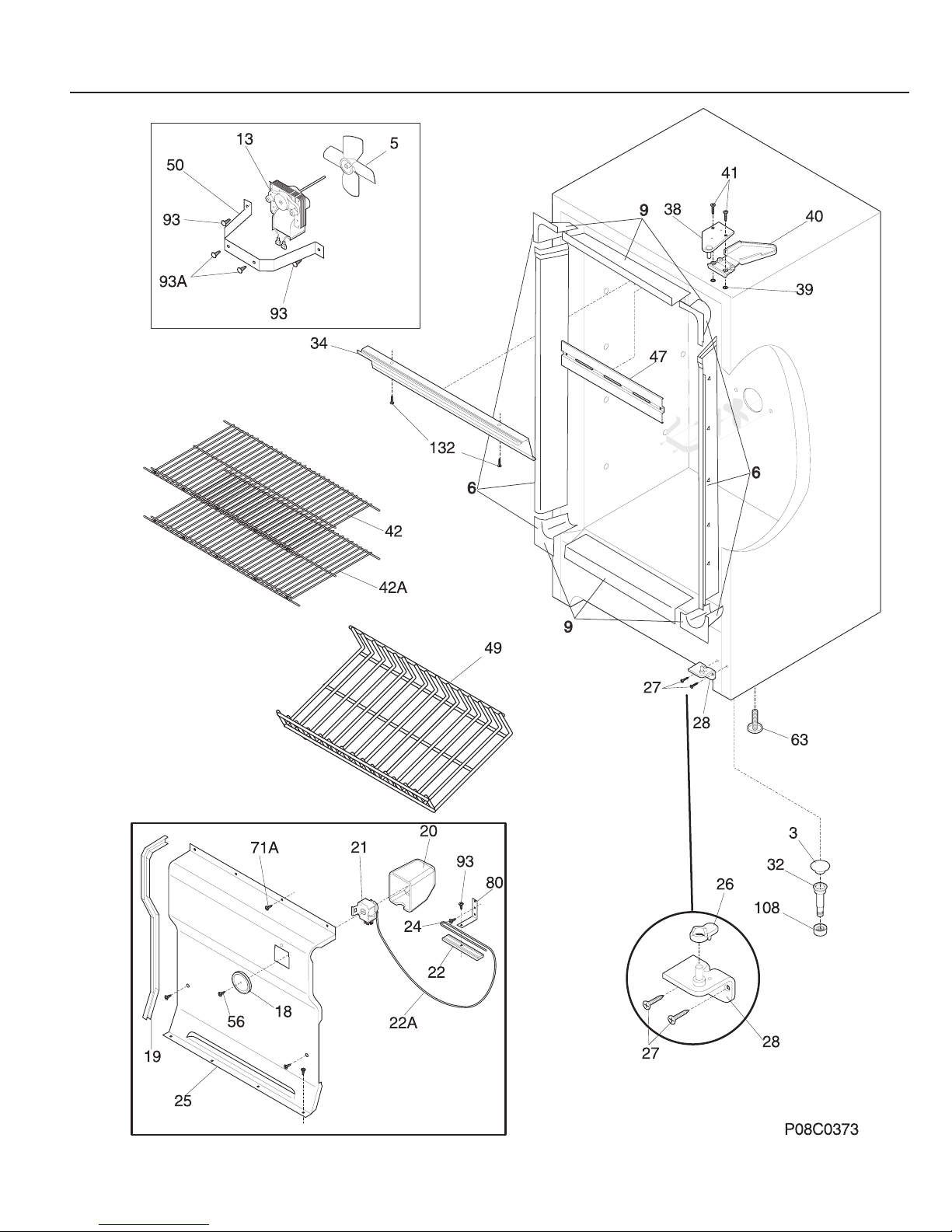

CABINET

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FFU11F0HW Publication No.

5995348637

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604400 Breaker Kit w/corners

9 216603400 Breaker Kit w/corners, 28", top or btm

13 # 216690400 Motor-fan

18 216707200 Knob-control

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216715300 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737000 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

34 216557500 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216546200 Shelf,14.50 X 23.88 WH,14.50x23.88 , white

42A 216641000 Shelf,wire

47 216661600 Baffle-plate

49 216641100 Trivet

50 216394000 Bracket-motor mtg fan

56 09950853 Screw

63 216396900 Foot-adjustable

71A 216347500 Screw,quadrex

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

CABINET

01/01 6

Publication No. FFU11F0HW

5995348637

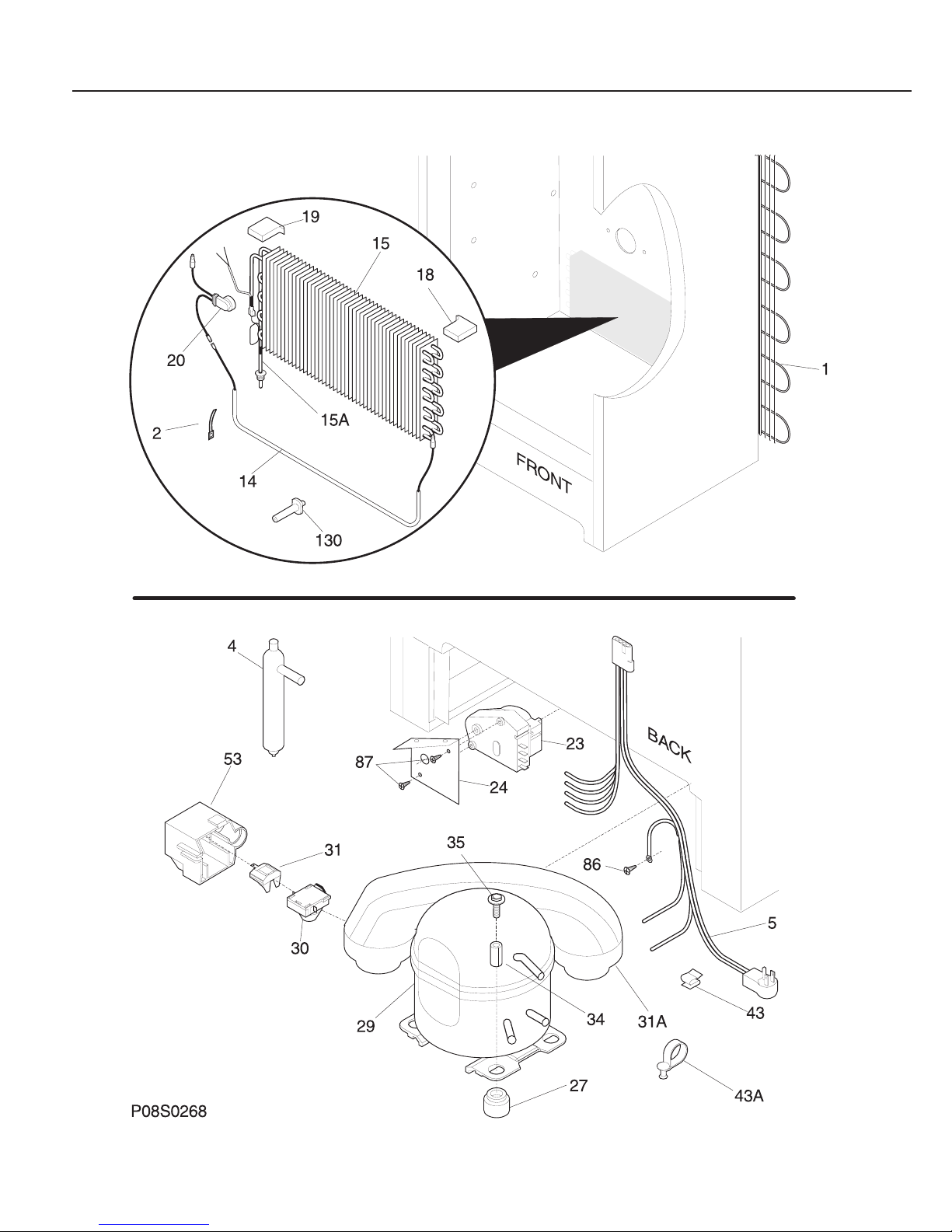

SYSTEM

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FFU11F0HW Publication No.

5995348637

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216766200 Harness,electrical

14 # 216740000 Heater-defrost

15 # 216737400 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 216744400 Timer-defrost

24 08016580 Bracket

27 216498900 Grommet,compressor

29 216557000 Compressor,assy

30 216596700 Starter,factory instal

31 216100116 Overload Protector,factory instal

31A 216601800 Pan-drain,production compr

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

43 09950610 Clip,cord

43A 216629700 Clip-harness

53 216347800 Cover terminal,cover-comp term

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

* 216502500 Sleeve-tube insert
