Frigidaire FFU17F9H Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17F9HW2 FFU17F9H 134A white 115

MARKET

USA

Publication No.

5995345484

001023

-EN/SERVICE /DJH

365

FREEZER

Model No.

FFU17F9H

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216751900

OWNER’S GUIDE - # 216657700

SERVICE DATA SHEET - #216751900

ELECTROLUX HOME PRODUCTS NORTH AMERICA.

P.O.Box 212378, Augusta, GA 30917

10/00 2

Publication No. FFU17F9H

5995345484

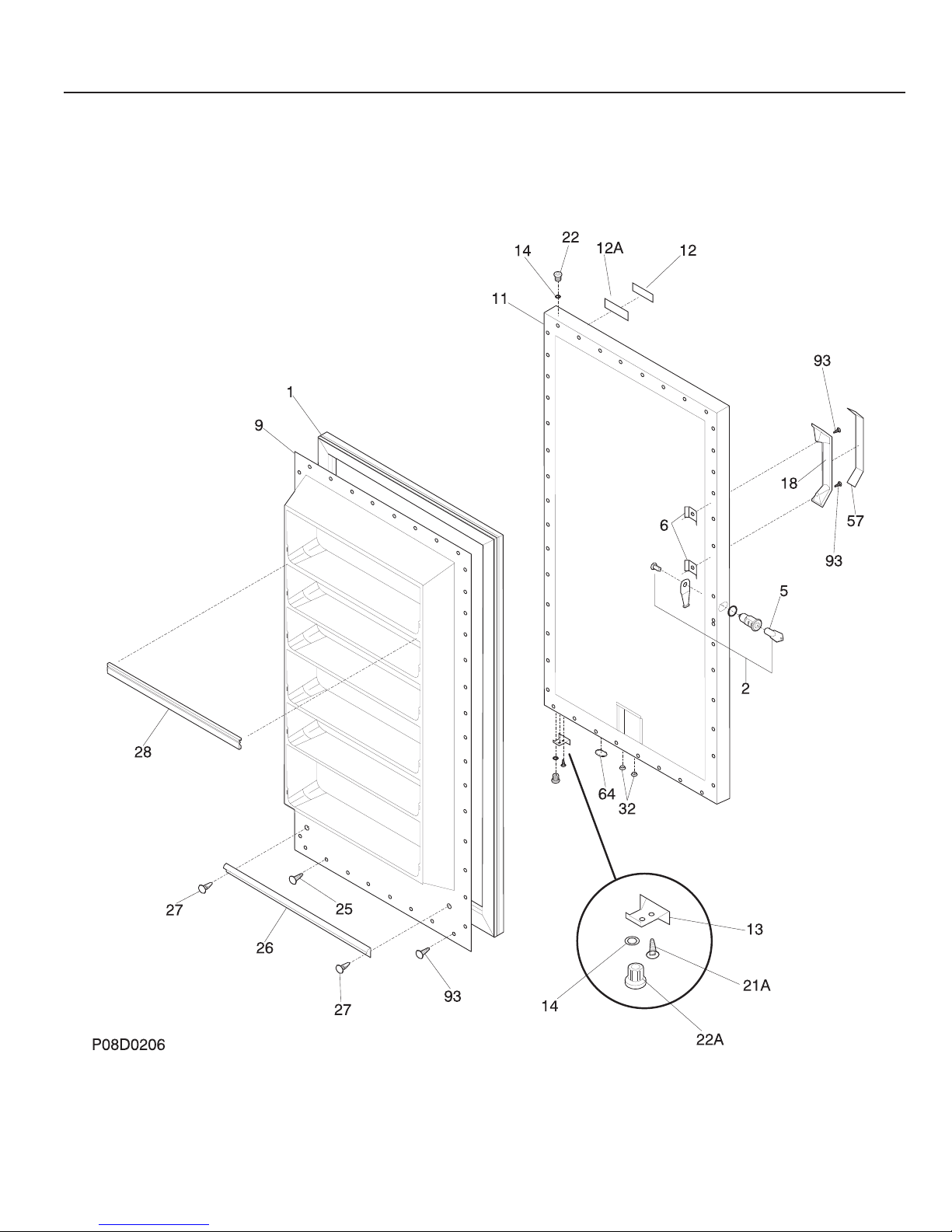

DOOR

# = Fast-moving Parts 3 10/00

* = Non-Illustrated Parts

FFU17F9H Publication No.

5995345484

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 5303925107 Lock Assy

5 # 216388700 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527812 Panel-inner door,frzr

11 216526505 Panel-outer door,white

12 316095402 Label-nameplate,Frigidaire ,white

12A 216373000 Frame-nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metri4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

25 216022800 Screw,washer head ,8-18 X 1/2

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216523102 Rack-shelf,wide ,white

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,base door

93 5303161215 Screw

* 5303925098 Insulation

10/00 4

Publication No. FFU17F9H

5995345484

CABINET

# = Fast-moving Parts 5 10/00

* = Non-Illustrated Parts

FFU17F9H Publication No.

5995345484

CABINET

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

13 216690400 Motor-fan

14 # 216472300 Switch-light plunger

15 # 216608600 Bulb-light,40W ,130V

16 # 5300136117 Socket-light/lamp

18 216591700 Knob-control

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216521100 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 216511700 Light-signal

24 5300052943 Screw-clamp,truss hd cr ,control

25 216665300 Cover,evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

33 216511601 Bracket,signal light

34 216557600 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216458400 Shelf,14.50x27.88 ,WH

42A 216458200 Shelf,12.50x27.88 ,white

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

47 216661600 Baffle-plate

50 216394000 Bracket-motor mtg fan

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

59 216372800 Basket,(2)

60 5303212693 Slide-basket

63 216396900 Foot-adjustable

66 5303212697 Buzzer,alarm

67 # 5303212703 Switch-rocker,SPST

69 5305878546 Bumper-basket

71A 216347500 Screw,quadrex

72 216511500 Grille/Kickplate

77 # 5308037992 Sensor Assy

78 3205349 Housing-sensor

79 3017666 Nut-insert

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

95 216655700 Label-Rapid Freeze

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

10/00 6

Publication No. FFU17F9H

5995345484

SYSTEM

# = Fast-moving Parts 7 10/00

* = Non-Illustrated Parts

FFU17F9H Publication No.

5995345484

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216748000 Harness-electrical

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216751000 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 # 216744400 Timer-defrost

24 08016580 Bracket

27 216498900 Grommet,compressor

29 216639700 Compressor,Service

30 216649308 Controller-regulator LP

31A 5303925444 Pan-drain

32 216731900 Clip-controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43 09950610 Clip,cord

43A 216629700 Clip-harness

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

* 216511900 Spacer tube,(3)

* 216502500 Sleeve-tube insert

10/00 8

Publication No. FFU17F9H

5995345484

WIRING DIAGRAM
