Frigidaire FFC07K1FW Manuale utente

Product No. FFC07K1FW0

Series 134A

Color white

Volts 115

Wiring Diagram 297010500

Owner's Guide 297079200

Market North America

Energy Guide 216793915

P08F0026.EPS P08D0104.EPS P08C0900.eps P08S0355.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995464517

06/04/03

(EN/SERVICE/RLF)

365

FREEZER CHEST

Model No.

FFC07K1FW

Publication No: 5995464517 FFC07K1FW0

04/06 2

DOOR

FFC07K1FW0 Publication No: 5995464517

# Functional Parts 3 04/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216480901 Gasket, door seal, white

2 5303925107 Lock Assy

* 5300114366 Washer-sealing

5 # 216702900 Key, lock

9 216061600 Panel-inner door/lid, white

10 216923001 Plug button, 1/4", white

11 216113103 Panel-outer door\lid, white

* 216858000 Screw, TH#8-18x.500AB, #10

12A 216816802 Insert-nameplate

18 216446600 Handle

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

40 216922700 Fastener, .330 dia stud, handle, (2)

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995464517 FFC07K1FW0

04/06 4

CABINET

P08C0900

FFC07K1FW0 Publication No: 5995464517

# Functional Parts 5 04/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 297014100 Catch-lock, white

2 216269500 Adapter, drain hose

3 216502600 Plug, drain, interior

4 297013600 Plug, drain, exterior

6 216855702 Breaker, side

7 216855703 Breaker-lock side, white

11 216855706 Breaker-ends, white

18 216707200 Knob, temp control

21 # 216787700 Control-temperature

27 216337700 Screw, hex washer head, 10-24 x 0.500

28 216478800 Hinge Assy

30 216105500 Breaker-corners, white

59 216848200 Basket

62 131168200 Screw, pan head, 8-18B x 0.31

75 216782000 Panel-access, white

94 216140400 Lens, frost indicator, blue

* 216793915 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995464517 FFC07K1FW0

04/06 6

SYSTEM

08S0355

86 86

FFC07K1FW0 Publication No: 5995464517

# Functional Parts 7 04/06

* Non-Illustrated Parts

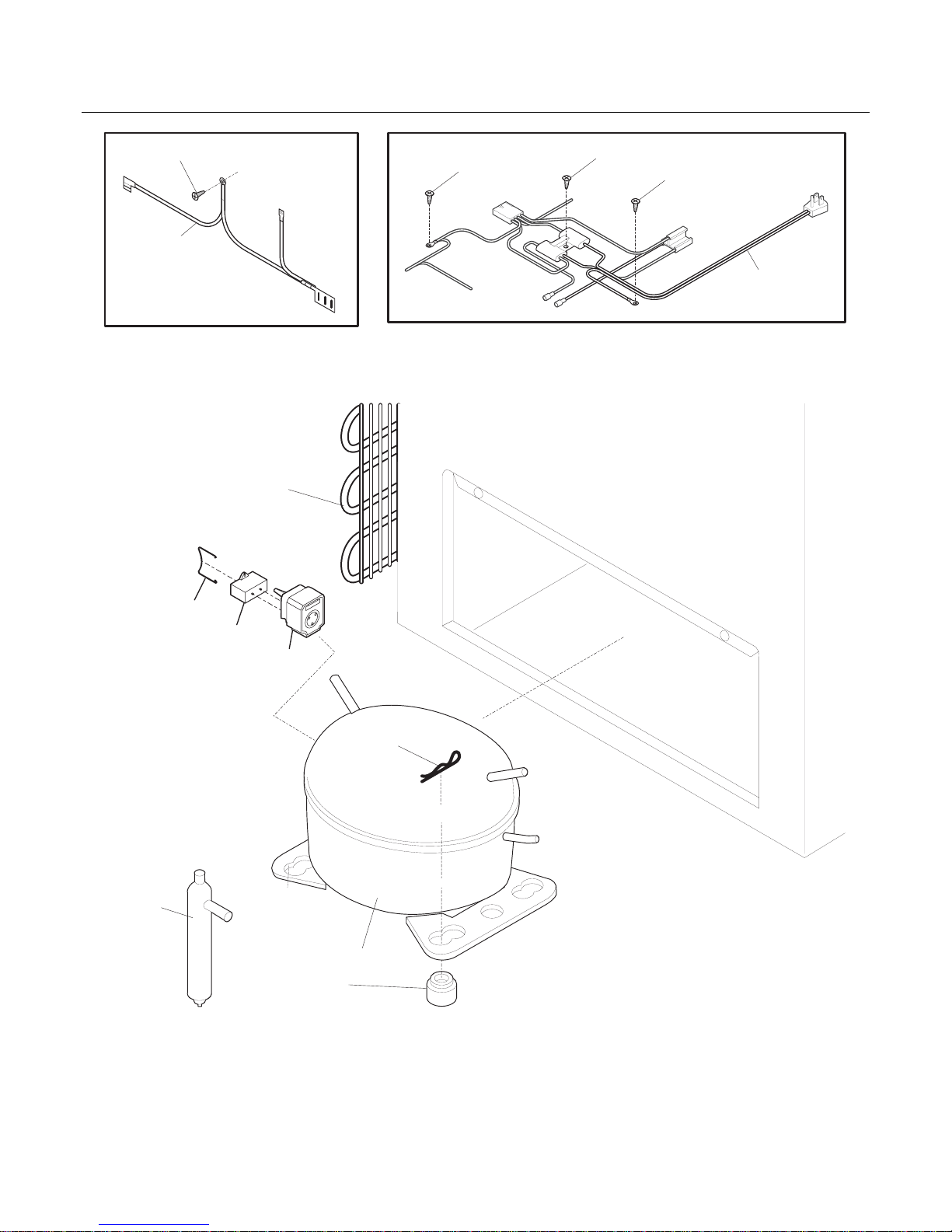

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300120780 Condenser

4 # 216938600 Drier-filter

5 # 216952000 Harness-main

* 216707800 Screw, PH, 8-32 x 1/2, wiring harness

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

29 # 216966300 Compressor, w/o electricals

30 216954200 Controller, compressor, 5 speed

32 216954300 Clip, controller

55 # 216985000 Capacitor, run, 10MF

85 216818300 Wire-ground

86 216707700 Screw, 8-18 X 1/2
