Frigidaire FFC20D7H Manuale utente

FREEZER

Model No.

FFC20D7H

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216700100

OWNER’S GUIDE - # 216657700

SERVICE DATA SHEET - #216700100

101 Masters Blvd.

Anderson, SC 29624

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC20D7HW3 FFC20D7H R134a white 115

MARKET

USA

Publication No.

5995345161

001017

-EN/SERVICE /DJH

365

10/00 2

Publication No. FFC20D7H

5995345161

DOOR

# = Fast-moving Parts 3 10/00

* = Non-Illustrated Parts

FFC20D7H Publication No.

5995345161

DOOR

POS. NO PART NO DESCRIPTION

1 08009392 Gasket,white

2 5303925107 Lock Assy

2* 5300300791 Hook,lock

5 # 216388700 Key,lock

9 216687500 Panel-inner door,frzr

10 216141101 Plug button,white

11 216130104 Panel-outer lid,white

14 216472300 Switch-light plunger

15 216608600 Bulb-light,40W ,130V

16 216684000 Socket-light/lamp

18 216205004 Handle,white

18* 216140200 Handle,recessed ,white

23 216212700 Light-signal,amber

27 5303212828 Clip,panel

31 216481401 Gasket-door,white

34 216160400 Shield-light

35 5303297015 Washer,signal light

36 5306599968 Plate,backup ,light switch

40 5309948647 Fastener,handle

44 # 5303017178 Switch-rocker

45 # 3201509 Switch-defrost

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

47 # 216756000 Harness-lid/defrost

53 # 5303208483 Buzzer,alarm

55 216164000 Housing,switch

56 216694200 Sealing cap

61 5309948955 Clip-panel

92 5303272319 Screw,hex washer head ,8-32 x 7/16 ,buzzer

* 5303925098 Insulation

10/00 4

Publication No. FFC20D7H

5995345161

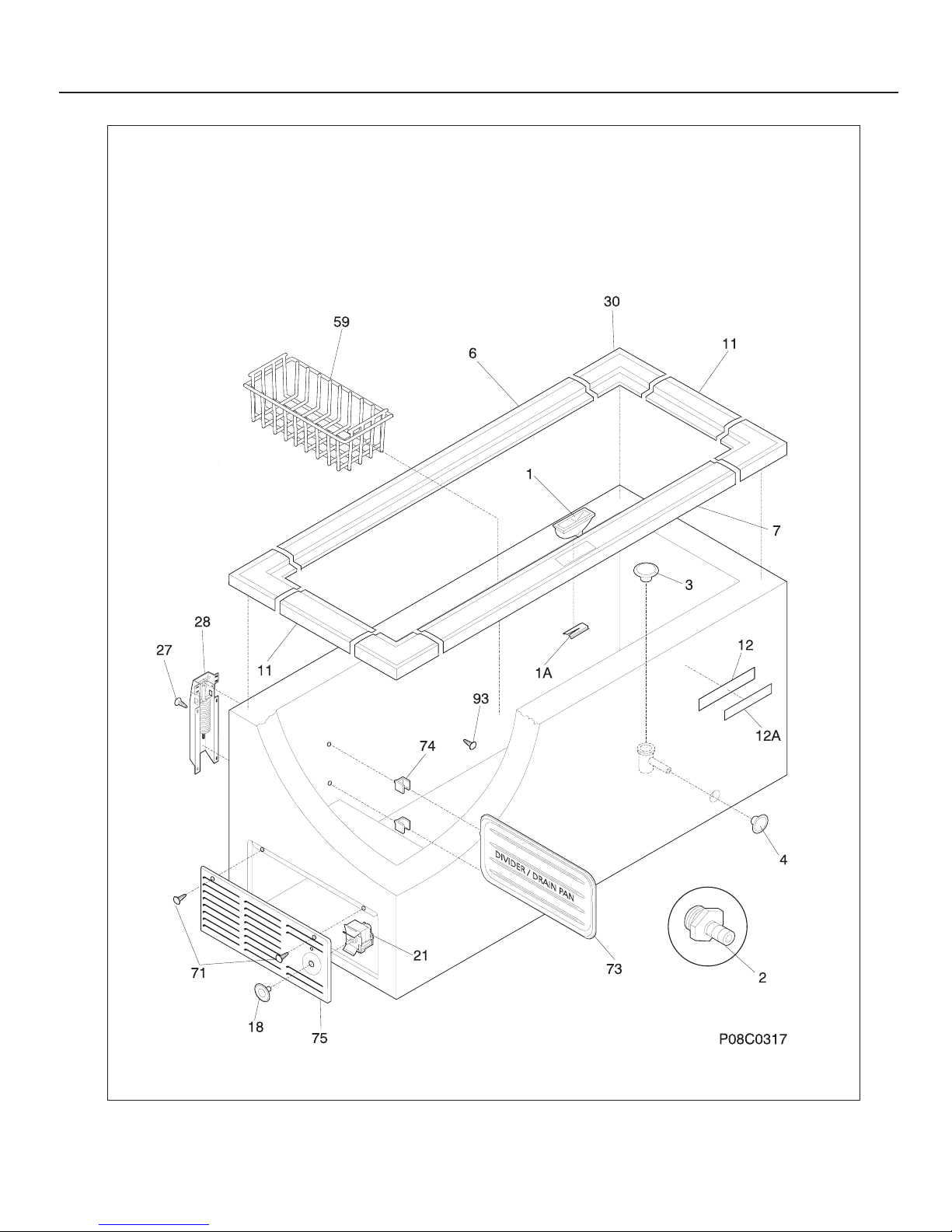

CABINET

# = Fast-moving Parts 5 10/00

* = Non-Illustrated Parts

FFC20D7H Publication No.

5995345161

CABINET

POS. NO PART NO DESCRIPTION

1 5303208488 Latch-door

1A 216080800 Support,lock

2 216269500 Adapter-drain

3 216502600 Plug-drain,interior

4 216073900 Plug-drain,exterior

6 216111200 Breaker,hinge side

7 216111800 Breaker,lock side

11 216110800 Breaker,white ,ends

12 316095402 Label-nameplate,Frigidaire ,white

12A 216373000 Frame-nameplate

18 216591602 Knob,temp control

21 216562400 Control-temperature

27 216629600 Screw-hinge

28 216035300 Hinge

28* 216592400 Hinge-spring

30 216110700 Breaker,white ,corners

59 216080300 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

73 216128200 Divider/drain pan

74 5306594584 Support-shelf

75 216034301 Panel-access,white

93 5303161215 Screw

* 5303305324 Paint,touch-up ,white

10/00 6

Publication No. FFC20D7H

5995345161

SYSTEM

# = Fast-moving Parts 7 10/00

* = Non-Illustrated Parts

FFC20D7H Publication No.

5995345161

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303280307 Condenser

4 216634500 Drier-filter

5 216702000 Harness-main

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

28 5303212615 Support-compressor

29 # 216470500 Compressor,Service

29 # 5303925326 Compressor,R134a ,with overload

30 216649302 Controller

32 216649100 Clamp,elec cont mtg ,compressor

42 216232700 Washer-flat

43A 5303212614 Clip-harness

47 216337700 Screw,hex washer head ,10-24 x 0.500

48 # 216700800 Solenoid

49 216722800 Nut,self-threading ,1/8

51 # 216718400 Valve,formed

55 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216478900 Fastener,energy guide

* 5303298960 Spacer-tube,.75"
