Frigidaire FFU21F5HWA Manuale di istruzioni

P08F0133.eps P08D0561.eps P08C1099.eps P08S0483.eps

Product No. FFU21F5HWA

Series 134A

Color white

Volts 115

Wiring Diagram 297246001

Owner's Guide 297245700

Market North America

Energy Guide 216982602

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995515003

08/05/21

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU21F5HW

Publication No: 5995515003 FFU21F5HWA

05/08 2

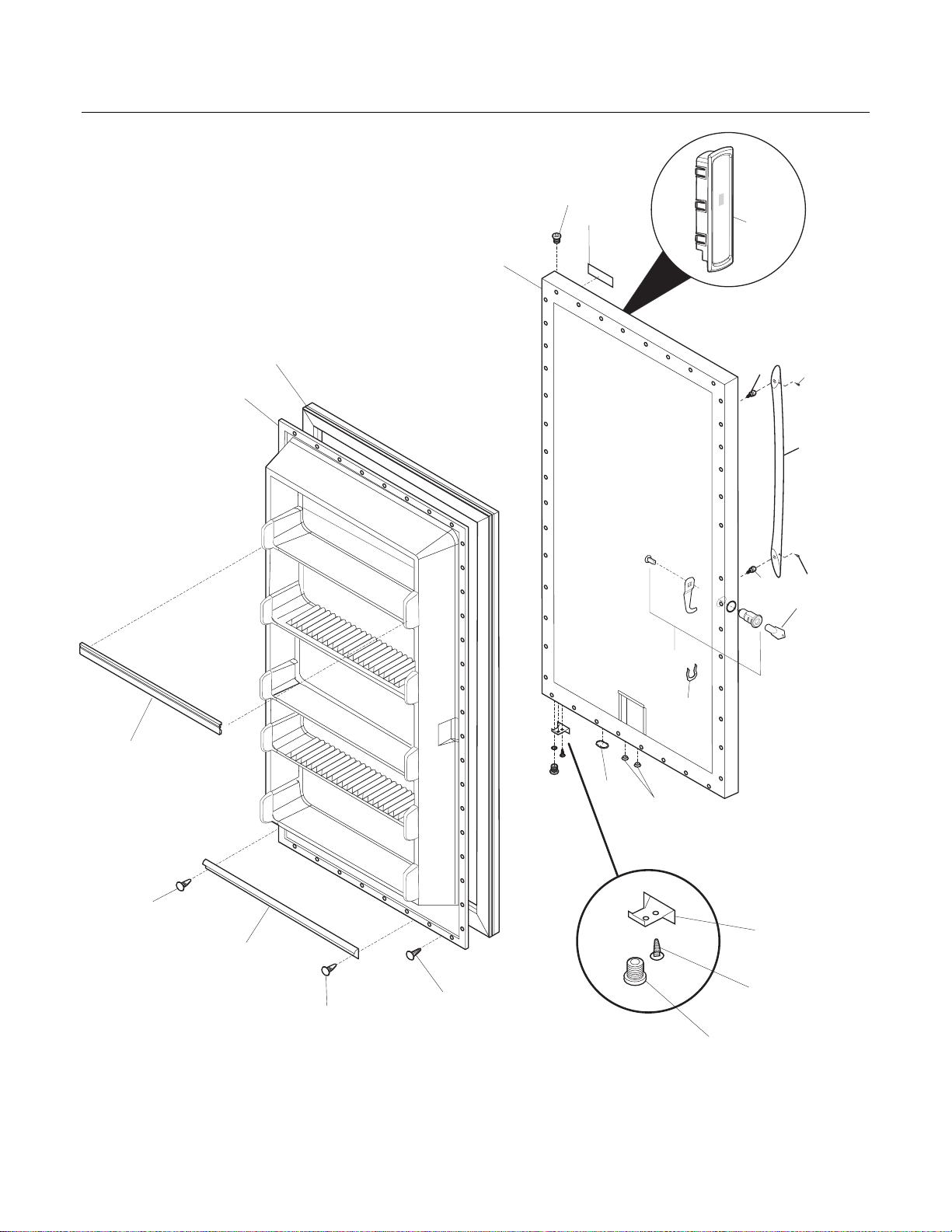

DOOR

21A

22A

P08D0561

12A

151

FFU21F5HWA Publication No: 5995515003

# Functional Parts 3 05/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 # 297213400 Lock Assy

2A 297213300 Clip, spring

5 297147700 Key, lock

9 216528113 Panel-inner door, frzr

11 297245401 Panel-outer door, white

12A 241808601 Label-nameplate

13 297148400 Door Stop

18 297233800 Handle-door, white

* 240537301 Nut-anchor, door hdl screw

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951600 Rack-door, (6)

32 5309950074 Valve, breather

64 216403700 Plug-button, hole filler, door base

79A 218755404 Screw-set, 10-32 x 1.100

80 218755504 Screw-shoulder, #10 AB, handle mounting

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297241800 Control-electronic, assy, white, 115V

Publication No: 5995515003 FFU21F5HWA

05/08 4

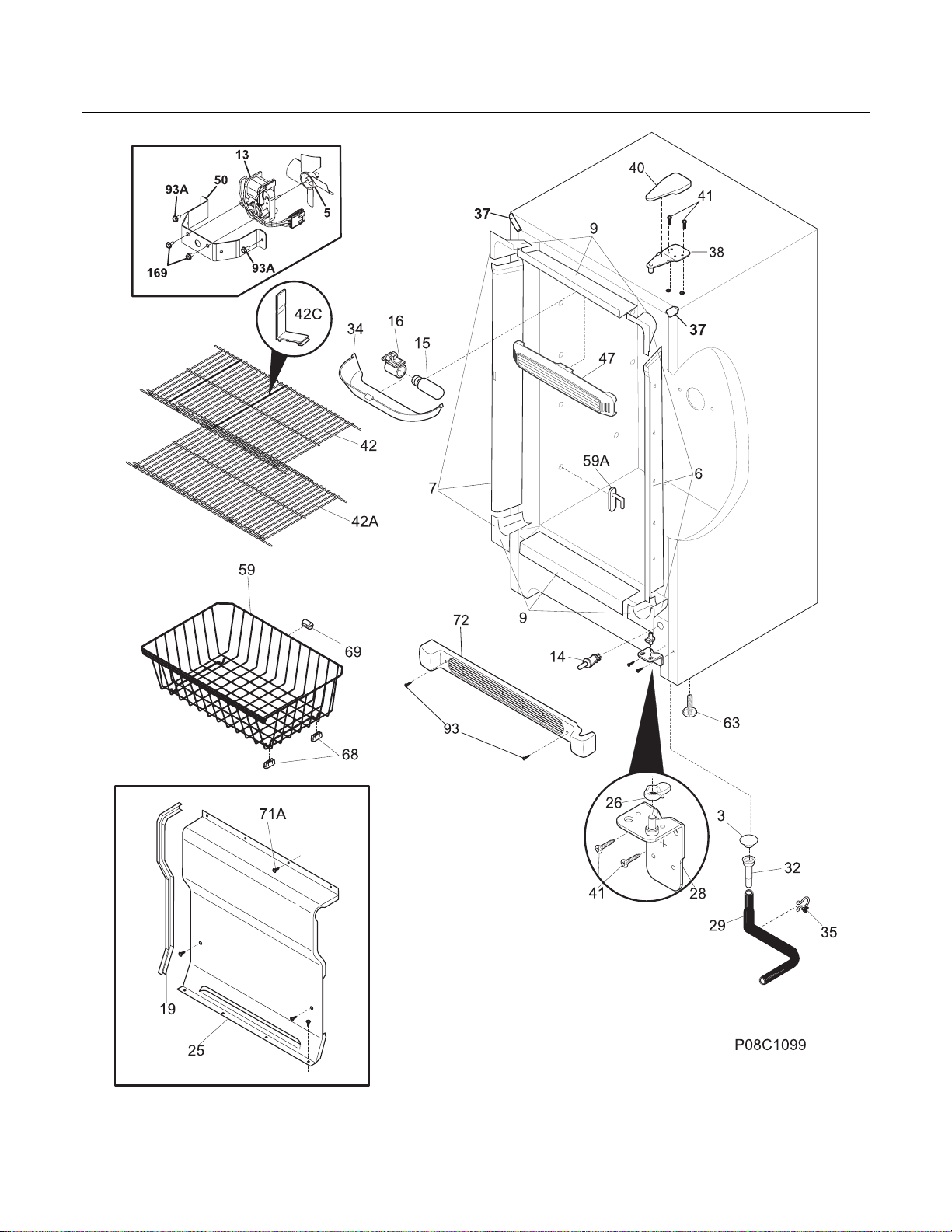

CABINET

FFU21F5HWA Publication No: 5995515003

# Functional Parts 5 05/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200900 Breaker Kit w/corners

7 297201100 Breaker Kit w/corners, lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 216934100 Motor, fan, 115 V

14 297243800 Switch, light/lamp, plunger

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

19 216204902 Gasket-evap cover

25 297099251 Cover-evaporator

26 216503300 Ramp, door closer

28 297240800 Hinge-bottom, stepped pin

29 216313503 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

35 216273000 Clip, drain hose

37 241611301 Trim-cabinet corner, white, (2)

38 297164300 Hinge-upper

40 297164400 Cover-hinge

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297119700 Shelf, wire, 16.69x27.88, white, (3)

42A 216458400 Shelf, 14.50x27.88

* 216502400 Grommet-shelf mtg

42C 297183702 Divider, blue, wire shelf

47 297192900 Baffle, air

50 216394050 Bracket, fan motor mount

59 297210900 Basket

59A 216486500 Stop-basket, (2)

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket, (4)

69 5305878546 Bumper-basket, (2)

71A 297146800 Screw, 8-18AB x 0.470, EVAP PANEL

72 297198900 Grille/Kickplate, 32", white

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

* 216982602 Energy Guide

* 5303305324 Paint, touch-up, white

* 297001704 Insulation, 24", drain tube

* 297241400 Label, EZ start guide

Publication No: 5995515003 FFU21F5HWA

05/08 6

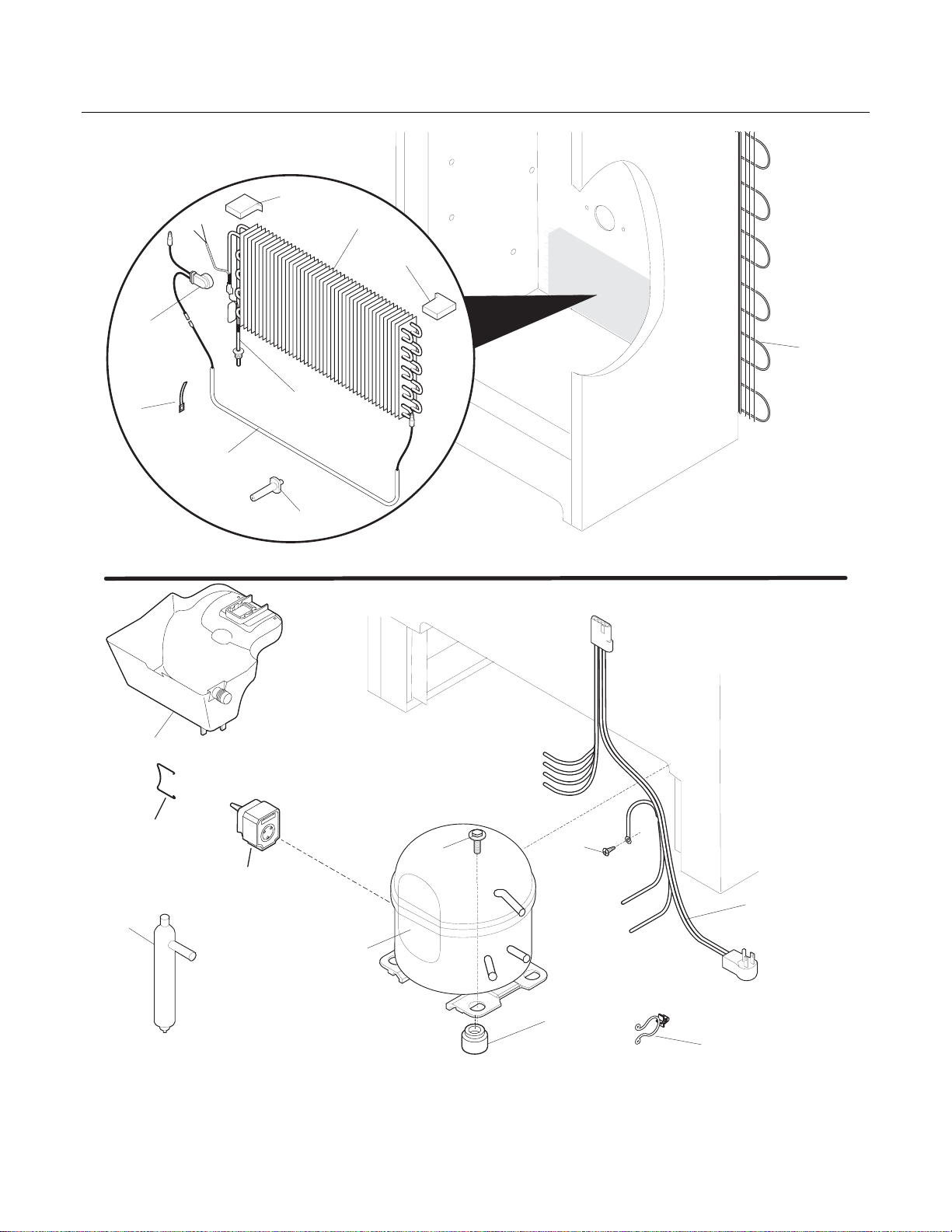

SYSTEM

43B

FRONT

BACK

130

15A

P08S0483

31A

FFU21F5HWA Publication No: 5995515003

# Functional Parts 7 05/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987500 Drier-filter

5 # 297237600 Harness-main

14 216730700 Heater-defrost

15 # 216997300 Evaporator

15A 297217900 Heat Exchanger, suct/cap tube

18 297078700 Insulator-evap, styrofoam

19 297078800 Insulator-evap, styrofoam

20 216872200 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297068201 Compressor, w/grommets, w/o electricals

30 297051001 Controller, compressor

31A 216994100 Pan-drain

32 297051100 Clamp, elec cont mtg, compressor

35 297177200 Bolt, compressor

43B 297048400 Clip

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 240555002 Screw-#8-32 X 3/8

* 297014500 Plug-suction line

* 297018400 Thermistor

* 297102800 Spacer-tube

* # 297169900 Cord-power, flat
