Frigidaire FFC13M2AW2 Manuale utente

CHEST FREEZER

Model numbers:

FFC13M2AW2

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803900

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216794101

SERVICE DATA SHEET - # 216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC13M2AW2 FFC13M2AW 134A white 115

MARKET

North America

Publication No.

5995379582

021010

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

10/02 2

Publication No FFC13M2AW2

5995379582

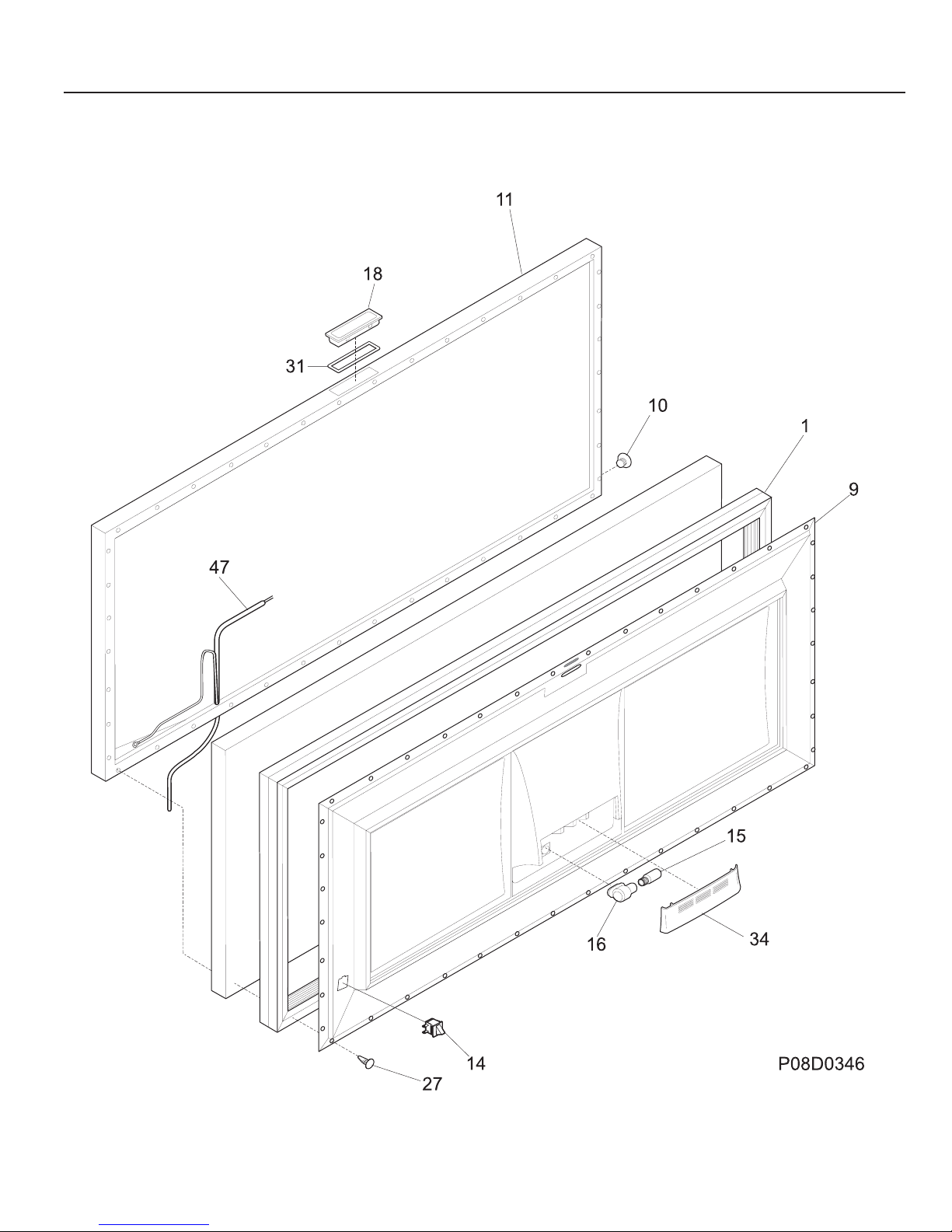

DOOR

# = Fast-moving Parts 3 10/02

* = Non-Illustrated Parts

FFC13M2AW2 Publication No.

5995379582

DOOR

POS. NO PART NO DESCRIPTION

1 216481101 Gasket-door,white

9 216828906 Panel-lid

10 216141101 Plug button,white

11 216129819 Panel-lid

14 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket,light/lamp ,25 W

18 216140200 Handle,recessed ,white

27 5303212828 Clip,panel mtg

31 08009392 Gasket,white

34 5303296969 Shield,lid lamp

47 216792200 Harness-lid/defrost

* 5303925098 Insulation

10/02 4

Publication No FFC13M2AW2

5995379582

CABINET

# = Fast-moving Parts 5 10/02

* = Non-Illustrated Parts

FFC13M2AW2 Publication No.

5995379582

POS. NO PART NO DESCRIPTION

3 216502600 Plug,drain ,interior

4 216073905 Plug-drain,exterior

6 216110900 Breaker

11 216110800 Breaker,chest end ,(2)

12 240415201 Label-nameplate,white

18 216707200 Knob,temp control

21# 216714601 Control temperature

27 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

28 216039600 Hinge

30 216110700 Breaker,corners

59 216080300 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

75 216034301 Panel,access ,white

* 5303305324 Paint,touch-up ,white

CABINET

10/02 6

Publication No FFC13M2AW2

5995379582

SYSTEM

# = Fast-moving Parts 7 10/02

* = Non-Illustrated Parts

FFC13M2AW2 Publication No.

5995379582

SYSTEM

POS. NO PART NO DESCRIPTION

1 5303925238 Condenser

4 216634500 Drier-filter

5 # 216792300 Harness-main

22 216056400 Clip,compressor mtg ,SPRING

27 5308002681 Grommet,compressor

28 5303212615 Support,compressor

29 # 216856700 Compressor,w/o electricals

30 216649319 Controller

32 216694500 Clip,controller

42 216232700 Washer,flat ,1"OD x 0.531"ID

43A 5303212614 Clip,harness mount

47 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming
