CHEST FREEZER

Model numbers:

FFC09G7AW0

FFC13G7AW0

FFC15G7AW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900, 216803900

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216787900, 216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC09G7AW0 FFC09G7AW 134A white 115

FFC13G7AW0 FFC13G7AW 134A white 115

FFC15G7AW0 FFC15G7AW 134A white 115

MARKET

North America

Publication No.

5995360723

011102

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

11/01 2

Publication No FFC09/13/15G7AW0

5995360723

DOOR

# = Fast-moving Parts 3 11/01

* = Non-Illustrated Parts

FFC09/13/15G7AW0 Publication No.

5995360723

DOOR

A = FFC09G7A (FFC09G7AW0)

B = FFC13G7A (FFC13G7AW0)

C = FFC15G7A (FFC15G7AW0)

POS. NO PART NO DESCRIPTION

1 216481001 A - - Gasket-door,white

1 216481101 - B - Gasket-door,white

1 216481201 - - C Gasket-door,white

2 5303925107 A B C Lock Assy

5 # 216702900 A B C Key,lock

9 216688200 A - - Panel-inner door,frzr

9 216686604 - B - Panel-inner door,frzr

9 216686904 - - C Panel-inner door,frzr

10 216141101 A B C Plug button,white

11 216117930 A - - Lid,white

11 216129818 - B - Panel-lid

11 216129926 - - C Panel-lid

14 216822900 A B C Light/Lamp,ramp

15 # 216608600 A B C Lamp,light bulb ,40 W ,120 V

16 216817600 A B C Light/Lamp,indicator

18 216205004 A B C Handle,white

23 216212700 A B C Light-signal,amber

27 5303212828 A B C Clip,panel

34 216160400 A B C Shield-light

35 5303297015 A B C Washer,signal light

36 5306599968 A B C Plate,backup ,light switch

40 5309948647 A B C Fastener,handle

46 216707800 A - - Screw,PH ,8-32 x 1/2 ,wiring harness

47 216786100 A - - Harness-lid/defrost

47 # 216806500 - B C Harness-lid

* 5303917276 A - - Insulation-door,fiberglass ,(bulk)

* 5303925098 - B C Insulation

* 5309948955 A B C Clip-panel

11/01 4

Publication No FFC09/13/15G7AW0

5995360723

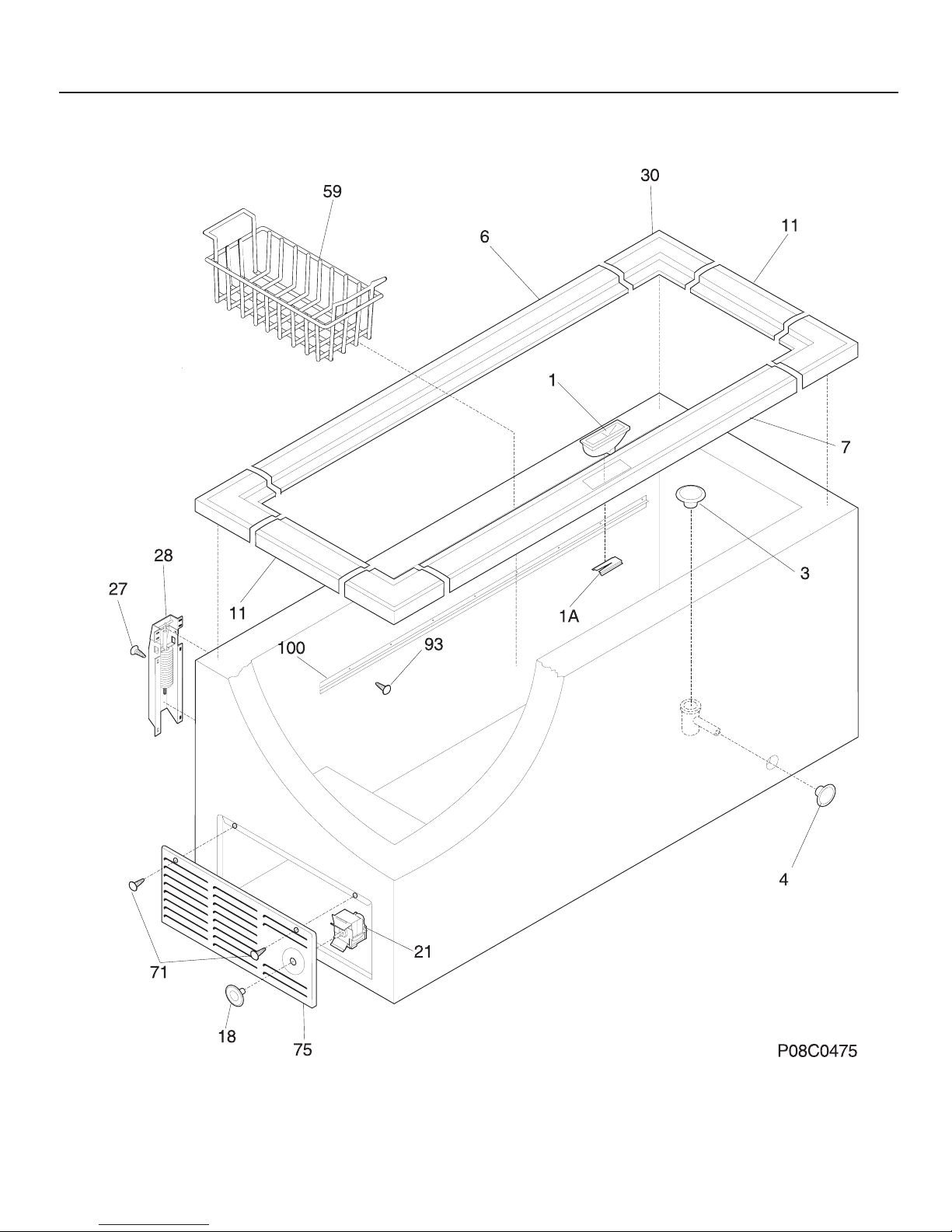

CABINET

# = Fast-moving Parts 5 11/01

* = Non-Illustrated Parts

FFC09/13/15G7AW0 Publication No.

5995360723

A = FFC09G7A (FFC09G7AW0)

B = FFC13G7A (FFC13G7AW0)

C = FFC15G7A (FFC15G7AW0)

POS. NO PART NO DESCRIPTION

1 216117700 A - - Catch-lock

1 5303208488 - B C Latch-door

1A 216818900 - B C support-lock

3 216502600 A B C Plug-drain,interior ,interior

4 216073905 A B C Plug-drain,exterior

6 216117500 A - - Breaker-hinge side,white

6 216110900 - B C Breaker

7 216117600 A - - Breaker-lock side

7 216111500 - B - Breaker,lock side

7 216111600 - - C Breaker,lock side

11 216105600 A - - Breaker-ends,white

11 216110800 - B C Breaker,white ,ends

18 216707200 A B C Knob-control cold

21 # 216787700 A - - Control-temperature

21 # 216714600 - B C Control-temperature

27 216337700 A - - Screw,hex washer head ,10-24 x 0.500

27 216629600 - B C Screw-hinge

28 216478800 A - - Hinge Assy

28 216039600 - B - Hinge

28 216035200 - - C Hinge

30 216105500 A - - Breaker-corners,white

30 216110700 - B C Breaker,white ,corners

59 216078600 A - - Basket

59 216080300 - B C Basket

59* 216258400 A - - Basket,lower

59* 216080700 - B C Basket,lower ,(2)

71 5303302714 A B C Screw,8-18x3/4 ,(2)

75 216329402 A - - Panel-access,white

75 216034301 - B C Panel-access,white

93 5303161215 A B C Screw

100 216081500 A B - Track,basket

100 216654400 - - C Track-basket

* 216802800 A B C Owners guide

* 5303305324 A B C Paint,touch-up ,white

CABINET

11/01 6

Publication No FFC09/13/15G7AW0

5995360723

SYSTEM

# = Fast-moving Parts 7 11/01

* = Non-Illustrated Parts

FFC09/13/15G7AW0 Publication No.

5995360723

SYSTEM

A = FFC09G7A (FFC09G7AW0)

B = FFC13G7A (FFC13G7AW0)

C = FFC15G7A (FFC15G7AW0)

POS. NO PART NO DESCRIPTION

1 # 5300120781 A - - Condenser

1 5303925238 - B C Condenser

4 216634500 A B C Drier-filter

5 216786500 A - - Harness-main

5 # 216792300 - B C Harness-main

22 216056400 A B C Clip-spring mtg

27 5308002681 A B C Grommet,compressor

28 5303212615 - B C Support-compressor

29 # 216784200 A - - Compressor,w/o electricals

29 # 216784300 - B C Compressor,w/o electricals

30 216649314 A - - Controller

30 216649313 - B C Controller

32 216649200 A B C Clip,controller

42 216232700 - B C Washer-flat

43A 5303212614 - B C Clip-harness

47 216629600 A B C Screw-hinge

55 # 216787800 A B C Capacitor-run

86 216707700 A - - Screw,8-18 X 1/2

86 216036600 - B C Screw,rwhd (gx-ca) ,8-32 x 1/2
