Frigidaire FFU17G3AW Manuale utente

FREEZER

Model number

FFU17G3AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803200

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803200

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17G3AW1 FFU17G3AW 134A white 115

MARKET

North America

Publication No.

5995364246

020121

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

01/02 2

Publication No FFU17G3AW1

5995364246

DOOR

# = Fast-moving Parts 3 01/02

* = Non-Illustrated Parts

FFU17G3AW1 Publication No.

5995364246

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527812 Panel-inner door,frzr

11 5303925474 Panel-outer door,white

12 240449701 Nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216807700 Rack-door,wide

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,door base

93 5303161215 Screw

* 5303925098 Insulation

01/02 4

Publication No FFU17G3AW1

5995364246

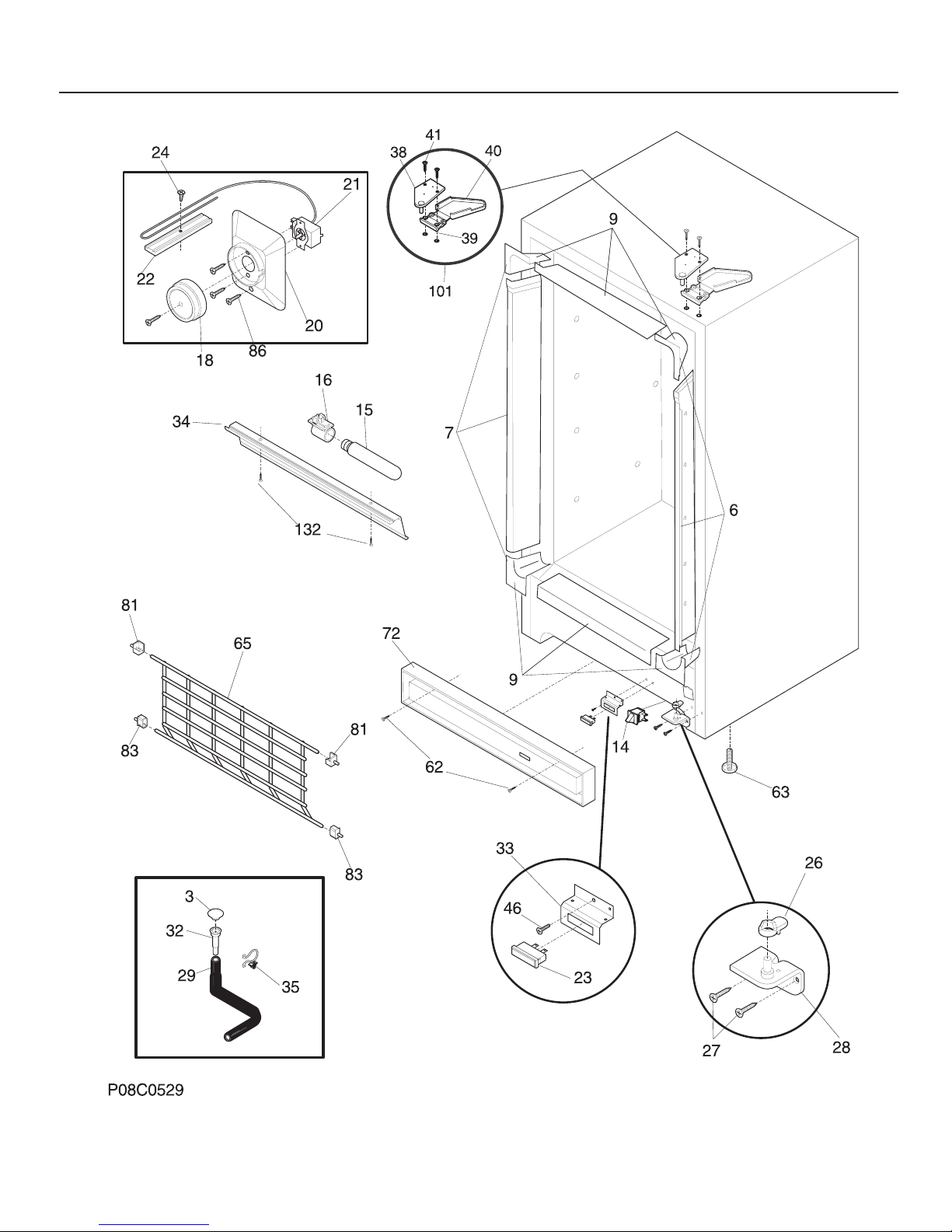

CABINET

# = Fast-moving Parts 5 01/02

* = Non-Illustrated Parts

FFU17G3AW1 Publication No.

5995364246

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

14 216822900 Light/Lamp,ramp

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 216688600 Socket-light/lamp

18 216707200 Knob-control cold

20 216707300 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp,cap tube ,cold control

23 06594648 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313502 Hose-drain

32 5308005500 Drain

33 216252001 Bracket,signal light

34 216816200 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge-upper

39 5303294372 Nut-insert,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

62 131168200 Screw,8-18 x 0.31

63 216396900 Foot-adjustable

65 216443500 Drop front

72 216591110 Grille/Kickplate

81 216571000 Support-drop front,top

83 216571100 Support-drop front,btm

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

101 216835200 Kit-top hinge

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

01/02 6

Publication No FFU17G3AW1

5995364246

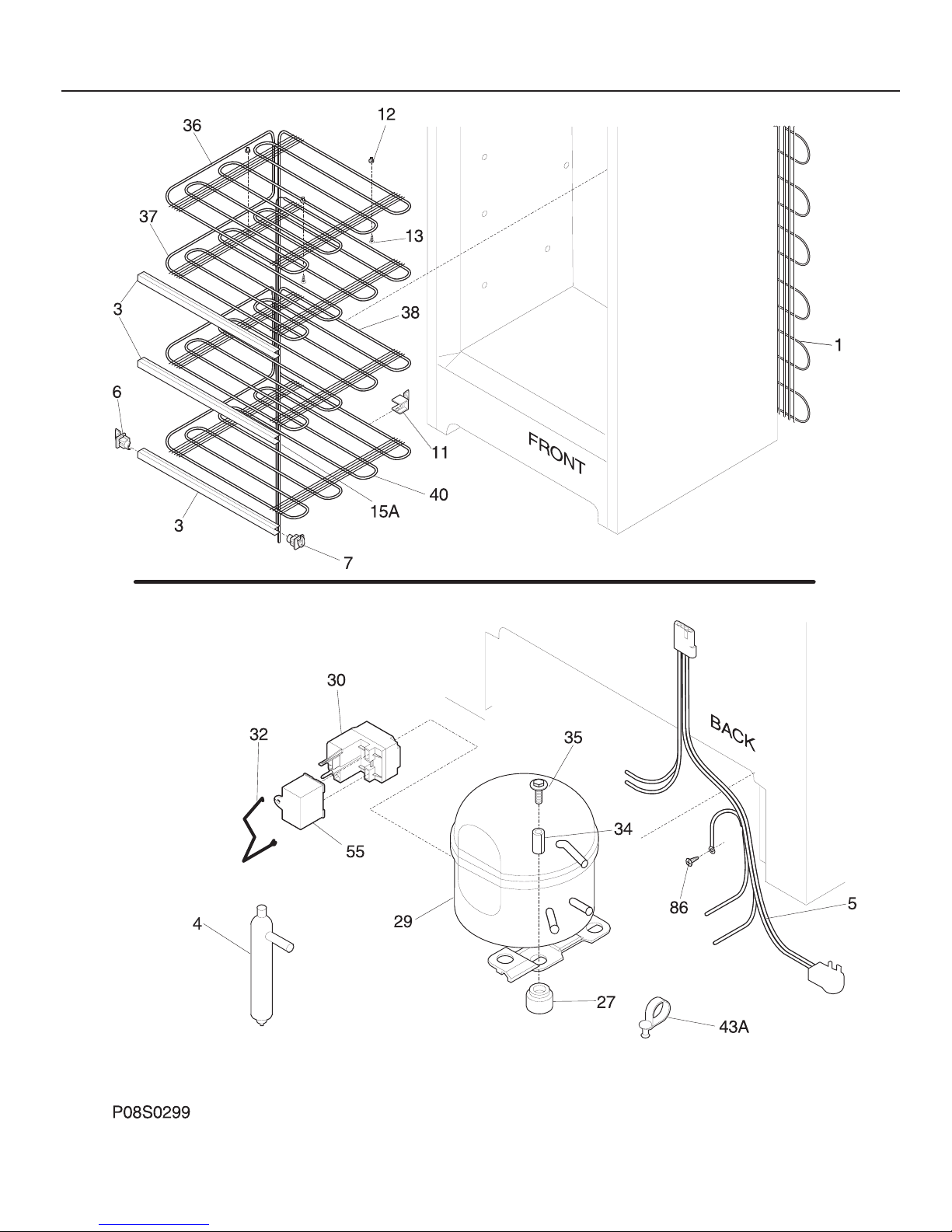

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFU17G3AW1 Publication No.

5995364246

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

3 216743100 Trim-shelf,decorated ,evap

4 216634500 Drier-filter

5 # 216809900 Harness,electrical

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216401400 Heat Exchanger

27 216498900 Grommet,compressor

29 216836600 Compressor,w/o electricals

30 # 216649316 Controller

32 5309950074 Valve-breather

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070500 Grid-top evaporator

37 # 216070600 Shelf-top evaporator

38 # 216070700 Shelf-middle evaporator

40 # 216070800 Shelf-bottom evaporator

43A 216629700 Clip-harness

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216502500 Sleeve-tube insert

* 216511900 Spacer tube,(3)
