Frigidaire FFU0912D Manuale utente

Product No. FFU0912DW2

Series 134A

Color white

Volts 115

Wiring Diagram 297010200

Owner's Guide 216960000

Market North America

Energy Guide 216794707

P08F0009.EPS P08D0350.eps P08C0719.eps P08S0374.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995425922

05/01/06

(EN/SERVICE/)

365

UPRIGHT FREEZER

Model No.

FFU0912DW

Publication No: 5995425922 FFU0912DW2

01/05 2

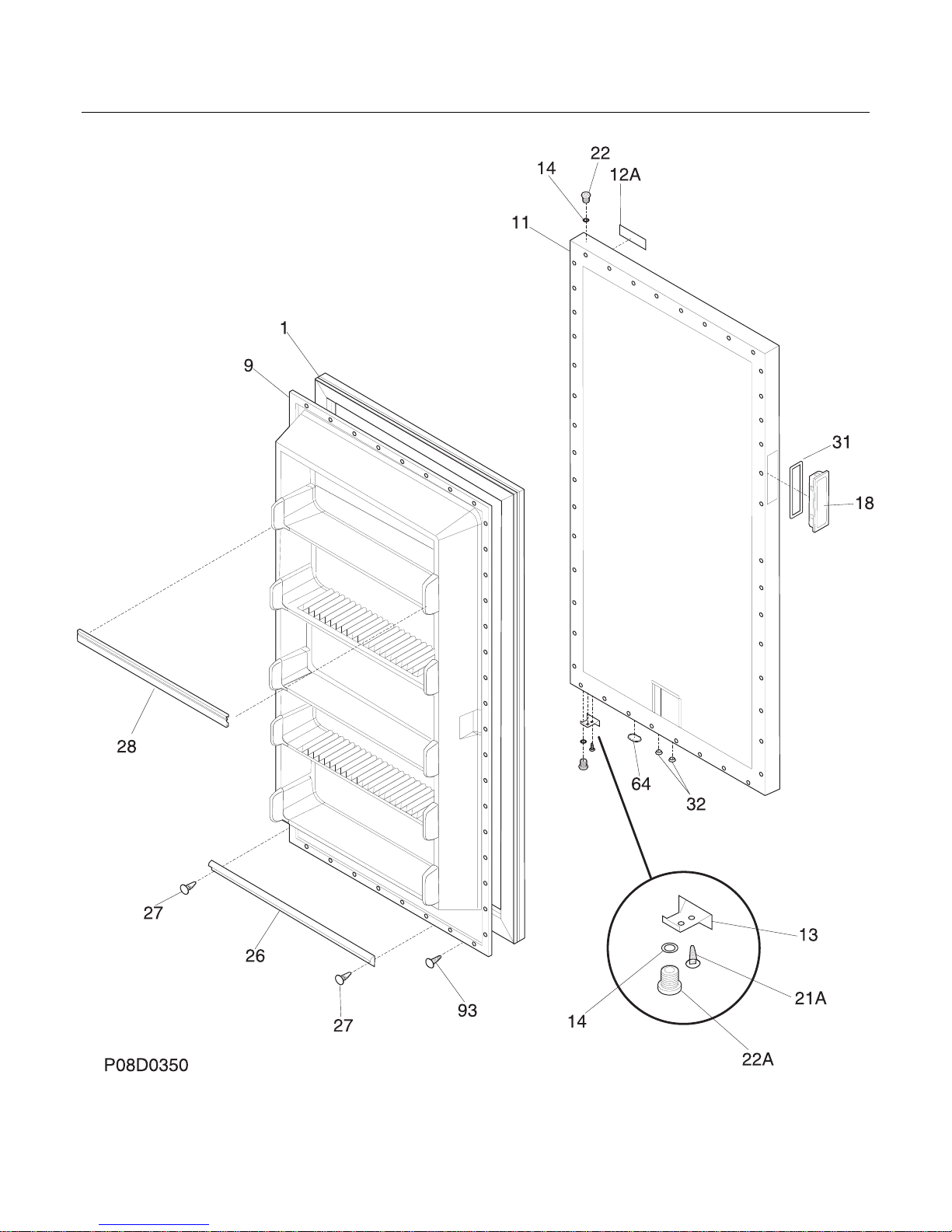

DOOR

FFU0912DW2 Publication No: 5995425922

# Functional Parts 3 01/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522300 Gasket-door

9 216527206 Panel-inner door, frzr

11 216564214 Panel-outer door, white

12A 216892802 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 216140206 Handle, recessed, black

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 216970800 Bearing, hinge, top

22A 216503200 Bearing, hinge, bottom

26 216524400 Gasket-secondary

27 5303212828 Clip, panel mtg

28 216951602 Rack-shelf, (4)

31 08009392 Gasket, white

32 5309950074 Valve, breather, door base

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995425922 FFU0912DW2

01/05 4

CABINET

P08C0719

106

FFU0912DW2 Publication No: 5995425922

# Functional Parts 5 01/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216502600 Plug, drain, interior

6 216604500 Breaker, hinge side

9 216603500 Breaker, top

18 216707200 Knob, temp control

20 297013800 Cover-control housing

21 # 216834500 Control-temperature

22 216823500 Clamp, cap tube, cold control

24 5300052943 Screw-clamp, truss hd cr, control

26 216503300 Ramp, door closer

28 216247400 Hinge, bottom

29 216313503 Hose-drain

32 5308005500 Drain

35 216273000 Clip, drain hose

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH, btm

63 216396900 Screw, leveling foot, plastic, adjustable

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

106 216926301 Plug, square

* 216794707 Energy Guide

* 297001701 Insulation, drain tube, 24"

* 5303305324 Paint, touch-up, white

Publication No: 5995425922 FFU0912DW2

01/05 6

SYSTEM

FRONT

BACK

P08S0374

43A

FFU0912DW2 Publication No: 5995425922

# Functional Parts 7 01/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5303304537 Condenser

3 216847802 Trim-shelf, white, evap

4 # 216938600 Drier-filter

5 # 216987100 Harness-main

5* 216987800 Adapter-harness

6 297001600 Support-shelf, front LH

7 297001500 Support-shelf, front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw, hex sems, 8-18AB x 1.00, evap

27 5308002681 Grommet, compressor

29 216966800 Compressor, assy

30 216596800 Starter, relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

36 # 216940200 Evaporator, tubing assy, white

43A 216629700 Clip

53 216347800 Cover terminal, cover-comp term

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 216502500 Sleeve, suction line
