Frigidaire FFU2124DW Manuale utente

Product No. FFU2124DW2

Series 134A

Color white

Volts 115

Wiring Diagram 297010200

Owner's Guide 216960000

Market North America

Energy Guide 216795105

P08F0062.eps P08D0368.eps P08C0846.eps P08S0363.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995441887

05/07/15

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU2124DW

Publication No: 5995441887 FFU2124DW2

07/05 2

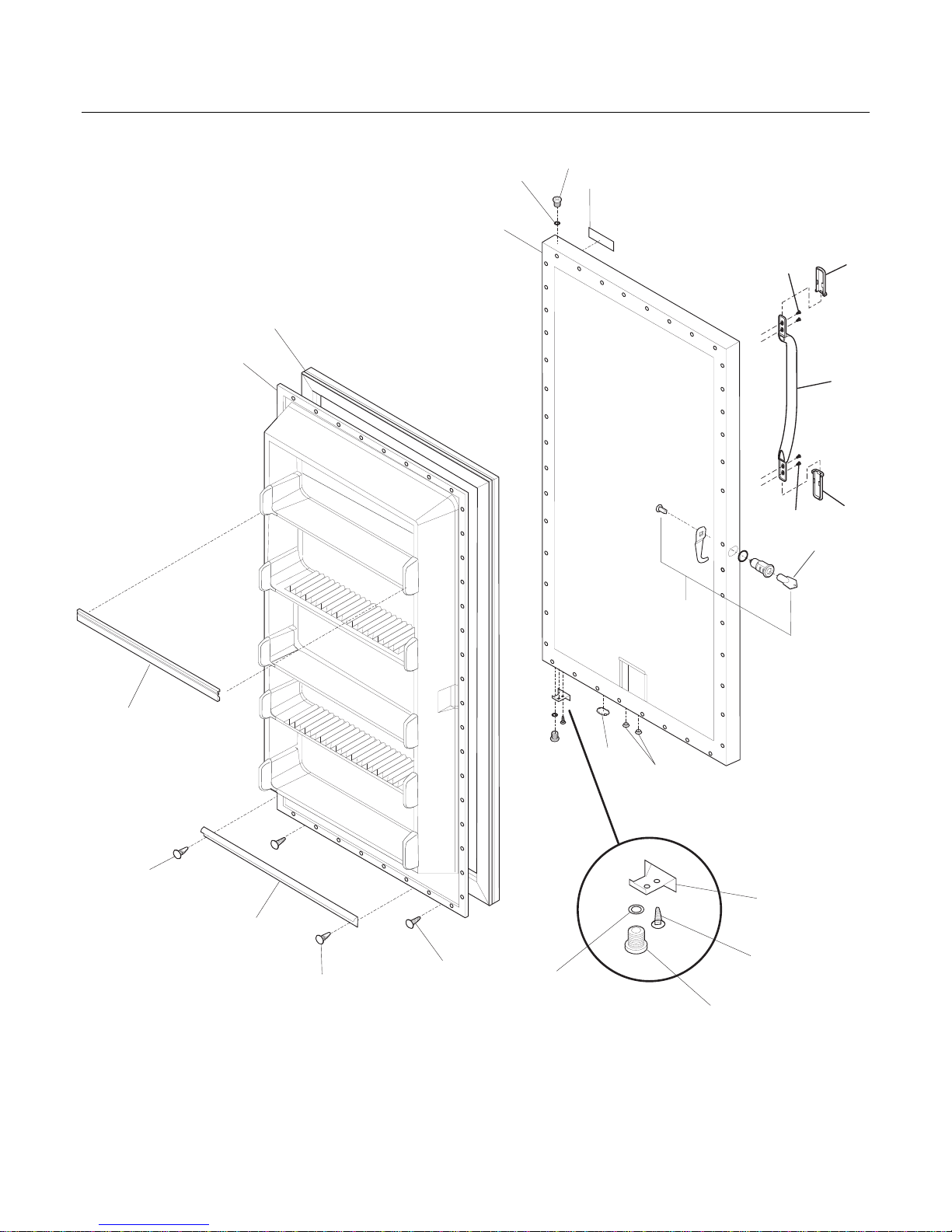

DOOR

P08D0368

21A

22A

93 37A

37A

FFU2124DW2 Publication No: 5995441887

# Functional Parts 3 07/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216528113 Panel-inner door, frzr

11 216531218 Panel-outer door, white

12 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 218762701 Handle-door, white

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 216970800 Bearing, hinge, top

22A 297006800 Bearing-hinge

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951600 Rack-door, (6)

32 5309950074 Valve, breather, door base

37A 215870619 Trim-handle, 2.47", white, w/chrome band

37A* 218676001 Band-decorative, chrome, handle trim

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995441887 FFU2124DW2

07/05 4

CABINET

59A

P08C0846

132

FFU2124DW2 Publication No: 5995441887

# Functional Parts 5 07/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216502600 Plug, drain, interior

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

20 297013800 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp, cap tube, cold control

24 5300052943 Screw-clamp, truss hd cr, control

26 216503300 Ramp, door closer

28 216247400 Hinge, bottom

29 216313502 Hose-drain

32 5308005500 Drain

34 216816200 Shield-light

35 216273000 Clip, drain hose

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH

59 216157200 Basket

59A 216486500 Stop-basket

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

72 297036900 Grille/Kickplate, 32", white

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

132 5303283898 Screw, 6-20AB x 3/8

* 297001701 Insulation, drain tube, 24"

* 5303305324 Paint, touch-up, white

* 216795105 Energy Guide

Publication No: 5995441887 FFU2124DW2

07/05 6

SYSTEM

BACK

43A

P08S0363

FRONT

FFU2124DW2 Publication No: 5995441887

# Functional Parts 7 07/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

3 216847806 Trim-shelf, evaporator, (4)

4 # 216938600 Drier-filter

5 # 297021400 Harness-main

6 297001600 Support-shelf, front LH, (4)

7 297001500 Support-shelf, front RH, (4)

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw, hex sems, 8-18AB x 1.00, evap

27 5308002681 Grommet, compressor

29 # 297002900 Compressor, kit, w/grommets, & welded clip

30 216954202 Controller, compressor

32 216649100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

36 # 216939800 Evaporator, tubing assy, white

43A 216629700 Clip

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 216502500 Sleeve, suction line

* 5303298960 Spacer-tube, 0.237" ID
