Frigidaire AFFU2067EW0 Manuale utente

Product No. AFFU2067EW0

Series 134A

Color white

Volts 115

Wiring Diagram 216917400

Owner's Guide 216960000

Market North America

Energy Guide 216795510

P08F0078.eps P08D0366.eps P08C0759.eps P08S0362.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995427290

05/01/21

(EN/SERVICE/)

365

UPRIGHT FREEZER

Model No.

AFFU2067EW0

Publication No: 5995427290 AFFU2067EW0

01/05 2

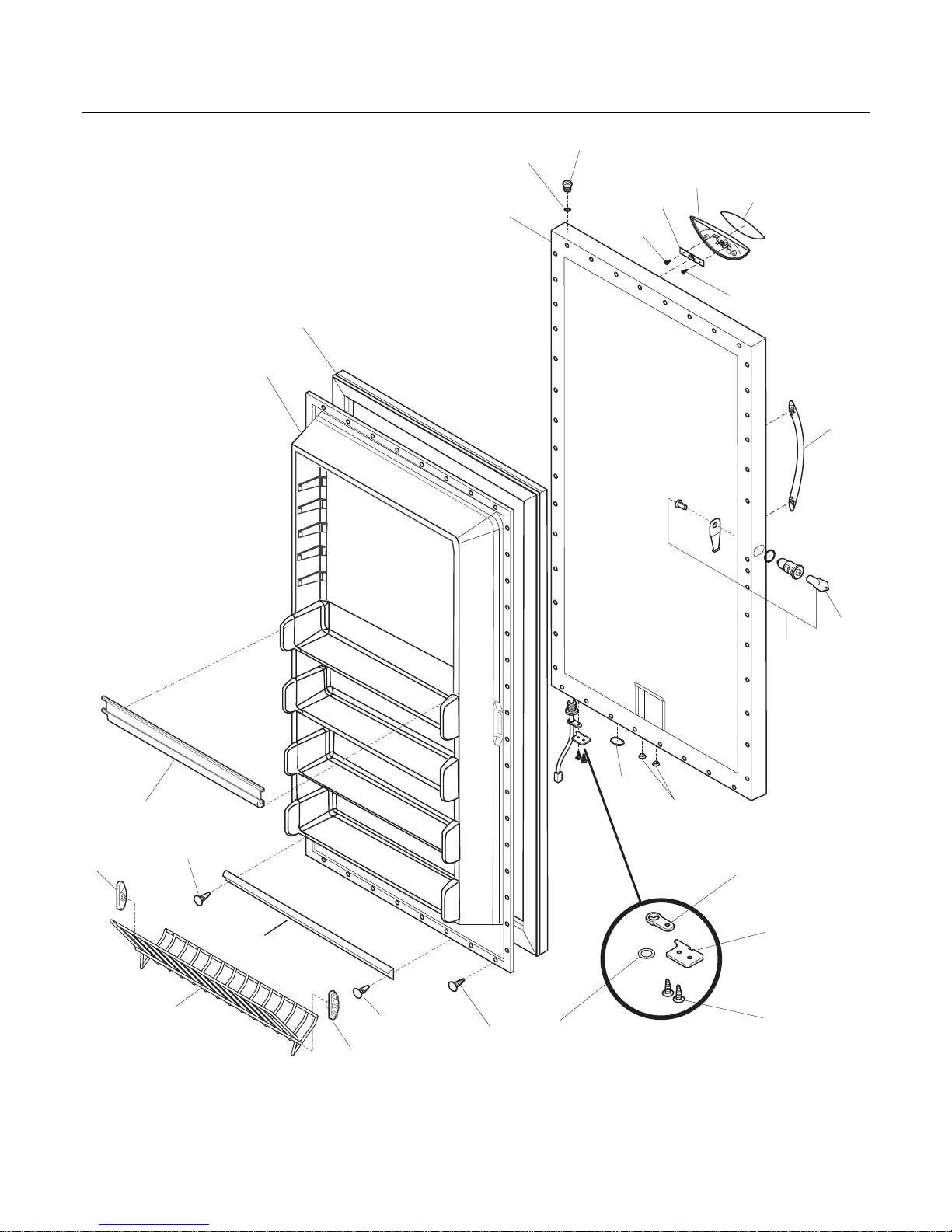

DOOR

73 59

21A

133

77 57

133

P08D0366

AFFU2067EW0 Publication No: 5995427290

# Functional Parts 3 01/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216528113 Panel-inner door, frzr

11 216531230 Panel-outer door, white

* 216858000 Screw, TH#8-18x.500AB, #10

13 5303271076 Door Stop

14 5303313518 Washer, sealing

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

21A 5303271077 Screw, flat head, #1/4-20, door stop/hng

22 216970800 Bearing, hinge, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg, (1)

27* 5304406520 Clip, panel mtg kit, (40)

28 216806100 Rack-door, contour, (4)

32 5309950074 Valve, breather, door base

57 216899602 Overlay

59 5303271072 Bearing-door, closer ramp

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire, (2)

73 216513900 End Cap, shelf, LH, (2), tilt-out

74 216514000 End Cap, shelf, RH, (2), tilt-out

77 216897700 Bezel

79 # 216898700 Control Board, electronic

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

133 216905300 Screw, control board, #3-24 x .25, (3)

Publication No: 5995427290 AFFU2067EW0

01/05 4

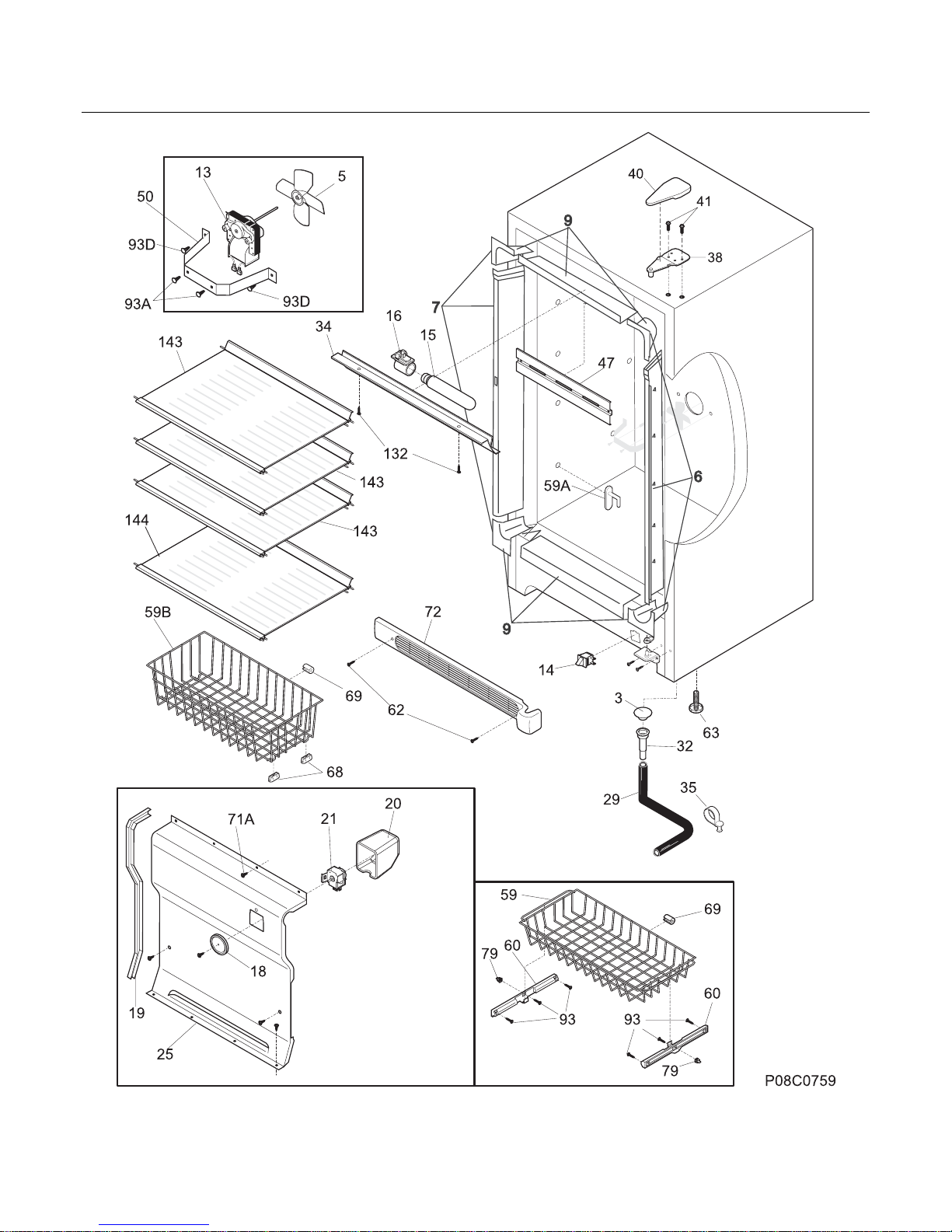

CABINET

AFFU2067EW0 Publication No: 5995427290

# Functional Parts 5 01/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216934100 Motor, fan, 115 V

14 # 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 # 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204901 Gasket-cover evap

20 216230300 Cover, temp control

21 # 216844500 Control-temperature

25 216820300 Cover-evaporator

29 216313500 Hose-drain

* 09948773 Insulation, drain tube

32 5308005500 Drain

34 216816212 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH, btm

47 216661600 Plate, baffle, snap fit

50 216394000 Bracket, fan motor mount

59 216880100 Basket, (2)

59A 216486500 Stop-basket

59B 216826500 Basket

60 297013500 Slide, shelf, (4)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket, (4)

69 5305878546 Bumper-basket, (2)

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 216946600 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

93D 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

132 5303283898 Screw, 6-20AB x 3/8

143 216922302 Shelf-assy, fixed, glass, (3), complete

144 216922300 Shelf-assy, fixed, glass, complete

* 216502400 Grommet-shelf mtg

* 5303305324 Paint, touch-up, white

* 216795510 Energy Guide

* 216893600 Plug, ICE MAKER, internal

* 216893800 Cover, external, ICE MAKER, (2)

* 240479601 Plug, button, cab liner holes, (2)

* 297001701 Insulation, drain tube, 24"

Publication No: 5995427290 AFFU2067EW0

01/05 6

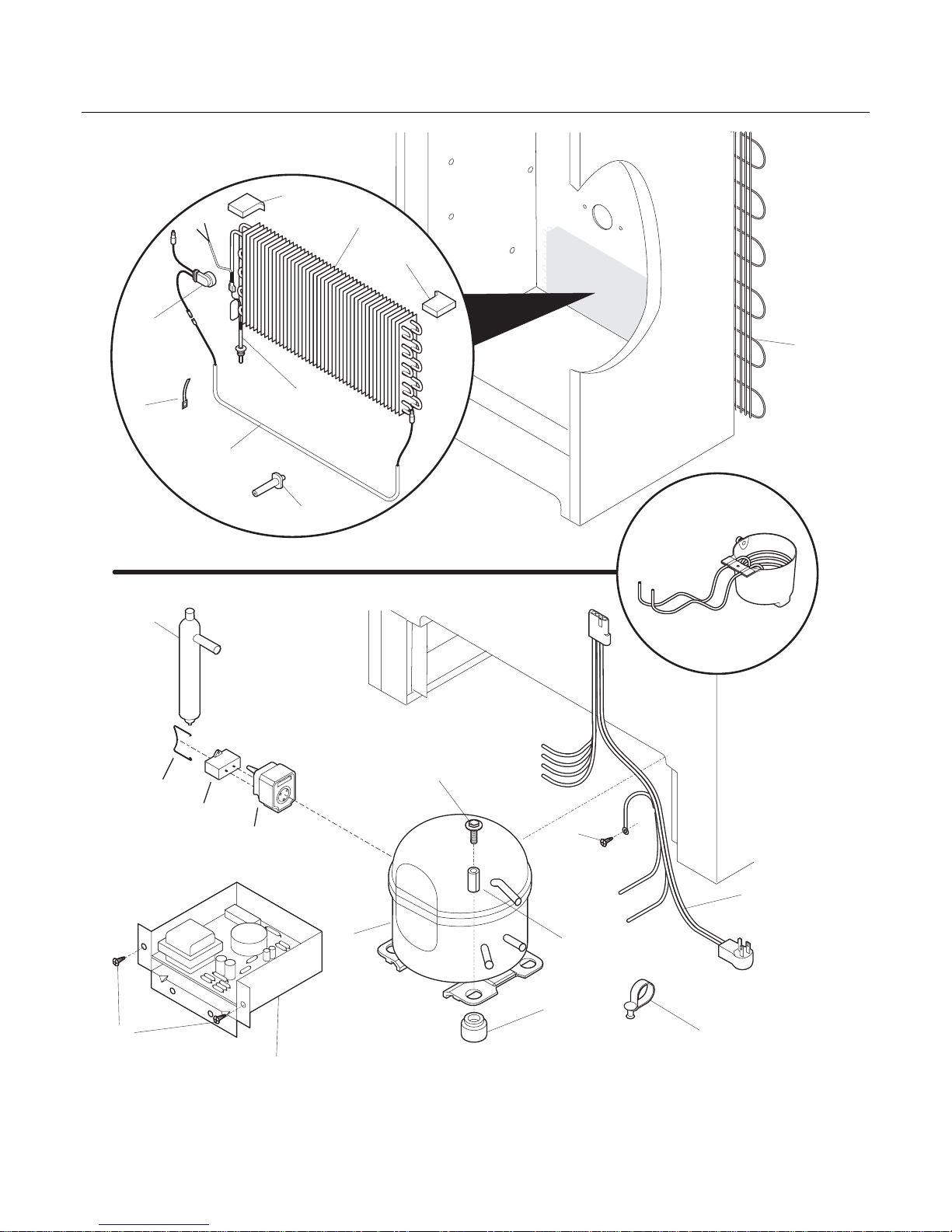

SYSTEM

FRONT

BACK

105

43A

130

15A

P08S0362

AFFU2067EW0 Publication No: 5995427290

# Functional Parts 7 01/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297006000 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A# 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216731000 Thermostat, defrost

27 5308002681 Grommet, compressor

29 297002900 Compressor, kit, w/electricals

30 216649315 Controller

32 216649100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

54 # 216833800 Electronics, high voltage, w/o battery

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 5303161215 Screw, ph truss head, 8-18AB x 0.500

93 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

105 216999900 Cup-drain, assy

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 5303298960 Spacer-tube, 0.237" ID

* 05878556 Clip-cord

* 297014500 Plug-suction line
