Frigidaire FFC09G7AW Manuale utente

CHEST FREEZER

Model numbers:

FFC09G7AW

FFC13G7AW

FFC15G7AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900-216803900

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216794006, 216794104 & 216794206

SERVICE DATA SHEET - #216787900-216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC09G7AW1 FFC09G7AW 134A white 115

FFC13G7AW1 FFC13G7AW 134A white 115

FFC15G7AW1 FFC15G7AW 134A white 115

MARKET

North America

Publication No.

5995377628

020829

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

08/02 2

Publication No FFC09/13/15G7AW1

5995377628

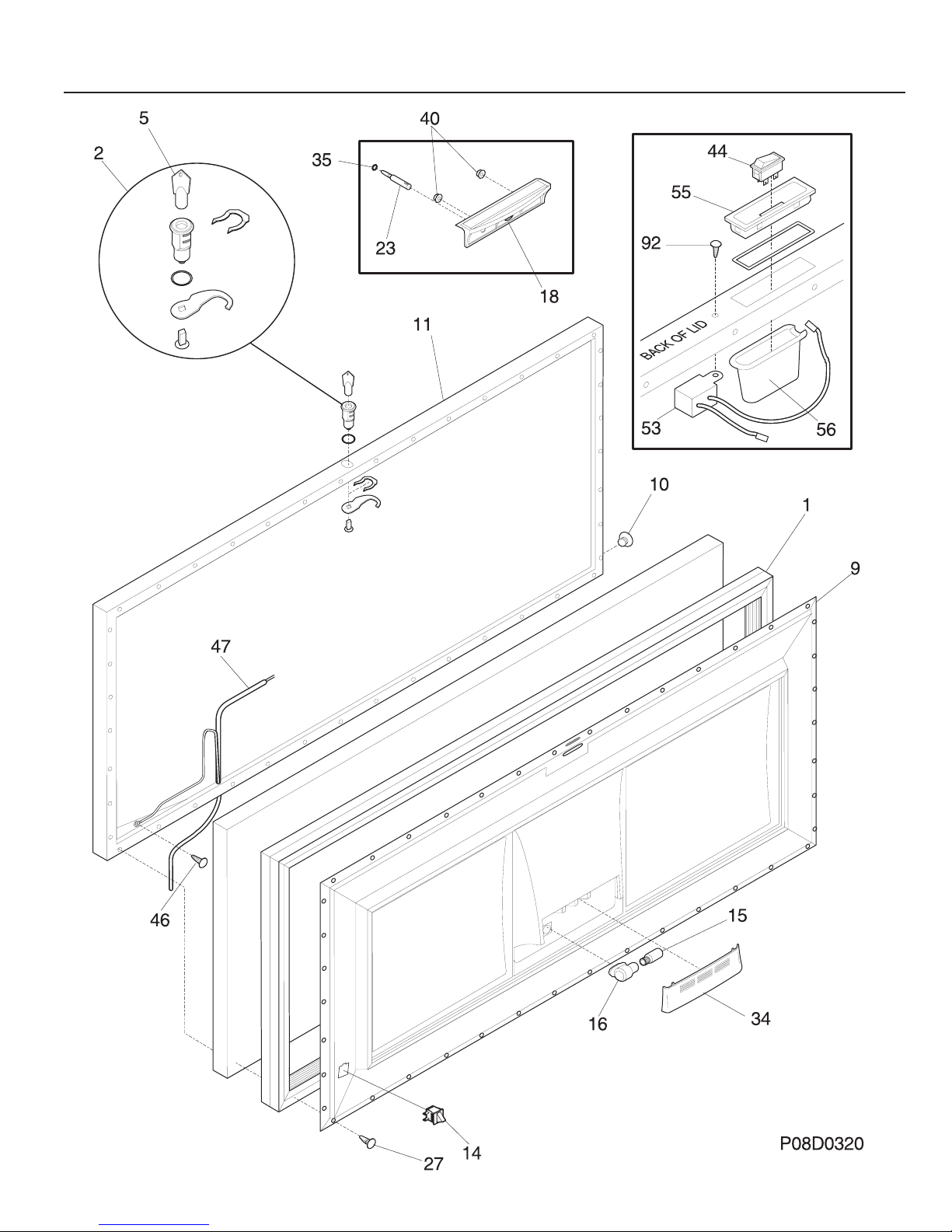

DOOR

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FFC09/13/15G7AW1 Publication No.

5995377628

DOOR

A = FFC09G7A (FFC09G7AW1)

B = FFC13G7A (FFC13G7AW1)

C = FFC15G7A (FFC15G7AW1)

POS. NO PART NO DESCRIPTION

1 216481001 A - - Gasket-door,white

1 216481101 - B - Gasket-door,white

1 216481201 - - C Gasket-door,white

2 5303925107 A B C Lock Assy

5 # 216702900 A B C Key,lock

9 216829800 A - - Panel-lid

9 216828904 - B - Panel-lid

9 216829104 - - C Panel-lid

10 216141101 A B C Plug button,white

11 216117931 A - - Lid,white

11 216129823 - B - Lid,white

11 216129922 - - C Panel,lid

14 216822900 A B C Switch,light/lamp ,ramp

15 216846400 A B C Light Bulb/Lamp

16 216817600 A B C Socket,light/lamp ,25 W

18 216205004 A B C Handle,white

23 216212700 A B C Light-signal,amber

27 5303212828 A B C Clip,panel mtg

34 5303296969 A B C Shield-light

35 5303297015 A B C Washer,signal light

40 5309948647 A B C Fastener,handle

44 216823300 A B C Switch,rocker

46 216707800 A - - Screw,PH ,8-32 x 1/2 ,wiring harness

47 # 216799700 A - - Harness-lid

47 # 216792400 - B C Harness-lid

53 216713600 A B C Buzzer,alarm

55 216164000 A B C Housing,switch

56 216694200 A B C Cap,sig light seal

92 5303272319 A - - Screw,hex washer head ,8-32 x 7/16 ,buzzer

* 5303917276 A - - Insulation-door,fiberglass ,(bulk)

* 5303925098 - B C Insulation

* 5309948955 A B C Clip-panel

08/02 4

Publication No FFC09/13/15G7AW1

5995377628

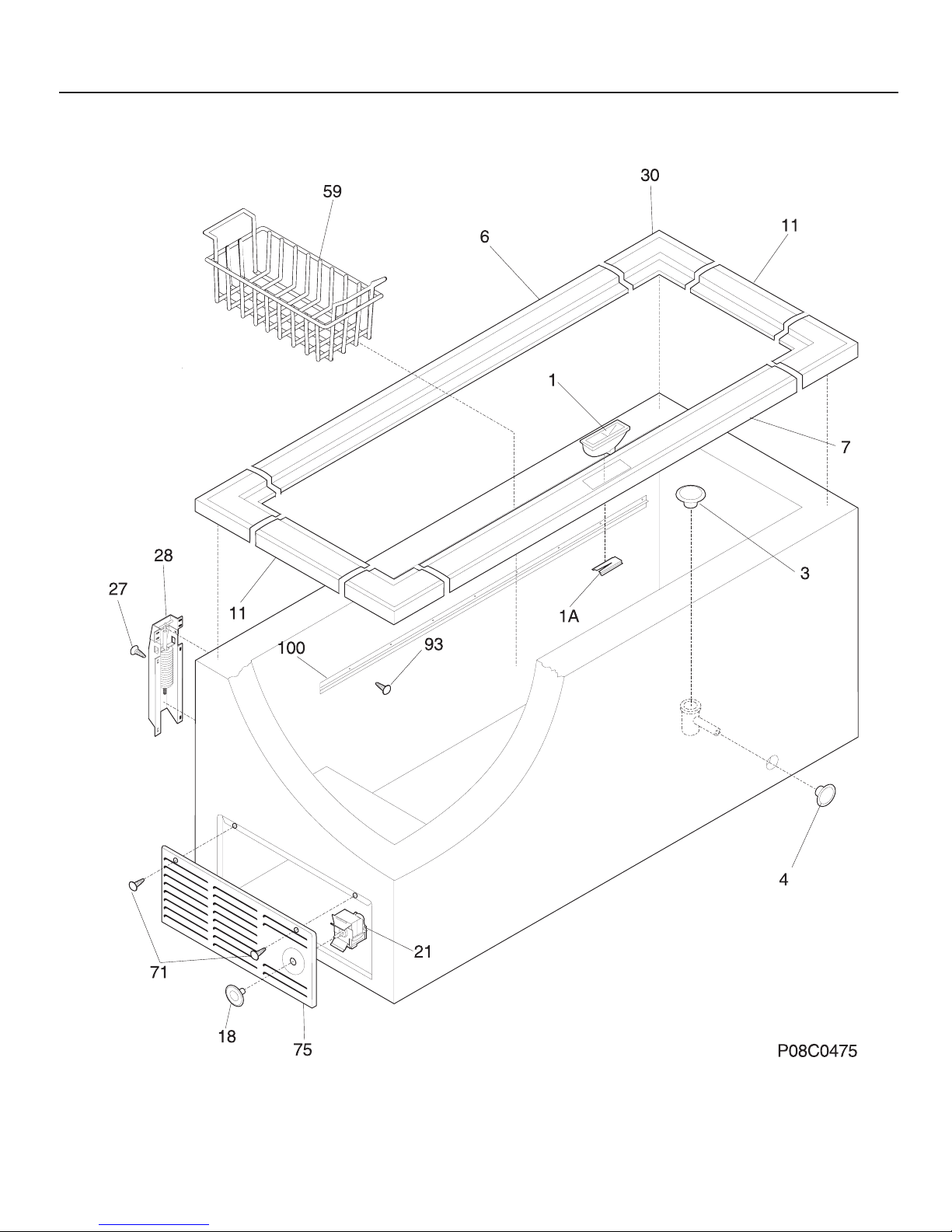

CABINET

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FFC09/13/15G7AW1 Publication No.

5995377628

A = FFC09G7A (FFC09G7AW1)

B = FFC13G7A (FFC13G7AW1)

C = FFC15G7A (FFC15G7AW1)

POS. NO PART NO DESCRIPTION

1 216117700 A - - Catch-lock

1 5303208488 - B C Latch-door

1A 216818900 - B C support-lock

3 216502600 A B C Plug-drain,interior

4 216073905 A B C Plug-drain,exterior

6 216117500 A - - Breaker-hinge side,white

6 216110900 - B - Breaker

6 216111000 - - C Breaker,hinge side

7 216117600 A - - Breaker-lock side

7 216111500 - B - Breaker,lock side

7 216111600 - - C Breaker,lock side

11 216105600 A - - Breaker-ends,white

11 216110800 - B C Breaker,white ,ends

18 216707200 A B C Knob,temp control

21 # 216787600 A - - Control,temperature

21 # 216714700 - B C Control-temperature

27 216337700 A - - Screw,hex washer head ,10-24 x 0.500

27 216629600 - B C Screw-hinge

28 216478800 A - - Hinge Assy

28 216039600 - B - Hinge

28 216035200 - - C Hinge

30 216105500 A - - Breaker-corners,white

30 216110700 - B C Breaker,white ,corners

59 216078600 A - - Basket

59 216080300 - B C Basket

59* 216258400 A - - Basket,lower

59* 216080700 - B C Basket,lower ,(2)

71 5303302714 A B C Screw,8-18x3/4 ,(2)

75 216782000 A - - Panel-access,white

75 216034301 - B C Panel-access,white

93 5303161215 A B C Screw,ph truss head ,8-18AB x 0.500

100 216081500 A B - Track,basket

100 216654400 - - C Track-basket

* 216269500 A B C Adapter,drain hose

* 5303305324 A B C Paint,touch-up ,white

CABINET

08/02 6

Publication No FFC09/13/15G7AW1

5995377628

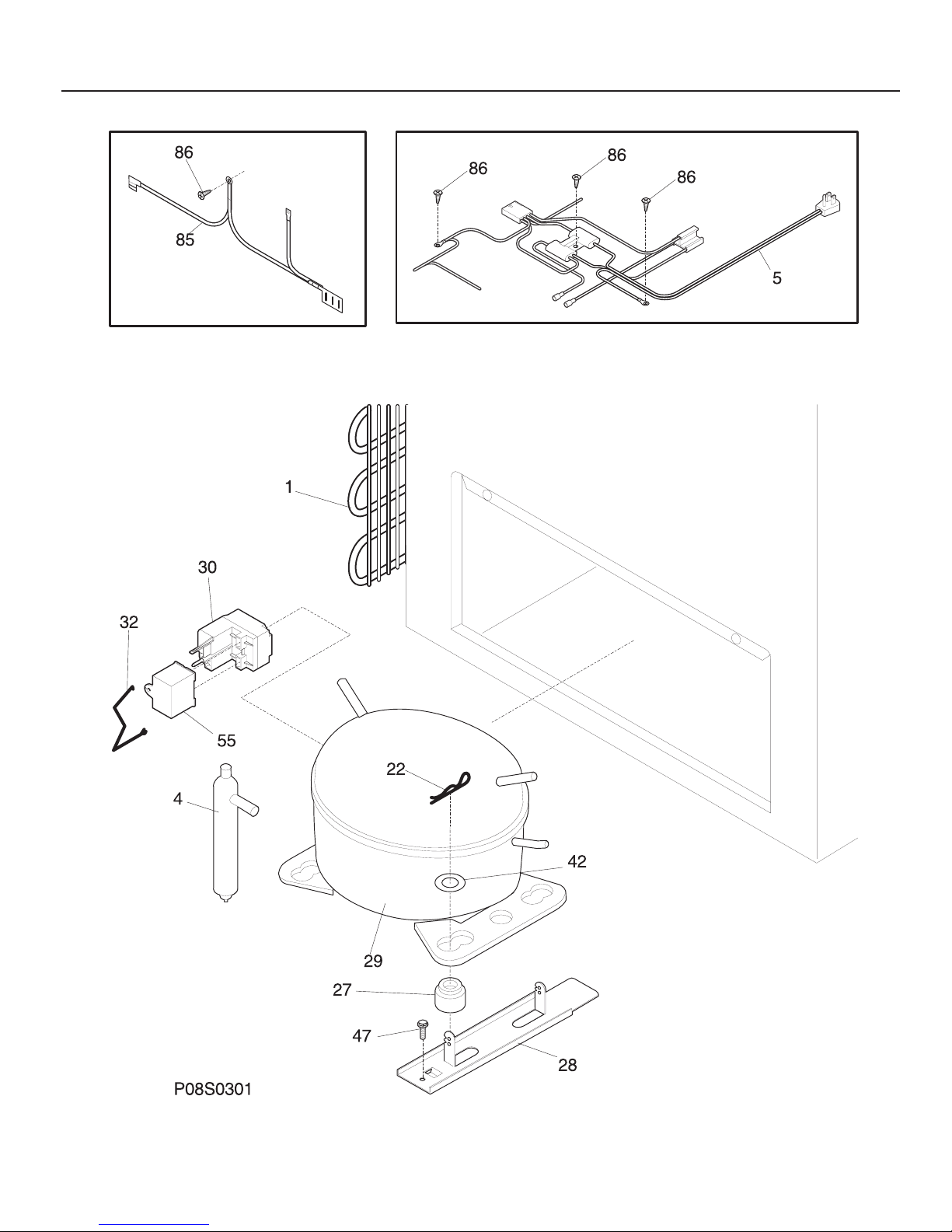

SYSTEM

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FFC09/13/15G7AW1 Publication No.

5995377628

SYSTEM

A = FFC09G7A (FFC09G7AW1)

B = FFC13G7A (FFC13G7AW1)

C = FFC15G7A (FFC15G7AW1)

POS. NO PART NO DESCRIPTION

1 # 5300120781 A - - Condenser

1 # 5303925238 - B C Condenser

4 216634500 A B C Drier-filter

5 # 216785900 A - - Harness,electrical

5 # 216792500 - B C Harness,electrical

22 216056400 A B C Clip-spring mtg

27 5308002681 A B C Grommet,compressor

28 5303212615 - B C Support-compressor

29 # 216784200 A - - Compressor,w/o electricals

29 # 216784300 - B C Compressor,w/o electricals

30 216649314 A - - Controller

30 216649313 - B C Controller,compressor

32 216649200 A B C Clip,controller

42 216232700 - B C Washer-flat

47 216337700 A - - Screw,hex washer head ,10-24 x 0.500

47 216629600 - B C Screw-hinge

55 # 216787800 A B C Capacitor,run ,50/60 Hz ,220 VAC ,12 microfarad

85 216533500 - B C Wire,ground

86 216707700 A - - Screw,8-18 X 1/2

86 216036600 - B C Screw,ph washer hd ,8-32CA x 0.500 ,thread forming

* 5303212614 - B C Clip-harness
