Frigidaire FFC20K1CW Manuale utente

CHEST FREEZER

Model number:

FFC20K1CW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216804000

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216794400

SERVICE DATA SHEET - # 216804000

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC20K1CW0 FFC20K1CW 134A white 115

MARKET

North America

Publication No.

5995387825

030324

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

03/03 2

Publication No FFC20K1CW0

5995387825

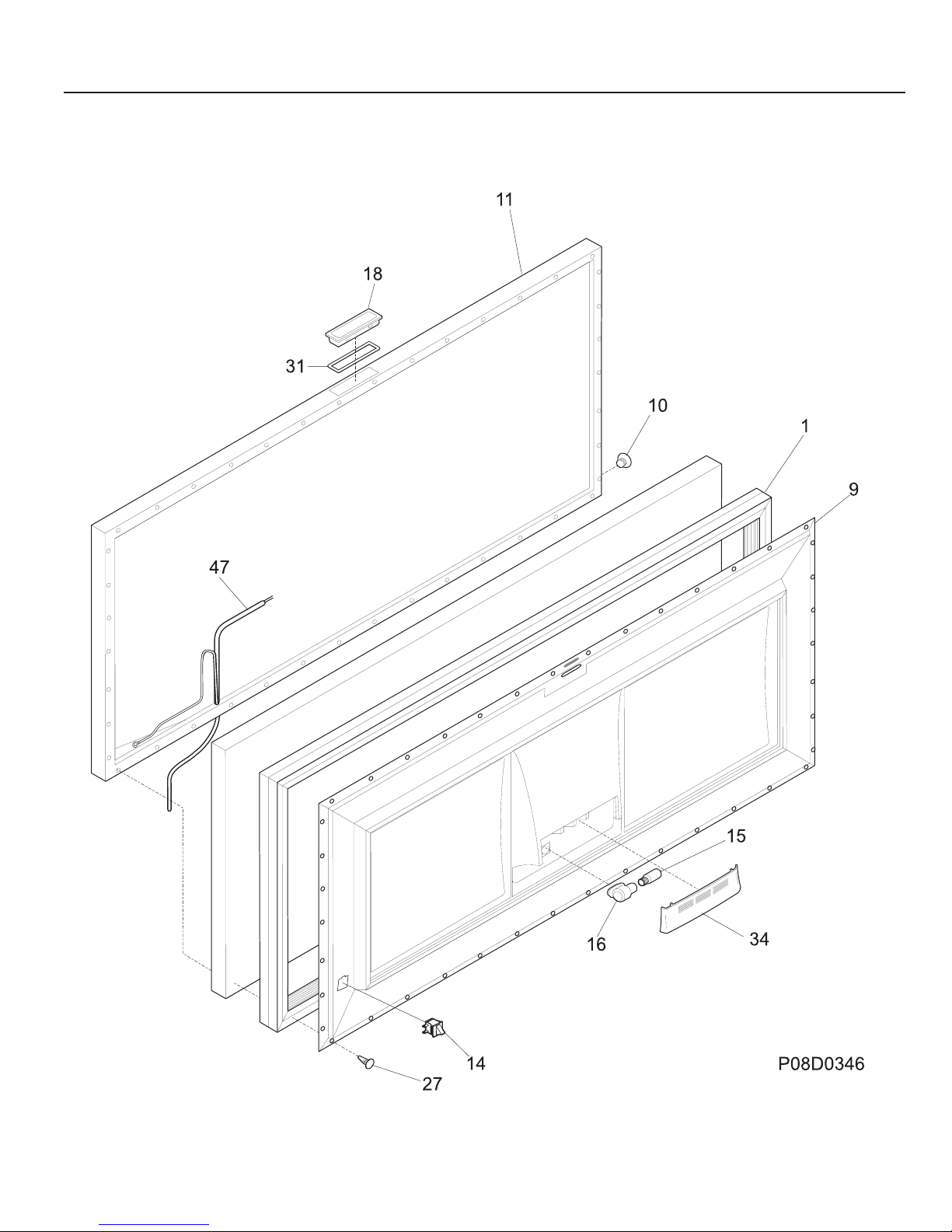

DOOR

# = Fast-moving Parts 3 03/03

* = Non-Illustrated Parts

FFC20K1CW0 Publication No.

5995387825

DOOR

POS. NO PART NO DESCRIPTION

1 216481401 Gasket,lid seal ,white

9 216829506 Panel-inner lid,white

10 216141101 Plug button,white

11 216130121 Panel-outer door/lid,white

14 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket,light/lamp ,25 W

18 216140200 Handle,recessed ,white

27 5303212828 Clip,panel mtg

31 08009392 Gasket,white

34 5303296969 Shield,lid lamp

47 # 216898800 Harness-lid

* 5303925098 Insulation

03/03 4

Publication No FFC20K1CW0

5995387825

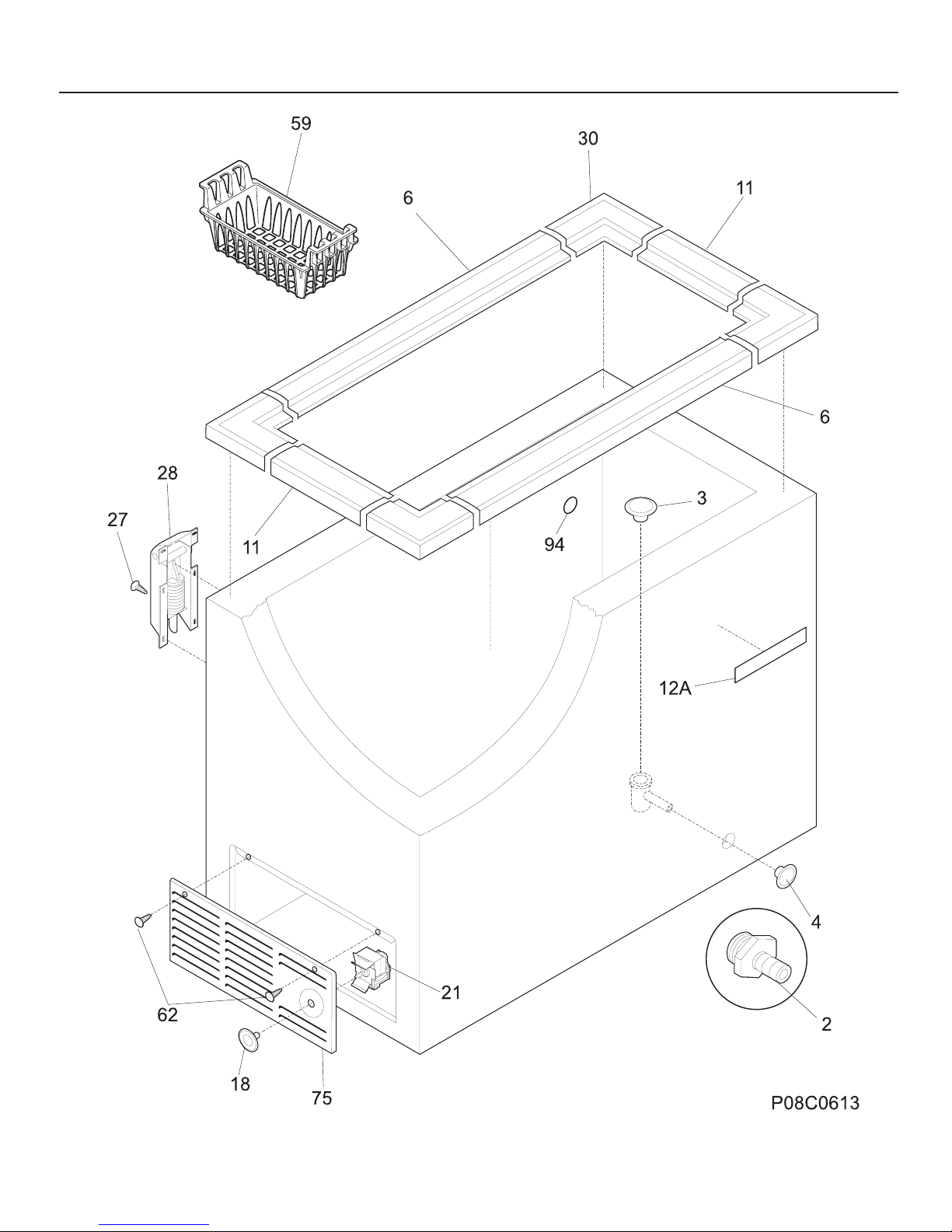

CABINET

# = Fast-moving Parts 5 03/03

* = Non-Illustrated Parts

FFC20K1CW0 Publication No.

5995387825

POS. NO PART NO DESCRIPTION

2 216269500 Adapter,drain hose

3 216502600 Plug,drain ,interior

4 216073900 Plug,drain ,exterior

6 216111200 Breaker,hinge side

11 216110800 Breaker,chest end ,(2)

12A 216892800 Nameplate

18 216707200 Knob,temp control

21 # 216714600 Control-temperature

27 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

28 216035300 Hinge

30 216110700 Breaker,corners

59 216867300 Basket,upper ,(2)

62 131420300 Screw,cr truss head ,8-18AB x 0.750

75 216034301 Panel,access ,white

94 216140400 Lens,frost indicator ,blue

* 5303305324 Paint,touch-up ,white

* 216794400 Energy Guide

CABINET

03/03 6

Publication No FFC20K1CW0

5995387825

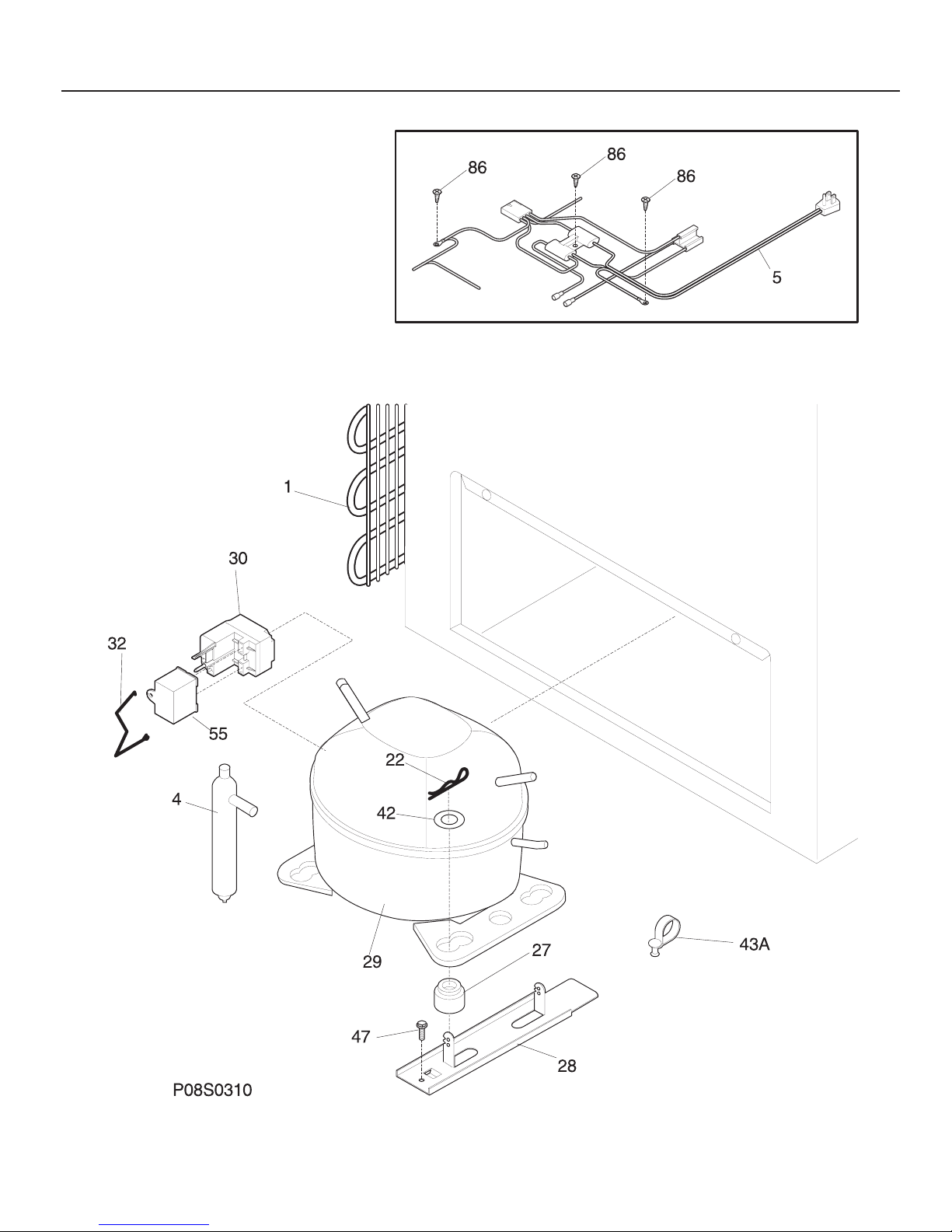

SYSTEM

# = Fast-moving Parts 7 03/03

* = Non-Illustrated Parts

FFC20K1CW0 Publication No.

5995387825

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303280307 Condenser

4 216634500 Drier-filter

5 216806900 Harness-main

22 216056400 Clip,compressor mtg ,SPRING

27 5308002681 Grommet,compressor

28 5303212615 Support,compressor

29 216851800 Compressor,w/o electricals

30 216649318 Controller

32 216649100 Clamp,elec cont mtg ,compressor

42 216232700 Washer,flat ,1"OD x 0.531"ID

43A 5303212614 Clip,harness mount

47 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

55 # 216787800 Capacitor,run ,50/60 Hz ,220 VAC ,12 microfarad

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

* 5303298960 Spacer-tube,0.237" ID
