Frigidaire FFU09C2CW Manuale utente

UPRIGHT FREEZER

Model number:

FFU09C2CW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803100

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216794701

SERVICE DATA SHEET - # 216803100

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU09C2CW1 FFU09C2CW 134A white 115

MARKET

North America

Publication No.

5995398061

031030

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

10/03 2

Publication No FFU09C2CW1

5995398061

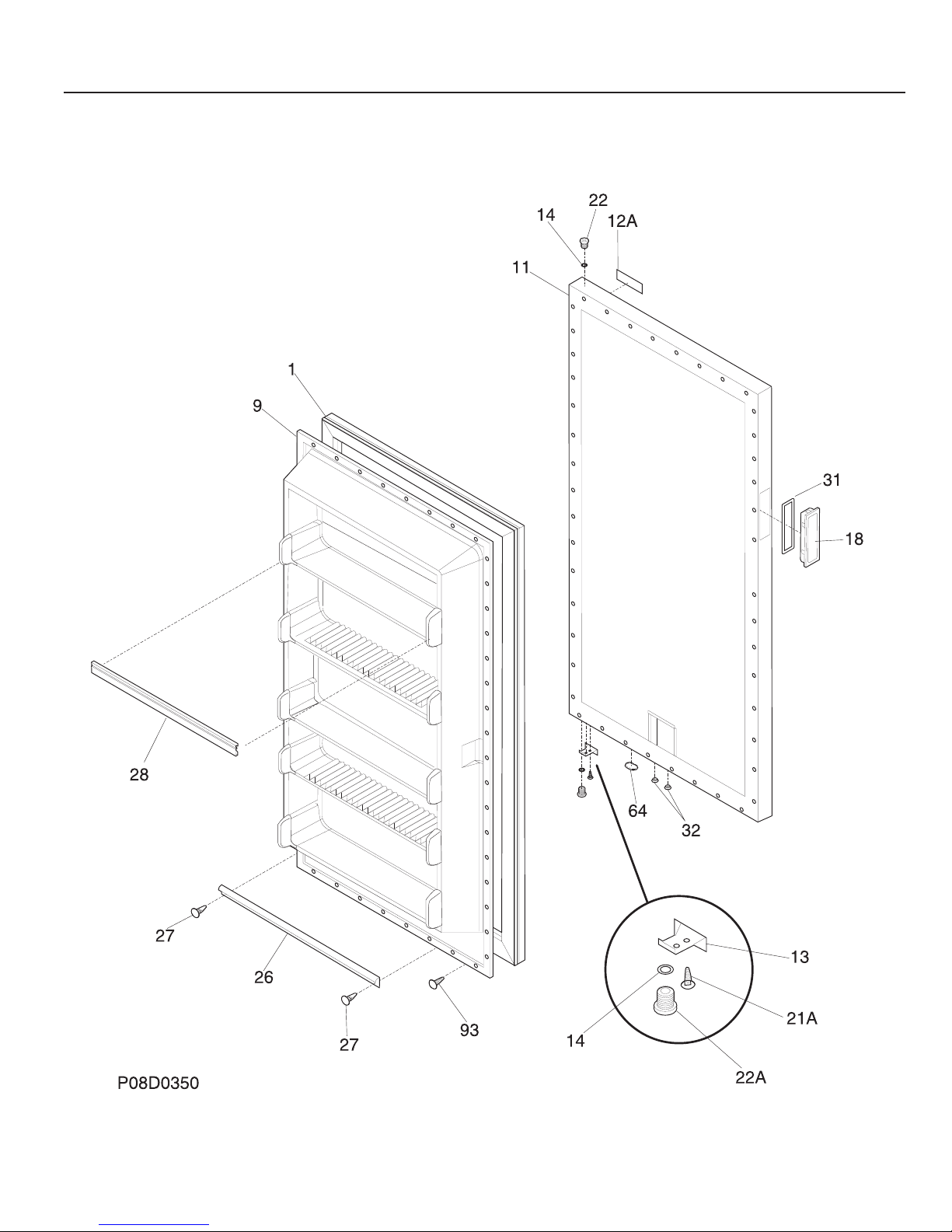

DOOR

# = Fast-moving Parts 3 10/03

* = Non-Illustrated Parts

FFU09C2CW1 Publication No.

5995398061

DOOR

POS. NO PART NO DESCRIPTION

1 216522300 Gasket-door

9 216527206 Panel-inner door,frzr

11 216564201 Panel-outer door,white

12A 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216140200 Handle,recessed ,white

21A 08005520 Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric

22 216443600 Bearing,hinge ,top

22A 216503200 Bearing,hinge ,bottom

26 216524400 Gasket-secondary

27 5303212828 Clip,panel mtg

28 216807702 Rack-shelf,wide ,white ,(4)

31 08009392 Gasket,white

32 5309950074 Valve,breather ,door base

64 216403700 Plug-button,hole filler ,door base

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

10/03 4

Publication No FFU09C2CW1

5995398061

CABINET

# = Fast-moving Parts 5 10/03

* = Non-Illustrated Parts

FFU09C2CW1 Publication No.

5995398061

POS. NO PART NO DESCRIPTION

3 216502600 Plug,drain ,interior

6 216604500 Breaker,hinge side

9 216603500 Breaker,top

18 216707200 Knob,temp control

20 216707300 Cover-control housing

21 # 216834500 Control-temperature

22 216823500 Clamp,cap tube ,cold control

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,door closer

27 5303205738 Screw,hinge mtg ,10 (A) x 0.875 ,btm

28 216247400 Hinge,bottom

29 216313503 Hose-drain

32 5308005500 Drain

35 216273000 Clip,drain hose

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 216850900 Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

63 216396900 Screw,leveling foot ,plastic ,adjustable

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

101 216835200 Top Hinge Kit

* 09948773 Insulation,drain tube

* 5303305324 Paint,touch-up ,white

CABINET

10/03 6

Publication No FFU09C2CW1

5995398061

SYSTEM

# = Fast-moving Parts 7 10/03

* = Non-Illustrated Parts

FFU09C2CW1 Publication No.

5995398061

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303304537 Condenser

3 216847802 Trim-shelf,white ,evap

4 216634500 Drier-filter

5 # 216793400 Harness-ext,main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

27 5308002681 Grommet,compressor

29 # 216696600 Compressor,w/o electricals

30 216649304 Controller

32 216694500 Clip,controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216069300 Grid-top evaporator

37 # 216069400 Shelf-top evaporator

38 # 216069500 Shelf-middle evaporator

40 # 216069600 Shelf-bottom evaporator

43A 216629700 Clip

55 218909911 Capacitor-run

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

* 216502500 Sleeve,suction line
