Frigidaire GLFU1767F Manuale utente

P08F0078.eps P08D0473.eps P08C0878.eps P08S0397.eps

Product No. GLFU1767FW2

Series 134A

Color white

Volts 115

Wiring Diagram 297079600

Owner's Guide 297079200

Market North America

Energy Guide 216795410

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995461992

06/02/24

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

GLFU1767FW

Publication No: 5995461992 GLFU1767FW2

02/06 2

DOOR

GLFU1767FW2 Publication No: 5995461992

# Functional Parts 3 02/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522309 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216527816 Panel-inner door, frzr

11 216526565 Panel-outer door, white

13 5303271076 Door Stop

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

* 297048000 Screw, anchor, #8, white

21A 5303271077 Screw, flat head, #1/4-20, door stop/hng

22 216970800 Bearing, hinge w/o'ring, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216806100 Rack-door, contour, (3)

32 5309950074 Valve, breather, door base

57 297072601 Overlay

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire, (2)

73 216513900 End Cap, shelf, LH, (2), tilt-out

74 216514000 End Cap, shelf, RH, (2), tilt-out

77 297072500 Bezel

79 # 216944300 Control Board, digital

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

133 216905300 Screw, control board, #3-24 x .25, (3)

Publication No: 5995461992 GLFU1767FW2

02/06 4

CABINET

GLFU1767FW2 Publication No: 5995461992

# Functional Parts 5 02/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 216934100 Motor, fan, 115 V

* 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

14 216472300 Switch-light plunger

15 216988100 Light Bulb/Lamp, long, blue tint, 40 W, 120V, (2)

16 216817601 Socket, light/lamp, 25 W

19 216204900 Gasket, evap cover

25 216820201 Cover-evaporator

29 216313501 Hose-drain

32 5308005500 Drain

34 216816221 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216936800 Screw-hinge, 12-24x.700 HWH

47 216661600 Plate, baffle, snap fit

50 216394000 Bracket, fan motor mount

59 297093100 Basket, (2)

60 297013500 Slide, basket, (4)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

69 5305878546 Bumper-basket, (4)

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 297036900 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

132 5303283898 Screw, 6-20AB x 3/8

144 216922300 Shelf-assy, fixed, glass, complete

144A 216922301 Shelf-assy, fixed, glass, complete

* 216502400 Grommet-shelf mtg

156 297071800 Divider, basket, (2)

157 297071900 Shelf, small items

* 216795410 Energy Guide

* 5303305324 Paint, touch-up, white

* 297001704 Insulation, 24", drain tube

* 297088700 Guide-Electronic control

Publication No: 5995461992 GLFU1767FW2

02/06 6

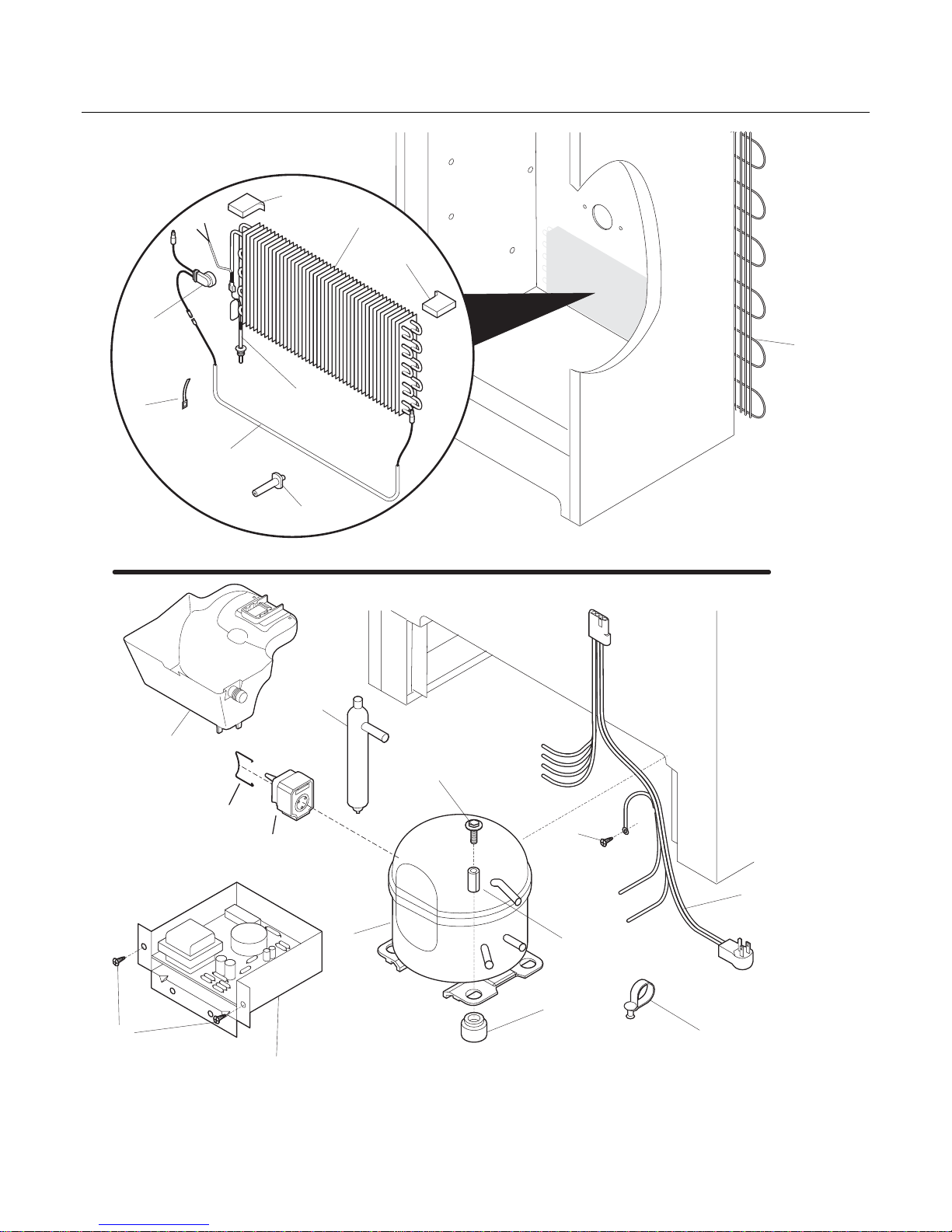

SYSTEM

FRONT

BACK

43A

130

15A

P08S0397

31A

GLFU1767FW2 Publication No: 5995461992

# Functional Parts 7 02/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297025900 Harness-main

14 # 216730700 Heater-defrost

15 # 216997300 Evaporator

15A# 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216872200 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297048100 Compressor, kit w/grommets, & welded clip

30 297051000 Controller, compressor

31A 216994100 Pan-drain

32 297051100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

54 # 216979700 Electronics, high voltage

86 5303161215 Screw, ph truss head, 8-18AB x 0.500

93 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 297014500 Plug-suction line

* 5303298960 Spacer-tube, 0.237" ID
