Frigidaire FFC13C2AW0 Manuale utente

FREEZER

Model numbers

FFC13C2AW0

FFC15C2AW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803900

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - # 216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC13C2AW0 FFC13C2AW 134A white 115

FFC15C2AW0 FFC15C2AW 134A white 115

MARKET

North America

Publication No.

5995357117

010803

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

10/01

Publication No FFC13/15C2AW0

5995357117

DOOR

# = Fast-moving Parts 3 10/01

* = Non-Illustrated Parts

FFC13/15C2AW0 Publication No.

5995357117

DOOR

A = FFC13C2A (FFC13C2AW0)

B = FFC15C2A (FFC15C2AW0)

POS. NO PART NO DESCRIPTION

1 216481101 A - Gasket-door,white

1 216481201 - B Gasket-door,white

2 # 5303925107 A B Lock Assy

5 # 216702900 A B Key,lock

9 216056904 A - Panel-inner lid,white

9 216057804 - B Panel-inner lid,white

10 216141101 A B Plug button,white

11 216129802 A - Panel-outer door/lid,white

1 216129900 - B Panel-outer door,white

12A 216816800 A B Nameplate

18 216446600 A B Handle

27 5303212828 A B Clip,panel

40 5309948647 A B Fastener,handle

* 5303925098 A B Insulation

* 5309948955 A - Clip-panel

10/01

Publication No FFC13/15C2AW0

5995357117

CABINET

# = Fast-moving Parts 5 10/01

* = Non-Illustrated Parts

FFC13/15C2AW0 Publication No.

5995357117

A = FFC13C2A (FFC13C2AW0)

B = FFC15C2A (FFC15C2AW0)

POS. NO PART NO DESCRIPTION

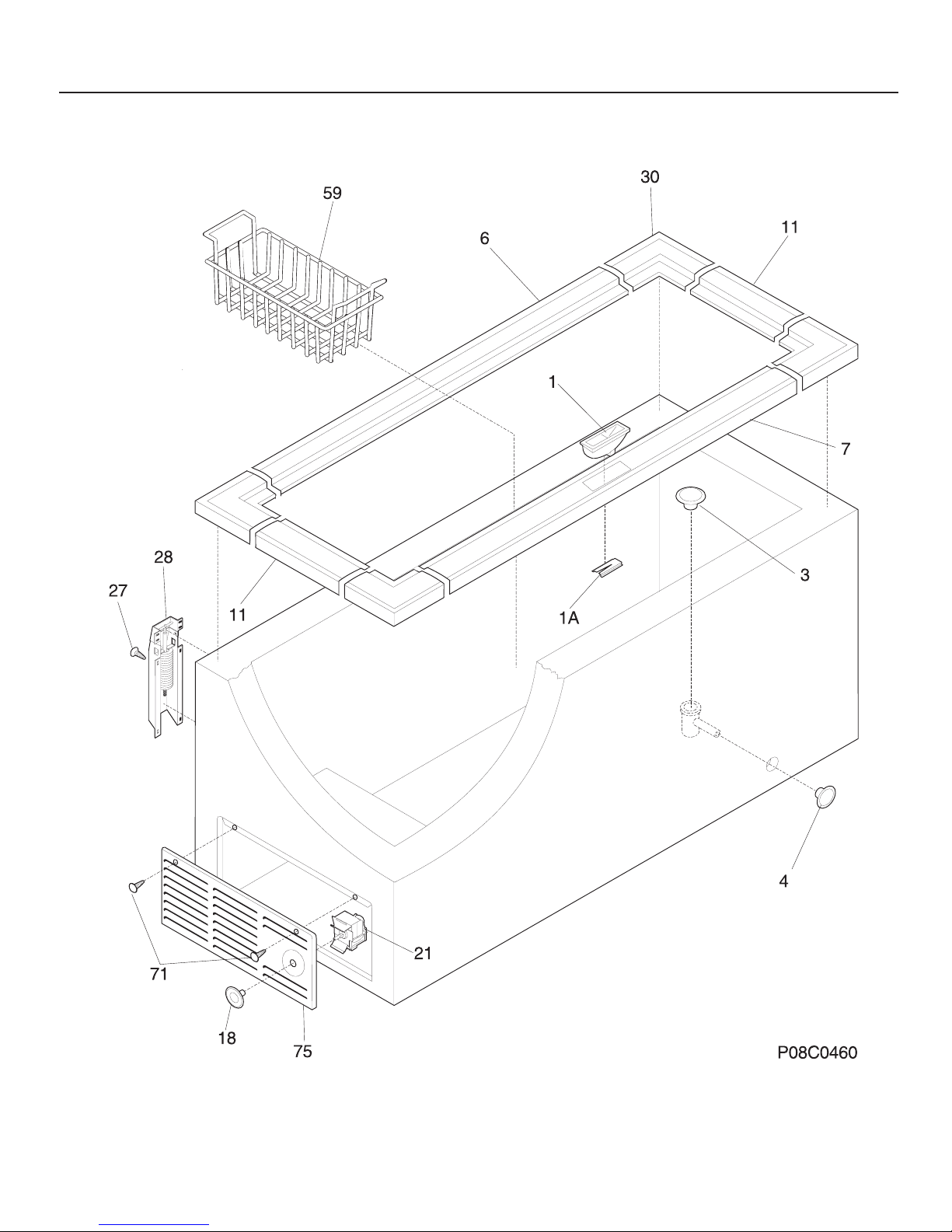

1 5303208488 A B Latch-door

1A 216080800 A B Support,lock

3 216502600 A B Plug-drain,interior ,interior

4 216073905 A B Plug-drain,exterior

6 216110900 A - Breaker

6 216111000 - B Breaker,hinge side

7 216111500 A - Breaker,lock side

7 216111600 - B Breaker,lock side

11 216110800 A B Breaker,white ,ends

18 216707200 A B Knob-control cold

21 # 216714600 A B Control-temperature

27 216629600 A B Screw-hinge

28 216039600 A - Hinge

28 216035200 - B Hinge

30 216110700 A B Breaker,white ,corners

59 216080300 A B Basket

71 5303302714 A B Screw,8-18x3/4 ,(2)

75 216034301 A B Panel-access,white

* 216802800 A B Owners guide

* 5303305324 A B Paint,touch-up ,white

CABINET

10/01

Publication No FFC13/15C2AW0

5995357117

SYSTEM

# = Fast-moving Parts 7 10/01

* = Non-Illustrated Parts

FFC13/15C2AW0 Publication No.

5995357117

SYSTEM

A = FFC13C2A (FFC13C2AW0)

B = FFC15C2A (FFC15C2AW0)

POS. NO PART NO DESCRIPTION

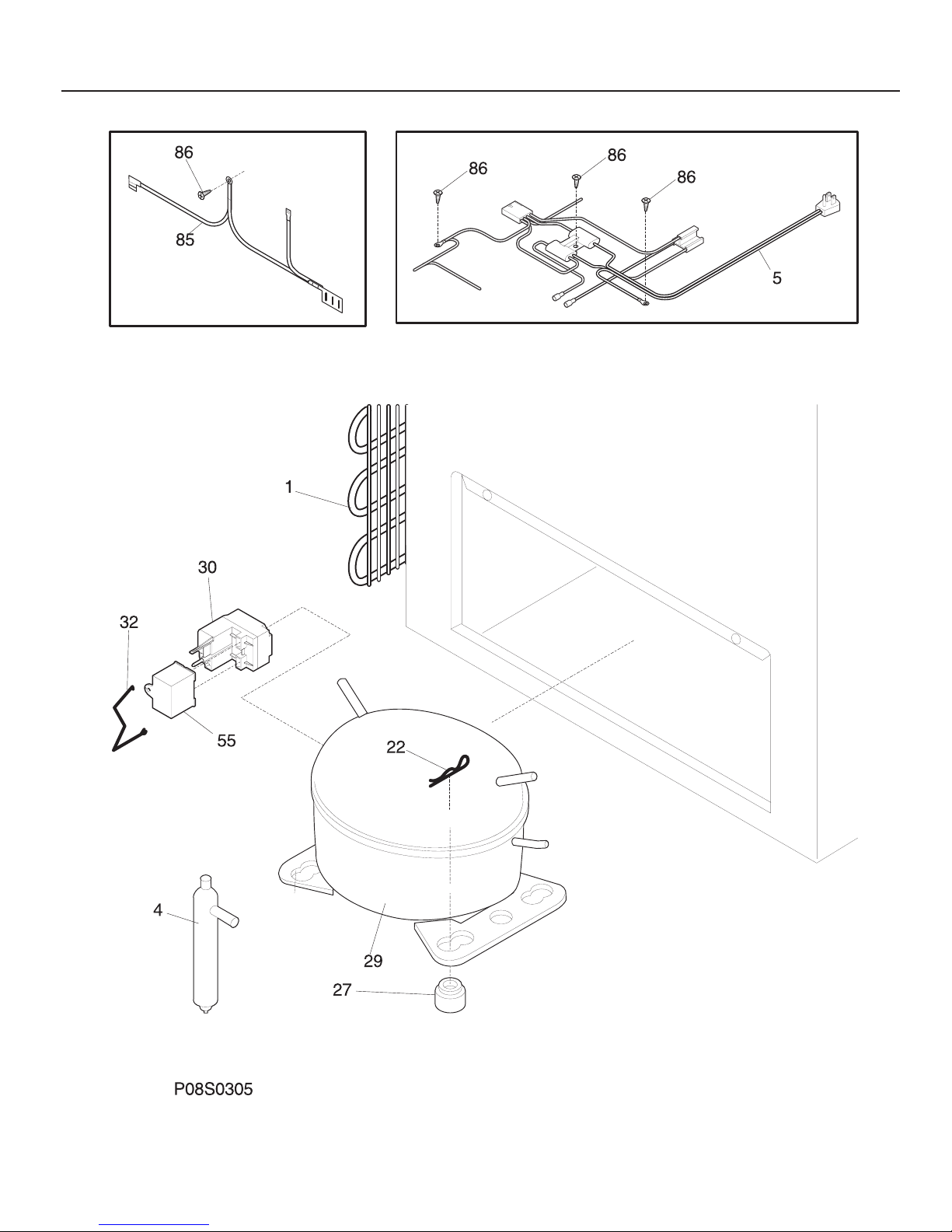

1 # 5303925238 A B Condenser

4 216634500 A B Drier-filter

5 216551800 A B Harness,electrical

22 216056400 A B Clip-spring mtg

27 5308002681 A B Grommet,compressor

29 # 216784300 A B Compressor,w/o electricals

30 216649313 A B Controller

32 216649200 A B Clip,controller

55 # 216787800 A B Capacitor-run

85 216533500 A B Wire,ground

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

* 5303212614 A B Clip-harness

* 5303212615 A B Support-compressor
