Frigidaire FFU17FC3AW Manuale utente

FREEZER

Model number

FFU17FC3AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803700

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803700

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17FC3AW0 FFU17FC3AW 134A white 115

MARKET

North America

Publication No.

5995355962

010713

-EN/SERVICE /S

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

07/01 2

Publication No. FFU17FC3AW

5995355962

DOOR

# = Fast-moving Parts 3 07/01

* = Non-Illustrated Parts

FFU17FC3AW Publication No.

5995355962

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216527806 Panel-inner door,white

11 216526501 Panel-outer door,white

12 216816901 Nameplate

12A 216817100 Nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216523102 Rack-shelf,wide ,white

32 5309950074 Valve-breather

64 216403700 Plug-button,base door

93 5303161215 Screw

07/01 4

Publication No. FFU17FC3AW

5995355962

CABINET

# = Fast-moving Parts 5 07/01

* = Non-Illustrated Parts

FFU17FC3AW Publication No.

5995355962

CABINET

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 216787000 Motor-fan

18 216707200 Knob-control cold

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 216715200 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737100 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

34 216557600 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216458400 Shelf,14.50x27.88 ,WH

42A 216458200 Shelf,12.50x27.88 ,white

47 216661600 Baffle-plate

49 216278900 Trivet

50 216394000 Bracket-motor mtg fan

63 216396900 Foot-adjustable

71A 216347500 Screw,quadrex

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 216802800 Owners guide

07/01 6

Publication No. FFU17FC3AW

5995355962

SYSTEM

# = Fast-moving Parts 7 07/01

* = Non-Illustrated Parts

FFU17FC3AW Publication No.

5995355962

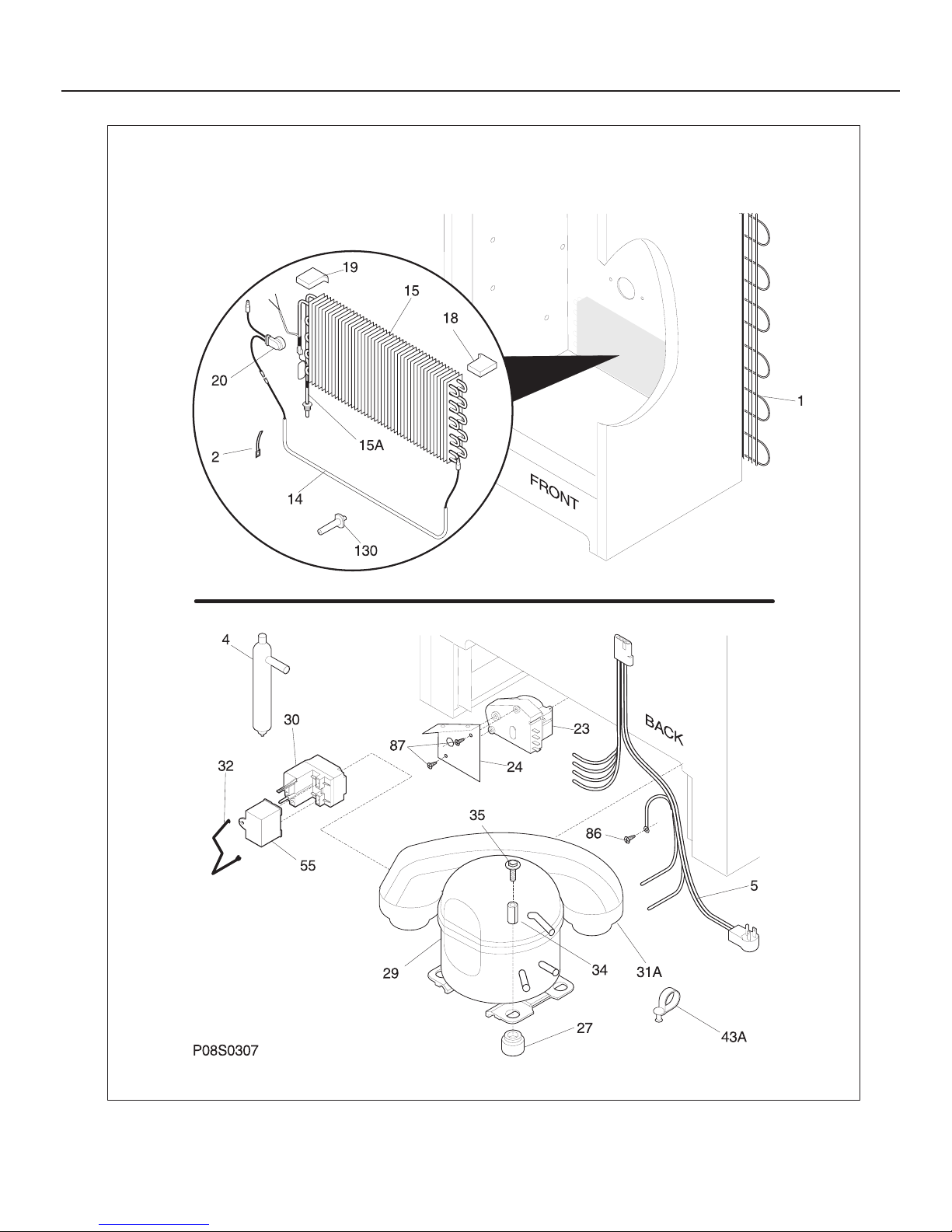

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216793500 Harness-ext,main

14 216730700 Heater-defrost

15 # 216737300 Evaporator

15A 216783200 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 216498900 Grommet,compressor

29 # 216788400 Compressor,w/o electricals

30 216649311 Controller

31A 216816400 Pan-drain

32 218740800 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

43A 216629700 Clip-harness

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

* 216502500 Sleeve-tube insert

* 216511900 Spacer tube,(3)
