Frigidaire GLFC2528F Manuale utente

P08F0060.eps P08D0511.eps P08C0960.eps P08S0361.eps

Product No. GLFC2528FW3

Series Gallery

Color white

Volts 115

Wiring Diagram 216901200

Owner's Guide 297079200

Market North America

Energy Guide 216794608

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995477873

06/10/31

(EN/SERVICE/MLR)

365

FREEZER CHEST

Model No.

GLFC2528FW

Publication No: 5995477873 GLFC2528FW3

10/06 2

DOOR

22A

P08D0511

GLFC2528FW3 Publication No: 5995477873

# Functional Parts 3 10/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216469301 Gasket-door, white

2 297090100 Lock Assy

2A 297090900 Clip, SPRING

5 # 216702900 Key, lock

9 216912900 Panel-lid, white

10 216923001 Plug button, 1/4", white

11 216032422 Lid, white

* 216858000 Screw, TH#8-18x.500AB, #10

14 216822900 Switch, light/lamp, ramp

15 297048600 Light Bulb/Lamp, short

16 216817600 Socket, light/lamp, 25 W

18 216897600 Handle, white

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

34 297013900 Shield, light

40 216922700 Fastener, .330 dia stud, handle, (2)

47 # 216889600 Harness-lid

57 216899512 Overlay, decorative

79 # 216898700 Control Board, electronic

79* 216905300 Screw, control board, #3-24 x .25, (2)

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995477873 GLFC2528FW3

10/06 4

CABINET

173C

173A

173D

173B

P08C0960

GLFC2528FW3 Publication No: 5995477873

# Functional Parts 5 10/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 216954500 Catch-lock

3 216502600 Plug, drain, interior

4 297013600 Plug, drain, exterior

6 216955517 Breaker-hinge side, white

7 297129500 Breaker, lock side, w/lock catch

11 216955500 Breaker, chest end, (2)

18 216707200 Knob, temp control

21 # 216844500 Control-temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216035400 Hinge

30 216110700 Breaker, corners

59 216916203 Basket, blue, upper, (3)

71 131420300 Screw, cr truss head, 8-18AB x 0.750

74 216486700 Support, divider, (4)

75 216034301 Panel, access, white

173A 297063000 Divider, chest, step

173B 297063100 Divider, small chest, (2)

173C 297063301 Divider

173D 297073100 Divider, Divider End

* 216794608 Energy Guide

* 5303321319 Paint, touch-up, white

Publication No: 5995477873 GLFC2528FW3

10/06 6

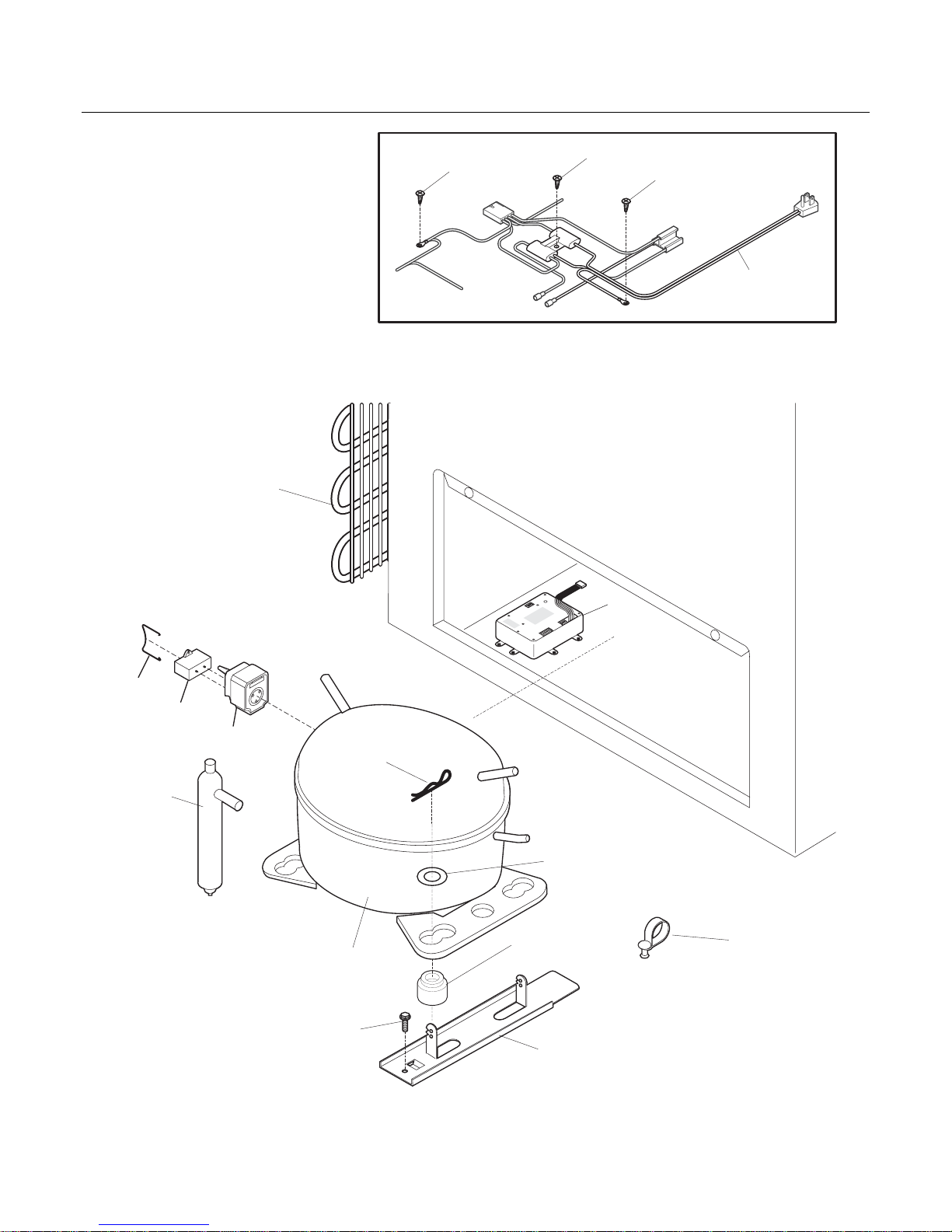

SYSTEM

43A

P08S0361

86 86

GLFC2528FW3 Publication No: 5995477873

# Functional Parts 7 10/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300300173 Condenser

4 # 216938600 Drier-filter

5 # 297016000 Harness-main

5 *# 297015700 Harness, low voltage-, w/thermistor

* 216890100 Thermistor

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216967000 Compressor, w/o electricals

30 216954203 Controller

32 216649100 Clamp, elec cont mtg, compressor

42 216232700 Washer, flat, 1"OD x 0.531"ID

43A 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

78 216893100 Assy-High Voltage

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 297102800 Spacer-tube
