Frigidaire FFU14M8HW0 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14M8HW0 FFU14M8H 134A white 115

MARKET

North America

Publication No.

5995320750

990409

-EN/SERVICE /GS

365

FREEZER

Model No.

FFU14M8HW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216576600

OWNER’S GUIDE - # 216657700

SERVICE DATA SHEET - # 216576600

101 Masters Blvd.

Anderson, SC 29624

04/99 2

Publication No. FFU14M8HW0

5995320750

DOOR

# = Fast-moving Parts 3 04/99

* = Non-Illustrated Parts

FFU14M8HW0 Publication No.

5995320750

DOOR

POS. NO PART NO DESCRIPTION

1 216522306 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216388700 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527613 Panel-inner door,frzr

11 5303925466 Panel-outer door,white

12 216373000 Frame-nameplate

12A 316095402 Label-nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

25 216022800 Screw,washer head ,8-18 X 1/2

26 216524300 Gasket,secondary

27 5303212828 Clip,panel

28 216523302 Rack-shelf

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,base door

93 5303161215 Screw

* 5303296404 Clip-handle base

* 5303925098 Insulation

04/99 4

Publication No. FFU14M8HW0

5995320750

CABINET

27 28

132

P08C0216

# = Fast-moving Parts 5 04/99

* = Non-Illustrated Parts

FFU14M8HW0 Publication No.

5995320750

POS. NO PART NO DESCRIPTION

2 216269500 Adapter-drain

3 216502600 Plug-drain,exterior

6 216604300 Breaker Kit w/corners

7 216603800 Breaker Kit w/corners,lock catch

9 216603400 Breaker Kit w/corners,28" ,top or bottom

14 216472300 Switch-light plunger

15 216222700 Light Bulb/Lamp

16 5300136117 Socket-light/lamp

18 216591802 Knob,temp control

20 5303288184 Cover-control housing

21 216620200 Control-temperature

22 08037931 Clamp,cap tube ,cold control

23 5308002706 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216557500 Shield-light

35 216273000 Clip,drain hose

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

44 # 5303017178 Switch-rocker

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

62 131420300 Screw,cr truss head ,8-18AB x 0.750

63 216396900 Foot-adjustable

64 08016369 Bracket

65 216447600 Drop front

66 # 08016367 Buzzer,alarm

72 216591212 Grille/Kickplate

81 216571000 Support-drop front,top

83 216571100 Support-drop front,btm

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

96 08016772 Light-signal,red

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216539100 Wiring Harness,alarm

* 5303305324 Paint,touch-up ,white

CABINET

04/99 6

Publication No. FFU14M8HW0

5995320750

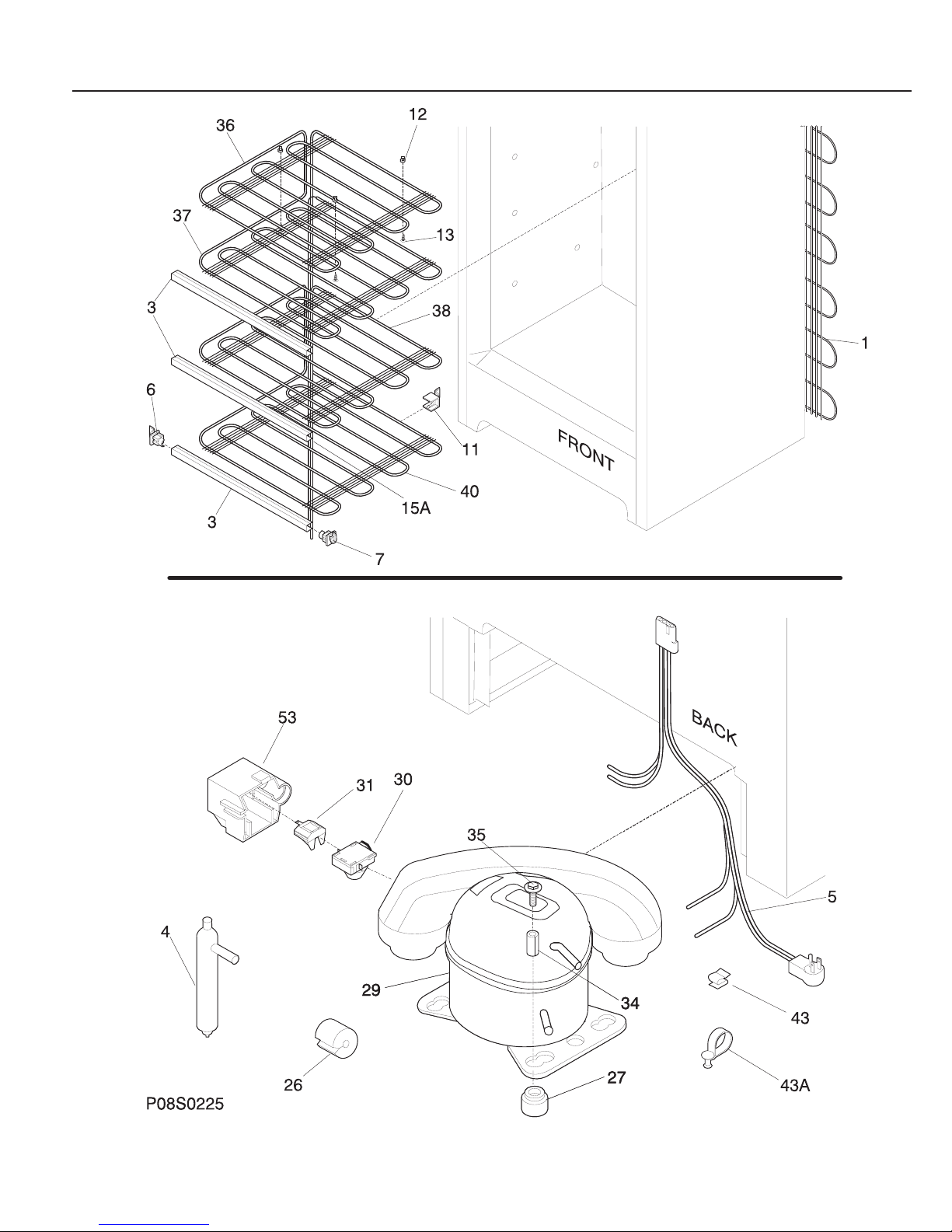

SYSTEM

# = Fast-moving Parts 7 04/99

* = Non-Illustrated Parts

FFU14M8HW0 Publication No.

5995320750

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

3 216605600 Trim-shelf,white ,evap

4 # 216634500 Drier-filter

5 # 216609300 Harness-main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

26 216511900 Spacer tube,(3)

27 216498900 Grommet,compressor

29 # 5303925450 Compressor,w/drain pan

30 216596700 Starter,factory instal

31 216100116 Overload Protector,factory instal

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070100 Grid-top evaporator

37 # 216070200 Shelf-top evaporator

38 # 216070300 Shelf-middle evaporator

40 # 216070400 Shelf-bottom evaporator

43 09950610 Clip,cord

43A 216629700 Clip-harness

53 216347800 Cover,compressor
